ADAYO Lighting OEM downlight led 6w for home, supply led ceiling spot lights 6000k and modern ceiling lights for living room with CE certificate

Sofia A ip65 led downlights 6500K 6W No-Dim kitchen ceiling spotlights

Sofia A G3 DIY downlight as a kitchen ceiling recessed spotlights IP65 from front and brush nickel bezel changeable, 6w downlight round and square bezel optional, RA>80 with new ERP

Product Specification:
  • Code:926602005732 :
  • Wattage : 6W
  • Luminous : 570lm
  • Colour Temperature : 6500K
  • Colour Rendering : >80
  • Size:Φ87*47mm, cut Φ68mm :
  • PF : >0.5
  • Dimmable : No
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download

ADAYO Lighting Led Spot Downlight Manufacturer supply 600LM 230V IP65 Waterproof for Bathroom Ceiling 6W cool White 6500K downlight for Living Room Bedroom Kitchen, Open Hole Size68-70mm

led ceiling spot lights





About this item



[IP65 PROOF FROM FRONT]

The  ip65 led downlights is IP65 proof from front, there are PE mat on the back of the ring to make IP65 waterproof from the lamp and the ceiling.



[PROTECT YOUR EYES RA>80]

The  ip65 led downlights is designed with the highest quality standards. The matte lampshade softens the light to minimize glare. Use brand led light source SMD 2835, 6500K  color temperature to reduce eye fatigue, while its high color rendering index (CRI> 80RA) preserves true colors. Each light is equipped with a c onstant current chip, which prevents the LED light from being affected by voltage fluctuations, therefore no flicker will occur, and this protects the eyes. Adayo lighting also supports spot led dimmable custom.



[EASY TO INSTALL TOOLING FREEE DESIGN]

This round flush ceiling light tooling free design, The integrated design can be directly connected to a voltage of 220V~240V without a transformer, and the installation with side springs effectively prevents leakage between the lamp and the ceiling. Only one mounting hole with a diameter of 68-70 mm and a cavity depth of 48 mm is required. Make sure the ceiling has proper depth. Keep the ceiling level around the hole or disconnect power before installation.



[NEW ERP STANDER ENERGY SAVING LIGHTS]

This 6W external downlight saves over 90% on electricity cost compared to a same brightness halogen bulb. Its service life is estimated at 25,000 hours; with 7 hours of daily use, it can work normally for 10 years. The 100° wide beam angle illuminates a wider area.



[SAFE AND RELIABLE QUALITY]

Adayo downlight led 6w have been approved by RoHS/CE/ERP certification. Design integration can prevent leakage of electricity. Adayo lighting uses high-quality flame-retardant material; fire resistance index is "V0", rust prevention, discoloration prevention, scratch resistance and fast heat dissipation. ADAYO lighting led ceiling spot lights has a short circuit and overheat protection to ensure safety during use.



[ELEGANT DECORATION]

ADAYO  kitchen ceiling recessed spotlights with colors bezel changable design.It is suitable for most work and living places like living room, bedroom, front door, kitchen, dining room, gallery, supermarket, shop, hall, etc.



[AFTER-SALES SERVICE]

ADAYO Lighting promise to provide you with 3 years warranty and liftime after-sales service of this external downlight. If you encounter any problems or questions during use, please feel free to contact us, we will try our best to solve them within 24 hours.

led ceiling spot lights



led ceiling spot lights



Specification:

round flush ceiling light

 External downlight specification



Item Name: DIY G3 downlight  Sofia-A 6500K Input Voltage(V):                 220-240v ~50/60Hz Max.0.055A
Watt (W): 6W Lumen(lm): 570lm
Code :                 926602005732  CRI (Ra>): >80
Certification: CE, Rohs, ERP                    IP Rating: IP65
Life span: 25000Hrs Beam angle: 100°
Warranty: 3Years CCT: 6500K
Installation:                               Recessed  spotlight                                 Bezel: Brushed nickel; Chrome; Silver; Black
Driver:  Built-in power supply Light source:  SMD2835





Features:

  1. The smooth housing ensures uniform heat dissipation, and the mini junction box is easy to install and easy to carry.
  2. A variety of color bezels are available, stylish and atmospheric, which can perfectly match the ceiling.
  3. Integral spring fixture retention clamps are strong and flexible and can bend up to 150 degrees making it much easier to install and mount on the ceiling.
  4. Foam Gasket Ring provides good grip with ceiling. Virtually no UV or IR radiation.
  5. Solid-state construction for high shock and vibration resistance. Suitable for damp locations and Type CE Rated – this light is perfect fit for installation in slopes and locations with less ceiling clearance.



round flush ceiling light





Product Details

  1. This round flush ceiling light is screw free design, 2pin loop in and loop out.
  2. This external downlight IP65 can be used in wet application.

round flush ceiling light

Application:

ADAYO lighting round flush ceiling light 6500k 6w external downlight IP65 from front and brush nickel bezel changeable, 6w downlight round  and square bezel optional, RA>80 with new ERP application as below:

This led spotlight custom save more than 90% of power consumption without losing any brightness.

LED becomes the most popular light source all over the world. This ceiling light made of high quality metal materials, safe and long lifespan.

Perfect for living room, hall, office, store, super market, hotel residence, restaurant, hotel, hall, show room, shop window, assembly room, factory, etc.

round flush ceiling light





Installation Tips:

Sofia A G3 DIY downlight as a kitchen ceiling recessed spotlights IP65 from front and brush nickel bezel changeable, 6w downlight round  and square bezel optional, RA>80 with new ERP is very easy intallation:

1. Make sure power is off before installation.
2. Cut a suitable hole in the ceiling , the hole size will show on the specification form.

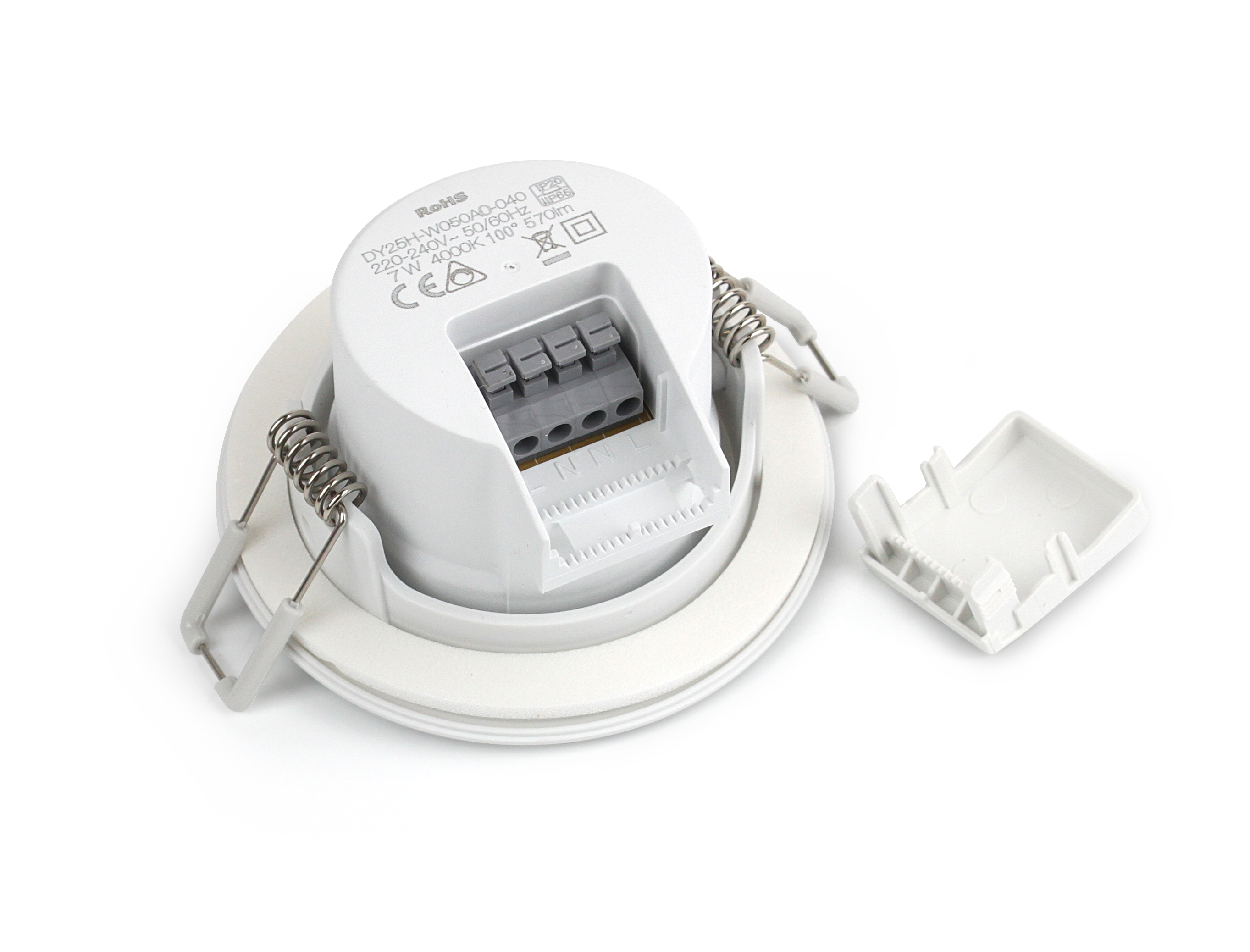

3. Connect wires to the wire box .(image a)
4. Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted
well to illuminate angle). After proper installation is confirmed, switch on the main power.



round flush ceiling light



Package Includes:

  • 1 *  round flush ceiling light
  • 1 * Manual
