Waterproof is an important function in the LED light. And how to achieve waterproof are as following:
1. Structural waterproof
Based on the structure of the waterproof design of the lamps, need to closely with the silicone seal waterproof, housing structure is more sophisticated and complex, usually applicable to the size of the larger lamps, such as strip floodlights, square and round floodlights and other medium and high-power lamps and lanterns.

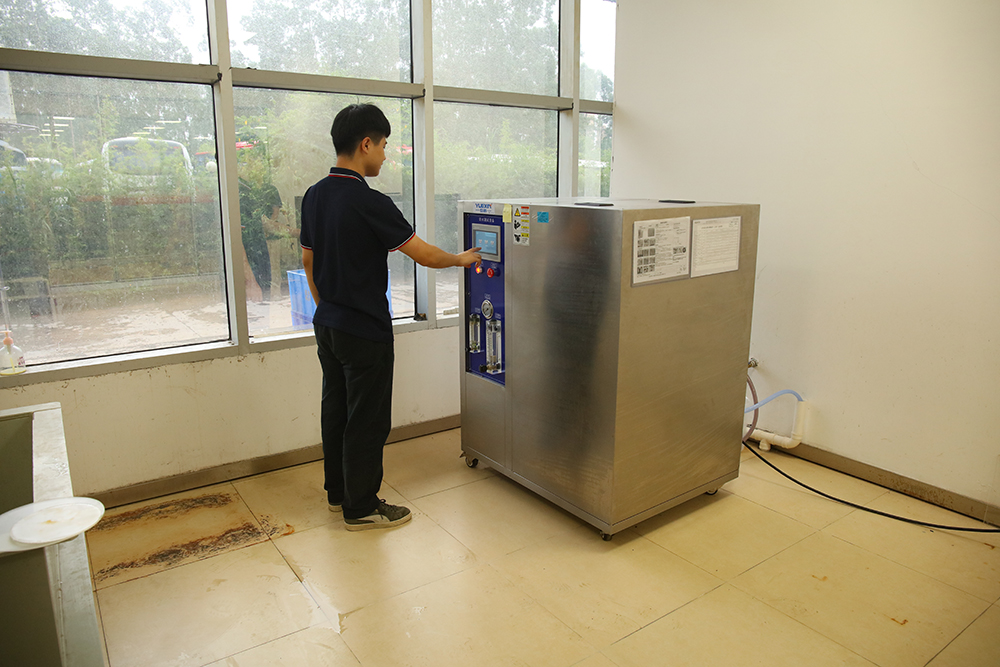

The structure of waterproof lamps only do pure mechanical structure assembly, the use of simple tools, assembly processes and processes less, the total assembly cycle is short, the production line rework convenient and fast. The lights can be packed and shipped after passing the electrical performance and waterproof test, which is suitable for projects with short delivery period.
But the structure of the waterproof design of the lamp machining requirements are high, the size of the components must be precision fit. Only the appropriate materials and construction to ensure its waterproof performance, the design points are as below:
The long-term stability of the lamp structure waterproof is closely related to its design, the performance of the selected lamp material, processing accuracy, assembly technology, etc. If the weak link deformation and water seepage, LED and electronic devices will cause irreversible damage, and this situation in the factory inspection process is difficult to predict, with sudden. Therefore, to improve the reliability of structural waterproof lamps, it is necessary to continue to improve waterproof technology.
2. Material waterproof
Material waterproof design of lamps, the use of filling potting glue to insulate waterproof. The use of sealant bonding to close the joints between structural parts, so that electrical parts completely airtight, to achieve the role of outdoor lamps waterproof.
3. Potting glue
With the development of waterproof material technology, various types and brands of special potting adhesives for lamps have emerged, for example, modified epoxy resin, modified polyurethane resin, modified organic silicone, etc. The chemical formulations are different, and the physical and chemical performance indicators such as elasticity, molecular structure stability, adhesion, UV resistance, heat resistance, low temperature resistance,
hydrophobic properties and insulation performance of potting adhesives are different.
4. Sealing adhesive
Sealant is usually packaged in tubes, suitable for glue construction, generally used for bonding and sealing of wire ends and indirect joints of shell structural parts. Commonly used one-component formula, reaction with air water vapor at room temperature, natural solidification.
Certain types of potting and sealing adhesives decompose a small amount of chemical liquid or gas during the solidification process. Such as the damage to the lamp beads phosphor by the decomposition of the colloid next to the lamp beads, resulting in color temperature drift or infringement of the LED chip, or decomposition of the chemical reaction with the transparent PC plastic, the destruction of the PC structure, and so on. This is a potential hazard in colloid applications and must be designed with full knowledge of its chemical and physical properties from the colloid manufacturer and tested for verification.
The sealant is most affected by thermal expansion and contraction in the bonding and sealing of the lamps shell structure, especially in large lamps, where the coefficient of linear expansion of different materials varies greatly, and thermal expansion and contraction is constantly pulled, and cracks are very likely to appear. Therefore, the water resistance of the material waterproof design mainly depends on the circuit board potting.
The production process of material waterproofing is long, 1 gluing solidification cycle takes 24 h, some product design is more complex, and even requires 2 to 3 gluing cycle, resulting in a long shipping cycle, a large number of occupied production sites, and the production environment is dirty. It is troublesome to return the product after the gel solidifies.
Material waterproof lamps structure design does not need to be too precise, as long as the design set aside the gel potting area, the liquid does not leak out, its waterproof performance is intuitive. Therefore, the material waterproofing process is more suitable for small outdoor lamps, indoor moisture-proof lamps and lanterns.
Whether structural waterproofing or material waterproofing, for the long-term work of outdoor lamps and lanterns stable, low failure rate needs, a single waterproof design is difficult to achieve a very high reliability, the potential hidden danger of water seepage still exists.
Therefore, the design of high-end outdoor LED lamps, will be flexible use of waterproof technology, the advantages of the structure of waterproof and material waterproof technology to combine the strengths and weaknesses to ensure long-term stable operation of the LED circuit. Such as material waterproof design and structure waterproof design double waterproof protection, improve the long-term use of outdoor lamps and lanterns stability, reduce the rate of failure by moisture.

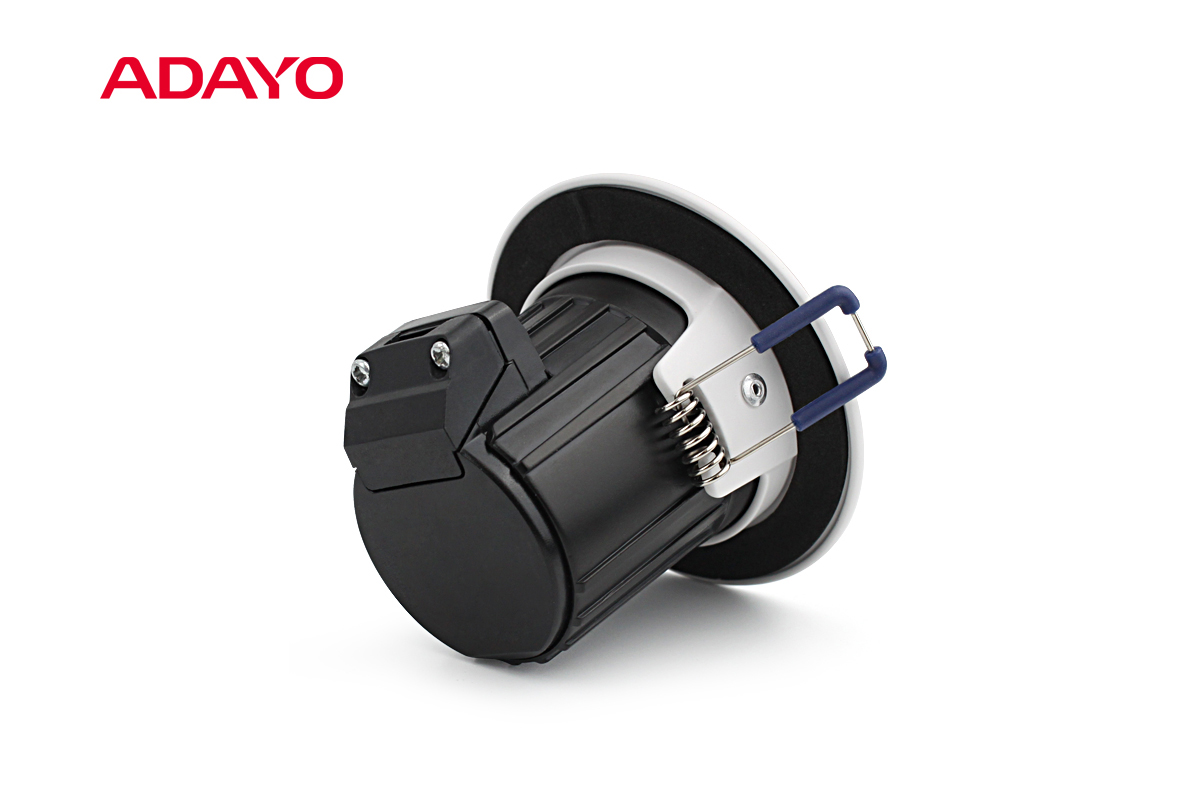

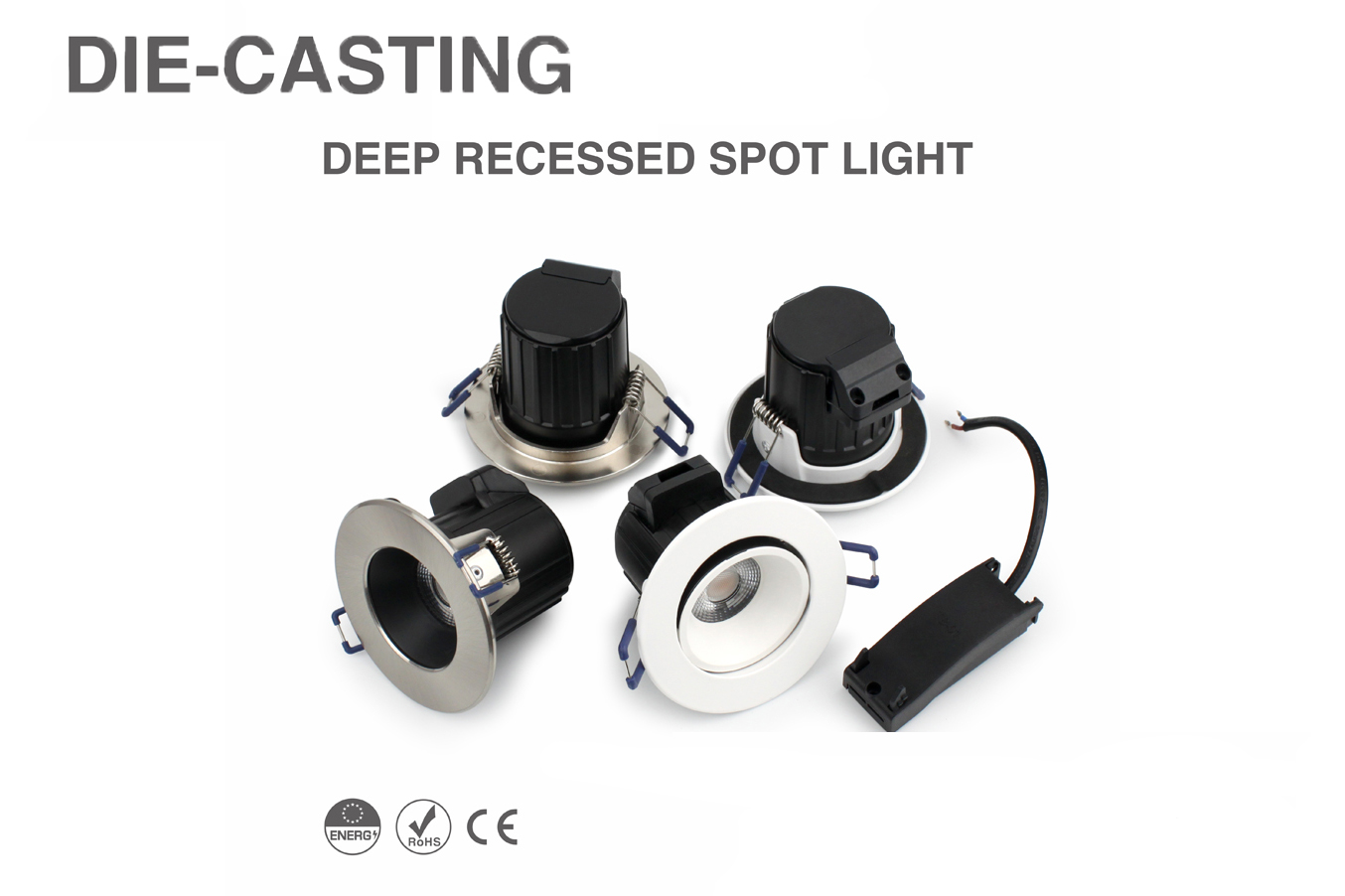

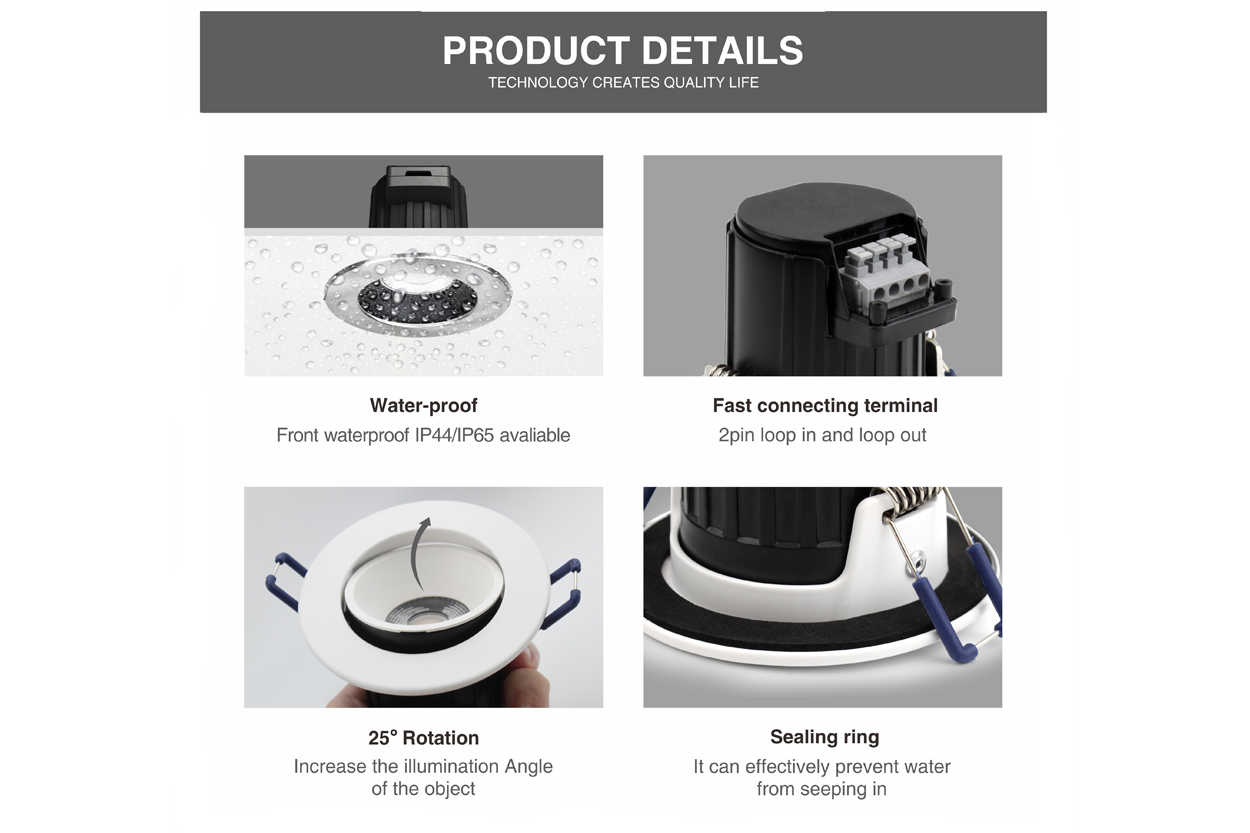

ADAYO lighting IP rated downlights wholesale with 9W 700lm, tooling free installation is front waterproof IP65, which can be used in wet places, such as bathroom or outdoor.
As a bathroom light IP65 manufacturer, ADAYO lighting is committed to becoming the customer's R&D department and manufacturing department, providing customers with high-quality products and services, and creating value for customers. Save costs while ensuring high quality, and achieve mutual benefit and win-win results.
