Insulation withstand voltage test is one of the tests in the safety test, this tester mainly assesses the insulation withstand voltage tester to test the insulation strength of various insulating materials under high voltage of industrial frequency or DC, which is suitable for identification verification, material or supplier change and design change, etc.
ADAYO lighting, flush mount lighting custom and led lamp spot wholesale, flush mount lighting and its material insulation voltage test should be conducted in the laboratory temperature 15~35℃, humidity 35~70%HR, atmospheric pressure 86kpa~106kpa, specific experimental steps are as follows:
1. Turn on the power.
2. Set the relevant test parameters in EDIT mode.
Parameter setting method: press EDIT/SAVE button, when the display shows "EDIT" before setting, test items (ACW or IR), creepage time (IR is not set), test time, maximum leakage current (IR is the maximum insulation resistance), minimum leakage current (minimum insulation resistance), test voltage, after setting, then press EDIT/SAVE button (save settings).
3. Clip the product to be tested.
4. Press the START button to perform the test.
5. After the completion of the test to confirm the test results, (PASS green light, said for the test product OK, FAiL red light, and alarm sound indicates that the test product has abnormal).
6. Test completed by pressing the STOP button to turn off the power.
In ADAYO lighting, flush mount lighting custom and led lamp spot wholesale, LED lush mount lighting and its material insulation withstand voltage test, the following matters should be noted:
1. When testing, the product, equipment and people must be on the insulating rubber mat to prevent high voltage injuries.
2. Each test is completed, press the STOP button before taking the product to prevent electric shock.
3. Plastic shell products need to be wrapped tin thin paper test, tin thin paper can not touch the lamp head. (to avoid flashover of the edge of the insulator)

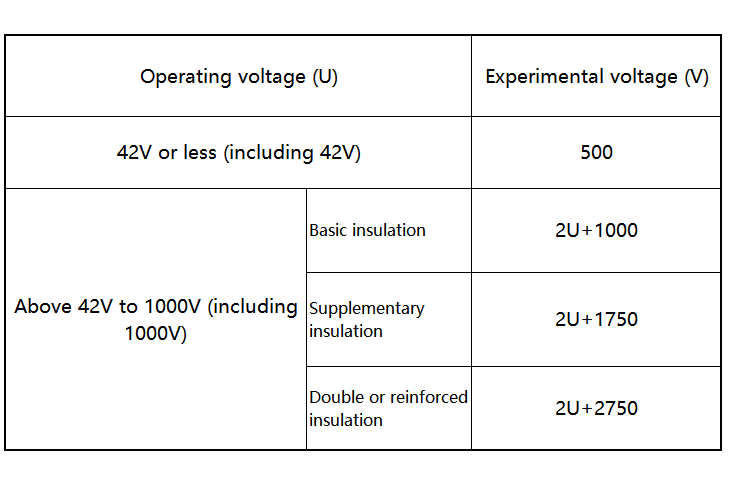

4. Class II lighting voltage test voltage is 4U + 2000V, U is the upper limit of the rated input voltage, leakage current setting value of 100mA, the test should not occur when the flash or breakdown phenomenon.
5. Class II lamps and lanterns insulation resistance, 500V DC voltage after 1min test, the minimum insulation resistance of 4MΩ.
6. Outdoor power supply test: withstand voltage test time 60s, leakage current 10mA.
Insulation test time 60s, insulation resistance of not less than 4MΩ, input to output, input to ground, output to ground, set voltage are: DC500V.

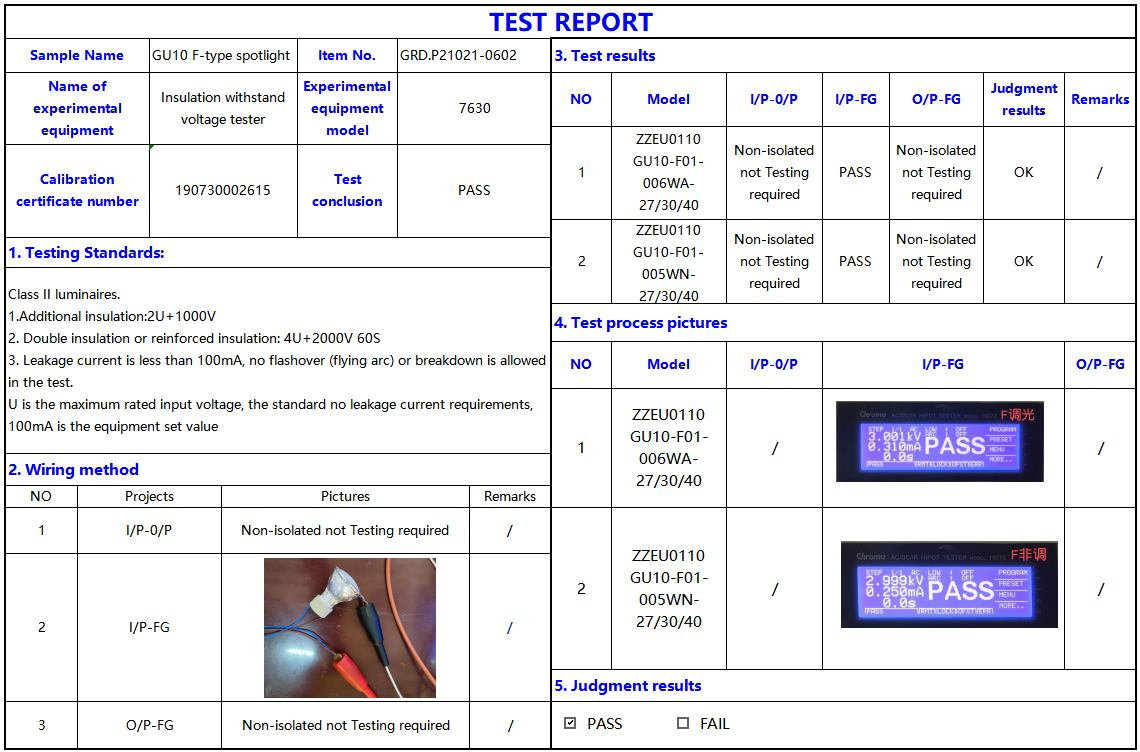

ADAYO lighting, flush mount lighting custom and led lamp spot wholesale strictly in accordance with GB7000.1 and IEC 60598 regulations for testing, after the completion of the test, if pass green light, said for the test product OK, otherwise FALL red light, and alarm sound indicates that the test product has abnormal.
As flush mount lighting custom and led lamp spot wholesale, ADAYO lighting provide customers with high-quality products and services, and creating value for customers. Both the raw materials for the lamps and the whole flush mount lighting need to pass many tests. Save costs while ensuring high quality, and achieve mutual benefit and win-win results.
