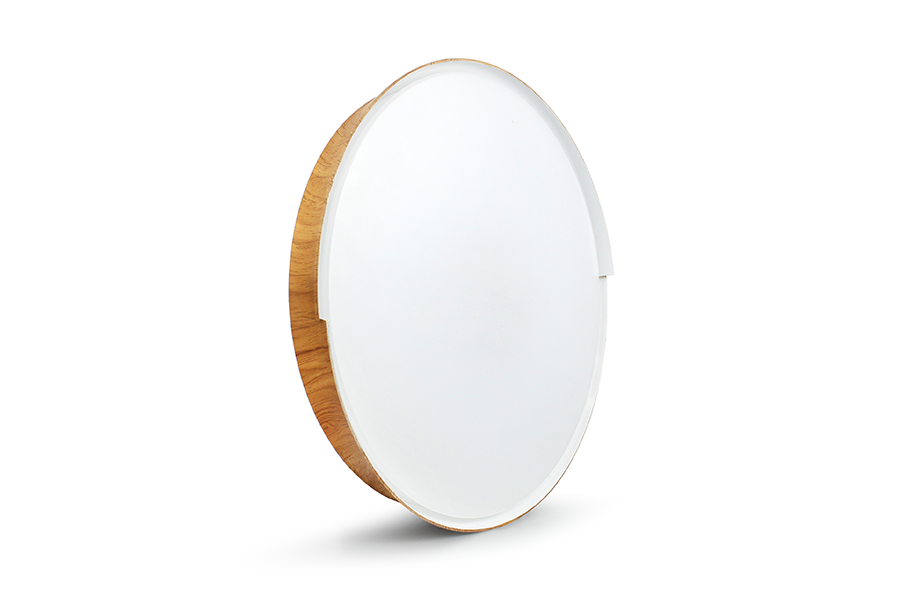

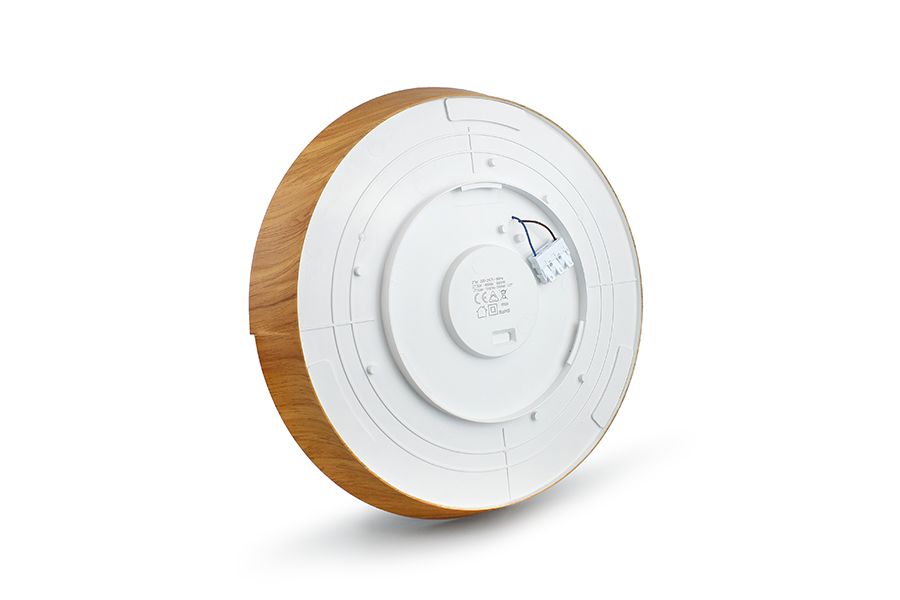

The new 21W RF remote LED light ceiling light ADELINE with wood grain color is lunched this month, the features as below:
1. This dimmable ceiling lights with plastic frame and wood, white and black finishing;
2. The Irregular skirt design with a good appearance;
3. This led surface mount downlight has a beam angle of 110°, no dark spots, softly faded edges;
4. High color rendering index as CIR>90, and high lighting efficiency 90lm/w;
5. RF remote dimming, there are two other versions options: ON/OFF version, Triac dimming+switch CCT version;
6. PMMA diffuser, light transmittance is up to 80%;
7. Switch CCT 2700k-4000k-6500k;
8.CE, RoHs and new ERP certificate;
9.WiFi function is available.
How to operate a remote controlled ceiling light, let me show you the detail :
Specification of remote control
1. Electrical parameters
Operating voltage: 2.7~3.6V, two dry cell size 7 batteries
Operating peak current: 18mA
Standby power consumption: 3uA
Transmitting power: 4.7dBm
Transmitting channels used: 3 channels

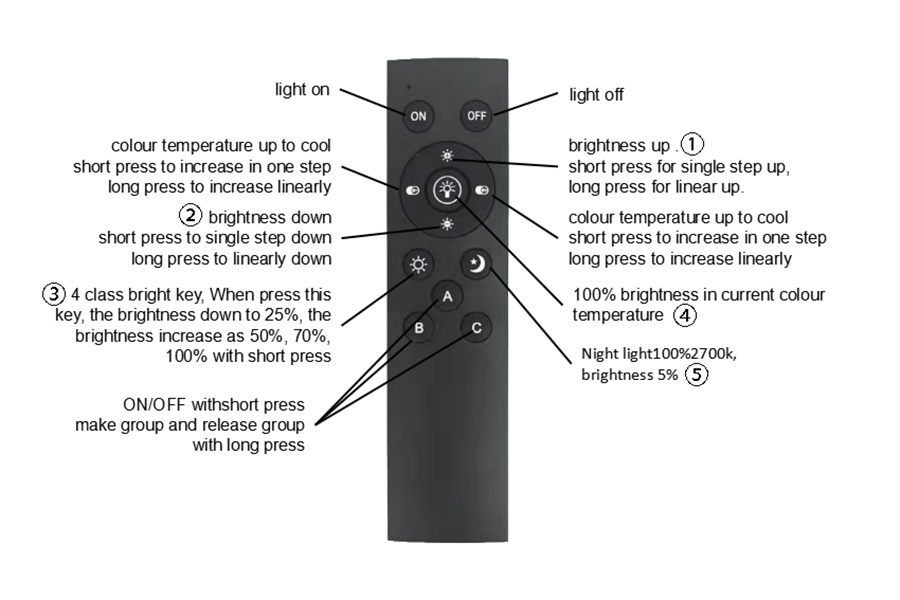

2 Function Description
ON :Light On
OFF: Light off
K+: Adjusts the current colour temperature up, short press to increase in one step, long press to increase linearly
K-: Adjusts the current colour temperature down, short press to single step down, long press to linear down
①: Adjusts the current brightness up, short press for single step up, long press for linear up.
②: Adjusts the current brightness down, short press to single step down, long press to linearly down.
③: 4 class bright key, When press this key, the brightness down to 25%, the brightness increase as 50%, 70%, 100%with short press.
④: 100% brightness in current colour temperature
⑤: Night light100%2700k, brightness 5%
ABC: Three group key, you can make three group of your ceiling light with these keys.
Short Press A B C, the function is ON/OFF, Press long time ABC when it is on, the function is make group and release group
Code matching and grouping:
The remote control requires a code pairing operation with the driver before it can be used, as follows:
After connecting the driver to the load luminaire (light source) and power supply properly, select the lights to be controlled by the group, switch on the power supply
Press and hold the A or B or C key at the moment of power-on (within 3 seconds of seeing the light/light source on) and see
When the light (light source) "blinks slowly for three times", it means that the code and grouping are successful.
1. If there are more lamps, repeat the above steps until all the lamps need to be grouped and match the code successfully.
2. If a common switch is connected to more than one light, and these lights need to be grouped into different groups for control by the remote control
The lamps must be grouped one by one before they can be installed at a fixed point.
Note: The same lamp can only be coded to one group of a remote control.
Clearing and regrouping:
To regroup the ceiling light, you have to clear the previous grouping code as follows:
Select the lamps that need to clear the code, cut off the power for more than 10 seconds and then reconnect the power. Press and hold the A or B or C key at the moment of power-on (within 3 seconds of seeing the lights come on) to see the lights "flash 6 times" and confirm that the code has been cleared. After the code has been cleared successfully, the procedure for regrouping is the same as for the previous "Code matching and grouping" operation.
If you want to get more information about our new ceiling light, please contact us at once!
