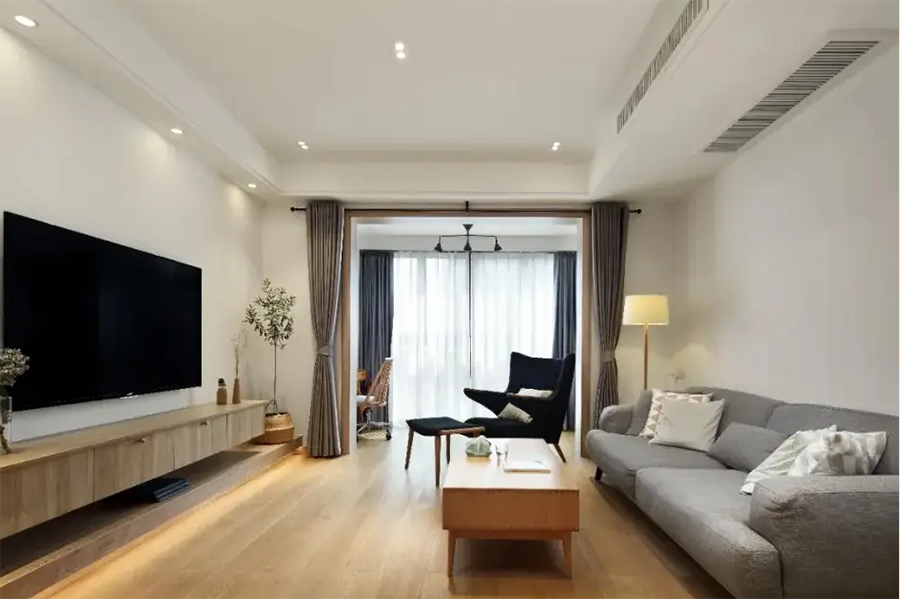

Downlights are generally used as auxiliary lights, which we should know, generally corridors, living room lights place is more common, downlights small shape, can be directly embedded in the ceiling, belongs to a hidden lamps and lanterns, will not occupy too much space.
Recessed downlight installation method.
Recessed downlight mounting structure comprising a front ring, a bracket and a spring plate, characterized in that the locking combination is embedded in the rail groove of the bracket. The lower ends of the two brackets are connected symmetrically to the front ring by means of pull rivets, and the upper ends of the brackets are connected symmetrically to the bracket fixing piece by means of screws. The lower ends of the two brackets are connected symmetrically to the front ring by means of pull rivets, and the upper ends of the brackets are connected symmetrically to the bracket fixing piece by means of screws. The spring piece and the bracket fixed piece are connected symmetrically by screws and stuck to the reflector, the lamp holder frame is connected to the bracket fixed piece by screws, and through the upward adjustment and downward pressure of the locking latch of the locking assembly, the locking assembly slides and locks with the bracket respectively in the rail slot of the bracket.

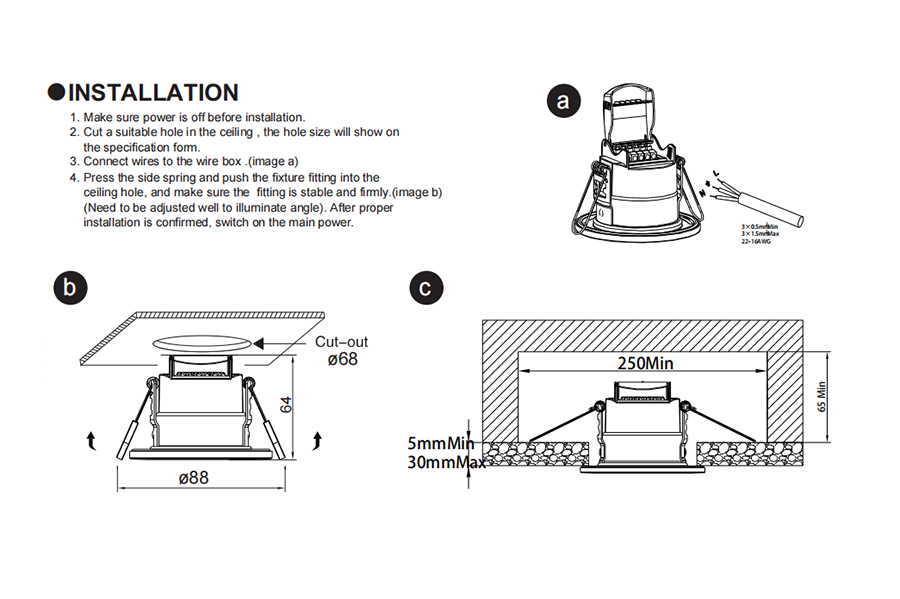

Specific recessed downlight installation method steps can be organized into the following steps.
1. Scribe and drill holes in the ceiling according to the size and installation position of the downlight.
2. Connect the reserved power cord in the ceiling to the downlight.
3. Push the downlight into the ceiling opening.
Downlight installation considerations.
1. Pay attention to check the product. Be sure to check the product thoroughly before installing the downlight to avoid affecting the use.
2. Pay attention to disconnecting the power supply. In order to avoid electric shock during the installation process, before installing the downlight, especially before wiring, be sure to disconnect the power supply. When the wiring is complete, you can turn on the power supply for inspection to ensure that the wiring is intact. Also note that the downlight should not be touched by hand during use, otherwise it will produce safety problems.
3. Pay attention to the installation location. As the downlight in the lighting process, the surface of the lamp will generate a certain amount of heat, so determine the installation position to maintain a certain distance from the wall, so as not to be too close to the wall, the heat emitted makes the wall yellow, reducing the aesthetics of the interior.
4. Confirm the installation quantity. You need to confirm the required number of downlights in advance before opening the installation to avoid any shortage during the installation process.
5. Pay attention to the use of space. Downlight belongs to the indoor lights, generally can not be used outdoors, if because of special circumstances need to be used outdoors, in the installation must do a good job of waterproof work. In addition, for the space where the ceiling is made, it is best to confirm the weight-bearing capacity of the ceiling before installation, in order to ensure safety, the ceiling weight of the installed downlight must be greater than about 10 times the weight of the product itself.
