ADAYO lighting dimmable LED down lights lifespan are 50000hrs, warranty for 5 years and this waterproof rating IP54 LED downlights can be customized

Dimmable LED down lights ELFFEL 15W CCT3 and beam angle 100°

This 15W dimmable LED down lights is paired with deep recessed frame, except for 3 other frames to choose from and this waterproof IP54 LED downlights can be used in wet place

Product Specification:
  • Code : DL10-C60
  • Rated Wattage : 15W
  • Luminous : 1500lm
  • Colour Temperature : CCT3
  • Dimmable : Yes
  • beam angle : 100°
  • Lifespan : 50000hrs
  • Size : Φ175*87mm cutΦ150mm
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download


●  Over view

ADAYO Lighting is a LED downlight manufacturer that supports customizing all kinds of downlights and other home lighting.

This dimmable LED down lights are designed to high quality standards, this down light has a high color rendering index (CRI>80) to retain true colors and it's designed with modules, and there are four combinations in total.


ADAYO waterproof led downlights


●  Product  Description

ADAYO's dimmable LED down lights in this module are suitable for use in commercial, retail, hospitality and residential applications. Our LED downlights offer high lumen output, smooth illumination and high energy efficiency. And this module downlights specifications are as follow:


 Item Name:  Dimmable LED down lights     Code:     DL10-C60
 Watt (W):  15  Lumen(lm):             1500
 Input Voltage(V):       220-240v ~50/60Hz  CRI (Ra>):  80
 Lifespan:  50000hrs  IP Rating:  IP54
 Warranty:  5 years  Beam angle:   100°
 Installation:  Recessed  CCT:  CCT3
 Lamp Body Materia:     AL+PA  Light source:     SMD2835


ADAYO waterproof led downlights


●  Features

PC housing with PC or Alu reflector

Easy Installation, 3 pins loop in and loop out

No Flicking, no black spots, soft edges

Power and color temperature can be adjusted by dial

High luminous efficiency up to 100lm/w

50000hrs lifespan, 5 years warranty


ADAYO waterproof led downlights


●  Options

1. Wattage: 6W, cutΦ90mm/ 9W, cutΦ120mm/ 15W, cutΦ150mm/ 24W, cutΦ200mm.

2. Dimmable: DALI or Traic dimmable.

3. CCT selectable: CCT3.

4. Black, sliver, mirror reflector for option and aluminum reflector can be optional.

5. Frame: Flat recessed frame, Slight recessed frame, Deep recessed frame, Surface-mount frame.


ADAYO waterproof led downlights

ADAYO waterproof led downlights

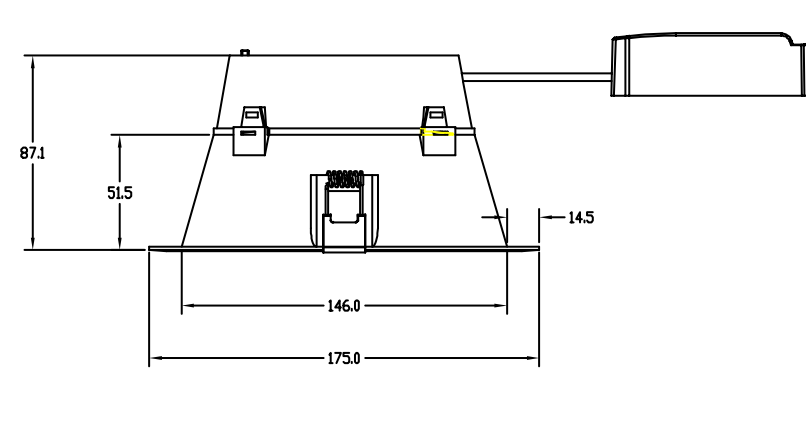

●  Product Line Drawing (Size:mm)


ADAYO waterproof led downlights


● Installation

To avoid electric shock, maintenance and installation are recommended to be performed by a professional electrician.
Please use within the correct input power range.
Please turn off the power before installation to ensure safety.


ADAYO waterproof led downlights


● Application Scenarios

The high lumen, high efficiency make this light ideal for project lighting.

Also available in multiple versions, sizes and wattages to meet different lighting needs for different projects or for the same project, like mall, hall, meeting room, hotel etc.


ADAYO waterproof led downlights


● Brief introduction of ADAYO Lighting

ADAYO was founded in 1993, listed in 2017, the main modes of cooperation are OEM, ODM and SKD. Industrial park area: 560000sqm.

There are three main business line of ADAYO lighting: LED lighting, LED package and LED big power supply;

With R&D laboratory covered 1200m² with international standard;

R&D team more than 60 people, one third of them with more than 20 years of experience in the lighting industry;

Work Shop 5000 SQM with more than 300 works and 50 production lines;
