The two-dimensional image tester is built on the basis of CCD digital image, relying on the computer screen measurement technology and the powerful software capability of spatial geometry operation, mainly used to measure the form tolerance of parts, such as position, concentricity, straightness, contour, roundness and dimensions related to the reference. The secondary element is mainly used for 2D plane inspection of thinner products (such as shrapnel) in led downlight or flush ceiling lights and smaller products or 2D projection inspection of other workpieces, mainly for geometric measurement and image measurement.
Two-dimensional image tester pre-start preparation:
1. Check the equipment power supply and computer power supply to ensure that the power supply is normal.
2. Check that all parts are connected properly.
3. Wipe the two-dimensional image tester work surface, computer, glass surface for two-dimensional image tester, lens and other locations with a dust-free cloth to maintain good 5S (frequency: 1 time/day).
4. Check whether the running tracks of X-axis and Y-axis of the secondary element are lubricated and whether the Z probe is normal.
ADAYO lighting, bathroom ceiling lights manufacturer with flush ceiling lights custom, the two-dimensional image tester equipment operation steps:

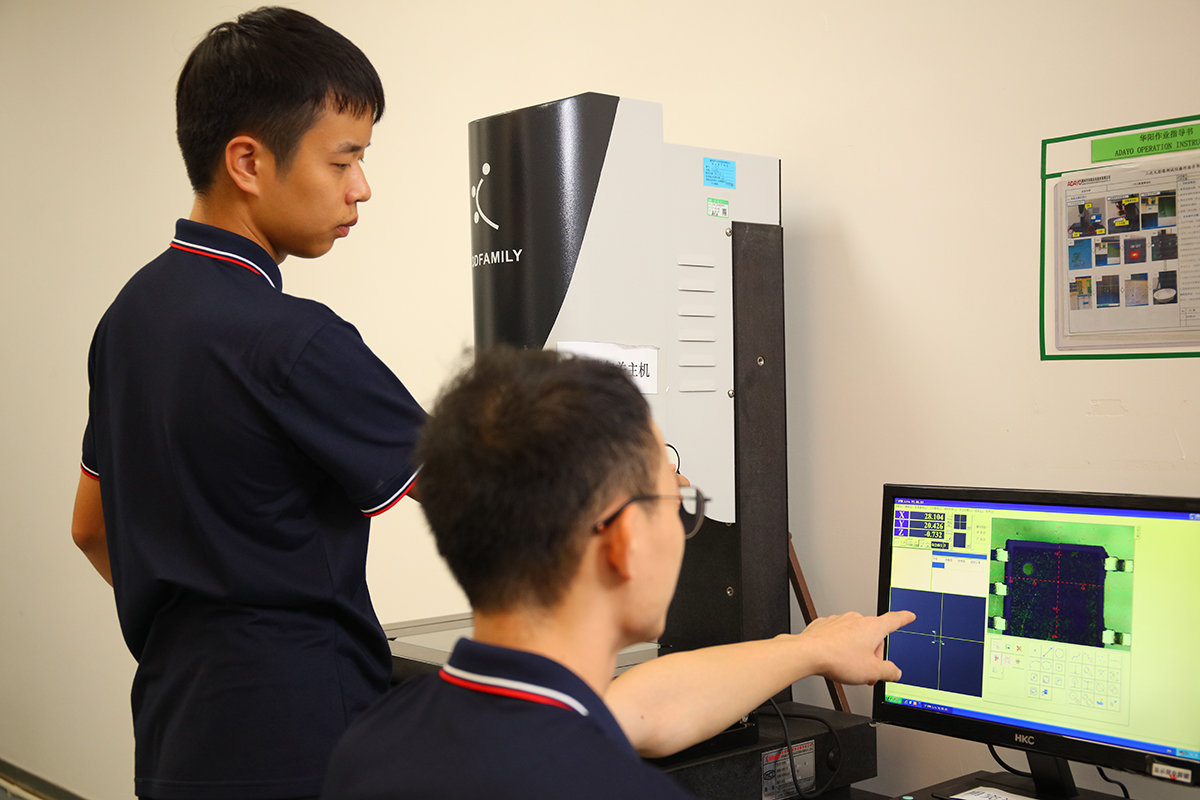

1. Open the computer desktop OVM icon, this icon is the quadratic measurement software.
2. Turn on the light source control switch of the secondary measuring equipment, ON is not on, OFF is off.
3. Choose to turn on the top light or the bottom light according to the needs of the part being measured.
4. Place the product to be measured in the center area of the secondary test glass table: turn the X-axis and Y-axis respectively to move the product, adjust the measuring part to the center of the test screen, adjust the Z-axis, and adjust the display screen to the clearest state.
5. According to the dimensions to be measured, find the required drawing tools in the interface, into: two-point drawing straight line, multi-point drawing straight line, multi-point manual drawing circle, multi-point automatic drawing circle, etc., to draw the graphics to be measured (point, line, circle, angle, etc.).
Special note: In the process of drawing graphics, the focal length needs to be readjusted according to the position and height of the graphics (adjust the Z axis) to keep the interface of the drawing as the clearest state, and take the point position as far as possible to take the regular position, otherwise it will affect the accuracy of the measurement data.
6. After selecting the tool that needs to measure the dimension of the figure, such as straight line distance, straight line to circle distance, circle center to circle center distance, etc., select the measured figure in turn, and click the right mouse button to confirm, and measure the dimension data.
7. Reads the dimensional data of the measured graph and records it with the value retained to the third decimal place.
After the two-dimensional image tester is used, you need to turn off the light source, exit the operation interface, clean the measurement carrier glass table surface, move the X-axis and Y-axis to make the carrier glass table back to the initial position.
As a bathroom ceiling lights manufacturer with flush ceiling lights custom, ADAYO lighting provide customers with high-quality products and services, and creating value for customers. Both the raw materials for the lamps and the whole flush ceiling lights need to pass many tests. Save costs while ensuring high quality, and achieve mutual benefit and win-win results. And the
