ADAYO Lighting, as a supplier of LED downlight, is committed to producing this fire rated adjustable downlight, 6W, 360 rotatable and front IP65 waterproof

What’s the requirements of LED fire rated downlight in UK market?

Published by ADAYOLIGHTING 2024-12-20
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs

We know the UK market have a special requirements of LED downlight , they called fire rated downlight. How about the requirements of the led fire rated downlight? Now the detail as following from the UK customer, make you clear about the fire rated downlight.

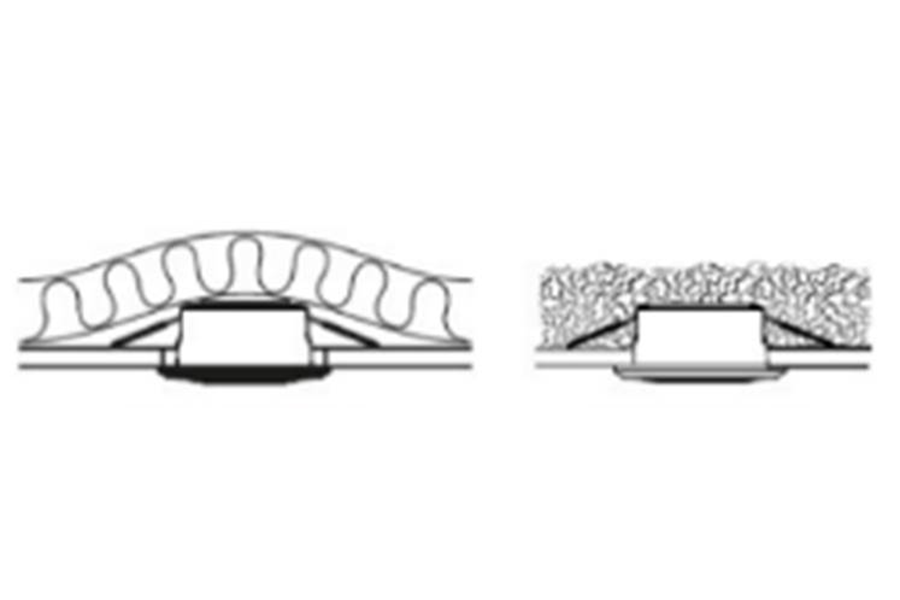

The spot should be coverable, means it can be covered by and directly in contact with any kind of insulation material (most commonly glasswool, rockwool). This material is mainly blown or rolled out.



ADAYO fire rated adjustable downlights



  • Spot luminaire with integrated LED module
  • Metal springs for ceiling recessing
  • 220-240 Vac, 50/60 Hz
  • It should also limit the air transfer between the room and roof, by a silicone or similar isolation ring
  • Plastic or metal housing is fine, needs smooth finish
  • CCT switch (main feature we need to have): 2700K-3000K-4000K-6500K
  • CRI 80 or 90 (please provide two separate quotes)
  • IP65 (room side)
  • Fix and adjustable. (please provide two separate quotes)
  • 600lm at 4000K (complete luminaire level)
  • IP-safe LED chip (COB or SMD is ok)
  • 6W / 100 lm/W
  • DIM over phase cut
  • Driver output voltage should be < 30V
  • Cable length between luminaire and driver output should be 30-50cm
  • Electrical class II for driver, class III for luminaire
  • Beam angle nearing 38-60°, ideally <40°.
  • 40,000 h L70B50 at Ta 25°C - 100,000 switching cycles
  • Cut out: 68mm
  • Height: <50mm (“slim”)
  • White bezel round and square. (please provide two separate quotes)
  • Tool free connector box with tool free connector with daisy chaining / through wiring. (For L - N)
  • 3 years guarantee
  • CE (by accredited third party) CE
  • Single brown box (EAN10) with 5 color label, 10 single boxes in a shipping box (EAN40)



ADAYO fire rated adjustable downlights



ADAYO Lighting with 8 years of experience in producing led fire rated downlight, and now the new LED fire rated downlight (CLOVER V) is slim and full function as CCT, Dimmable, Coverable, and fire rated 30-60-90minuts. Also with the CE and BS476-20/21 certificate accredited third party SGS.



ADAYO fire rated adjustable downlights

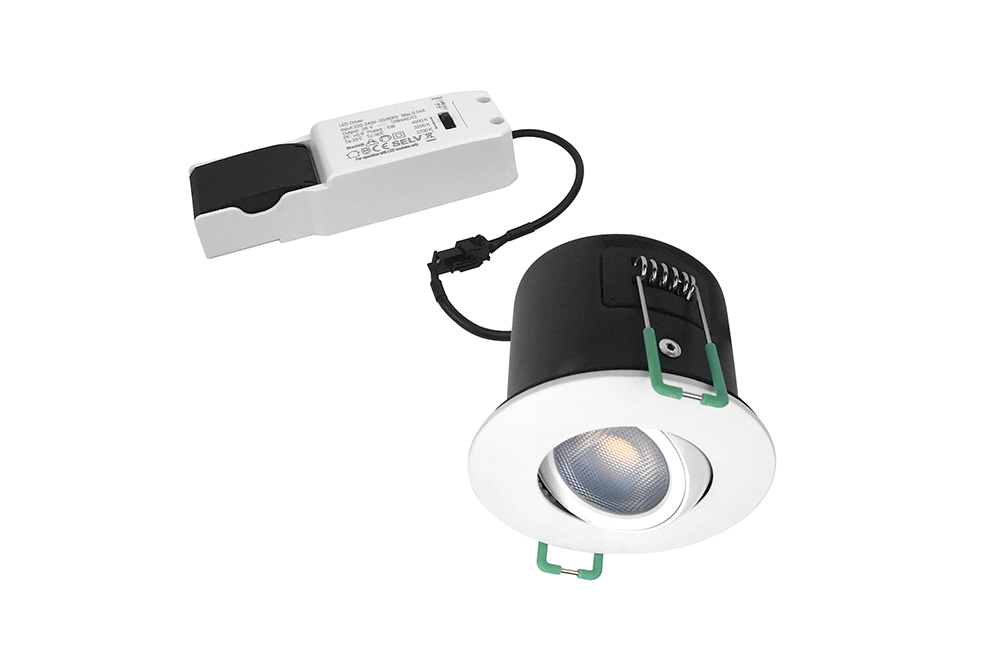

And the 360 degree rotation fire rated adjustable downlights ROLLAND III , The features as following:

1. This fire rated spotlights inrradation angle 360° horizontal adjustment and 30° tilt adjustment;

2. CCT3 2700K-3200K-4000K. 3000-4000-6500K , Triack dimming;

3. Water proof IP65 from front, you can use it into wet application;

4. 360° rotation led downlight custom according to the subject, and make it as a wall wash light;

5. With Iron cover tan;

6. With CE and Rhos certificate. Meet new ERP of Europe market.

7. Separated isolated power supply with connect box and tool free connect terminal.

8. 30/60/90 min anti-fire test with SGS

Please click on the link below: https://tinyurl.com/y9umva7y



ADAYO fire rated adjustable downlights
