ADAYO surface mount light fixture complies with international certifications and different sizes, is a ceiling light fixture for home installation

Dimming PIZZA ceiling light fixture 18W CCT3 with small size

ADAYO Lighting's ceiling light fixture have a variety of mounting options, either surface mounted light fixture or recessed openings, with adjustable brackets to fit different openings

Product Specification:
  • Code : 926602006515
  • Rated Wattage : 18W
  • Luminous : 1800lm
  • Colour Temperature : CCT3 3000K-4000K -6500K
  • Dimming or not : Dimming
  • beam angle : 110°
  • Lifespan : 30000hrs
  • Size : Φ217*22mm cut Φ65-185mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download





Over view:

ADAYO Lighting is a LED ceiling light manufacturer that supports custom bedroom ceiling lights and other home lighting.

This ceiling light fixture can be customised according to customer needs and has the advantages of simple design, comfortable light and easy installation.

Available in different wattages and sizes, this ceiling light fixture can accommodate openings from 50mm-260mm and is a good choice for both home, commercial lighting. In addition to this it is available with different face rings according to the different needs of the customer.



ADAYO surface mount light fixture





ADAYO surface mount light fixture





Features:

ADAYO Lighting surface mount light fixture is designed with high quality standards with the following features:

1. This LED ceiling light has good heat dissipation performance, maintaining a life span of 30,000 hours.

2. ADAYO ceiling light fixture with clear beam angle of 110°, is no dark spots and softly faded edges for a uniform lighting design.

3. Multiple power options, 6W/12W/18W/23W available to meet different requirements in the project.

4. Multiple sizes available, Φ165*22 cutΦ50-125mm, Φ217*22 cutΦ65-185mm, Φ290*22 cutΦ65-260mm.

5. Dimmable and non-dimmable is optional.





ADAYO surface mount light fixture





ADAYO surface mount light fixture





Product detail:

ADAYO Lighting surface mount light fixture is designed with high quality standards with the following detail:

1. Driver: Built-in power supply;

              Voltage: 220-240v~50/60Hz; RA>80; PF: >0.9.

2. Life span 30000Hrs, warranty 3 years.

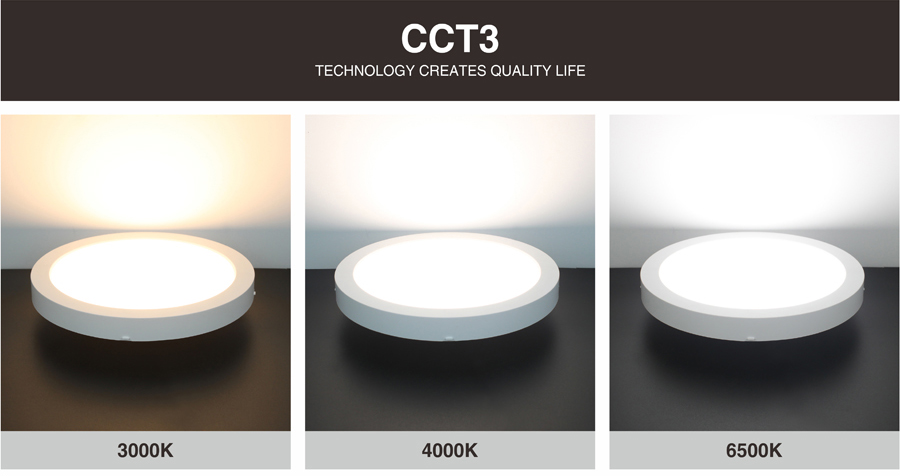

3. Light source: SMD2835, CCT3, 3000K-4000K-6500K, with adjustable colour temperature switch on the back.

4. Quick segment, 3pin loop in and loop out.

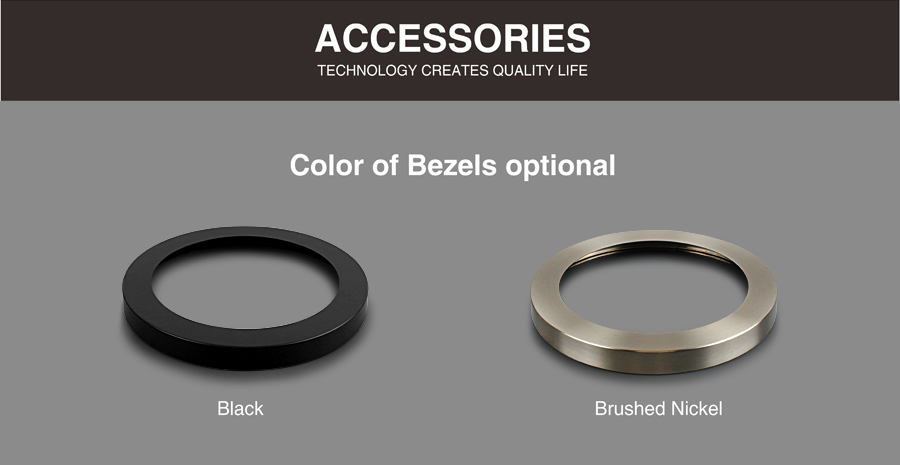

5. Different colour bezels optional: black, brushed nickel.

6. Adaptable to different openings, adjustable buckle cut-out size Φ50-260mm, slim body height 22mm.





ADAYO surface mount light fixture





Specification:

ADAYO Lighting surface mount light fixture is designed with high quality standards with the following specification:

Surface Mount Light Fixture Specification



 Item Name:  Surface mount light fixture  Code:          926602006515
 Watt (W):  18  Lumen(lm):  1800
 Input Voltage(V):                 220-240v ~50/60Hz   CRI (Ra>):  >80
 Certification:  CE, Rohs, BS476-21/22                                IP Rating:  IP20
 Life span:  30000hrs  Beam angle:                     110°
 Warranty:  3 years  CCT :  CCT3  3000K-4000K-6500K
 Installation:  Recessed or Surface mounted  Bezel:  Black; Brushed Nickel
 Lamp Body Materia:    PC+PS+Aluminium  Light source:   SMD2835





ADAYO surface mount light fixture





Application:

ADAYO lighting anti glare recessed downlights are designed with high quality standards application as below:

This LED ceiling lights save more than 90% of power consumption without losing any brightness.

LED becomes the most popular light source all over the world. This  surface mount light fixture made of high quality metal materials, safe and long lifespan.

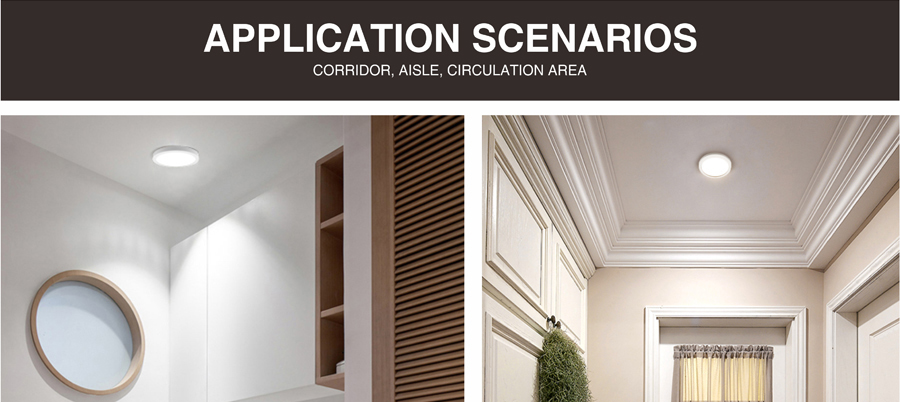

Perfect for living room, hall, office, store, supermarket, hotel residence, restaurant, hotel, hall, show room, shop window, assembly room, bedroom, factory, etc.





ADAYO surface mount light fixture





Brief introduction of ADAYO Lighting:

ADAYO lighting led slim panel light custom, flat led ceiling light wholesale since 1993, listed in 2017, the main modes of cooperation are OEM, ODM and SKD. Industrial park area: 560000sqm.

There are three main business line of ADAYO lighting: LED lighting, LED package and LED big power supply;

With R&D laboratory covered 1200m² with international standard;

R&D team more than 60 people, one third of them with more than 20 years of experience in the lighting industry;

Work Shop 5000 SQM with more than 300 works and 50 production lines;

Website: https://www.adayoled.com/

HUIZHOU FORYOU OPTOELECTRONICS TECHNOLOGY CO., LTD

 Add: Foryou Industrial Park Area B -- Plant NO.6 No.1North Shangxia Road, Dongjiang High-tech Industry Park, Huizhou City,Guangdong Province

Phone & WhatsApp: 0086 13827734167

Tel: 0086-752-5300601

Fax: 0086-752-5300099

E-mail: [email protected]





ADAYO surface mount light fixture

ADAYO surface mount light fixture

ADAYO surface mount light fixture

ADAYO surface mount light fixture

PDF File BSCI.pdf

PDF File CCC.pdf

PDF File CE.pdf

PDF File ISO9001.pdf

PDF File SGS Fireproof Certification.pdf
