ADAYO LED panel ceiling lights are designed with the high quality standards and this round LED ceiling light provides 3 color temperature options

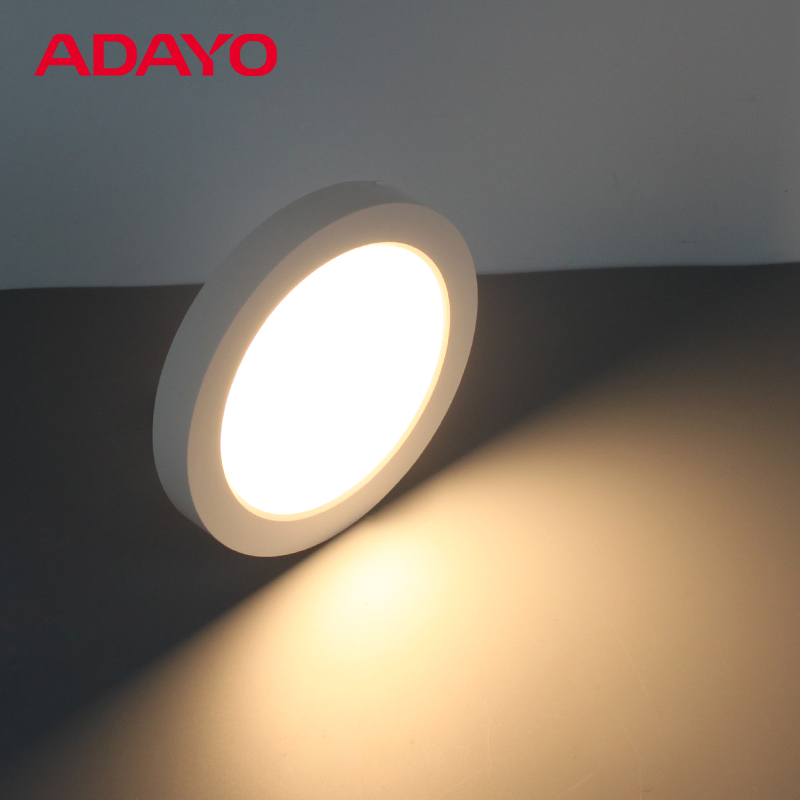

PIZZA multi-fit round LED ceiling light 12W CCT3 and non-dimming

ADAYO lighting LED panel ceiling lights illuminates a wider area and this round LED ceiling light with adjustable bracket are designed to meet the needs of most ceiling openings

Product Specification:
  • Code : 926602006420
  • Rated Wattage : 12W
  • Luminous : 1200lm
  • Colour Temperature : CCT3 3000K-4000K -6500K
  • Dimming or not : Non-Dimming
  • beam angle : 110°
  • Lifespan : 30000hrs
  • Size : Φ165*22mm cut Φ50-125mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download





ADAYO Lighting LED Panel Ceiling Lights 12W Warm White CCT3 3000~6500K 1200LM for Living Room Kitchen Bedroom, Open Hole Size 50-125mm[New ERP Standard]





ADAYO led panel ceiling lights



ADAYO led panel ceiling lights





About this item:

[PROTECT YOUR EYES]
The LED panel ceiling lights is designed with the highest quality standards. The matte lampshade softens the light to minimize glare. It can adjust soft light to reduce eye fatigue, while its high color rendering index (CRI> 80RA) preserves true colors. Each light is equipped with a constant current chip, which prevents the LED light from being affected by voltage fluctuations, therefore no flicker will occur, and this protects the eyes. Adayo led surface downlight wholesale also supports spot led dimmable custom.



[MULTIPLE SIZE OPTIONS]

LED surface downlight provide lights in 6inch, 8inch, 11inch. It can meet people's daily needs. Led surface downlight wholesale also provides 3 color temperature options, 3000/4000/6500K, to illuminate the entire space according to your own choice.



[ENERGY SAVING LIGHTS]
This 12W LED light saves over 90% on electricity cost compared to a same brightness halogen bulb. Its service life is estimated at 30000 hours, with 7 hours of daily use, it can work normally for 10 years. The 110° wide beam angle illuminates a wider area.



[SAFE AND RELIABLE QUALITY]
This round LED ceiling light for ceiling have been approved by RoHS/CE/ERP certification. Design integration can prevent leakage of electricity. ADAYO spot downlight LED manufacturer uses high-quality flame-retardant material. Fire resistance index is "V0", rust prevention, discoloration prevention, scratch resistance and fast heat dissipation. ADAYO led surface downlight wholesale has a short circuit and overheat protection to ensure safety during use.



[EASY TO INSTALL]
The integrated design can be directly connected to a voltage of 220V~240V without a transformer, and the installation with side springs effectively prevents leakage between the lamp and the ceiling. Only one open hole with a diameter of 65 to 260mm is required. ⚠Make sure the ceiling has proper depth. Keep the ceiling level around the hole or disconnect power before installation.



[ELEGANT DECORATION LIGHTS]
ADAYO LED surface downlight adjusts the atmosphere. It is suitable for most work and living places like living room, bedroom, front door, kitchen, dining room, gallery, supermarket, shop, hall, etc.


[AFTER-SALE SERVICE]
This LED ceiling downlight promise to provide you with 3 years warranty and liftime after-sales service. If you encounter any problems or questions during use, please feel free to contact us, we will try our best to solve them within 24 hours.





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights



ADAYO led panel ceiling lights





Specification:



 Item Name:  Round LED ceiling light  Code:        926602006420
 Watt (W):  12  Lumen(lm):  1200
 Input Voltage(V):                      220-240v ~50/60Hz   CRI (Ra>):  >80
 Certification:  CE, Rohs, BS476-21/22                                   IP Rating:  IP20
 Life span:  30000hrs  Beam angle:                     110°
 Warranty:  3 years  CCT :  CCT3    3000K-4000K-6500K
 Installation:  Recessed or Surface mounted  Bezel:  Black; Brushed Nickel
 Lamp Body Materia:     PC+PS+Aluminum  Light source:   SMD2835





Product Advantage:





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





ADAYO led panel ceiling lights





Features:

  • -The smooth housing ensures uniform heat dissipation, and the mini junction box is easy to install and easy to carry.
  • -A variety of color bezels are available, stylish and atmospheric, which can perfectly match the ceiling.
  • -Integral spring fixture retention clamps are strong and flexible and can bend up to 150 degrees making it much easier to install and mount on the ceiling.
  • -Foam Gasket Ring provides good grip with ceiling, Virtually no UV or IR radiation.
  • -Solid-state construction for high shock and vibration resistance. Suitable for damp locations and Type CE Rated – this light is perfect fit for installation in slopes and locations with less ceiling clearance.
  • -The junction box of this round LED ceiling light is thermally protected and is compatible with most dimmers on the market. Recessed can is no longer a limitation for your choice.







ADAYO led panel ceiling lights





Product Details:

1. This led surface downlight with junction box and screw free design save the installation, 2pin loop in and loop out.

2. There is a slidable spring in the middle of the product to meet different cutting holes​. It can be adjusted manually at any time, convenient and fast.

3. The product has CCT3 dimming function, which can adjust the color temperature, which can protect your eyes and change the atmosphere of the space.

4. The size of the product is ultra-thin, does not take up a lot of space, ultra-thin design suitable for small spaces.





ADAYO led panel ceiling lights





Installation Tips:

1. Drill a hole on your ceiling according to the hole size of the downlight. (65-260mm)

2. Turn off home power, connect your reserve wires to the cable of the recessed ceiling light. (no transformer required, directly 220~240V)

3. Press the springs of the recessed lamps, then insert the ceiling spot lights into the hole.

4. The installation is completed, power on then turn on the lights.





Product Display:





ADAYO led panel ceiling lights





Company Introduction:





ADAYO led panel ceiling lights

ADAYO led panel ceiling lights

ADAYO led panel ceiling lights

ADAYO led panel ceiling lights





HUIZHOU FORYOU OPTOELECTRONICS TECHNOLOGY CO., LTD

  • -ADAYO lighting, ceiling light manufacturer since 1993 , listed in 2017. There     are three main business line of ADAYO lighting : LED lighting, LED package and LED big power supply.
  • -With R&D laboratory covered 1200m² with international standard;R&D team more than 60 people, one third of     them with more than 20 years of experience in the lighting industry.
  • -Work Shop 5000 SQM with more than 300 works and 50 production lines.
  • -Website: https://www.adayoled.com/
  • -Add: Foryou Industrial Park Area B -- Plant NO.6 No.1North Shangxia Road,Dongjiang High-tech Industry Park,     Huizhou City, Guangdong Province,China
  • -Phone & WhatsApp: 0086 13827734167
  • -Tel: 0086-752-5300601
  • -Fax: 0086-752-5300099
  • -E-mail: [email protected]
