●  Over view:

ADAYO Lighting is a LED downlight manufacturer that supports customizing all kinds of downlights and other home lighting.

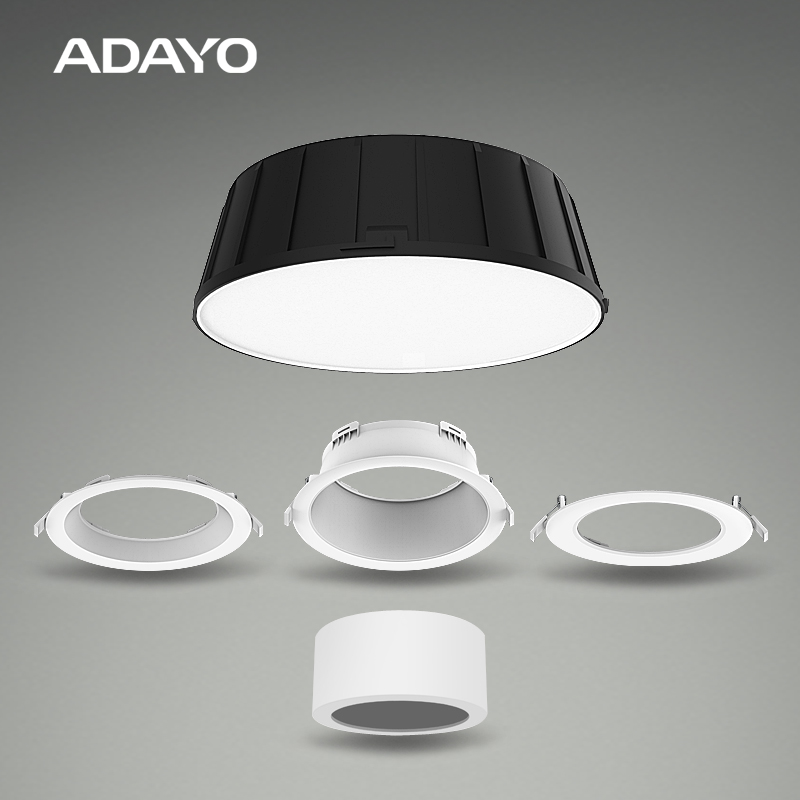

This dimmable LED down lights are designed to high quality standards, this down light has a high color rendering index (CRI>80) to retain true colors and it's designed with modules, and there are four combinations in total.









●  Product  Description

ADAYO's LED surface mount downlight in this module are suitable for use in commercial, retail, hospitality and residential applications. Our LED downlights offer high lumen output, smooth illumination and high energy efficiency. And this module downlights specifications are as follow:





Item Name:	LED surface mount downlight	Code:	DL10-C60
Watt (W):	24	Lumen(lm):	2700
Input Voltage(V):	220-240v ~50/60Hz	CRI (Ra>):	80
Lifespan:	50000hrs	IP Rating:	IP44
Warranty:	5 years	Beam angle:	100°
Installation:	Surface mount	CCT:	3000K
Lamp Body Materia:	AL+PA	Light source:	SMD2835









●  Features

PC housing with PC or Alu reflector

Easy Installation, 3 pins loop in and loop out

No Flicking, no black spots, soft edges

High luminous efficiency up to 100lm/w

50000hrs lifespan, 5 years warranty









●  Options

1. Wattage: 6W, cutΦ90mm/ 9W, cutΦ120mm/ 15W, cutΦ150mm/ 24W, cutΦ200mm.

2. Dimming: DALI or Traic dimming.

3. CCT selectable: 3000K/4000K/6500K.

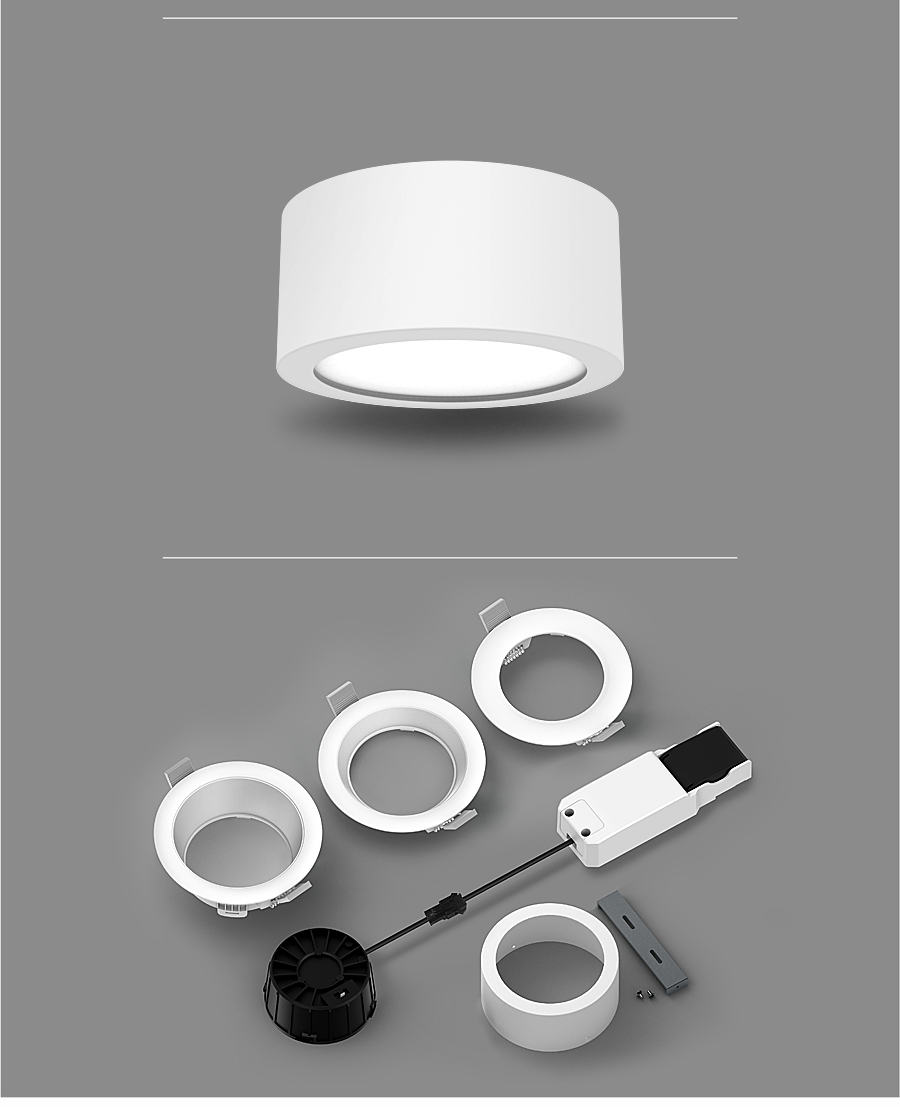

4. Frame: Flat recessed frame, Slight recessed frame, Deep recessed frame, Surface-mount frame.

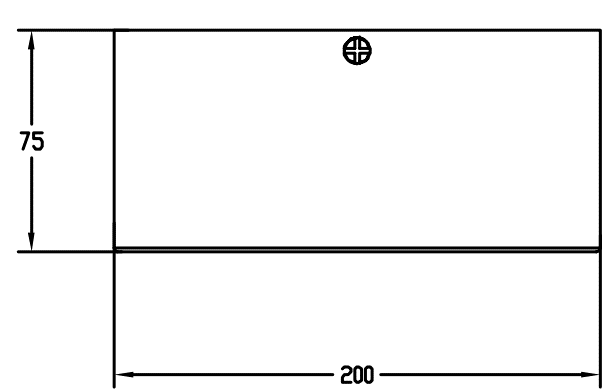

●  Product Line Drawing (Size:mm)









● Installation

To avoid electric shock, maintenance and installation are recommended to be performed by a professional electrician.
Please use within the correct input power range.
Please turn off the power before installation to ensure safety.









● Application Scenarios

ADAYO lighting LED downlight 24W delivery fast with CE and BS476-21/22 application as below:

This module downlight with high luminous efficiency can save more than 90% of power consumption without losing any brightness.

Perfect for home, hall, office, store, hotel, restaurant, etc.









Brief introduction of ADAYO Lighting:

ADAYO was founded in 1993, listed in 2017, the main modes of cooperation are OEM, ODM and SKD. Industrial park area: 560000sqm.

There are three main business line of ADAYO lighting: LED lighting, LED package and LED big power supply;

With R&D laboratory covered 1200m² with international standard;

R&D team more than 60 people, one third of them with more than 20 years of experience in the lighting industry;

Work Shop 5000 SQM with more than 300 works and 50 production lines;
