ADAYO lighting high power led spotlight has excellent dimming performance , ceiling led spot lights comply with CE new ERP certification

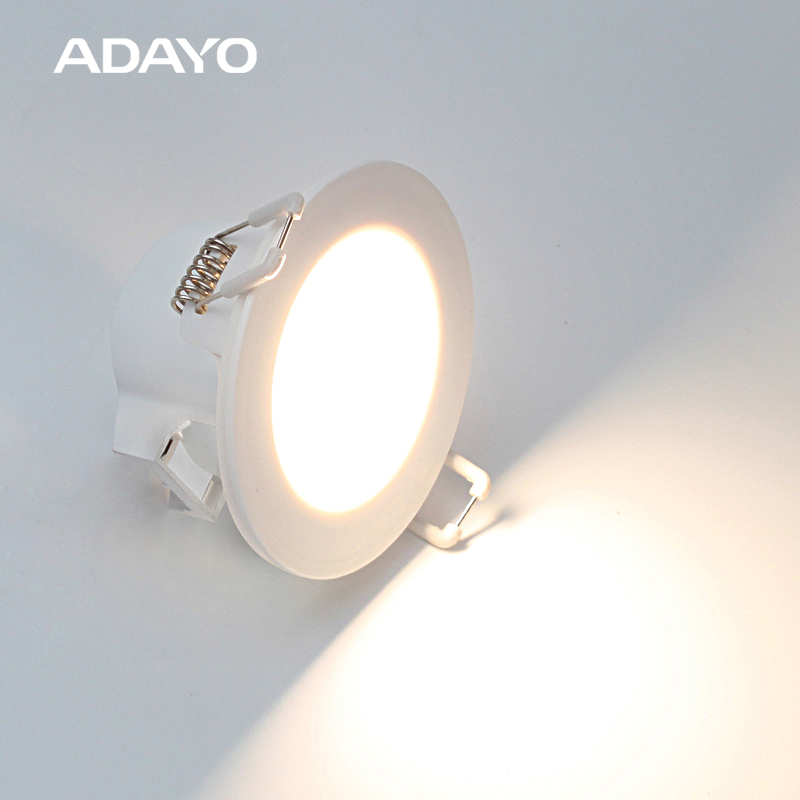

CLIO 10W ceiling led spot lights CCT2 and waterproof IP65
ADAYO lighting high power led spotlight is available with single color and CCT, this ceiling led spot lights can be installed directly into the insulation with the extra frame
CLIO 10W ceiling led spot lights CCT2 downlight is dimmer downlights that supports dimmers of common brands on the market. With classic minimalist desing, tool-free installation, dimmable, IP65, bezel changeable and good heat dissipation performance, this ceiling led spot lights are a good choice for customers.
● Features
ADAYO lighting CCT2 10W diy high power led spotlight features as below:
Aluminum heat sink
Tooling free installation design
Dimmable and Non dimmable optional
CE, NEW ERP, EMC, ROHS approved
Two designs: IP65 fix, IP44 adjustable
Aluminum housing for excellent heat dissipation
Heat protection system, with excellent internal driver
Can be installed directly in to the insulation with extra frame
Four colors bezel changable, brush nickle, silver, chrome and black
Smooth triac dimming
Life span 30000hours
● Applications
CLIO A ceiling led spot lights are dimmable and IP65, with 100degree angle widely bright feeling, as a bathroom rated downlights with four colors bezel changeable meet your different ceiling styles
Living room. bedroom. bathroom. kitchen.
Office. meeting room.
Shop. supermarket.
Hotel
● Specification
SPECIFICATION
Item NO.
SKU
Lumen(lm)
CRI
CCT
Watt (W)
PF
Beam angle (°）
Size
（Dia * H mm)
Cut size (mm)
926602005988
YD35J-A0100-C3A
920
1000
80
F3000
F4000
10
0.9
100
ø105
58.4
ø85-90
926602006282
YD35J-AW010-30A0
900
80
P3000
10.5
0.85
100
ø105
58.4
ø85
926602006283
YD35J-AW010-40A0
1000
80
F4000
10.5
0.85
100
ø105
58.4
ø85
926602006284
YD35J-AW010-65A0
1000
80
P6500
10.5
0.85
100
ø105
58.4
ø85
926602006285
YD35J-NW009-30A0
900
80
P3000
9.5
0.9
100
ø105
58.4
ø85
926602006286
YD35J-NW009-40A0
1000
80
F4000
9.5
0.9
100
ø105
58.4
ø85
926602006287
YD35J-NW009-65A0
1000
80
P6500
9.5
0.9
100
ø105
58.4
ø85
● Options
Dimmable and no-dimmable
Signle Colour temperature, CCT2, CCT3
Switch dim to warm
Decorate bezel: bruch nickel, chrome, silver, black
Covering brackets suppot insulation

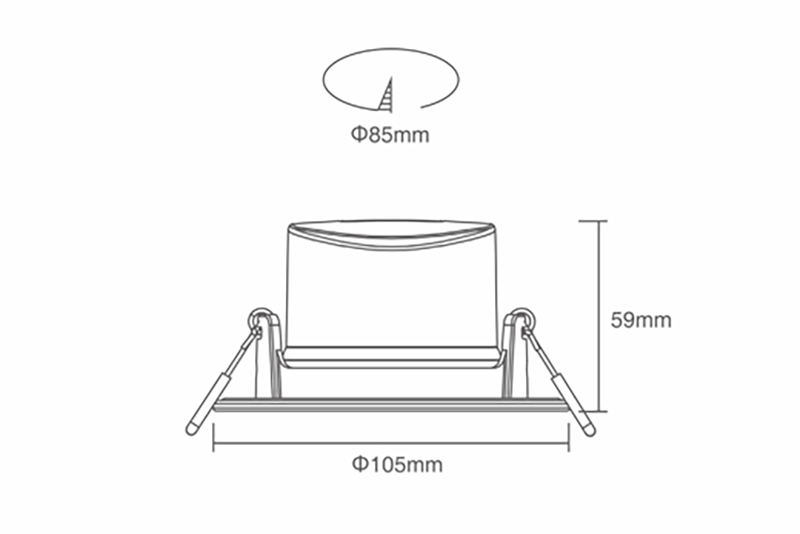

● Product Line Drawing (Size:mm)
● Accessories Optional
Bezel shape: round, square.
Bezel colors: brush nickel, chrome, silver, black
Juction box
External driver
Metal extra frame
● Installation
Make sure power is off before installation.
Cut a suitable hole in the ceiling , the hole size will show on the specification form.

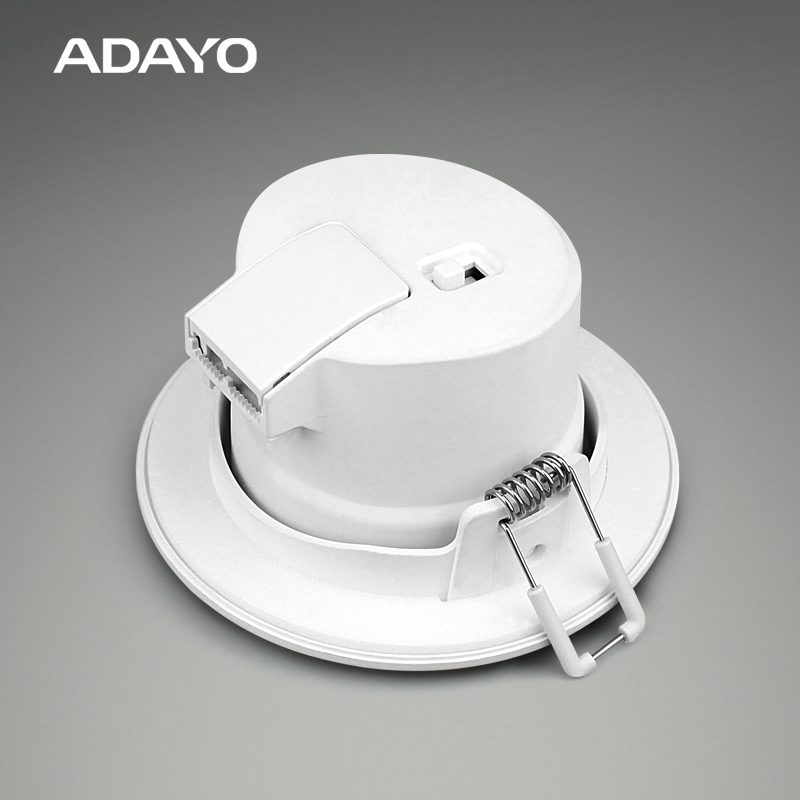

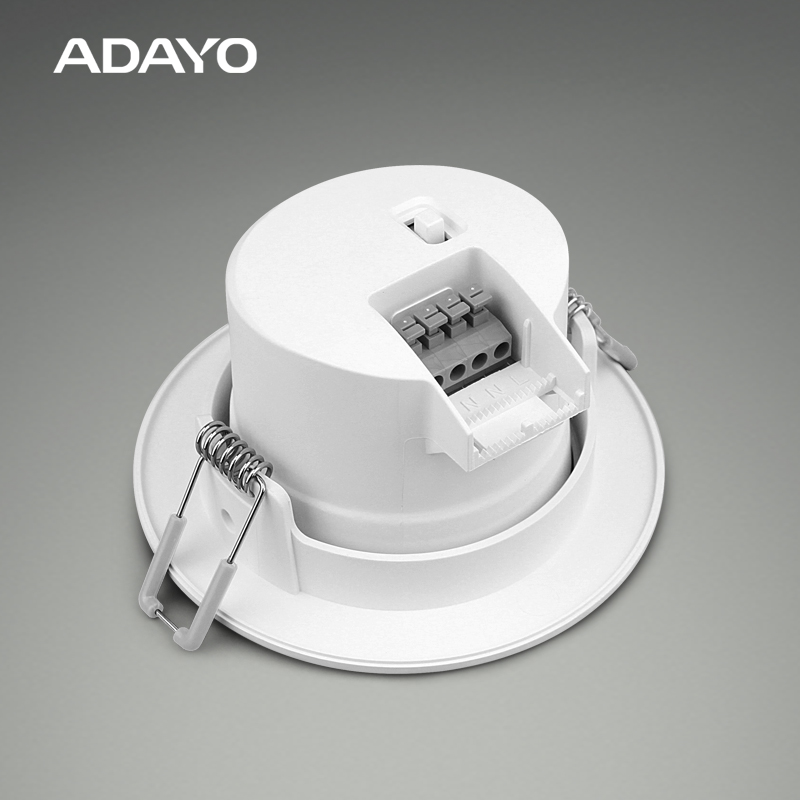

Connect wires to the wire box .(image A)
Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.
● Brief introduction of ADAYO Lighting
A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
Industrial park: 56000sqm
Business line: LED package, LED high power driver, LED Lighting
R&D laboratory: 1200sqm with international standard
R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
Work shop: 5000 SQM with more than 300 works and 50 production lines
Monthly Capacity(Pieces) : package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K, LED light: 5000K
New product lunch time: 6-10 weeks.
Payment: L/C, T/T, O/A
