ADAYO lighting recessed ceiling spotlights comply with CE, EMC certifications, this waterproof IP65 led spotlight can be used in the wet place

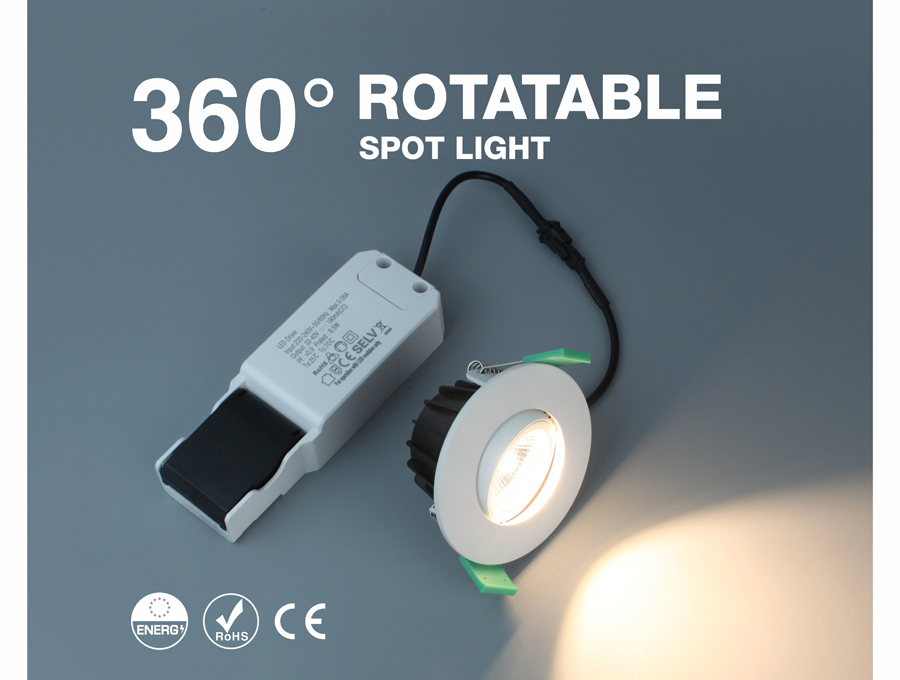

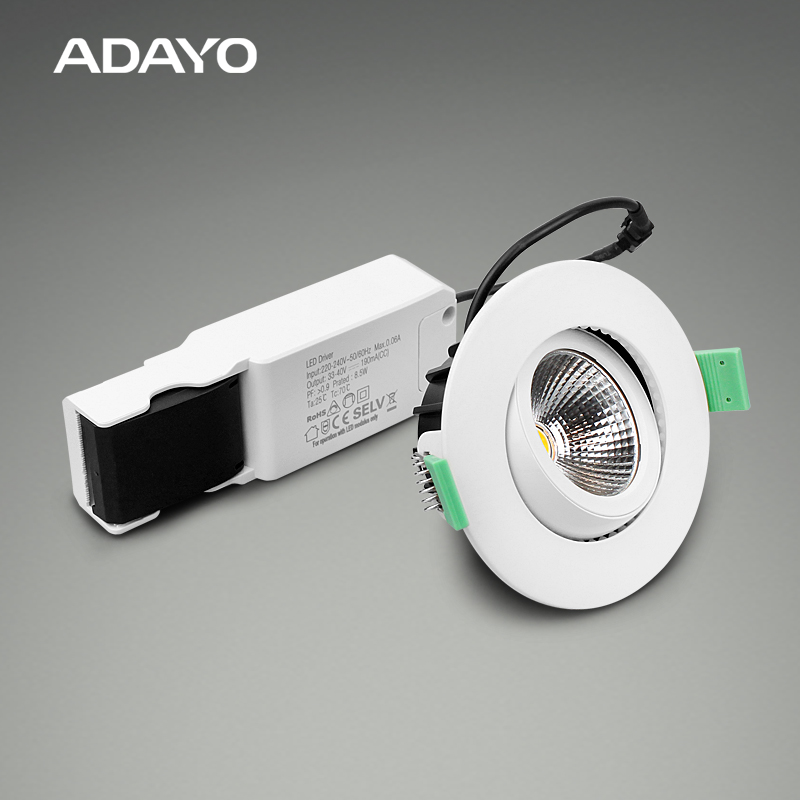

ROLAND 6W COB recessed ceiling spotlights 3000K 360° rotation

ADAYO lighting recessed ceiling spotlights has SMD, COB and different color to choose from, waterproof led spotlight with male and female plug and isolated driver warranty for 5 years

Product Specification:
  • Code : 926602006428
  • Rated Wattage : 6W
  • Luminous : 520lm
  • Colour Temperature : 3000K
  • Colour Rendering : >80
  • Size : Φ96*44.3mm cut Φ78mm
  • PF : >0.8
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download





●  Product  Description

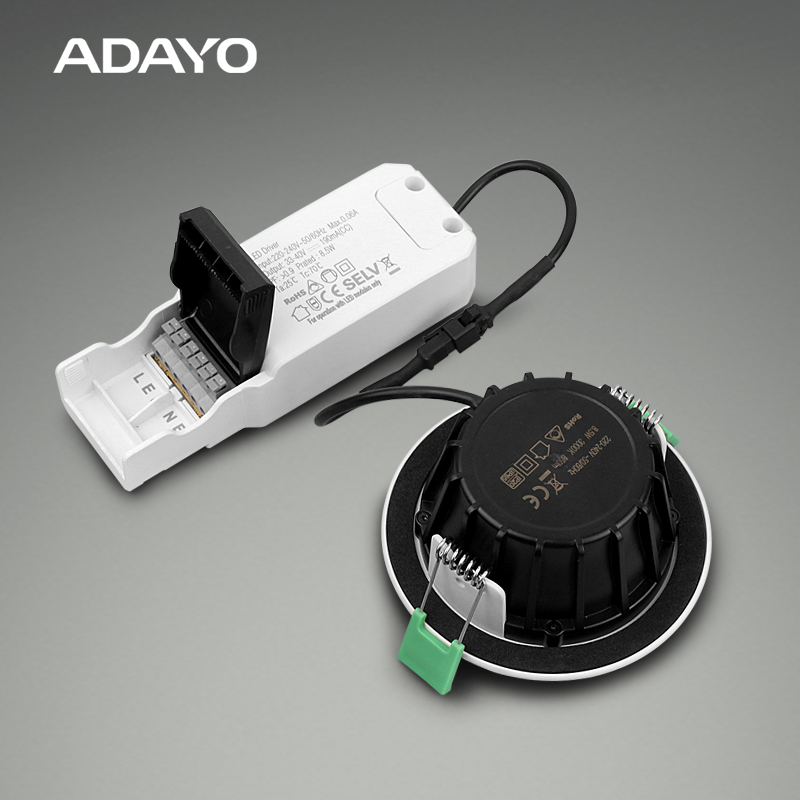

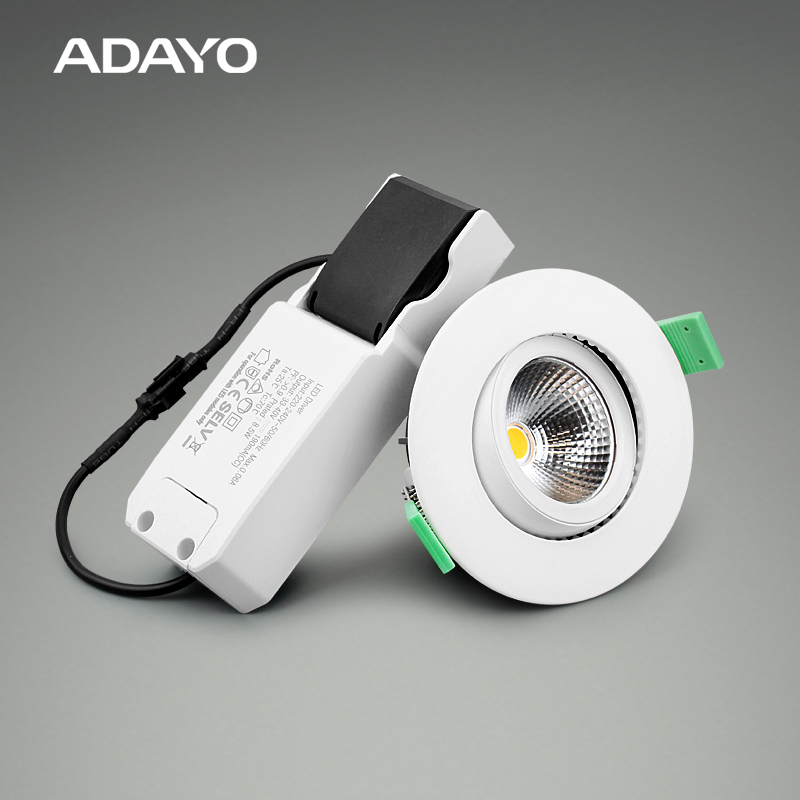

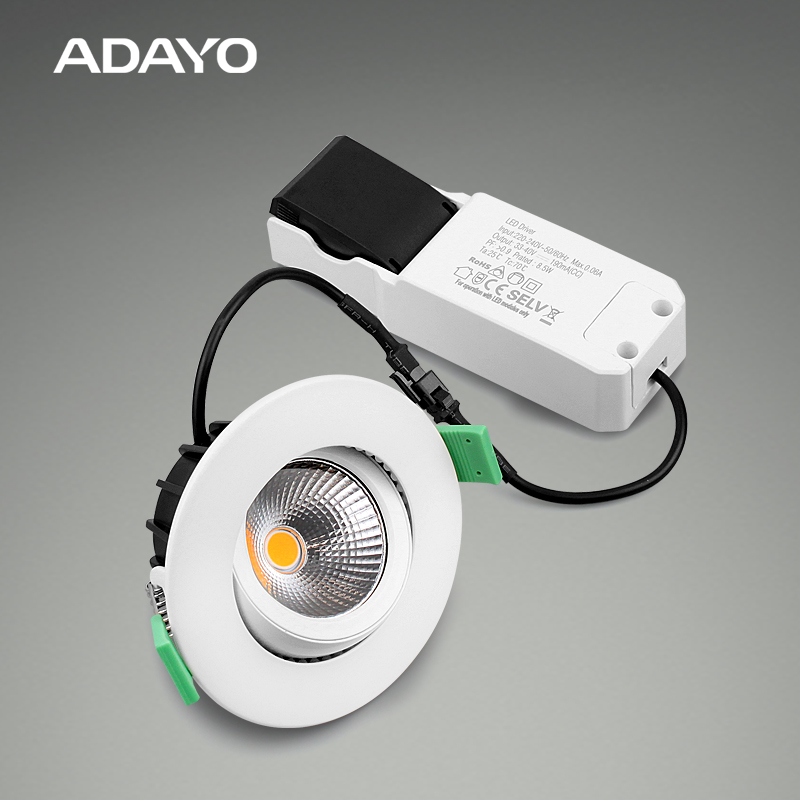

ROLAND 360° recessed ceiling spotlights 6W COB dimmable spot light that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, waterproof IP65 led spotlight, die-cast aluminum material with good heat dissipation performance, different colors to choose from, suitable for commercial lighting.



ADAYO recessed ceiling spotlights



●  Features

ADAYO lighting 6W COB 360° rotation LED ceiling spot lights features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • 360° angle adjusted from all directions
  • Aluminum housing for excellent heat dissipation
  • Heat protection system, with excellent internal driver
  • Three colors optional, black, white, silver
  • Smooth triac dimming
  • Life span 50000hours



ADAYO recessed ceiling spotlights



●  Applications

ROLAND COB 360° rotation LED ceiling spot lights IP65, with 38 degree angle bright feeling meet your different ceiling styles

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.
  • Hotel.



ADAYO recessed ceiling spotlights

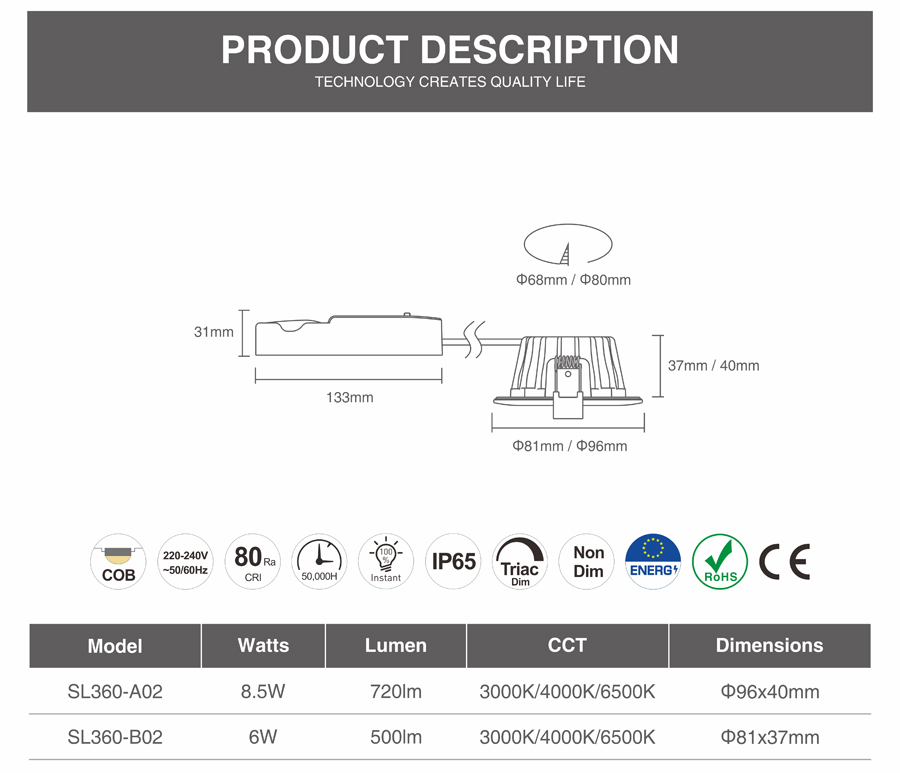

●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm)  CIR  CCT Watt (W)  PF  Beam angle
 (°)
Size
(Dia * H mm)
Cut size (mm)
926602006428 YB25K-AW006-303AW 520 80 P3000 6 0.8 38 ø81 41.3 ø65
926602006429   YB25K-AW006-303AB 500 80 P3000 6 0.8 38 ø81 41.3 ø65



ADAYO recessed ceiling spotlights

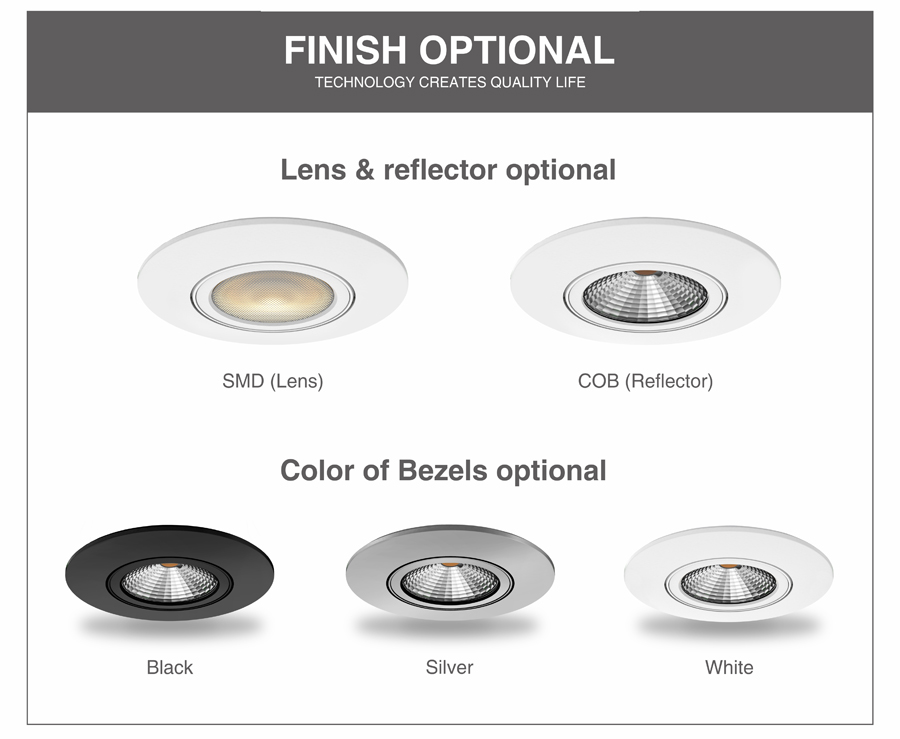

●  Options

  • Dimmable and no-dimmable
  • Single colour temperature
  • Switch dim to warm
  • Finished color: white, silver, black
  • Lens and reflector
  • Fire rated version optional.

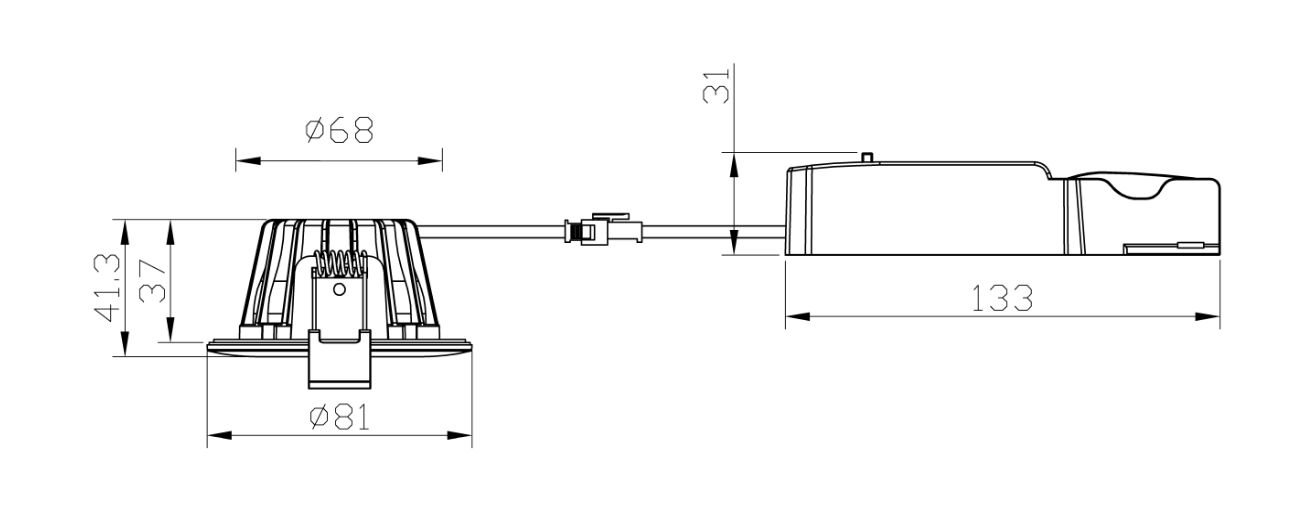

●  Product Line Drawing (Size:mm)



ADAYO recessed ceiling spotlights



● Accessories Optional

  • Separated isolated driver
  • Male and female plug
  • Metal extra frame



ADAYO recessed ceiling spotlights

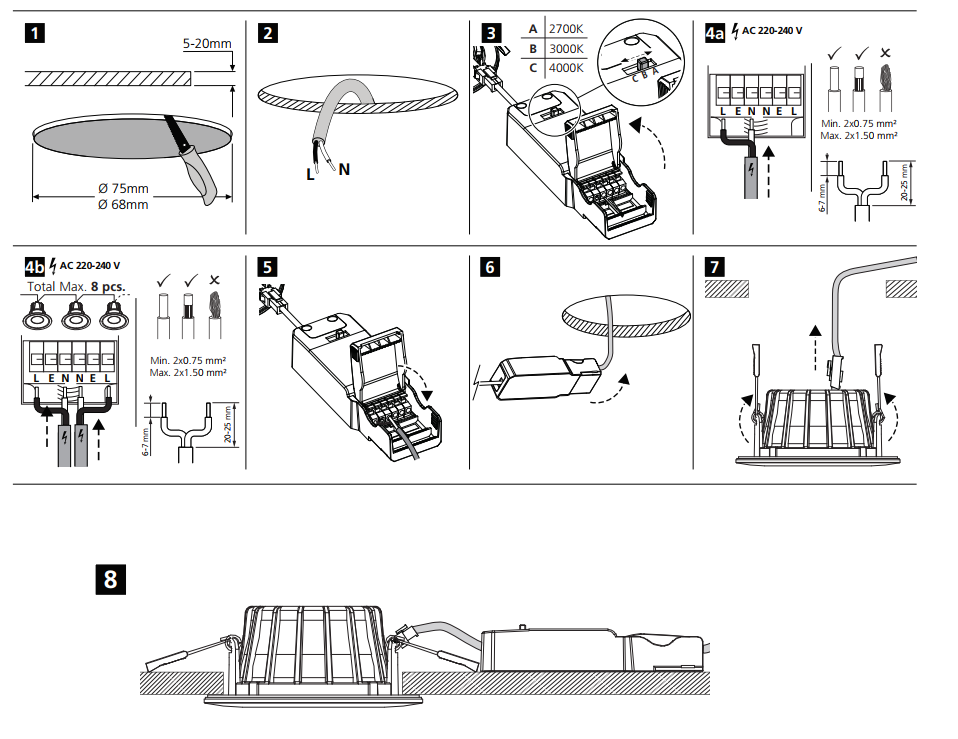

●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO recessed ceiling spotlights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
