Amber ECO DIY downlight 5.5W IP65 fix dimmable changeable bezel

ECO Downlight Amber downlight 5 watt beam angle 100degree, Dimmable and bezel changeable. easy install. 3000k and 1500hrs lifespan. with CE, Rohs and new ERP, good price and delivery fast

Product Specification:
  • Code:926602006440 :
  • Wattage : 5.5W
  • Luminous : 345lm
  • Colour Temperature : 3000K
  • Colour Rendering : >80
  • Lifespan : 15000hrs
  • Size:Φ87*35mm, cut Φ68mm :
  • PF : >0.9
  • New ERP. Accept OEM & ODM :
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

The white appearance of the 220V ADAYO Lighting AMBER spotlight,5W no-dim led downlight with 2700K/3000K/4000K/6500K, this led recessed light is soft and elegant.





●  Features

【IP65 waterproof】

With IP65 protection rating, the 3000K led recessed light is perfect for bathroom, kitchen, or any room in the house, providing you a bright and comfortable environment.

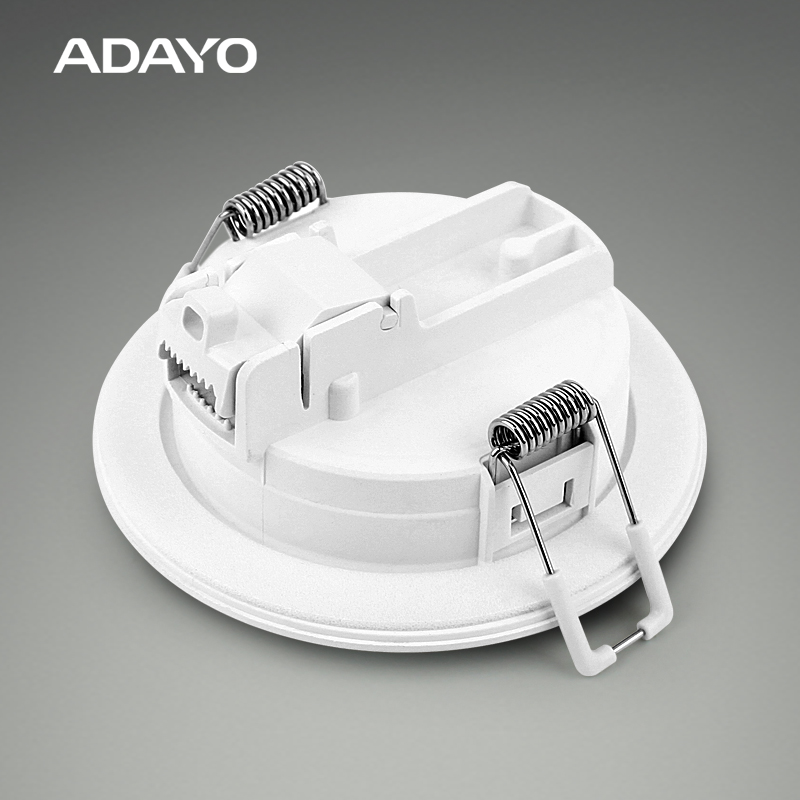

【Integrated design 】

Integrated design:The LED modules cannot be replaced. The acrylic diffuser has better light transmission than other materials. Simple spring fixing for tool-free installation.

【35mm LED spotlight extra flat】

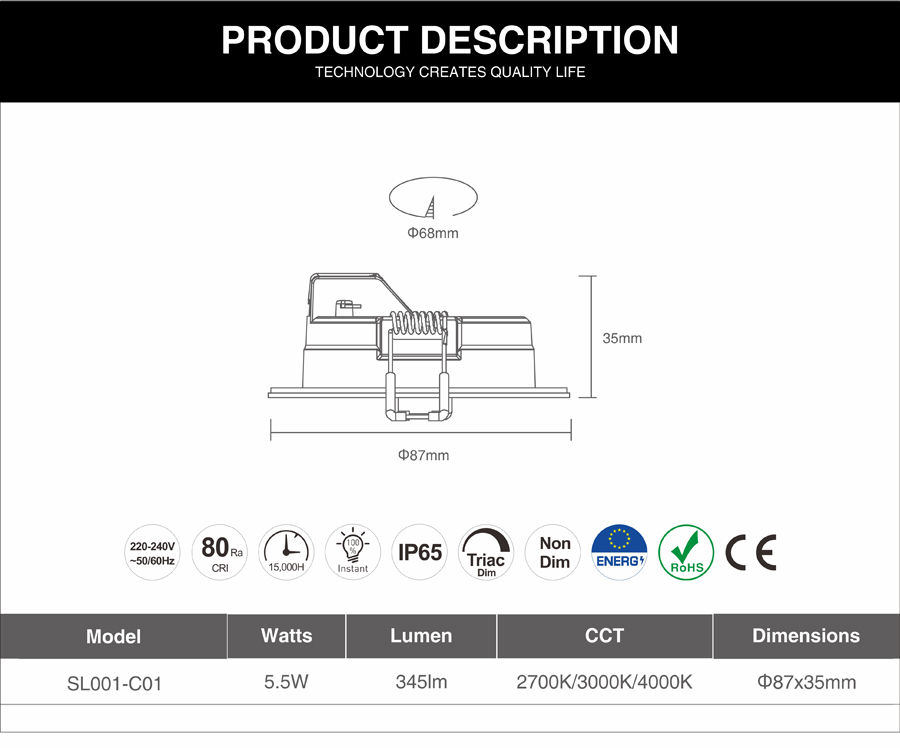

The height of the LED recessed ceiling light is 35mm which allows it to be recessed in ceilings even where space is limited. The outer diameter is 87mm, the recessed hole should be between 68 and 80mm. The fixing system consists of springs that hold the integrated LED in place in its hole.

【High Quality & Safe】

Lifetime: The LED recessed ceiling light lifetime up to 15000h. Smooth surface, dustproof, waterproof, rustproof, an ideal choice for modern life!

【Easy To Install】

The integrated design of dimmable bathroom downlights  can be directly connected to a voltage of 220V~240V without a transformer, and the installation with side springs effectively prevents leakage between the lamp and the ceiling. Only one mounting hole with a diameter of 68 to 70 mm and a cavity depth of 35 mm is required.





●  Specification





●  Options

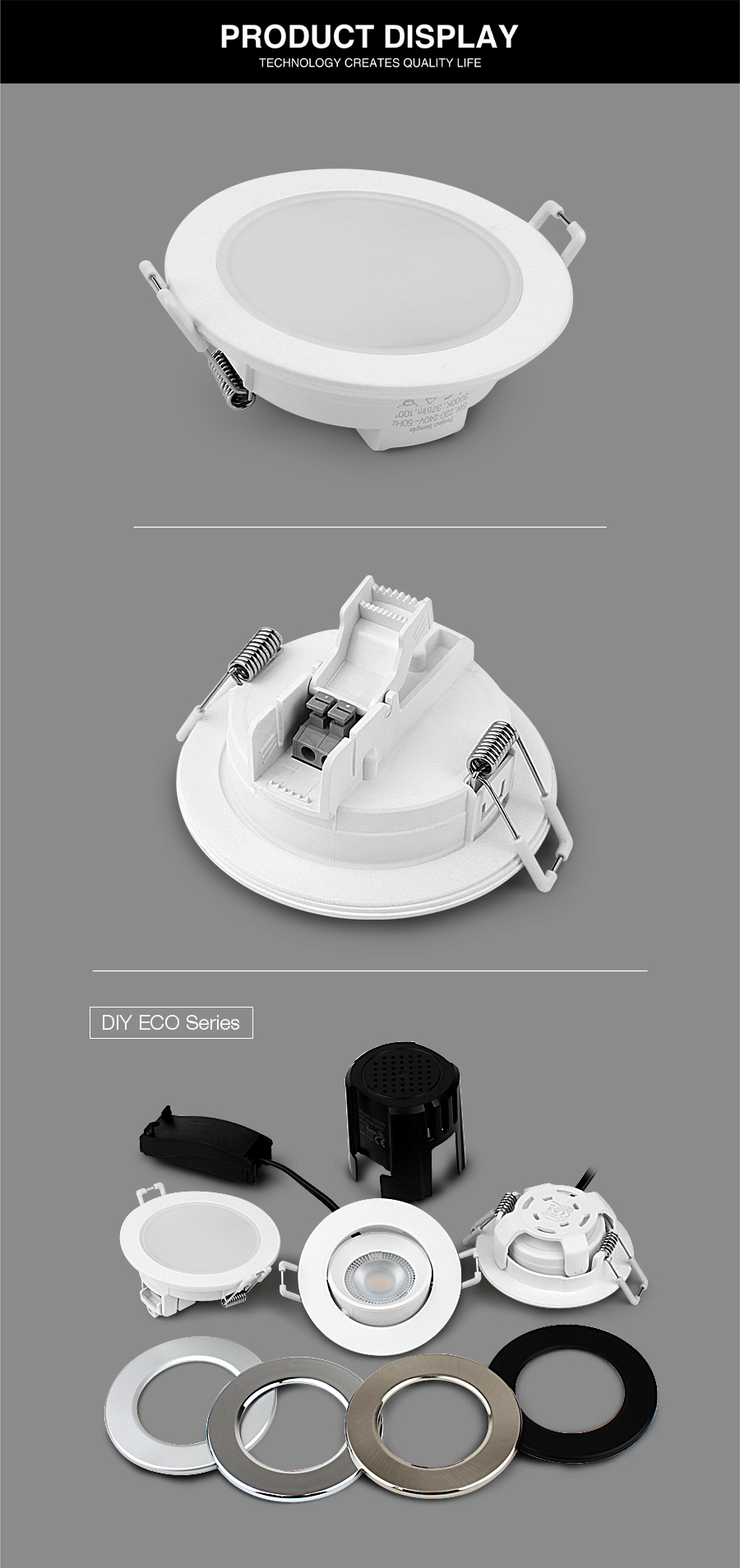

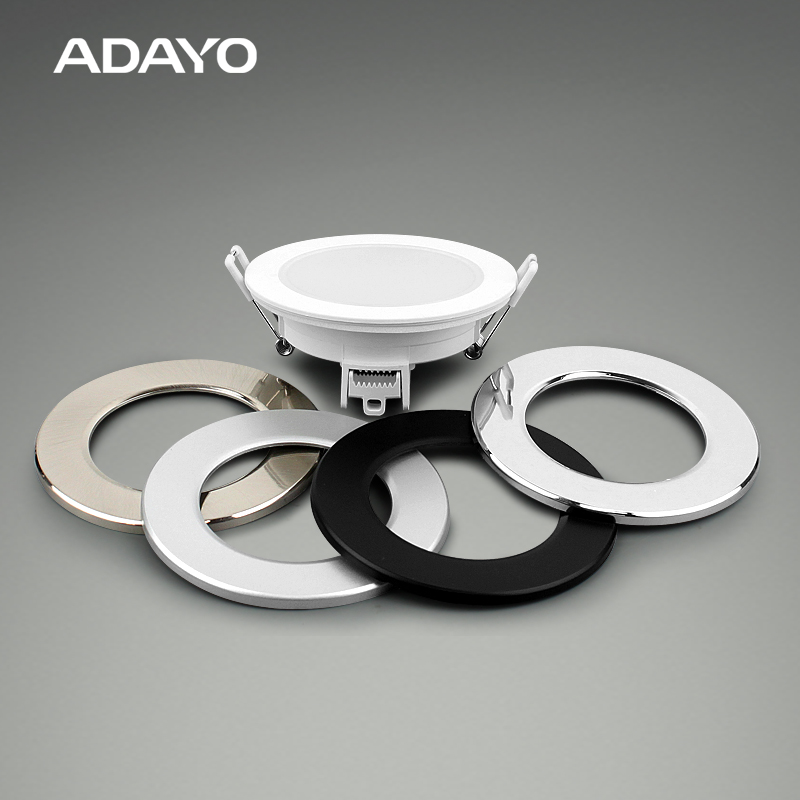

  • Bezels changeable: Round and Square, brush nickel, Chrome, Silver, and black color bezels for choosing
  • Plastic insulation cover
  • CCT optional: 2700K, 3000K, 4000K, 6500K
  • Dimmable and No-Dimmable for choosing
  • Junction box is aviliable



amberdownlight

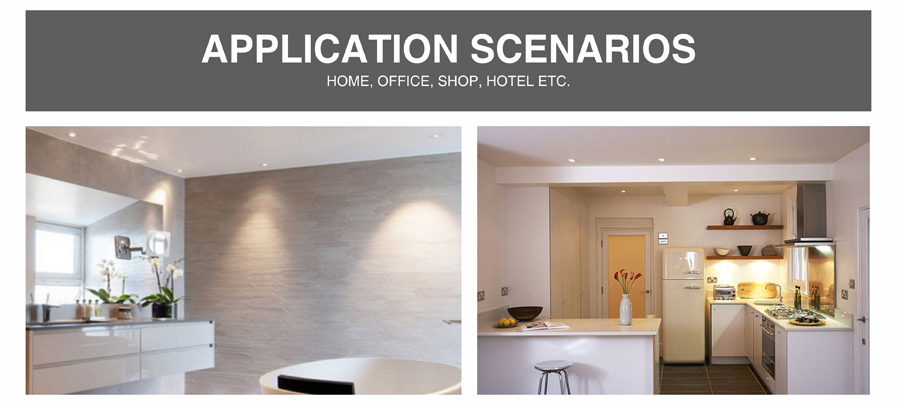

●  Application

ADAYO lighting small spotlights for ceiling,  68mm cut, 24mm height application as below:

  • Home: living room, bedroom,kitchen, boothroom, foyer ,reading room
  • Store
  • Hotel residence
  • Restaurant
  • Hotel





●  Installation Tips

  • Drill a hole on your ceiling according to the hole size 68 mm of the led recessed light .
  • Turn off home power, connect your reserve wires to the cable of the dimmable bathroom downlights. (no transformer required, directly 220-240V
  • Press the springs of the best downlights, then insert the downlight 5 watt into the hole.
  • The installation is completed, power on and turn on the lights.





●  Company Introduction ADAYOLIGHTING

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
