● Product Description

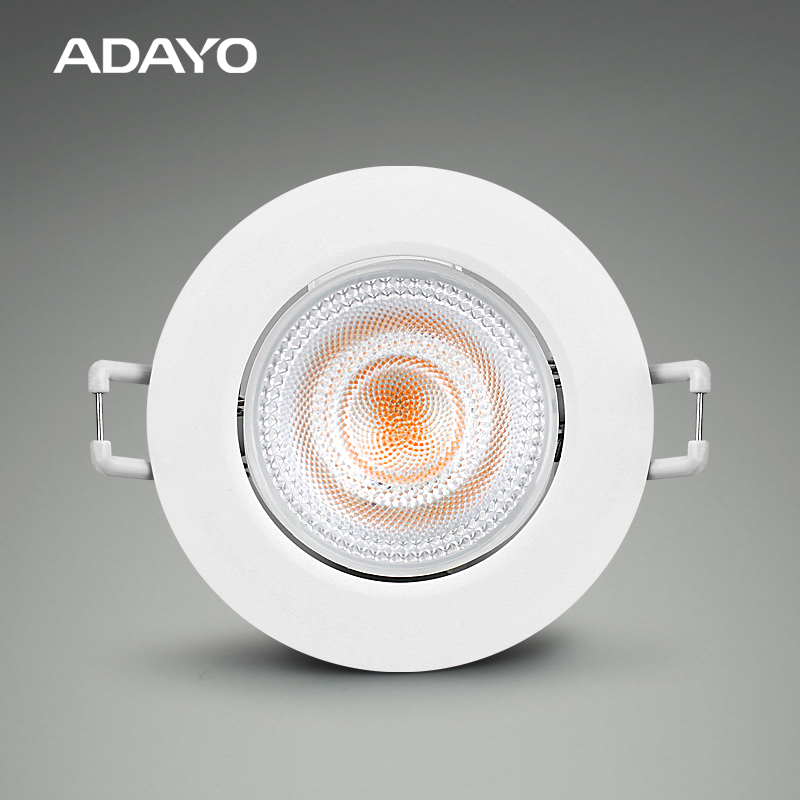

AVALOR E01 indoor spot lights led are dimmable spotlights with excellent dimming performance and supports dimmers of common brands on the market. This spot light for home has a classic minimalist desing, tool-free installation, CCT3, bezel changeable, which is economical and really idea for DIY lighting market.
● Features

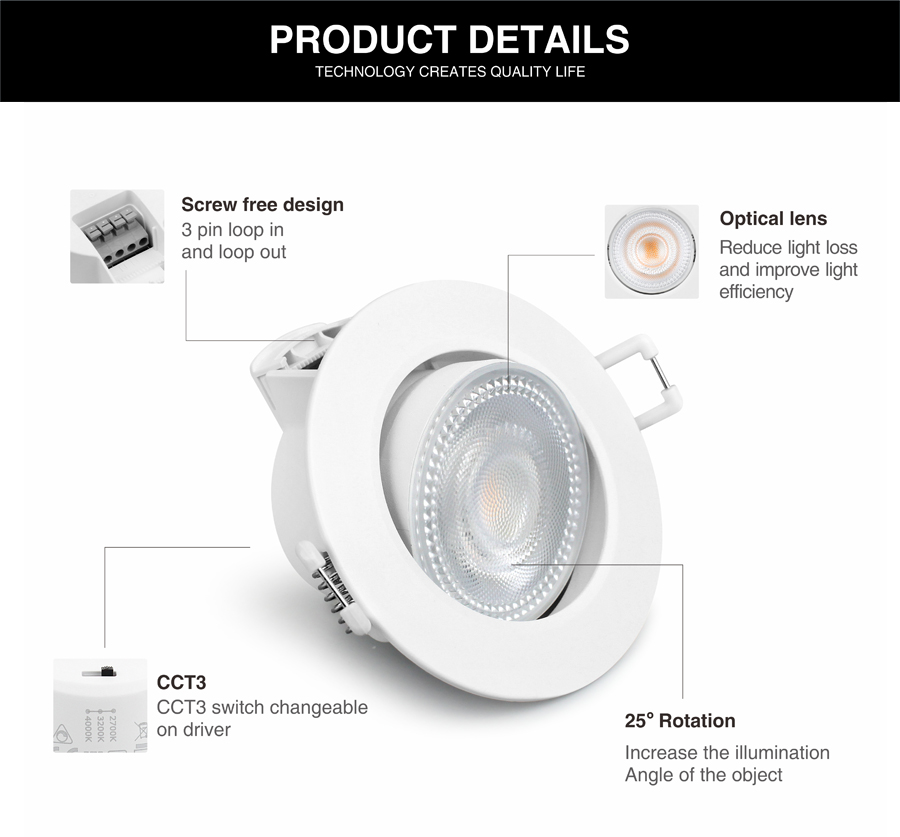

ADAYO lighting CCT3 indoor spot lights led 5.5W dimmable spot light for home features are as below:
- Aluminum heat sink
- Tooling free installation design
- Dimmable and Non dimmable optional
- CE, NEW ERP, EMC, ROHS approved
- Three designs: IP65 fix with PC diffuser, IP44 adjustable with lens , IP65 fix with lens
- Heat protection system, with excellent internal driver
- Four colors bezel changable, brush nickle, silver, chrome and black
- Smooth triac dimming
- CCT3 switch changeable on back
- Can be installed directly into the insulation with the extra frame
- Life span 25000hours
● Applications
AVALOR E01 G4 DIY ceiling spotlights led is front waterproof IP44, with 38 degree angle widely bright feeling, as a bathroom rated downlights with four colors bezel changeable meet your different ceiling styles.
- Living room. bedroom. bathroom. kitchen.
- Office. meeting room.
- Shop. supermarket.
- Hotel
● Specification
| SPECIFICATION |
| Item NO. |
SKU |
Lumen(lm) |
CRI |
CCT |
Watt (W) |
PF |
Beam angle (°） |
Size
（Dia * H mm) |
Cut size (mm) |
| 926602006762 |
SL05-A25-005WN-30 |
480 |
80 |
F3000 |
4.8 |
0.5 |
38 |
ø87 |
45 |
ø68 |
| 926602006763 |
SL05-A25-005WN-40 |
500 |
80 |
F4000 |
4.8 |
0.5 |
38 |
ø87 |
45 |
ø68 |
| 926602006764 |
SL05-A25-005WN-65 |
500 |
80 |
F6500 |
4.8 |
0.5 |
38 |
ø87 |
45 |
ø68 |
| 926602006769 |
SL05-A25-006WA-30
|
510 |
80 |
F3000 |
5.5 |
0.6 |
38 |
ø87 |
45 |
ø68 |
| 926602006770 |
SL05-A25-006WA-40 |
550 |
80 |
F4000 |
5.5 |
0.6 |
38 |
ø87 |
45 |
ø68 |
| 926602006771 |
SL05-A25-006WA-65 |
550 |
80 |
F6500 |
5.5 |
0.6 |
38 |
ø87 |
45 |
ø68 |
| 926602006772 |
SL05-A25-006WA-C1 |
500
550
550 |
80 |
F2700
P3000
F4000 |
5.5 |
0.6 |
38 |
ø87 |
45 |
ø68 |
| 926602006773 |
SL05-A25-006WA-C2 |
510
550
550 |
80 |
F3000
B4000
F6500 |
5.5 |
0.6 |
38 |
ø87 |
45 |
ø68 |
● Options
- Dimmable and no-dimmable
- Signle Colour temperature, CCT3
- Decorate bezel shape: round and square.
- Decorate bezel color: bruch nickel, chrome, silver, black, white(square)
- Covering brackets suppot insulation
● Product Line Drawing (Size:mm)

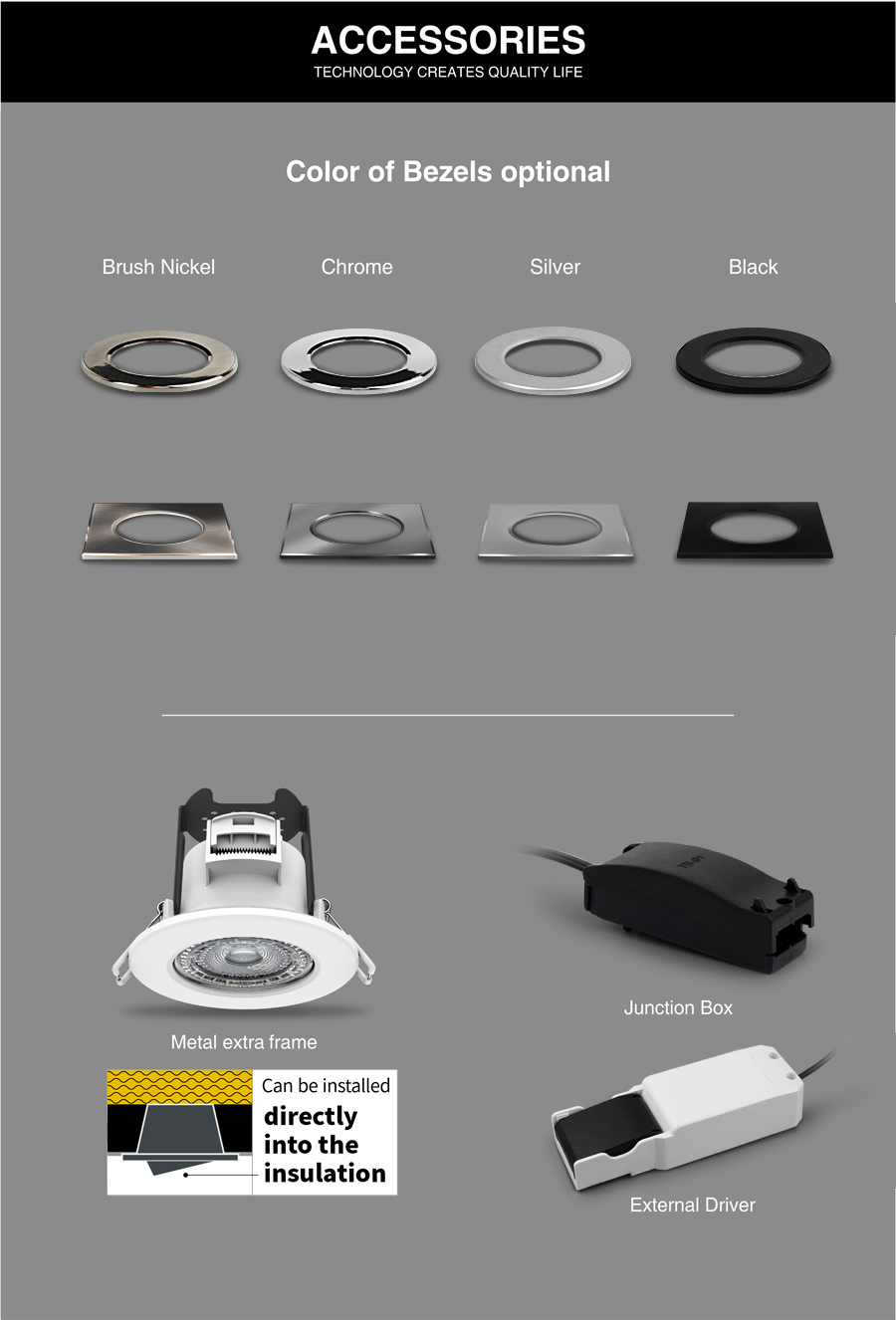

● Accessories Optional
- Bezel shape: round. square.
- Bezel colors: brush nickel, chrome, silver, black
- Juction box
- External driver
- Metal extra frame
● Installation
- Make sure power is off before installation.
- Cut a suitable hole in the ceiling , the hole size will show on the specification form.
- Connect wires to the wire box .
- Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.
● Brief introduction of ADAYO Lighting
- A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
- Industrial park: 56000sqm
- Business line: LED package, LED high power driver, LED Lighting
- R&D laboratory: 1200sqm with international standard
- R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
- Work shop: 5000 SQM with more than 300 works and 50 production lines
- Monthly Capacity(Pieces) : package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K, LED light: 5000K
- New product lunch time: 6-10 weeks.
- Payment: L/C, T/T, O/A
