ADAYO lighting led module lights with different combinations available meet different needs, spotlight lighting comply with CE, new ERP certification

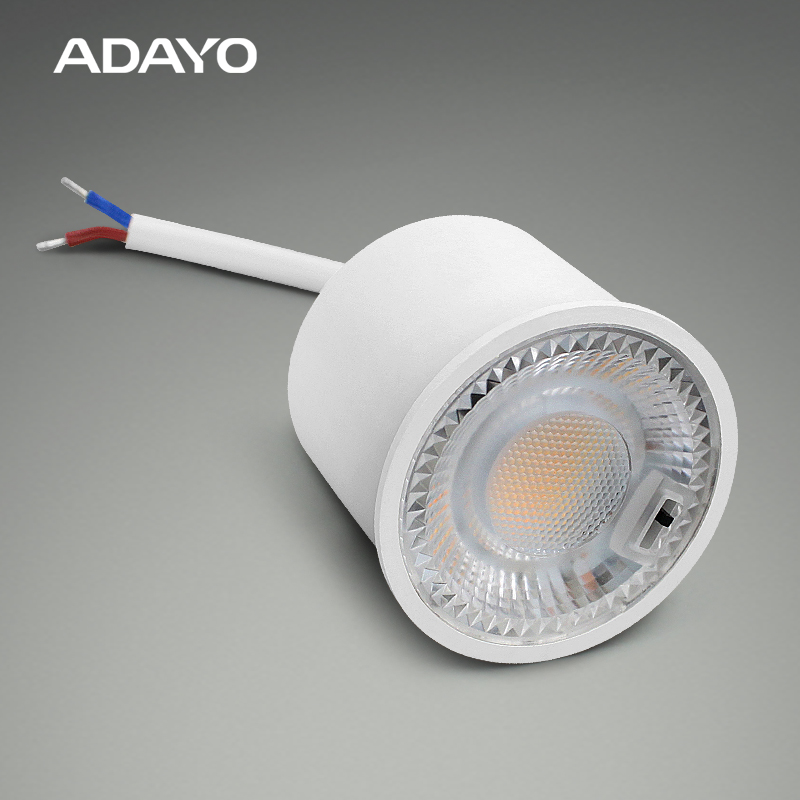

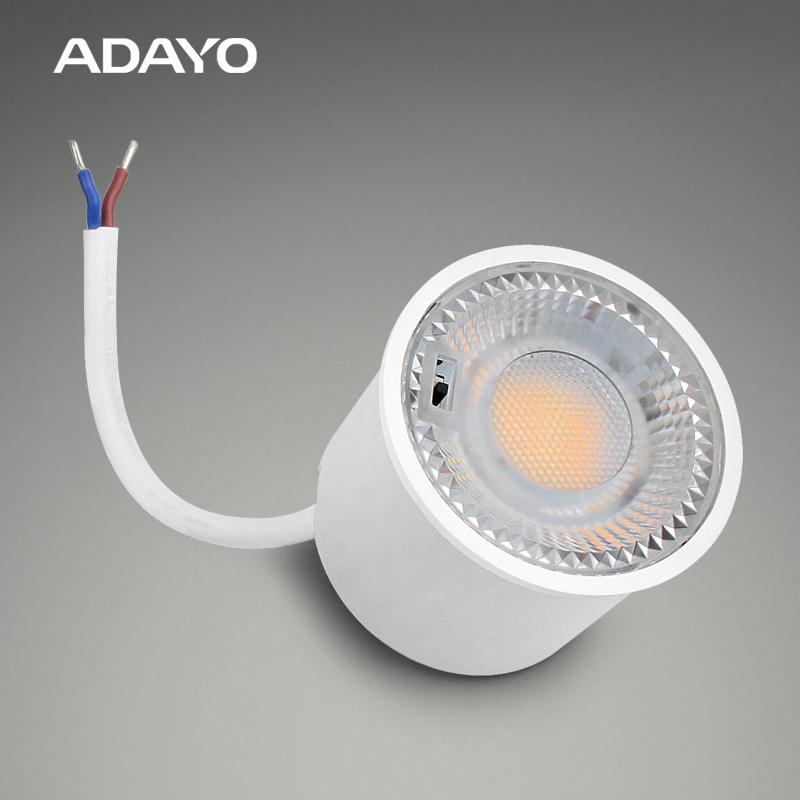

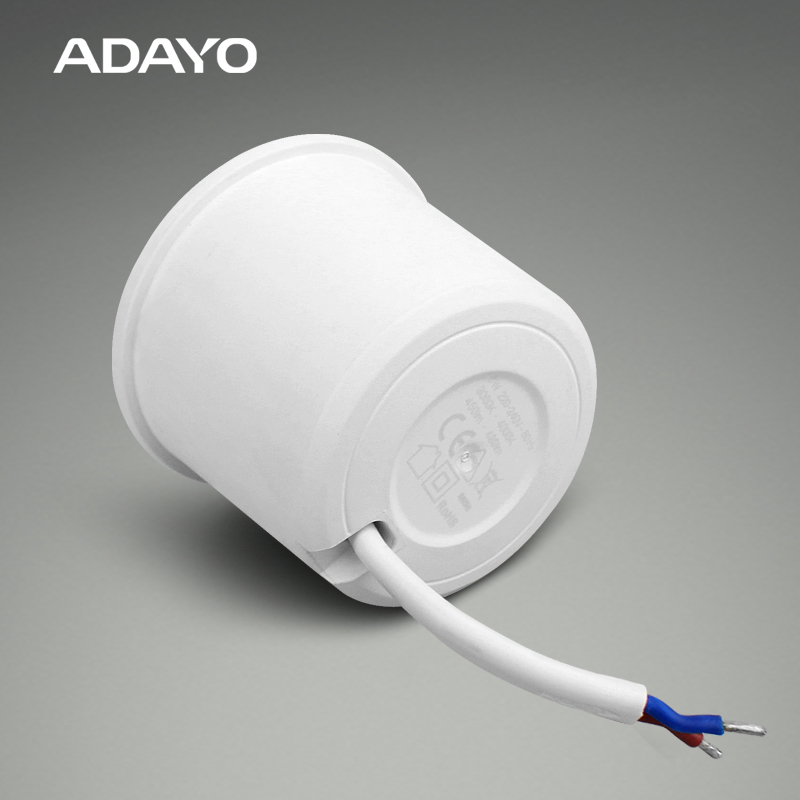

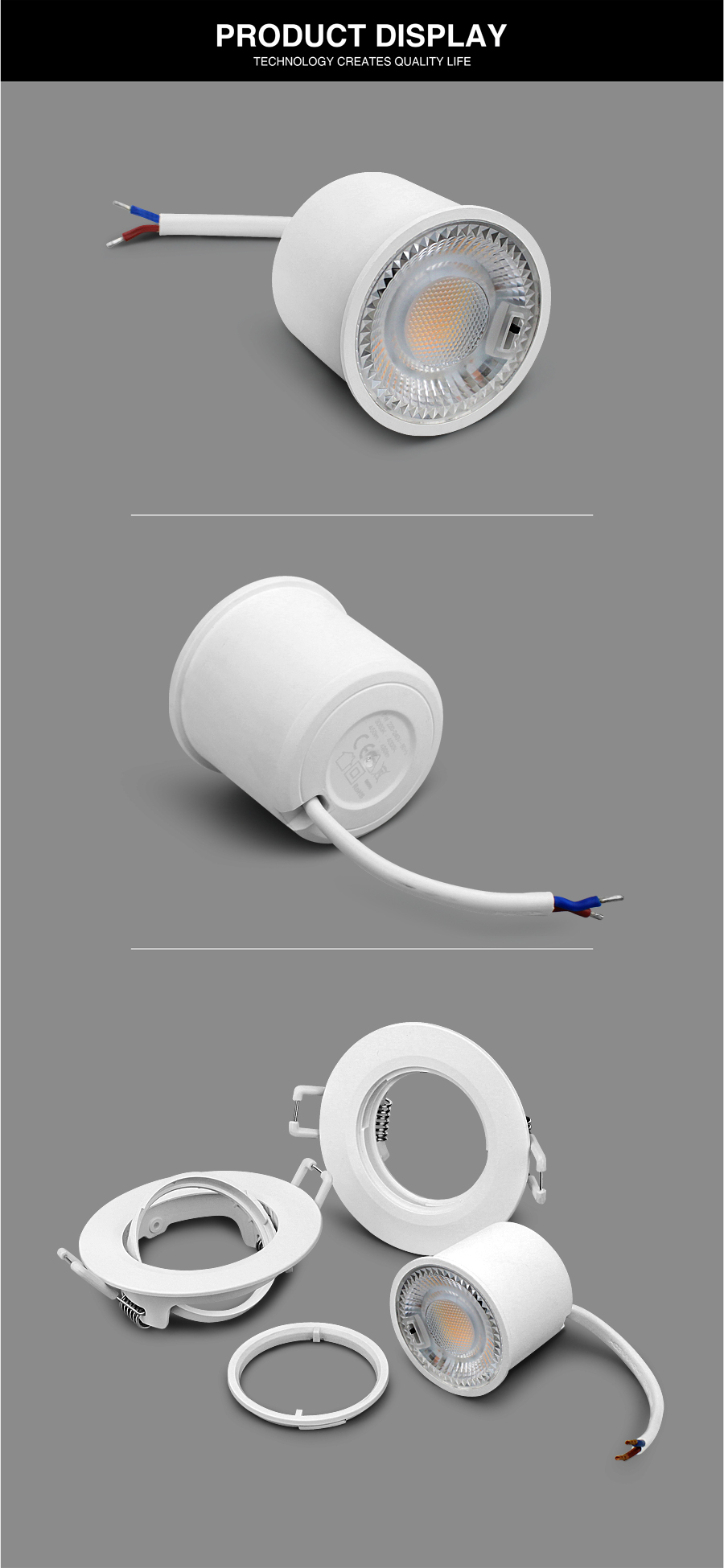

MODULE A 6W CCT2 led module lights with different trim optional

ADAYO lighting led module lights with different shapes and different materials to choose from can be freely combined, this spotlight lighting can also be used as a light source

Product Specification:
  • Code : 926602006399
  • Rated Wattage : 6W
  • Luminous : 520lm
  • Colour Temperature : CCT2 3000K-4000K
  • Colour Rendering : >80
  • Size : Φ49.8*42.6mm
  • PF : >0.9
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs

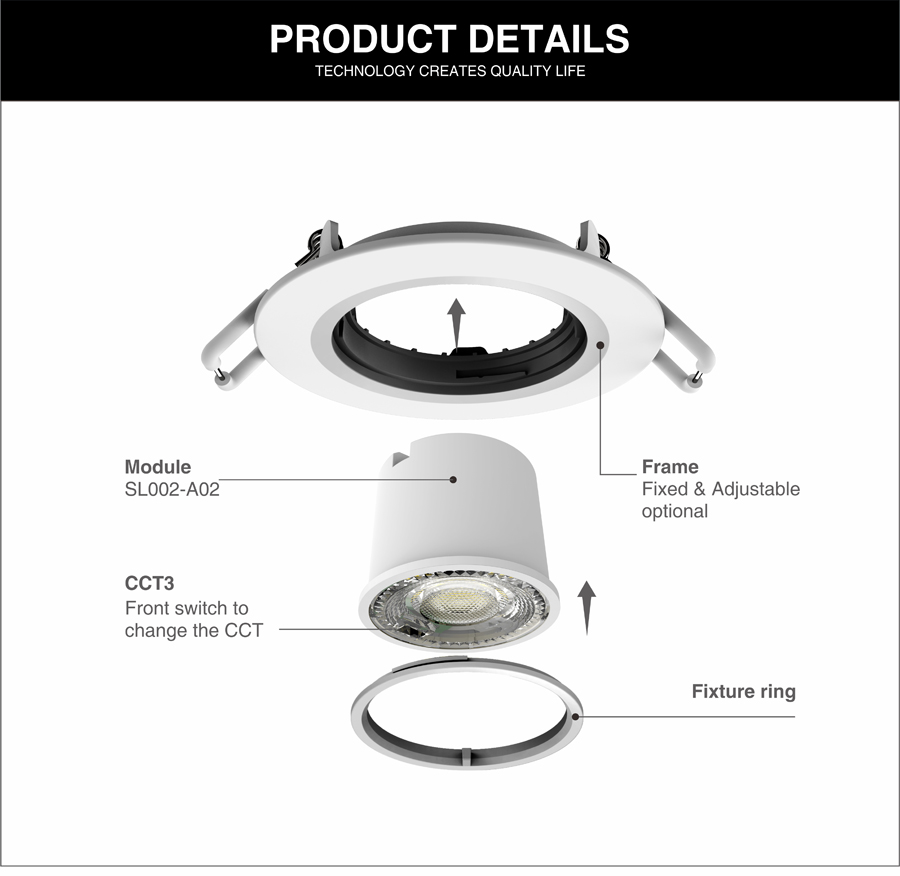

Product Details
Documents download



●  Product Description

MODULE A 6W CCT2 led module lights are traic dimmable that supports dimmers of common brands on the market, with classic minimalist desing, different shapes and different materials to choose from can be freely combined, this spotlight lighting can also be used as a light source.



ADAYO led module lights



●  Features

ADAYO lighting 6W CCT2 led module lights features are as below:

  • Aluminum heat sink
  • CE, NEW ERP, EMC, ROHS approved
  • Different Trim optional
  • Clear light beam angle 45°
  • Smooth triac dimming
  • CCT2, 3000K-4000K
  • Can also be used as a light source
  • Life span 25000Hrs



ADAYO led module lights



●  Applications

Moudele A led module lights with 45 degree angle widely bright feeling, as a spotlight lighting with different trim changeable meet your different needs.

  • Living room. bedroom. bathroom. kitchen.
  • Office. meeting room.
  • Shop. supermarket.
  • Hotel



ADAYO led module lights



Specification:



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006399    CA25C-AW006-C33

480

520

80 F3000
F4000
6 0.9 45 ø49.8 42.6 /

926602006415

   CA25C-AW006-C33

(Fix)

450

480

80 F3000
F4000
6 0.9 45 ø81.5 64.5 /

926602006479

SL01-B25-006WA-C3W

(Fixed stamping face ring white)

480

520

80 F3000
F4000
6 0.9 45 ø80 49.5 /
926602006480

SL01-B25-006WA-C3S

(Fixed stamping face ring brushed nickel)

480

520

80 F3000
F4000
6 0.9 45 ø80 49.5 /
926602006481

SL01-C25-006WA-C3W

(Adjustable stamping face ring white)

480

520

80 F3000
F4000
6 0.9 45 ø80.5 49 /
926602006482

SL01-C25-006WA-C3S

(Adjustable stamping face ring brushed nickel)

480

520

80 F3000
F4000
6 0.9 45 ø80.5 49 /





ADAYO led module lights



●  Options

  • Dimmable and non-dimmable
  • Signle Colour temperature, CCT2
  • Steel, Plastic and Aluminum trim optional
  • Fixed and adjustable optional



ADAYO led module lights



●  Product Line Drawing (Size:mm)

ADAYO led module lights

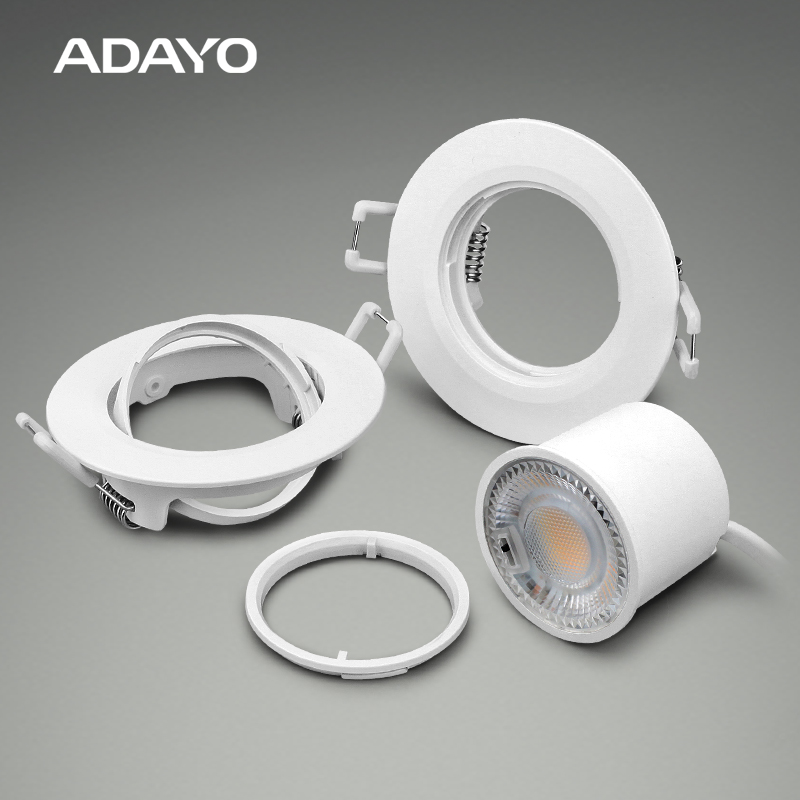

● Accessories Optional

  • Trim: Steel tixed trim, Steel adjustable trim, plastic fixed trim, plastic adjustable trim, aluminum fixed trim, aluminum adjustable trim
  • Fixture ring



ADAYO led module lights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Connect wires to the wire box .(image A)
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.





●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
