ADAYO lighting GU10 spot lights have good heat dissipation and soft light, this warm white spotlight comply with CE new ERP certification

GU10 spot lights version C 5W 3000K comply with new ERP

ADAYO lighting GU10 spot lights with single color and CCT optional can be used with other lights, the warm white spotlight is available in different versions for different application

Product Specification:
  • Code : 926602005719
  • Rated Wattage : 5W
  • Luminous : 360lm
  • Colour Temperature : 3000K
  • Colour Rendering : >80
  • Size : Φ50*54mm
  • PF : >0.5
  • Dimmable : Non
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download

●  Product  Description

GU10 spot lights 5W 3000K warm white spotlight non-dimmable and dimmable options is available that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation and good heat dissipation performance, different colors to choose from, suitable for different application.



ADAYO gu10 spot lights



●  Features

ADAYO lighting 9W 2700K die-casting dimmable led spot lights features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • CE, NEW ERP, EMC, ROHS approved
  • Dim and non dim optional
  • excellent heat dissipation
  • Smooth triac dimming
  • Beam angle 38°
  • Can be base with junction box
  • Life span 15000hours



ADAYO gu10 spot lights



●  Applications

GU10 spot lights 5W 3000K warm white spotlight, with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.



ADAYO gu10 spot lights



●  Specification



SPECIFICATION
Item NO. SKU Lumen
 (lm)
CIR CCT Watt (W) PF Beam angle
 (°)
Size
(Dia * H mm)
Cut size (mm)
926602005719  G10C-034N1-030 360 80 P3000 5 0.5 38 ø50 54 /
926602005720  G10C-034N1-040 400 80 P4000 5 0.5 38 ø50 54 /
926602005721  G10C-034N1-057 400 80 P5700 5 0.5 38 ø50 54 /
926602005708

G10C-034A1-030

400 80 P3000 5.5 0.7 38 ø50 54 /
926602005709  G10C-034A1-040 440 80 P4000 5.5 0.7 38 ø50 54 /
926602005751 G10C-034A1-057 440 80 P5700 5.5 0.7 38 ø50 54 /
926602006015  GU10C-NW003-C44 320
340
80 F2700
F4000
3.7 0.4 38 ø50 54 /



ADAYO gu10 spot lights



●  Options

  • White, Silver Gray lamp body
  • Junction box or not
  • 2700K/3000K/4000K/5700K, CCT2 optional
  • IP20/IP44/IP65 optional

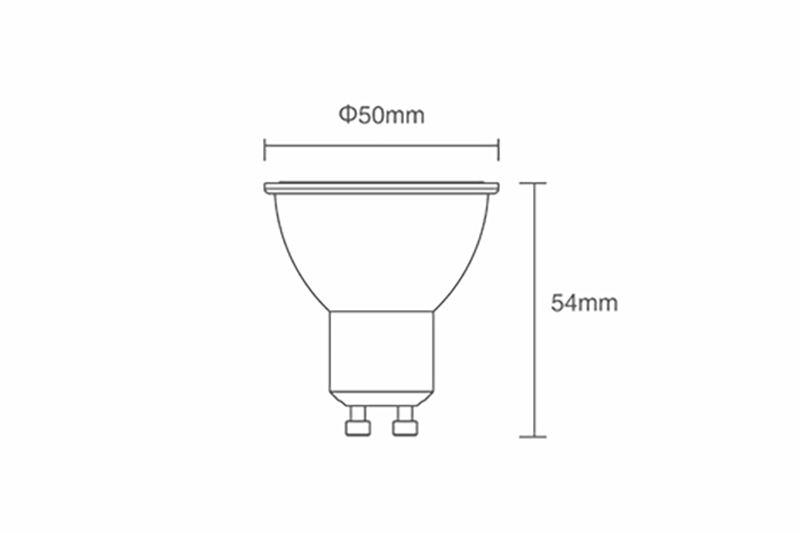

●  Product Line Drawing (Size:mm)

ADAYO gu10 spot lights

●  Installation

  • Make sure power is off before installation.

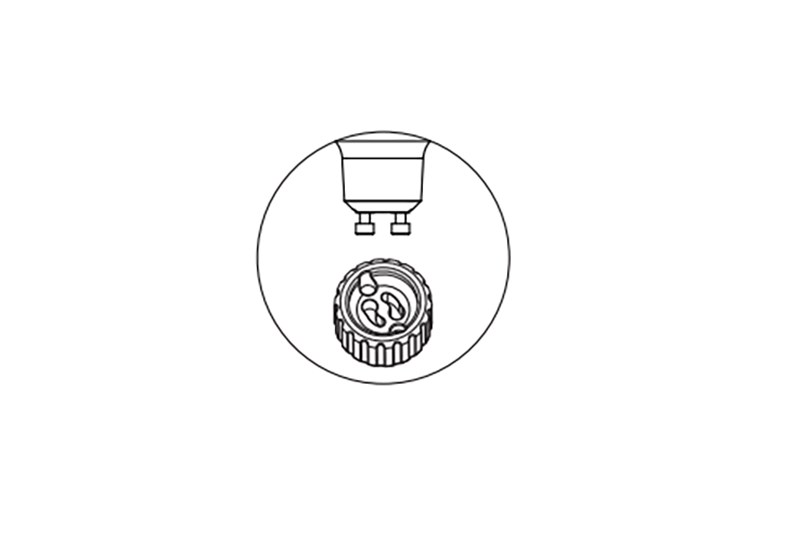

  • The installation of the lamp into GU10 Lamp holder shows as below:

ADAYO gu10 spot lights

● Accessories Optional

  • Frames optional
  • Fixture ring optional
  • Juction box optional



ADAYO gu10 spot lights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
