ADAYO lighting mini led recessed spot lights have die-casting aluminum body and height 34mm, small led spotlights are good quality with CE, new ERP

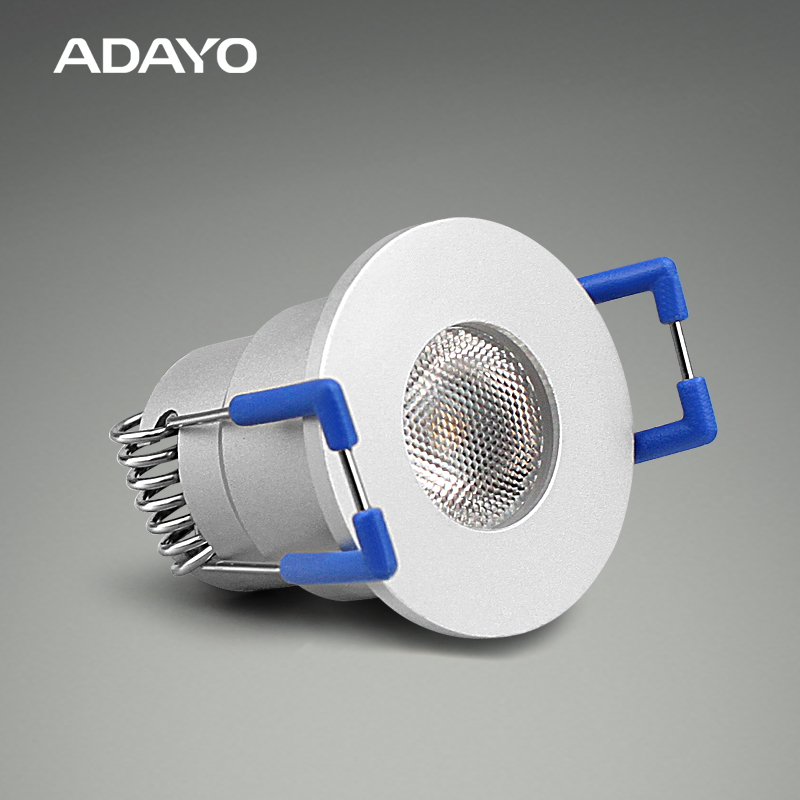

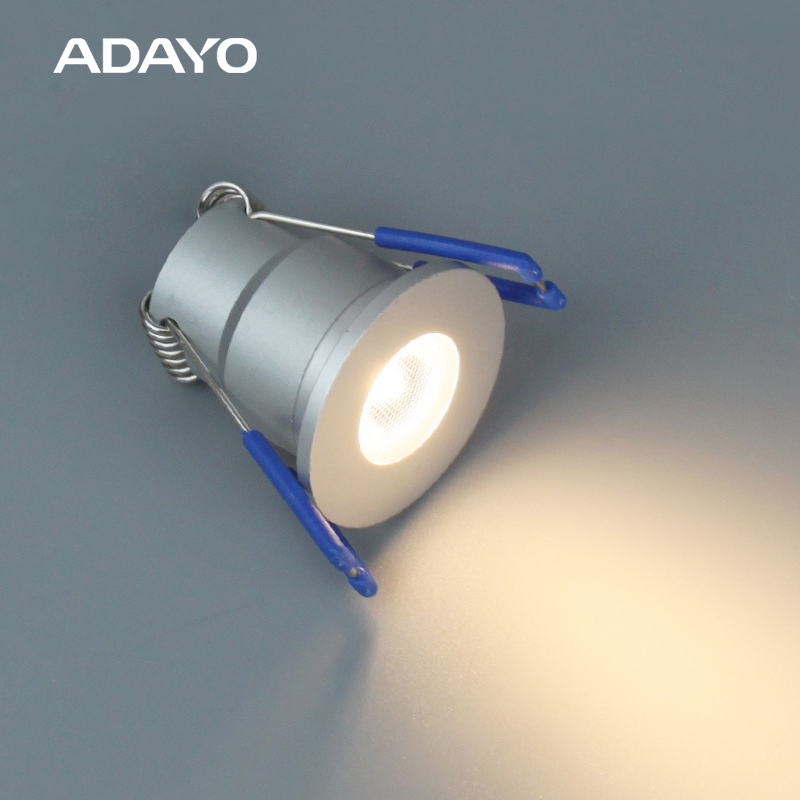

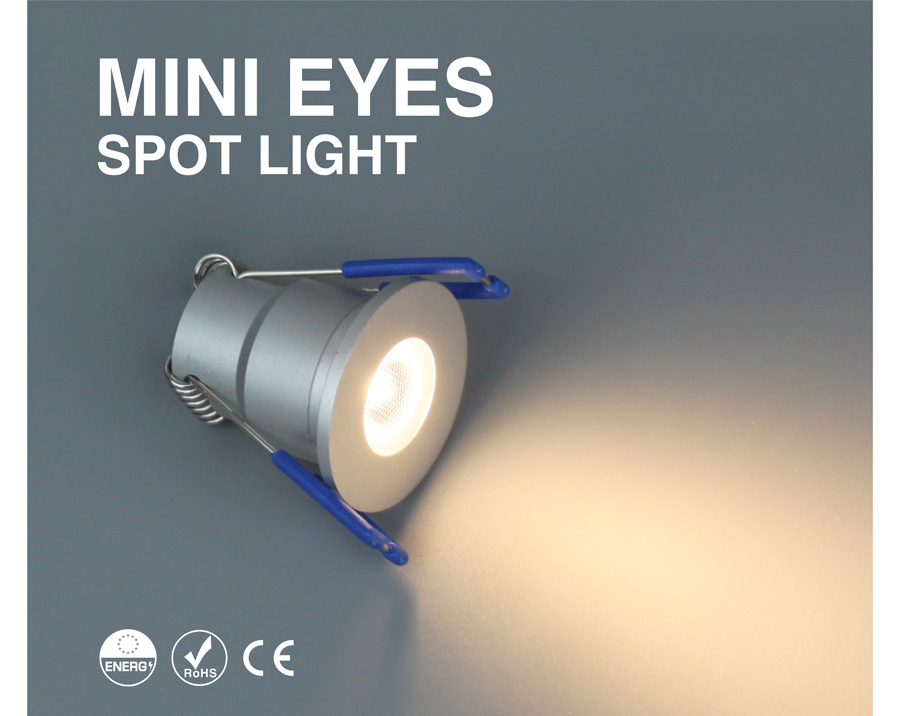

MINI EYES 3W small led spotlights 3000K non-dimming

ADAYO lighting mini led recessed spot lights have good heat dissipation, small led spotlights front waterproof IP65 availiable and can choose 12pcs with a junction box and one driver

Product Specification:
  • Code : 926602006236
  • Rated Wattage : 3W
  • Luminous : 220lm
  • Colour Temperature : 3000K
  • Colour Rendering : >80
  • Size : Φ36* 34.2mm cut Φ28mm
  • PF : >0.45
  • Dimmable : No
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

MINI EYES 3W small led spotlights 3000K with classic minimalist designing and die-casting aluminum bodygood heat dissipation, small size suitable for narrow space.



ADAYO mini led recessed spot lights



●  Features

ADAYO lighting 3000K 3W mini led recessed spot lights features as below:

  • Aluminum heat sink
  • Die-casting aluminum body, good heat dissipation
  • CE, NEW ERP, EMC, ROHS approved
  • Heat protection system, with excellent internal driver
  • Life span 25000hours

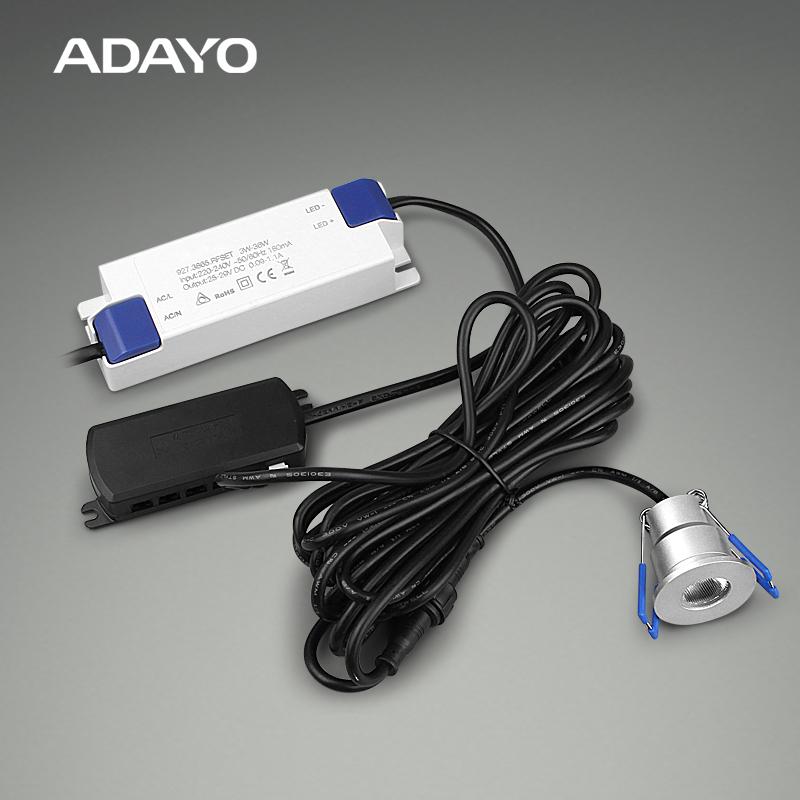

  • 12pcs with a junction box and one driver
  • RF remote control dimming and group setting
  • Front waterproof IP65 availiable



ADAYO mini led recessed spot lights

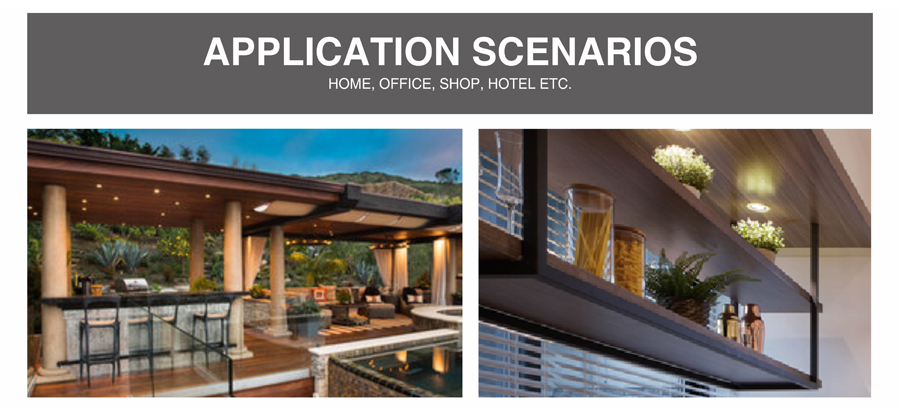

●  Applications

MINI EYES 3W small led spotlights with 3000K 36degree angle soft light, as a indoor spotlight meet your different ceiling styles

  • Bathroom; Cabinet; Kitchen.
  • Balcony; Canopy.
  • Indoor space.



ADAYO mini led recessed spot lights



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR  CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006236 CB15B-N0020-303-2 220 80 P3000 3 0.45 35 ø36 34.2 ø28
926602006237 CB15B-N0020-603-2 240 80 PG6500 3 0.45 35 ø36 34.2 ø28

926602006242

(10pcs)

CA15B-A0020-303-6 200 80 P3000 25 0.9 35 ø36 34.2 ø28

926602006243

(10pcs)

CA15B-A0020-603-6

220 80 PG6500 25 0.9 35 ø36 34.2 ø28



ADAYO mini led recessed spot lights



●  Options

  • RF remote control dimming and no-dimming
  • 3000K/6500K
  • IP65/IP20
  • 12pcs/10pcs for one group

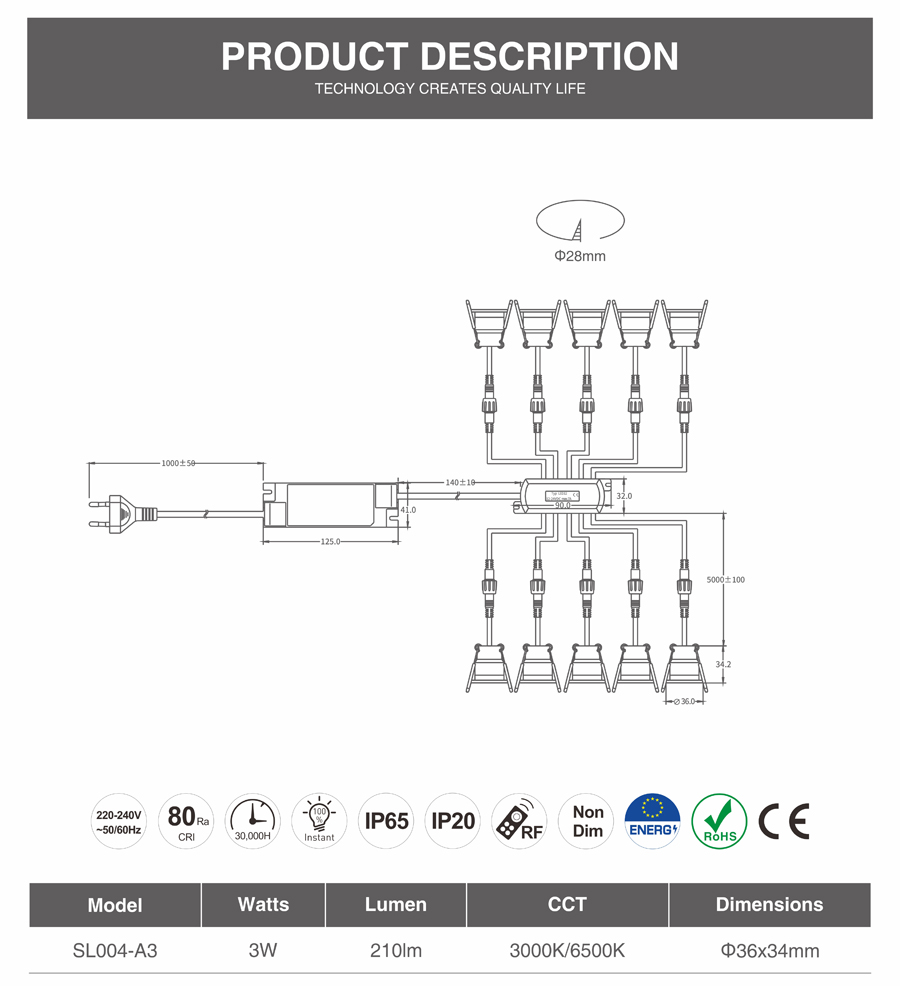

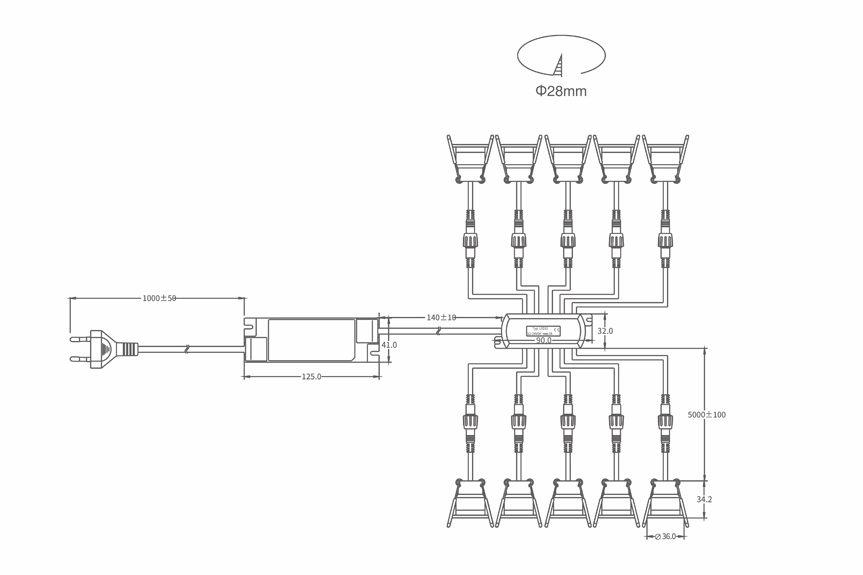

●  Product Line Drawing (Size:mm)



ADAYO mini led recessed spot lights

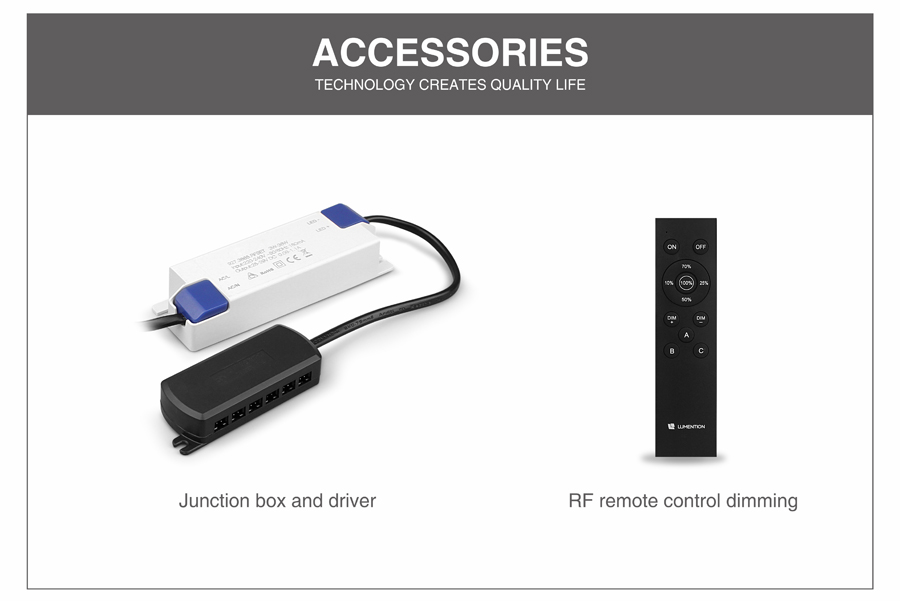

● Accessories

  • External driver



ADAYO mini led recessed spot lights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Connect wires to the wire box .(image A)
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.





●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
