ADAYO lighting cabinet downlight has 2 installation method, recessed and surface-mounted, 3000K downlight is available in other color temperature

BAGEL cabinet downlight with 3.5W 3000K and surface-mounted

The cabinet downlight with external driver optionally in groups of three or six, this 3000K downlight complies with international certifications, like CE, new ERP and is good quality

Product Specification:
  • Code : CL001-B
  • Rated Wattage : 3.5W
  • Luminous : 170lm
  • Colour Temperature : 3000K
  • Dimming or not : Non-Dimmable
  • beam angle : 100°
  • Lifespan : 15000hrs
  • Size : Φ68*11mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download

●  Product  Description

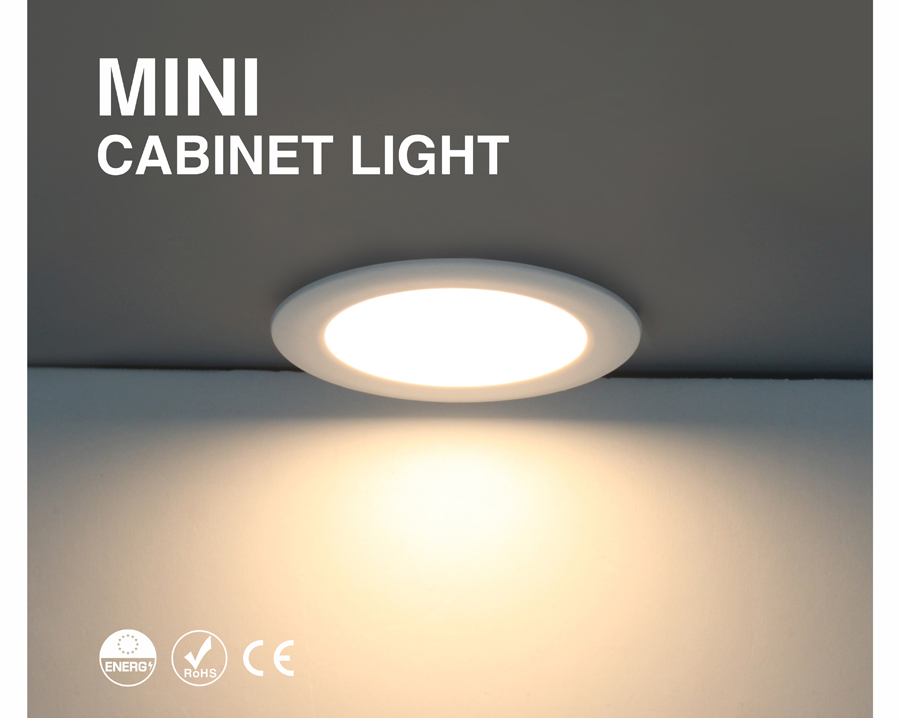

BAGEL 3.5W cabinet downlight 3000K downlight is . With a classic minimalist design, recessed and surface-mounted installation, different colors to choose from, suitable for wardrobe, cupboard.



ADAYO cabinet downlight



●  Features

ADAYO lighting 3.5W cabinet downlight, 3000K downlight features are as below:

  • Aluminum heat sink
  • Metal and PC body, good heat dissipation
  • CE, NEW ERP, EMC, ROHS approved

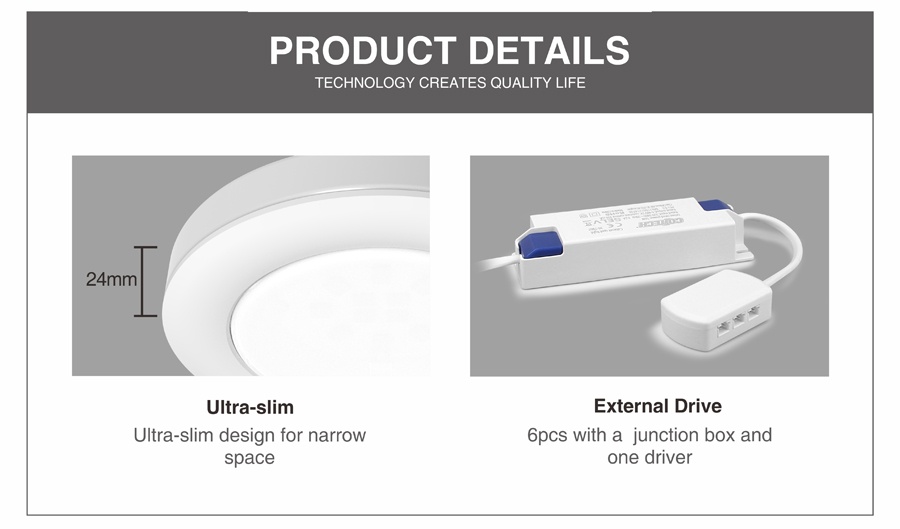

  • Arranged in series, 3 or 6 pcs can be setted as a group with a junction box and one driver
  • Surface-mounted and recessed installation optional
  • 2m cable with connection terminal easy connect with the junction box
  • Can be covered directly by the insulation with extra frame
  • Life span 15000hours


ADAYO cabinet downlight



●  Applications

BAGEL 3.5W cabinet downlight 3000K downlight, with 100 degree angle bright feeling meet your different ceiling styles.

  • Cabinet; cupborad; bookcase.
  • Jewelry cabinet; display cabinets.



ADAYO cabinet downlight



●  Specification



ADAYO cabinet downlight



●  Options

  • Two installation: Surface-mounted and recessed
  • Color: White, brushed nickel
  • Dimmable and non-dimmable optional
  • 3 or 6 pcs can be setted as a group



ADAYO cabinet downlight

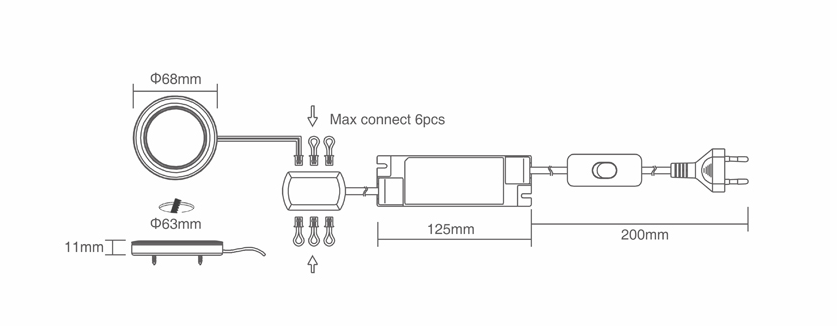

●  Product Line Drawing (Size:mm)



ADAYO cabinet downlight

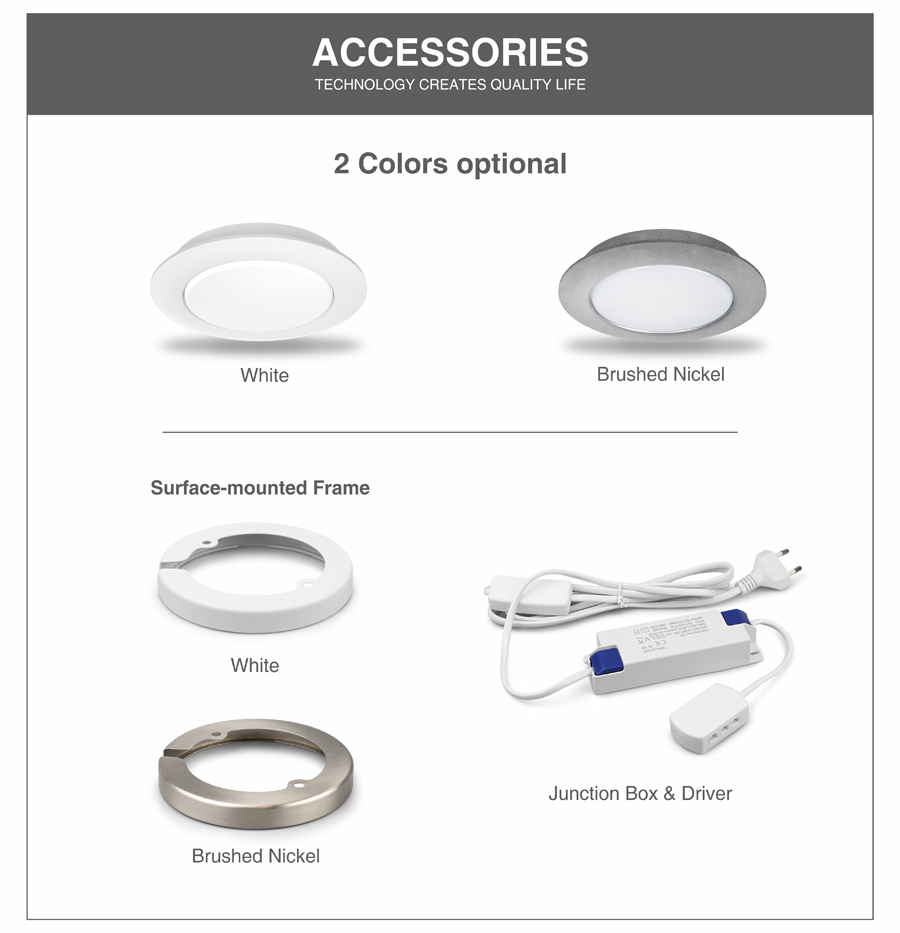

● Accessories Optional

  • Colors: brush nickel, white
  • Juction box
  • External driver



ADAYO cabinet downlight



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.
