● Product Description
BAGEL there pcs for a group 8.5W round led cabinet lights, 2700K white downlights are ultra slim design. With a classic minimalist design, recessed and surface-mounted installation, different colors to choose from, suitable for wardrobe, cupboard.
● Features
ADAYO lighting 8.5W round led cabinet lights, 2700K white downlights features are as below:
- Aluminum heat sink
- Metal and PC body, good heat dissipation
- CE, NEW ERP, EMC, ROHS approved
-

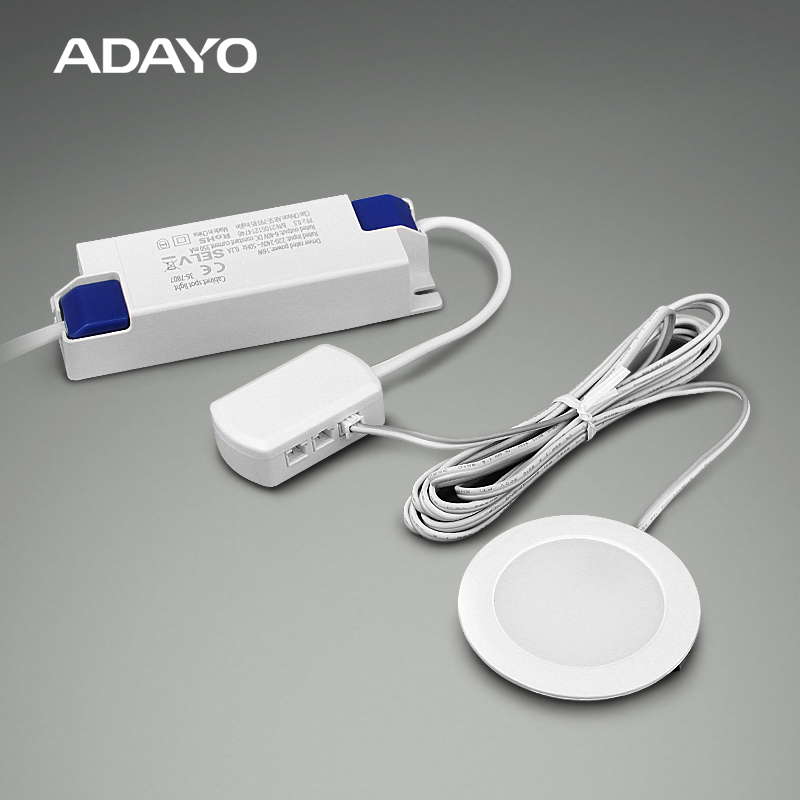

Arranged in series, 3 or 6 pcs can be setted as a group with a junction box and one driver

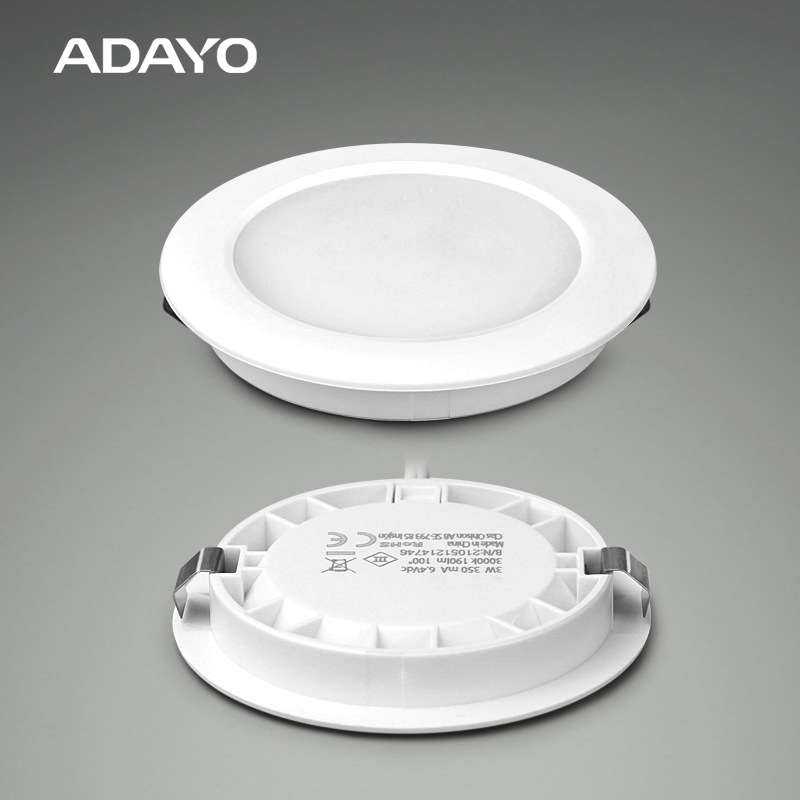

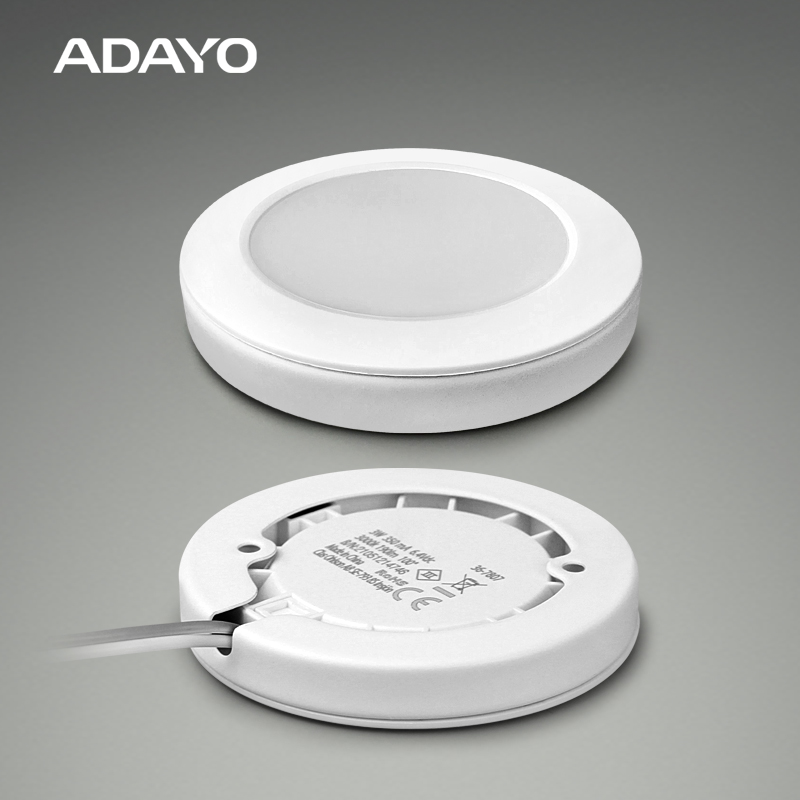

- Surface-mounted and recessed installation optional
- 2m cable with connection terminal easy connect with the junction box
-
Can be covered directly by the insulation with extra frame
-
Life span 15000hours
● Applications
BAGEL 8.5W round led cabinet lights 3000K downlight, with 100 degree angle bright feeling meet your different ceiling styles.
- Cabinet; cupborad; bookcase.
- Jewelry cabinet; display cabinets.
● Specification
| SPECIFICATION |
| Item NO. |
SKU |
Lumen(lm) |
CIR |
CCT |
Watt (W) |
PF |
Beam angle (°）
|
Size
（Dia * H mm) |
Cut size (mm) |
| 926602006145 non-dimmable |
JDA25N-0018WA30-3 |
205*3 |
80 |
P3000 |
9 |
0.5 |
100 |
ø68 |
11 |
ø63 |
| 926602006158 non-dimmable |
JDA25N-0018WA27-39 |
170*3 |
90 |
F2700 |
8.5 |
0.5 |
100 |
ø68 |
11 |
ø63 |
| 926602006159 non-dimmable |
JDA25N-0018WA30-39 |
175*3 |
90 |
F3000 |
8.5 |
0.5 |
100 |
ø68 |
11 |
ø63 |
| 926602006160 non-dimmable |
JDA25N-0018NA27-39
|
160*3 |
90 |
F2700 |
8.5 |
0.5 |
100 |
ø68 |
11 |
ø63 |
| 926602006161 non-dimmable |
JDA25N-0018NA30-39 |
165*3 |
90 |
F3000 |
8.5 |
0.5 |
100 |
ø68 |
11 |
ø63 |
| 926602006162 non-dimmable |
JDA25N-0018WA27-R9 |
170 |
90 |
F2700 |
3.5 |
0.4 |
100 |
ø68 |
11 |
ø63 |
| 926602006163 non-dimmable |
JDA25N-0018WA30-R9 |
175 |
90 |
F3000 |
3.5 |
0.4 |
100 |
ø68 |
11 |
ø63 |
| 926602006164 non-dimmable |
JDA25N-0018NA27-R9 |
160 |
90 |
F2700 |
3.5 |
0.4 |
100 |
ø68 |
11 |
ø63 |
| 926602006165 non-dimmable |
JDA25N-0018NA30-R9 |
165 |
90 |
F3000 |
3.5 |
0.4 |
100 |
ø68 |
11 |
ø63 |
● Options
- Two installation: Surface-mounted and recessed
- Color: White, brushed nickel
- Dimmable and non-dimmable optional
- 3 or 6 pcs can be setted as a group
● Product Line Drawing (Size:mm)

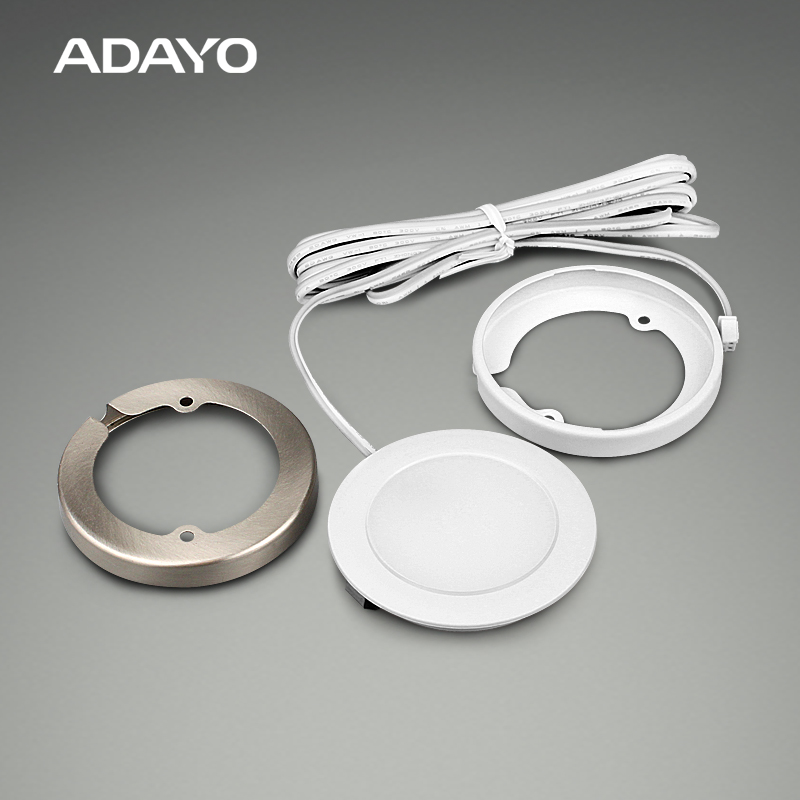

● Accessories Optional
- Colors: brush nickel, white
- Juction box
- External driver
● Installation
- Make sure power is off before installation.
- Cut a suitable hole in the ceiling, the hole size will show on the specification form.
- Connect wires to the wire box.
- Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.
● Brief introduction of ADAYO Lighting
- A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
- Industrial park: 56000sqm
- Business line: LED package, LED high power driver, LED Lighting
- R&D laboratory: 1200sqm with international standard
- R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
- Work shop: 5000 SQM with more than 300 works and 50 production lines
- Monthly Capacity(Pieces) : package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K, LED light: 5000K
- New product lunch time: 6-10 weeks.
- Payment: L/C, T/T, O/A
