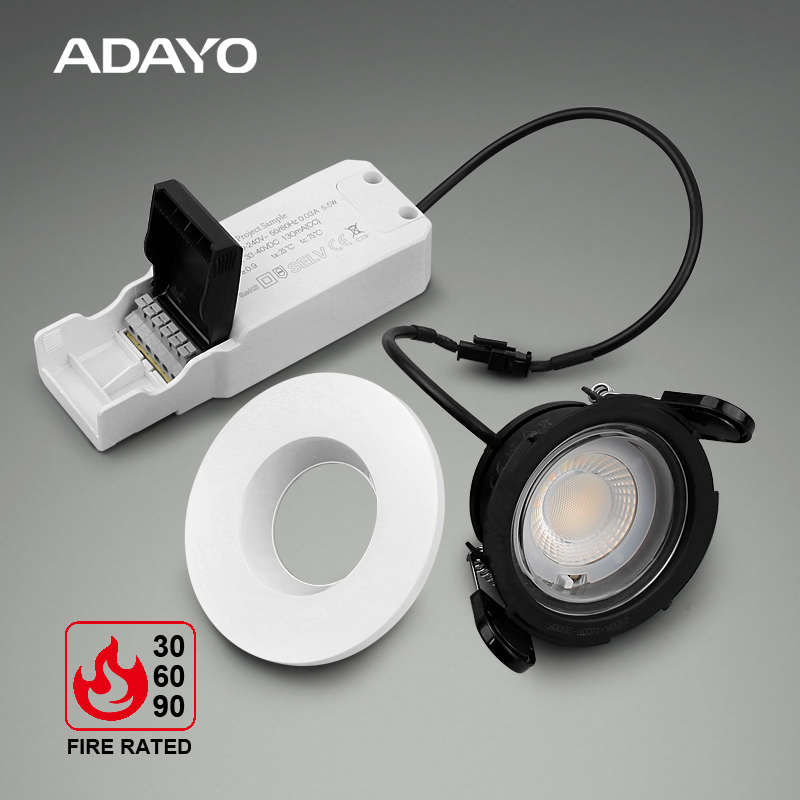

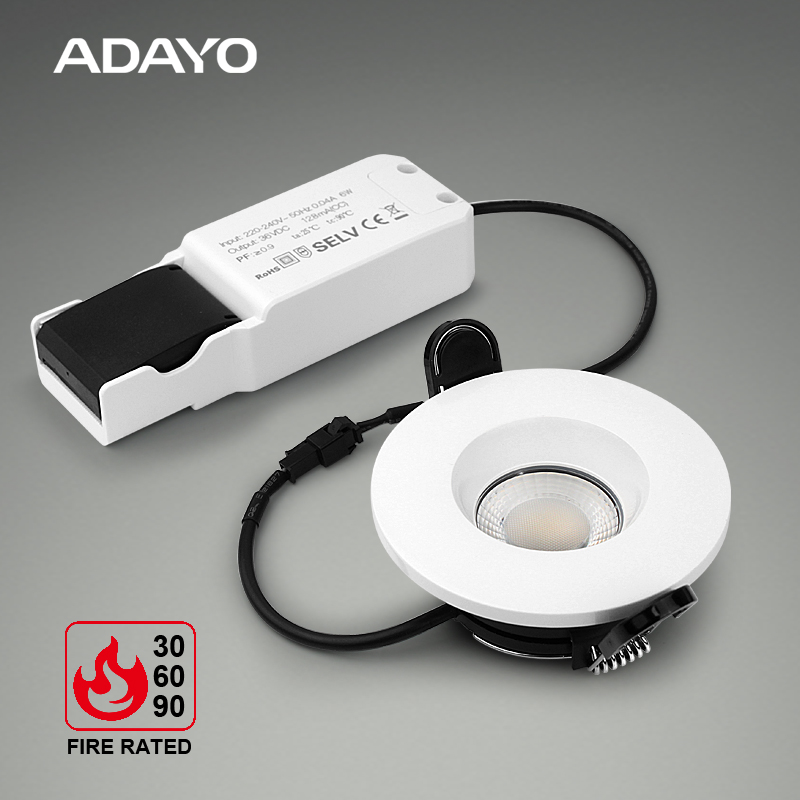

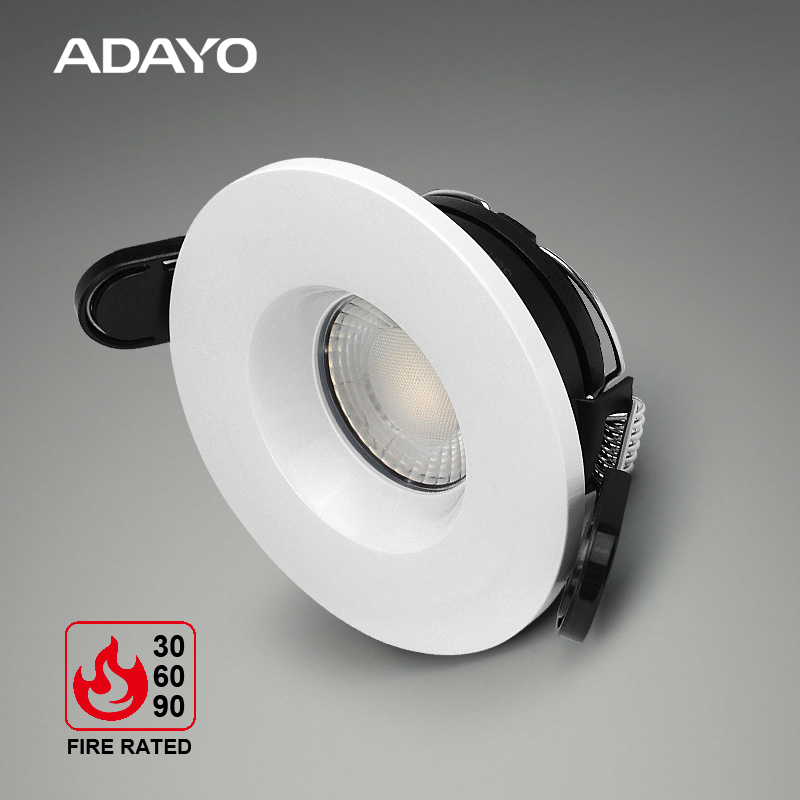

ADAYO lighting recessed downlight IP65 made of iron which melting point is 1538°C, led downlight fixtures pass 30/60/90 min anti-fire test

Recessed downlight IP65 CLOVER Ⅴ 6W CCT3 with low profile design

ADAYO lighting recessed downlight IP65 40mm slim height design is suitable for narrow place and this led downlight fixtures adopt flame retardant material, safe and secure

Product Specification:
  • Code : 926602006754
  • Rated Wattage : 6W
  • Luminous : 520lm
  • Colour Temperature : CCT3 3000K-4000K-6500K
  • Dimming or not : Dimming
  • beam angle : 60°
  • Lifespan : 30000hrs
  • Size : Φ88*40mm cut Φ68mm
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download


●  Product  Description

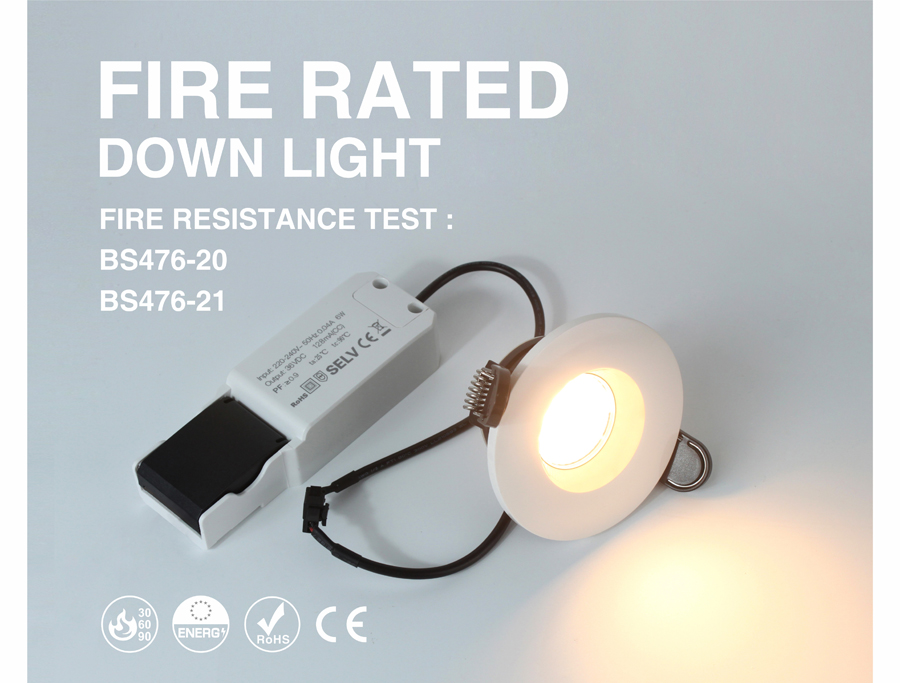

CLOVER Ⅴ 6W downlight CCT3 recessed downlight IP65 with BS476-20/21 and 30'/60'/90' flame retardant test adopt flame retardant material, safe and secure. This LED downlight fixtures with classic minimalist design are suitable for different application.

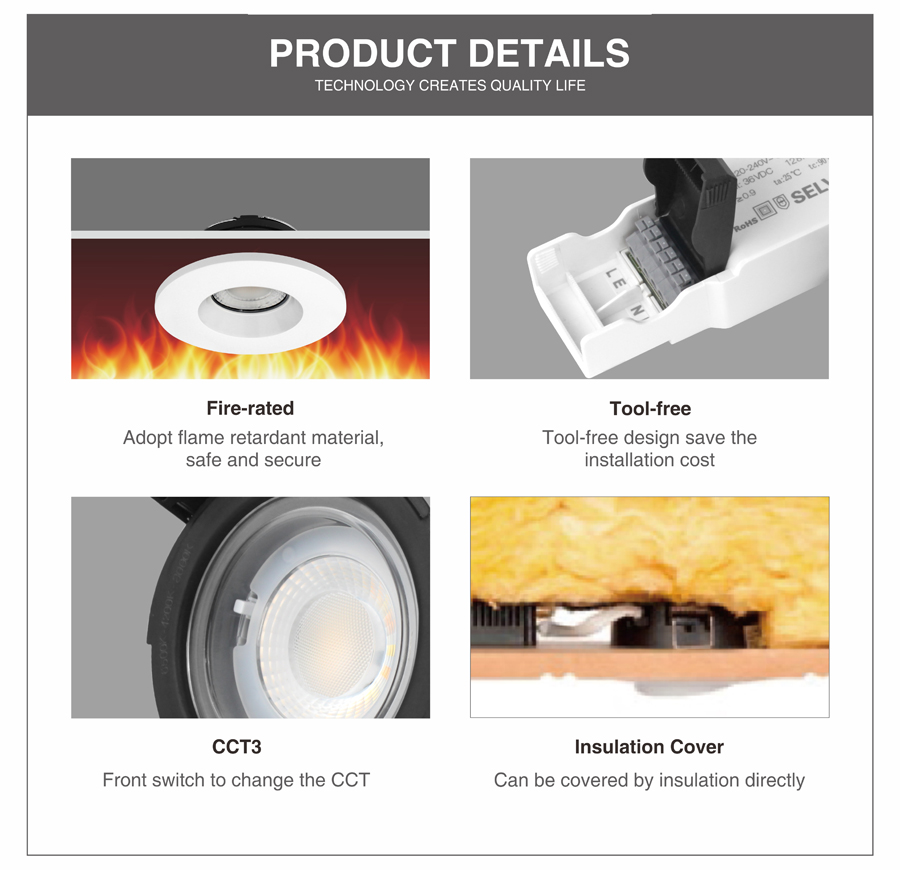

●  Features

ADAYO lighting 6W CCT3 fire rated recessed downlight IP65 dimmable led downlight fixtures features as below:

  • Aluminum heat sink

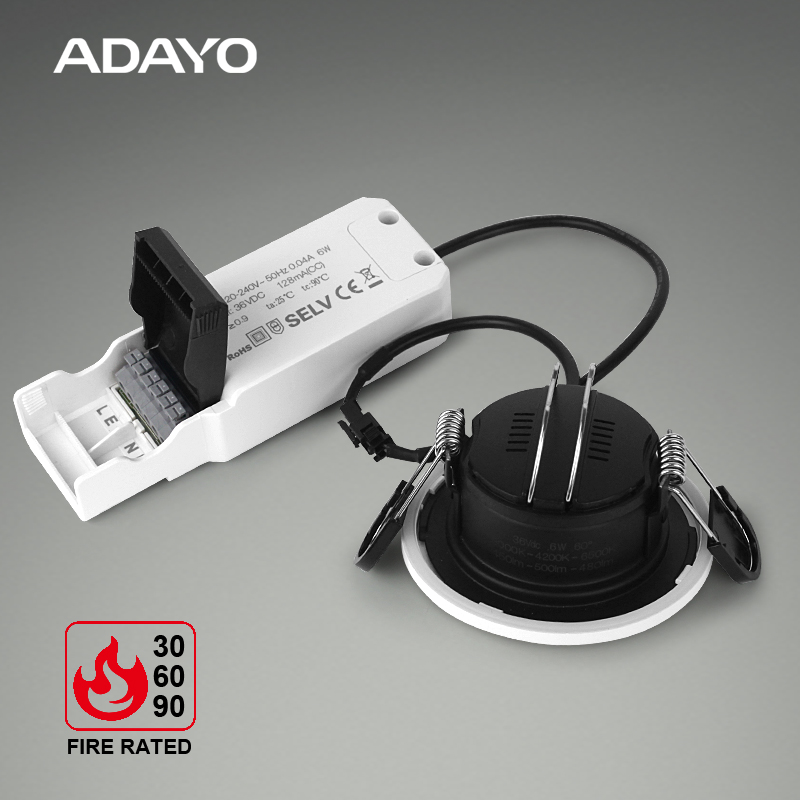

  • Tooling free installation design with 3 pin loop in and loop out
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • Iron housing melting point is 1538℃
  • Can be covered by insulation directly
  • Four colors bezel changable, brush nickle, silver, chrome and black
  • Smooth triac dimming
  • CCT3 switch changeable on driver
  • Life span 50000hours,waterproof IP65

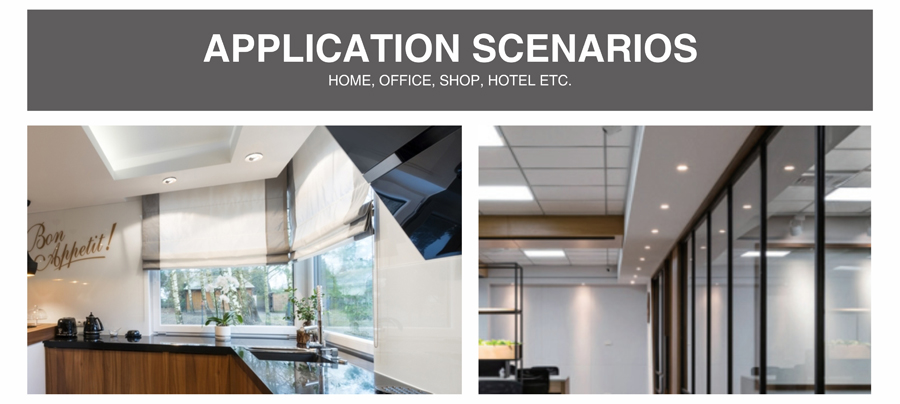

●  Applications

CLOVER Ⅴ 6W CCT3 fire rated recessed downlight IP65 with 60 degree angle is widely bright feeling, with four colors bezel changeable meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, supermarket.
  • Hotel.

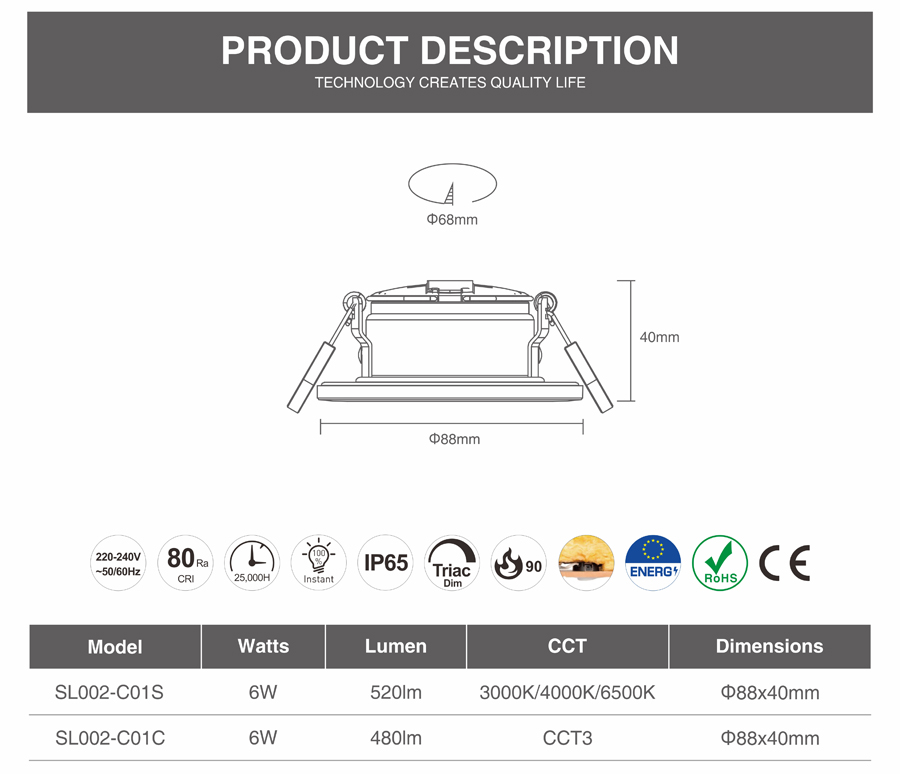

●  Specification


Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006754  SL02-C25-006WA-C2 480
80 F3000
6 0.9 60 ø88 40 ø68




●  Options

  • Dimmable and no-dimmable
  • Signle Colour temperature, CCT3
  • Separat isolated driver, integreret
  • Decorate bezel: bruch nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12

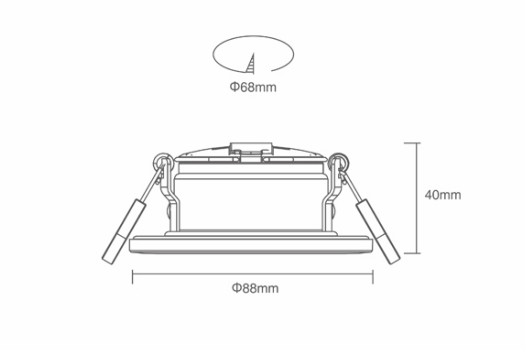

●  Product Line Drawing (Size:mm)

● Accessories Optional

  • Bezel shape: round
  • Bezel colors: brush nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12


●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Press the side spring and push the fixture fitting into the ceiling hole, And make sure the fitting is stable and firmly. After proper installation is confirmed, switch on the main power.



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
