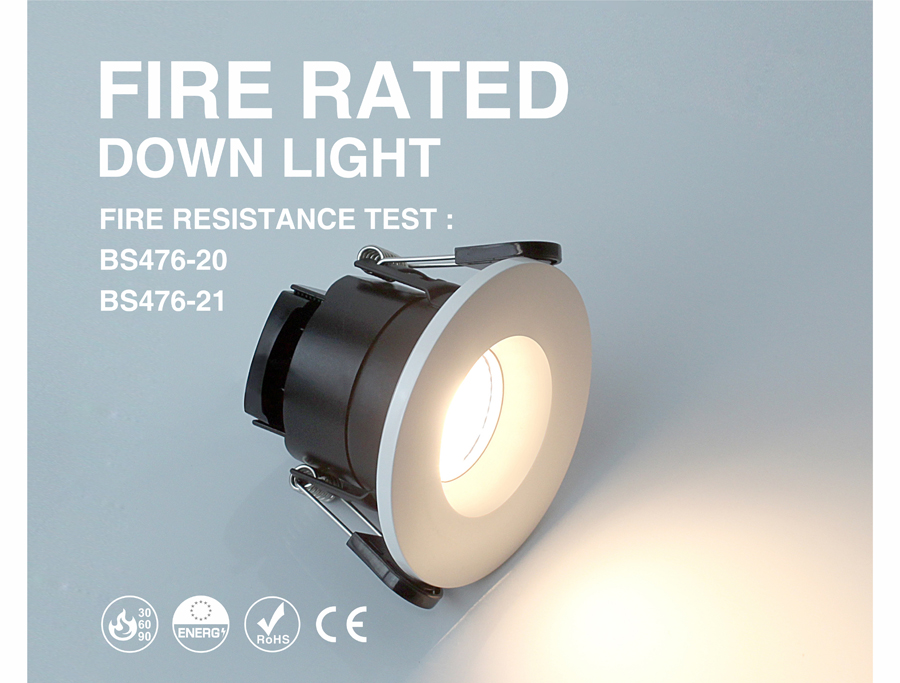

ADAYO lighting fire rated recessed light comply 30'/60'/90' flame retardant test and this 6W downlight also meets the international certification

Fire rated recessed light CLOVER Ⅳ 6W CCT3 and dimming

ADAYO lighting 6W downlight with BS476-20/21 can cover up to 300mm of insulation, this fire rated recessed light with anti-glare design and beam angle 60° has a soft and natural light

Product Specification:
  • Code : 926602006753
  • Rated Wattage : 6W
  • Luminous : 550lm
  • Colour Temperature : CCT3 3000K-4000K-6500K
  • Dimming or not : Dimming
  • beam angle : 60°
  • Lifespan : 30000hrs
  • Size : Φ88*64mm cut Φ68mm
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download


●  Product  Description

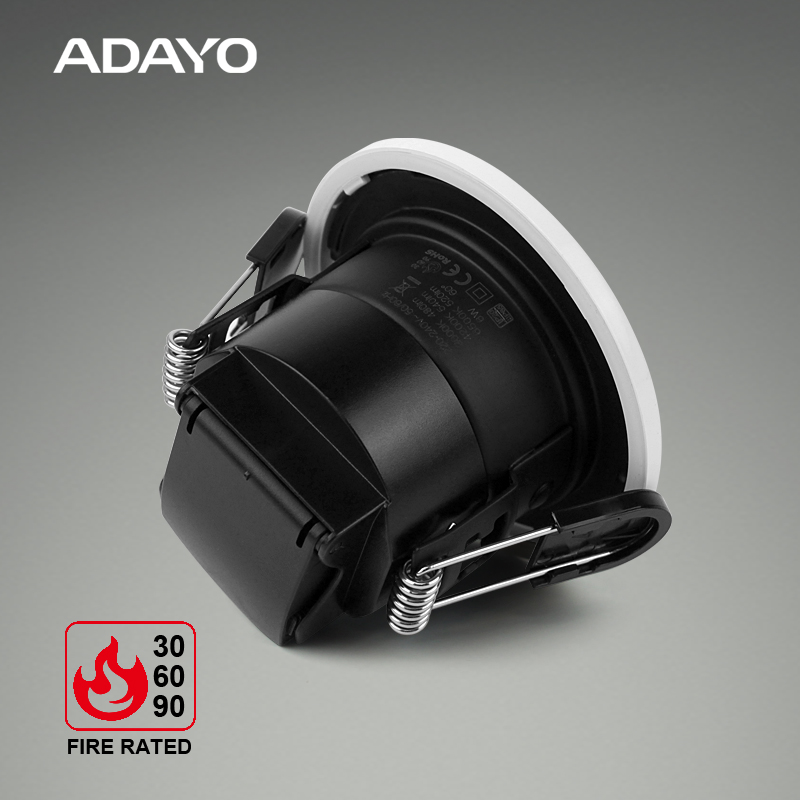

CLOVER Ⅳ 6W downlight CCT3 fire rated recessed light is a dimmable downlight with BS476-20/21 and 30'/60'/90' flame retardant test adopt flame retardant material, safe and secure. With classic minimalist design suitable for different application.


ADAYO fire rated recessed light

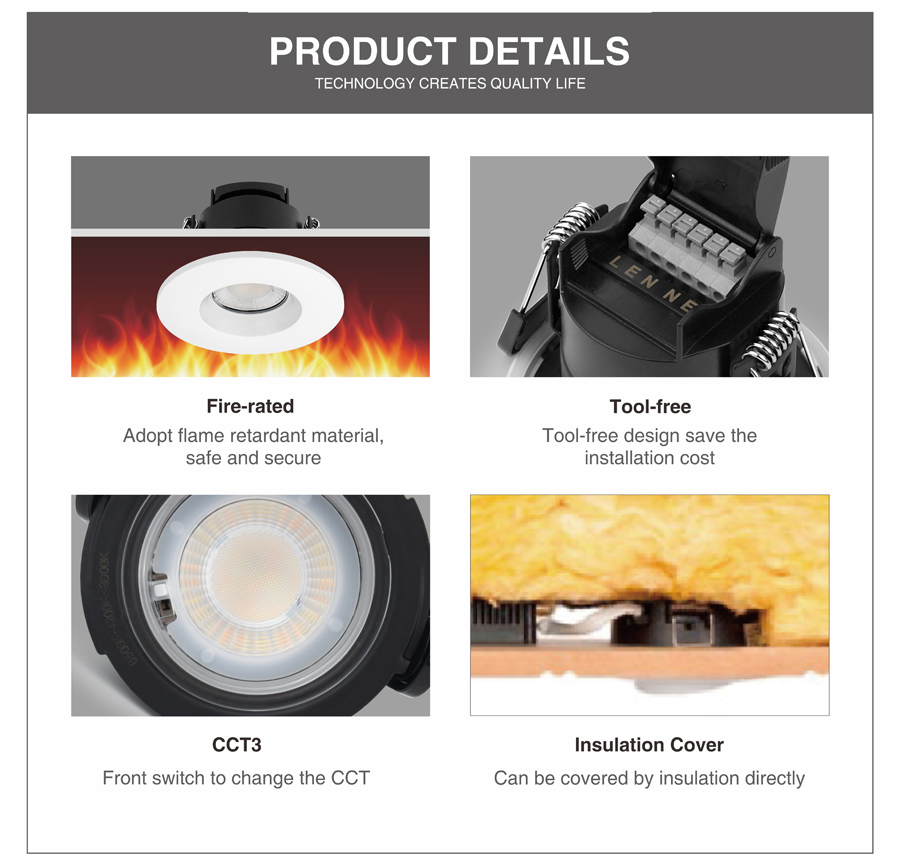

●  Features

ADAYO lighting CCT3 fire rated recessed light 6W downlight IP65 features as below:

  • Aluminum heat sink

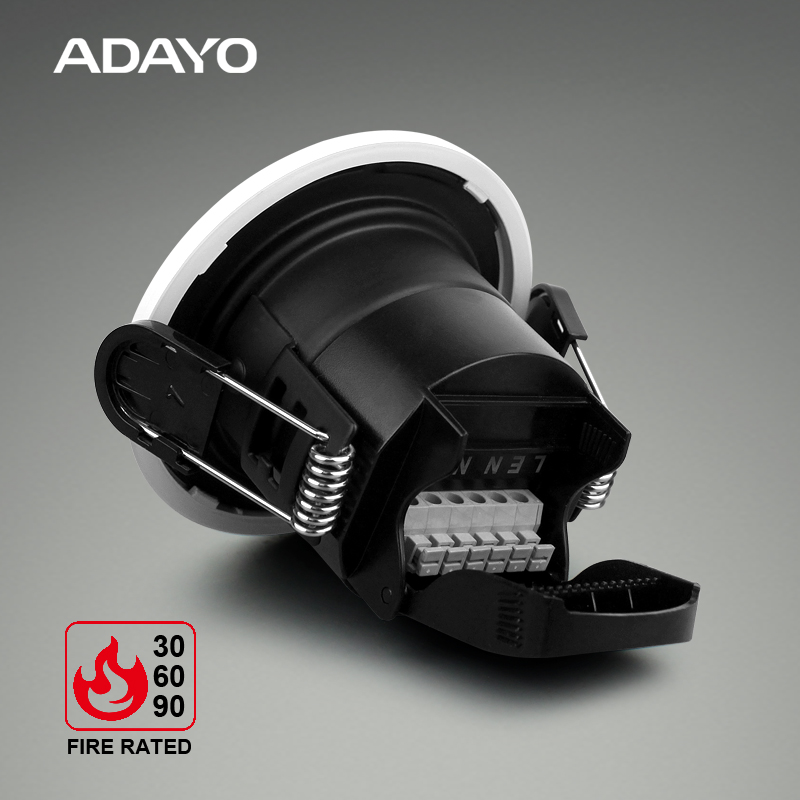

  • Tooling free installation design with 3 pin loop in and loop out
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • Iron housing melting point is 1538℃
  • Can be covered by insulation directly

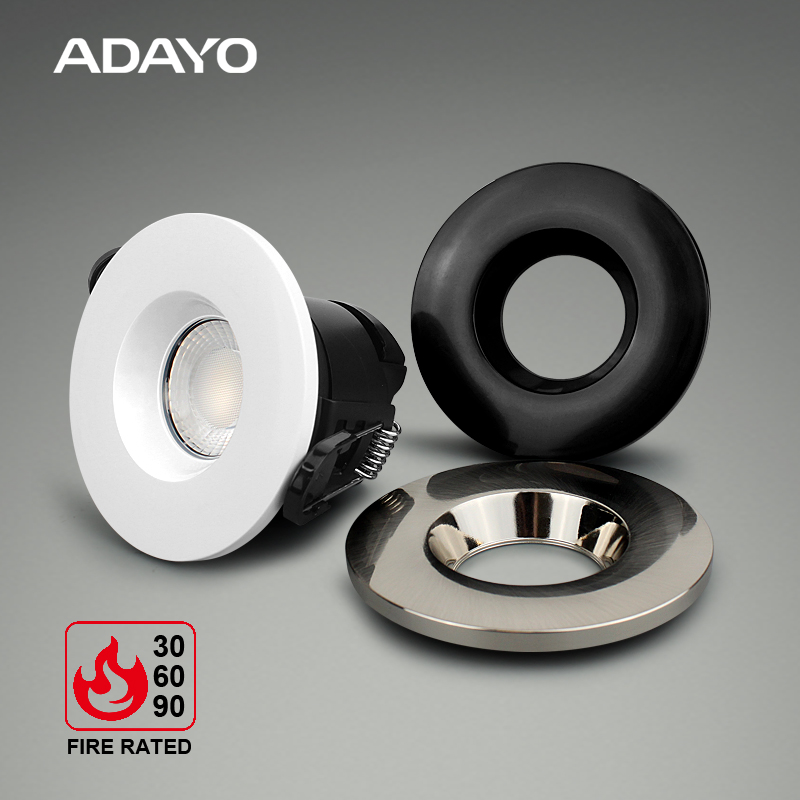

  • Four colors bezel changable, brush nickle, silver, chrome and black
  • Smooth triac dimming
  • Front switch to change the CCT
  • Life span 25000hours,waterproof IP65


ADAYO fire rated recessed light


●  Applications

CLOVER Ⅳ fire rated recessed light is a dimmable 6W downlight IP65, with 60 degree angle widely bright feeling, with four colors bezel changeable meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, supermarket.
  • Hotel.


ADAYO fire rated recessed light


●  Specification

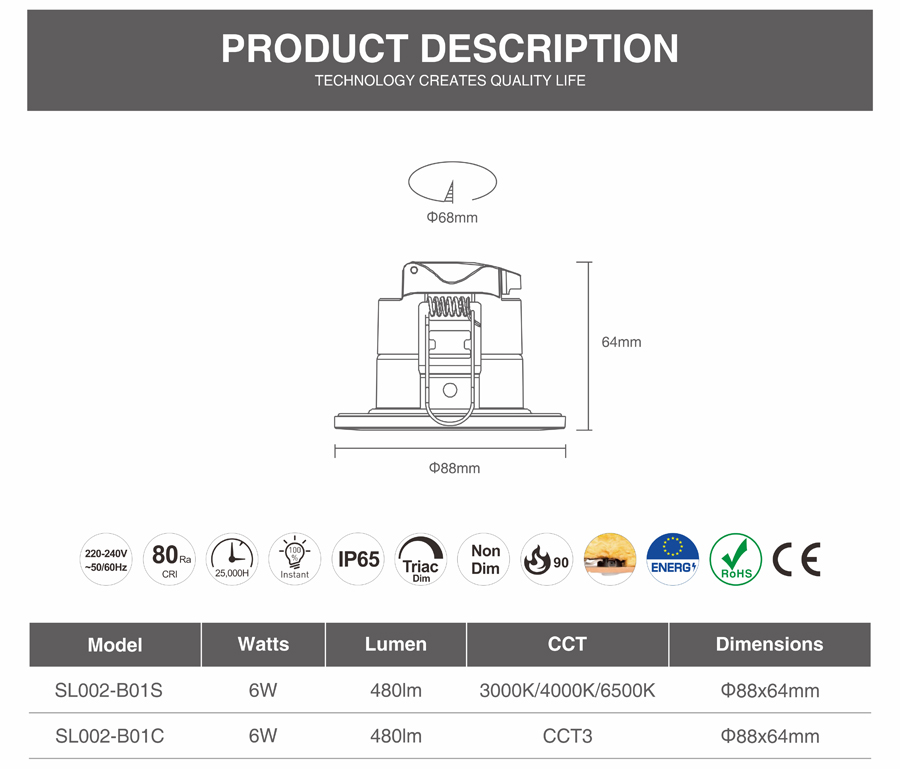

Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006250  YH25C-AW006-3060 480 80 F3000 5.8 0.8 60 ø88 64 ø68
926602006251   YH25C-AW006-4060 520 80 F4000 5.8 0.8 60 ø88 64 ø68
926602006252  YH25C-AW006-6560 520 80 F6500 5.8 0.8 60 ø88 64 ø68



80 F3000
6 0.8 60 ø88 64 ø68
926602006401  YH25C-AW006-C160 480
80 F2700
6 0.8 60 ø88 64 ø68
926602006411   YH25C-AW006-C160 4pin 480
80 F2700
6 0.8 60 ø88 64 ø68
926602006753  YH25C-AW006-C2 500
80 F3000
6 0.8 60 ø88 64 ø68

ADAYO fire rated recessed light


●  Options

  • Dimmable and no-dimmable
  • Signle Colour temperature, CCT3
  • Separat isolated driver, integreret
  • Decorate bezel: bruch nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12

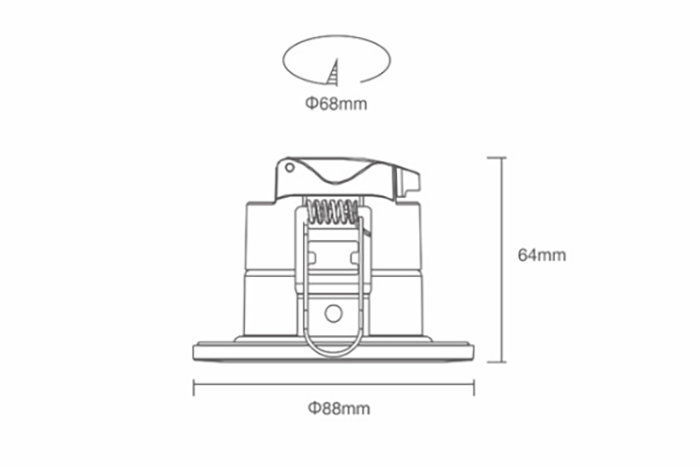

●  Product Line Drawing (Size:mm)

ADAYO fire rated recessed light

● Accessories Optional

  • Bezel shape: round
  • Bezel colors: brush nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12

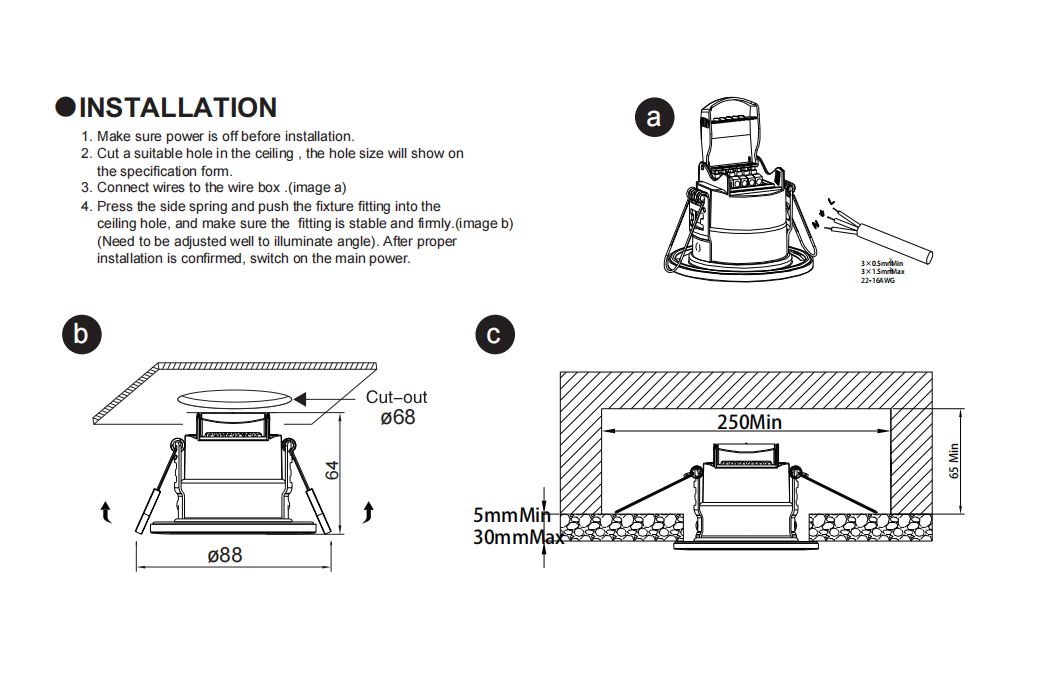

●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Press the side spring and push the fixture fitting into the ceiling hole, And make sure the fitting is stable and firmly. After proper installation is confirmed, switch on the main power.


ADAYO fire rated recessed light


●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
