Home>Product > LED SPOT LIGHT > Miranda-Deep recessed spot G1.5 >

ADAYO lighting dimmable led spot lights with die-casting housing have good heat dissipation and this led spotlights indoor comply with CE, EMC

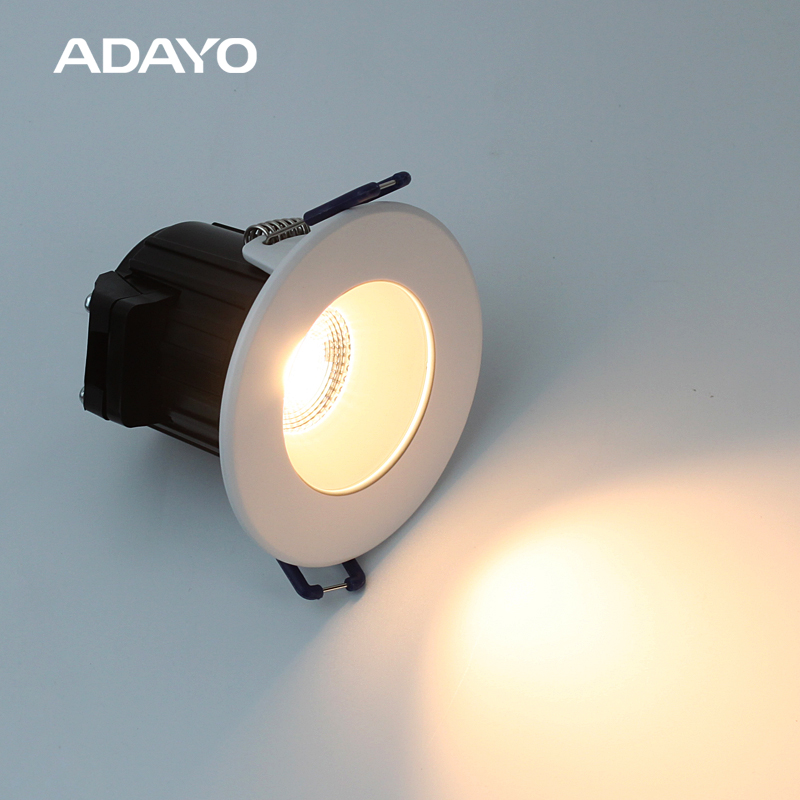

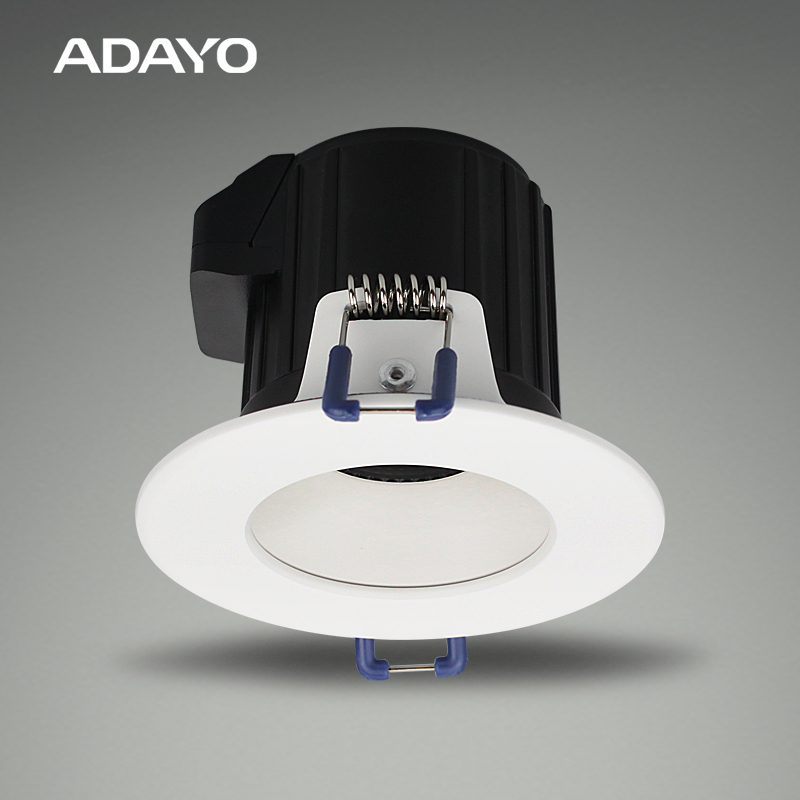

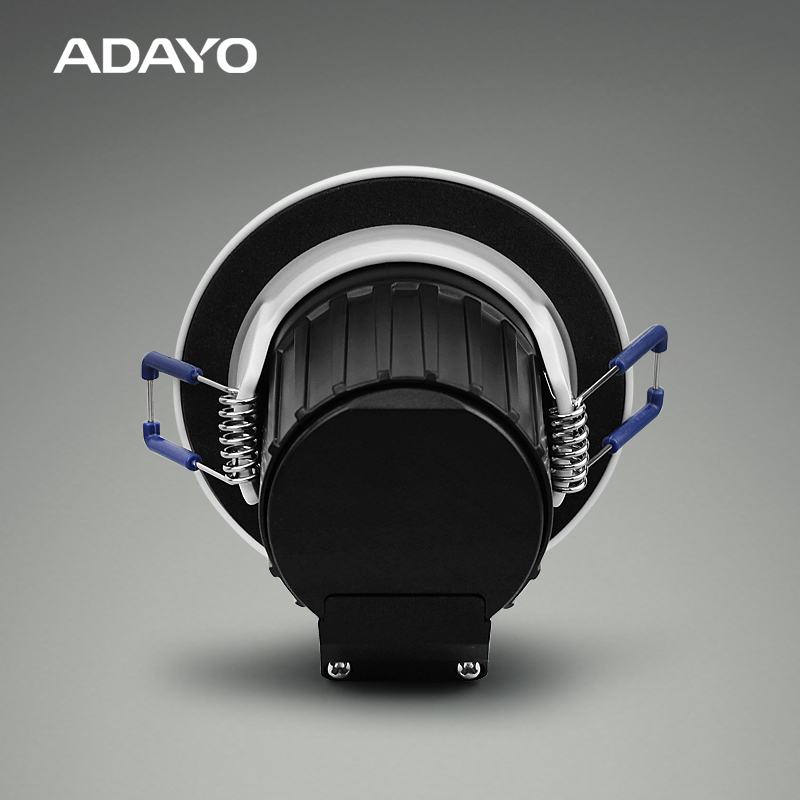

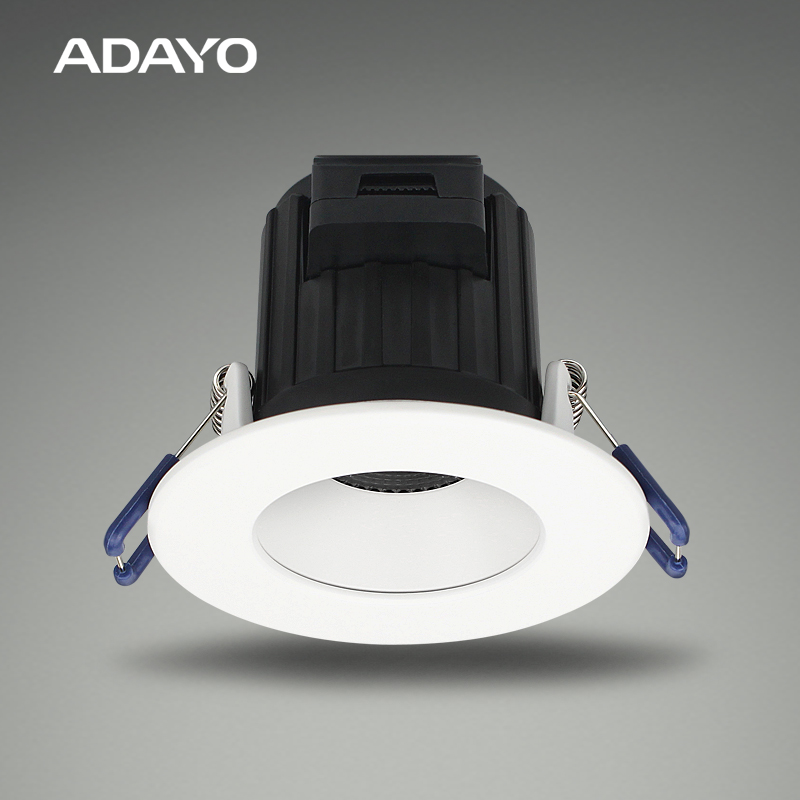

MIRANDA white dimmable led spot lights 9W 2700K with IP65

MIRANDA white dimmable led spot lights 9W 2700K with IP65

ADAYO lighting 9W dimmable led spot lights have high color rendering index, led spotlights indoor with deep recessed and anti-glare softens the light to reduce eye fatigue

Product Specification:
  • Code : 926602006030
  • Rated Wattage : 9W
  • Luminous : 520lm
  • Colour Temperature : 2700K
  • Colour Rendering : >90
  • Size : Φ86*64mm cut Φ68-75mm
  • PF : >0.8
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM LED spot light smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

MIRANDA die-casting 9W 2700K led spotlights indoor is dimmable led spot lights that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, IP65, with die-casting housing and good heat dissipation performance, different colors to choose from, suitable for commercial lighting.





ADAYO dimmable led spot lights



ADAYO dimmable led spot lights



●  Features

ADAYO lighting 9W 2700K die-casting dimmable led spot lights features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • CE, NEW ERP, EMC, ROHS approved
  • Deep recessed and anti-glare
  • Die-casting housing for excellent heat dissipation
  • Smooth triac dimming and front waterproof IP65
  • Can be covered directly by the insulation with extra frame
  • Life span 25000hours



ADAYO dimmable led spot lights



●  Applications

MIRANDA led spotlights indoor 9W 2700K dimmable led spot lights IP65, with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.
  • Hotel.



ADAYO dimmable led spot lights



Specification：



SPECIFICATION
Item NO. SKU Lumen(lm) CRI CCT Watt (W) PF Beam angle (°） Size
（Dia * H mm)		 Cut size (mm)
926602006030  DL25U-W009AA-027 520 90 P2700 9 0.8 38 ø86 64 ø68-75
926602006464

 DL25U-W009A0-A27

(with junction box)

 600 90 F2700 9 0.9 38 ø86 64 ø68-75
926602006526

DL25U-W009A0-A30

(with junction box)

 620 90 F3000 9 0.9 38 ø86 64

ø68-75





ADAYO dimmable led spot lights

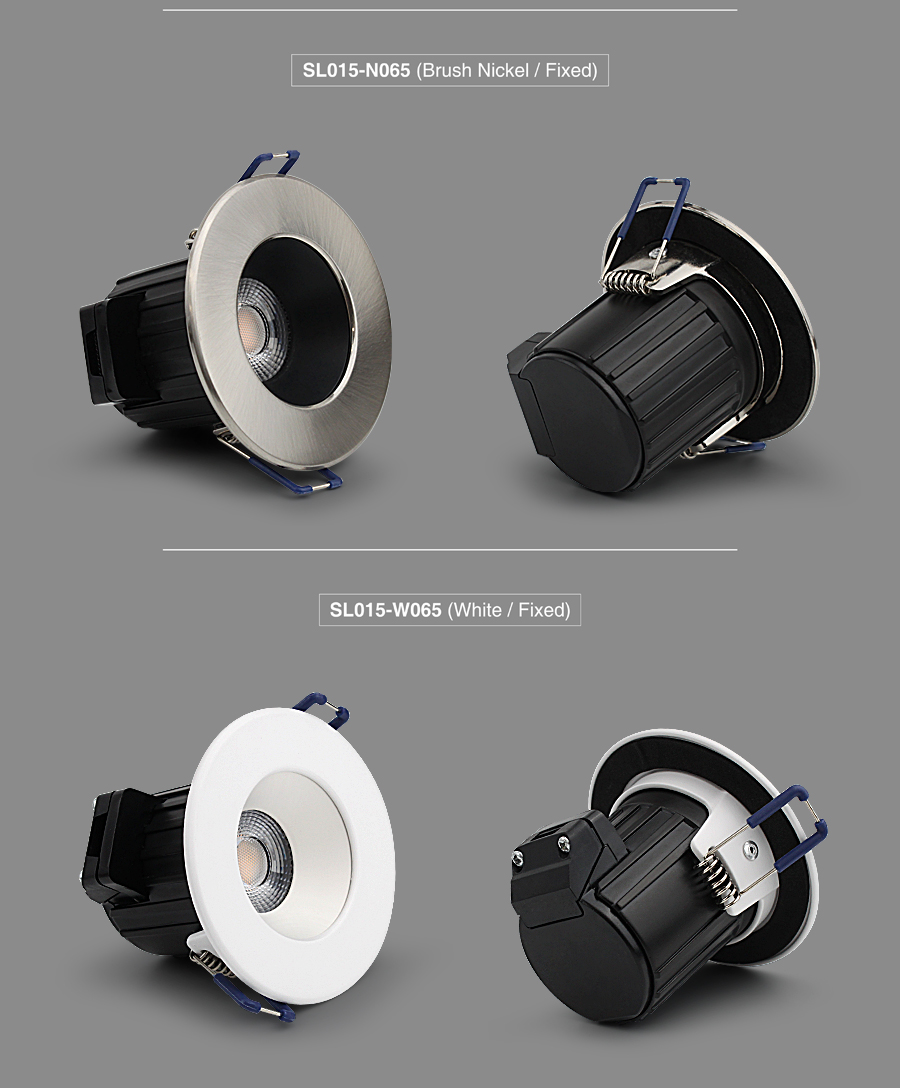

●  Options

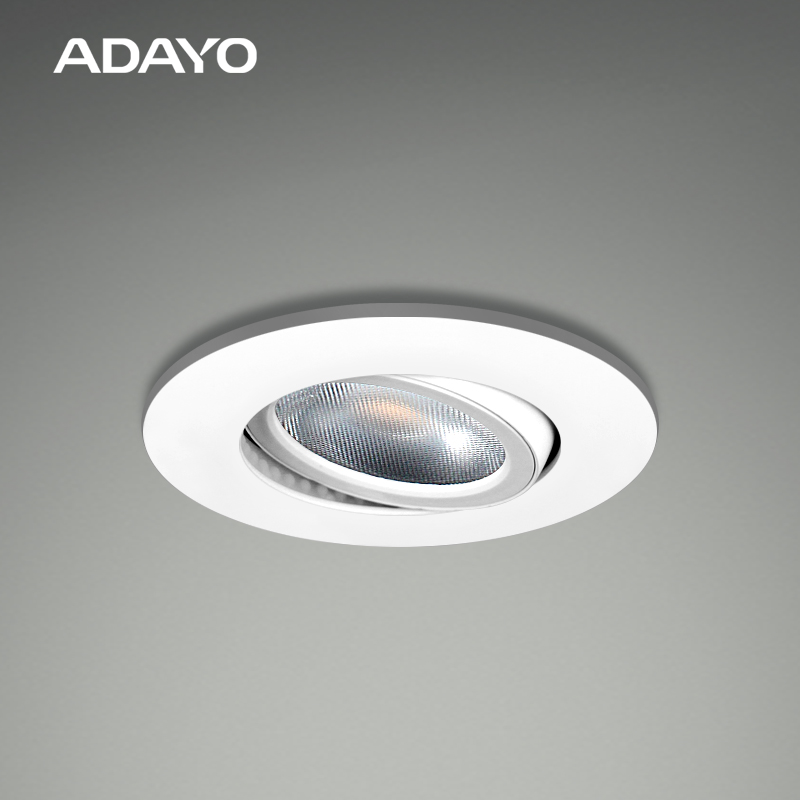

  • Fixed(IP65) and adjustable(IP44)
  • White, brushed nickel and black
  • Junction box or not
  • 2700K/3000K/4000K/6500K
  • Different color of decorative rings
  • Metal extra frame or not



ADAYO dimmable led spot lights



●  Product Line Drawing (Size:mm)



ADAYO dimmable led spot lights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO dimmable led spot lights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
