ADAYO lighting led ceiling downlights has high lighting efficiency more than 100lm/W, and this recessed ceiling downlight is IP54 for room side

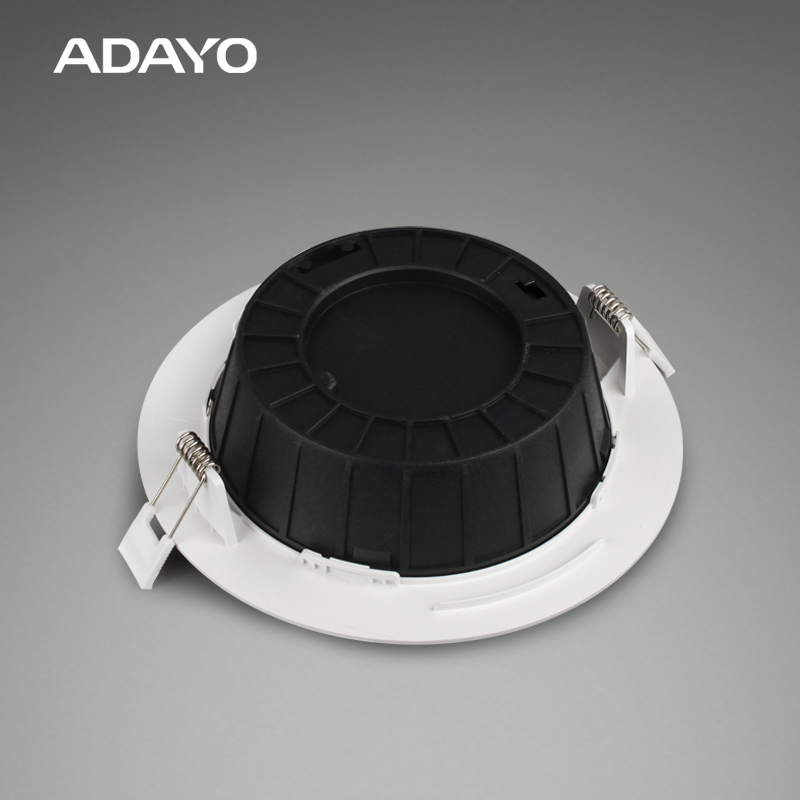

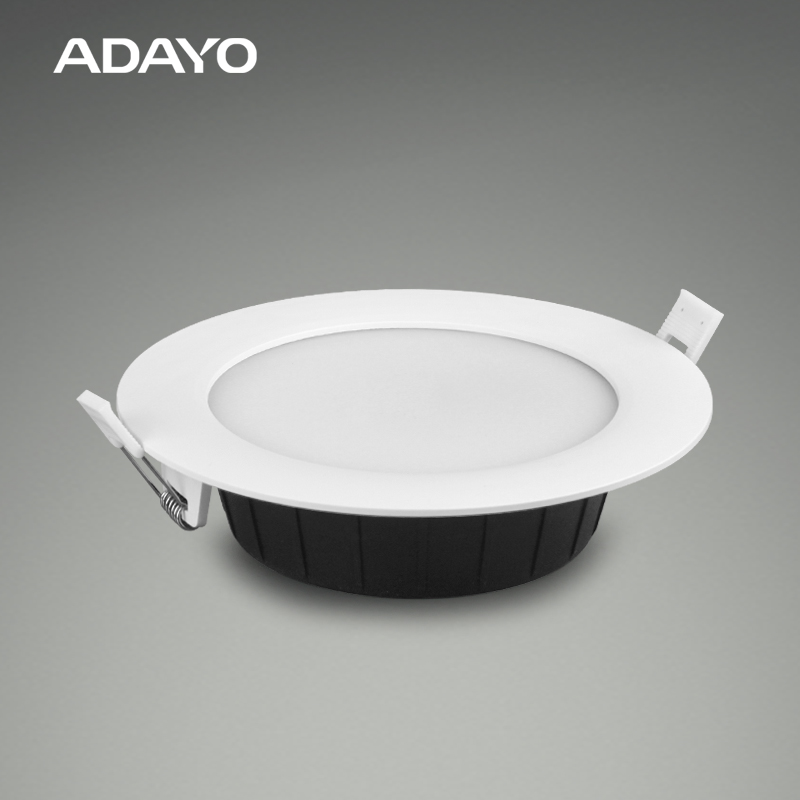

EIFFEL 6 inch led ceiling downlights with built-in driver

ADAYO lighting led ceiling downlights with moudle deisgn and the module can work with different trims, this recessed ceiling downlight has 50000hrs lifespan, 5 years warranty

Product Specification:
  • Code : 926602007072
  • Rated Wattage : 15W
  • Luminous : 1900lm
  • Colour Temperature : CCT3 3000-4000-6500K
  • Dimming or not : Non-Dimmable
  • beam angle : 100°
  • Lifespan : 50000hrs
  • Size : Φ168*40.8mm cutΦ90mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download

●  Over view

ADAYO Lighting is a LED downlight manufacturer that supports customizing all kinds of downlights and other home lighting.

This 6 inch led ceiling downlights with flat recessed trim are built in driver, this recessed ceiling downlight has a high color rendering index (CRI>80) to retain true colors and the module can work with different trims.



ADAYO led ceiling downlights recessed ceiling downlight

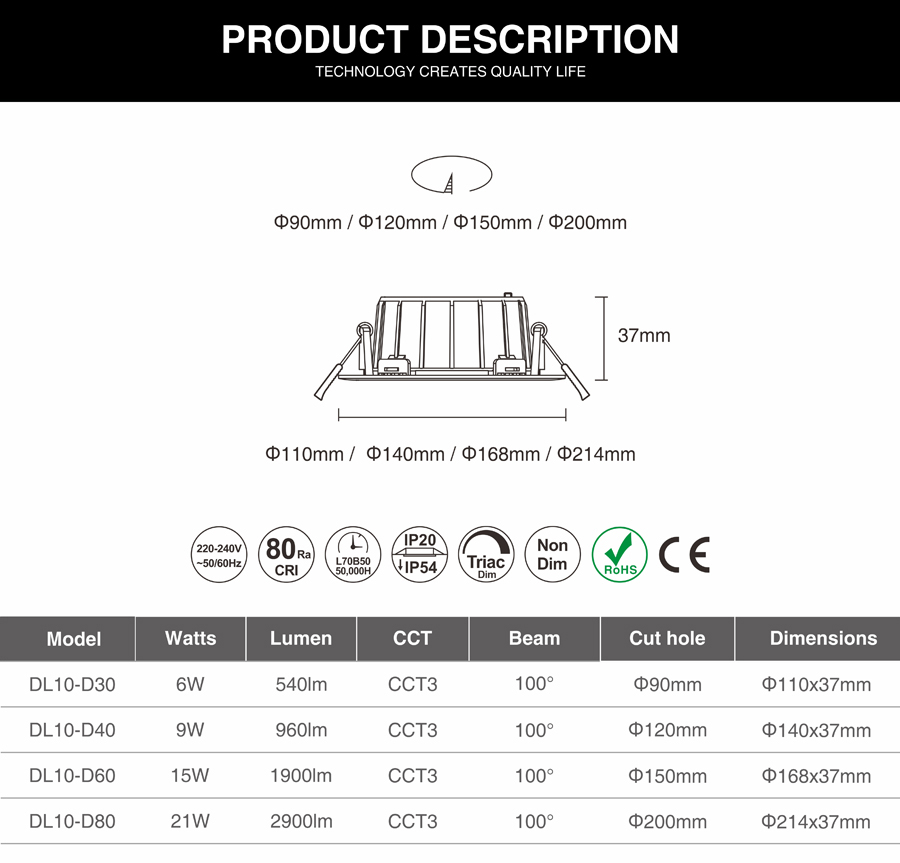

●  Product  Description

ADAYO's recessed ceiling downlight in this module are suitable for use in commercial, retail, hospitality and residential applications. Our led ceiling downlights offer high lumen output, smooth illumination and high energy efficiency. And this module led ceiling downlights specifications are as follow:



 Item Name:  EIFFEL led ceiling downlights         Code:     926602007072
 Watt (W):  15  Lumen(lm):             1900
 Input Voltage(V):       220-240v ~50/60Hz  CRI (Ra>):  80
 Lifespan:  50000hrs  IP Rating:  IP54
 Warranty:  5 years  Beam angle:   100°
 Installation:  Recessed  CCT:  CCT3 3000-4000-6500K
 Lamp Body Materia:         PA+PC  Light source:                SMD2835



ADAYO led ceiling downlights recessed ceiling downlight

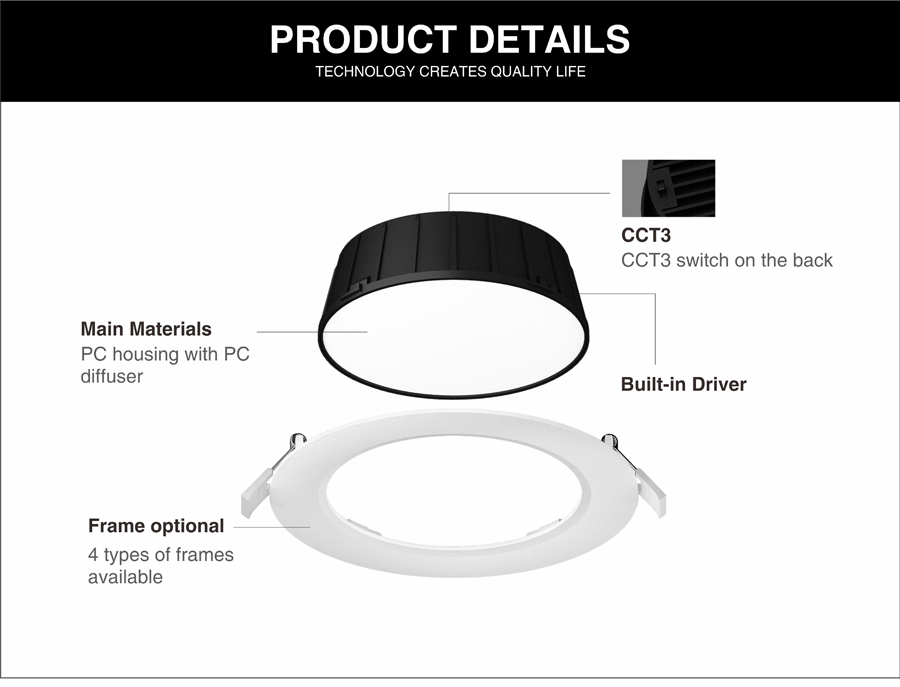

●  Features

Built-in driver

PC housing with PC or Alu reflector

Easy Installation, 3 pins loop in and loop out

Power and color temperature can be adjusted by dial

No Flicking, no black spots, soft edges

High luminous efficiency more than 100lm/w

50000hrs lifespan, 5 years warranty



ADAYO led ceiling downlights recessed ceiling downlight



●  Options

1. Wattage: 6W, cutΦ90mm/ 9W, cutΦ120mm/ 15W, cutΦ150mm/ 24W, cutΦ200mm.

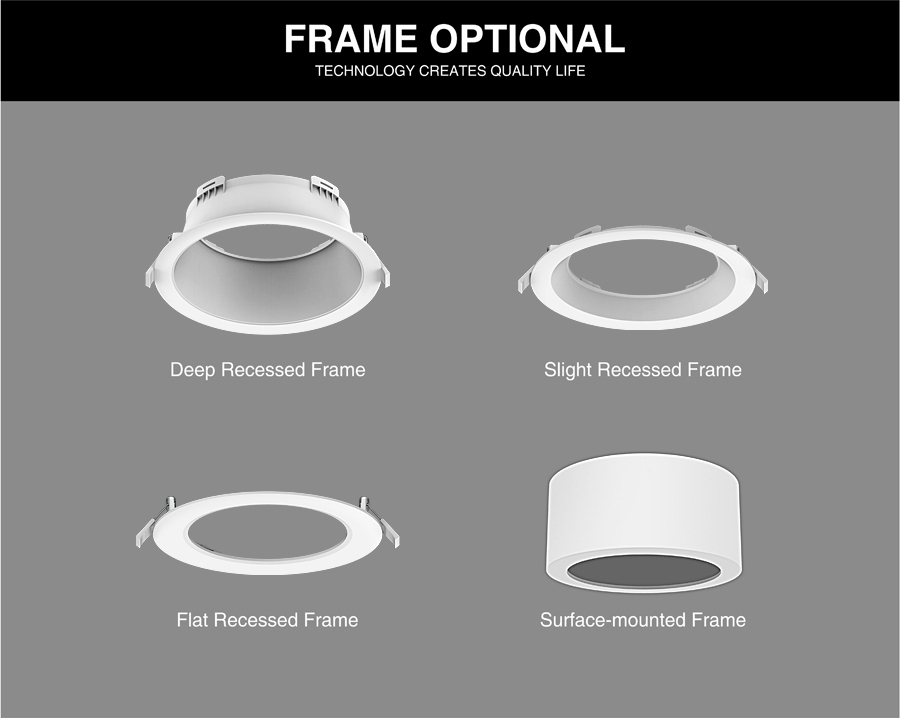

2. Frame: Flat recessed frame, Slight recessed frame, Deep recessed frame, Surface-mount frame.



ADAYO led ceiling downlights recessed ceiling downlight



● Installation

To avoid electric shock, maintenance and installation are recommended to be performed by a professional electrician.
Please use within the correct input power range.
Please turn off the power before installation to ensure safety.

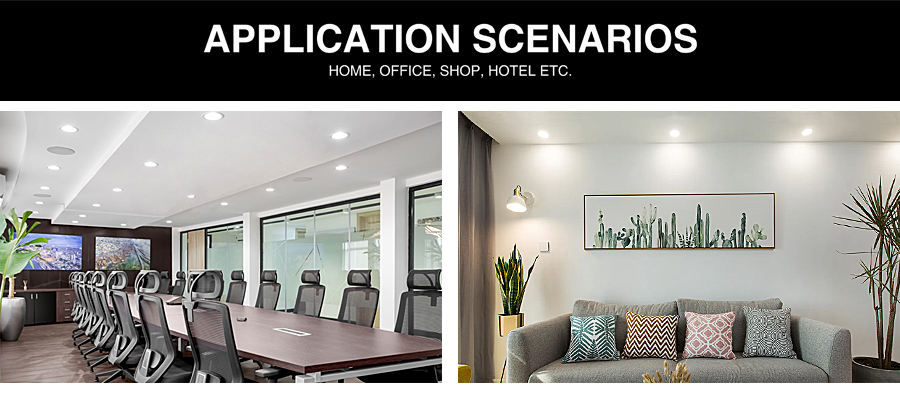

● Application Scenarios

The high lumen, high efficiency make this light ideal for project lighting.

Also available in multiple versions, sizes and wattages to meet different lighting needs for different projects or for the same project, like mall, hall, meeting room, hotel etc.



ADAYO led ceiling downlights recessed ceiling downlight



● Brief introduction of ADAYO Lighting:

ADAYO was founded in 1993, listed in 2017, the main modes of cooperation are OEM, ODM and SKD. Industrial park area: 560000sqm.

There are three main business line of ADAYO lighting: LED lighting, LED package and LED big power supply;

With R&D laboratory covered 1200m² with international standard;

R&D team more than 60 people, one third of them with more than 20 years of experience in the lighting industry;

Work Shop 5000 SQM with more than 300 works and 50 production lines;
