ADAYO lighting supports custom and OEM production of adjustable spotlights, this dimmable spotlights with CE, EMC certifications, good quality

ROLAND 360° adjustable spotlights 8.5W CCT3 with lens

ADAYO lighting adjustable spotlights with separated isolated driver are front waterproof IP65 and this dimmable spotlights with insulation cover can be covered by insulation directly

Product Specification:
  • Code : 926602006124
  • Wattage : 8.5W
  • Luminous : 780lm
  • Colour Temperature : CCT3 2700K-3200K-4000K
  • Colour Rendering : >80
  • Size : Φ96*44.3mm cut Φ78mm
  • PF : >0.9
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

ROLAND 360° adjustable spotlight 8.5W CCT3 downlight is dimmable spotlight that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, IP65, die-cast aluminum material with good heat dissipation performance, different colors to choose from, suitable for commercial lighting.



ADAYO adjustable spotlights



●  Features

ADAYO lighting 8.5W CCT3 360° adjustable spotlights features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • 360° angle adjusted from all directions
  • Aluminum housing for excellent heat dissipation
  • Heat protection system, with excellent internal driver
  • Three colors optional, black, white, silver
  • Smooth triac dimming
  • Life span 50000hours



ADAYO adjustable spotlights



●  Applications

ROLAND 360° adjustable spotlight 8.5W CCT3 dimmable spotlight IP65, with 38 degree angle bright feeling meet your different ceiling styles

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.
  • Hotel.



ADAYO adjustable spotlights



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle
(°)
Size
(Dia * H mm)
Cut size (mm)
926602006124  YA30K-AW008-C13W-6P 670
780
750
80 F2700
/
F4000
8.5 0.9 38 ø96 44.3 ø78
926602006125   YA30K-AW008-C13B-6P 670
750
720
80 F2700
/
F4000
8.5 0.9 38 ø96 44.3 ø78
926602006126  YA30K-AW008-C13S-6P 670
750
720
80 F2700
/
F4000
8.5 0.9 38 ø96 44.3

ø78



ADAYO adjustable spotlights



●  Options

  • Dimmable and no-dimmable
  • Single colour temperature, CCT3
  • Switch dim to warm
  • Finished color: white, silver, black
  • Lens and reflector
  • Fire rated version optional.

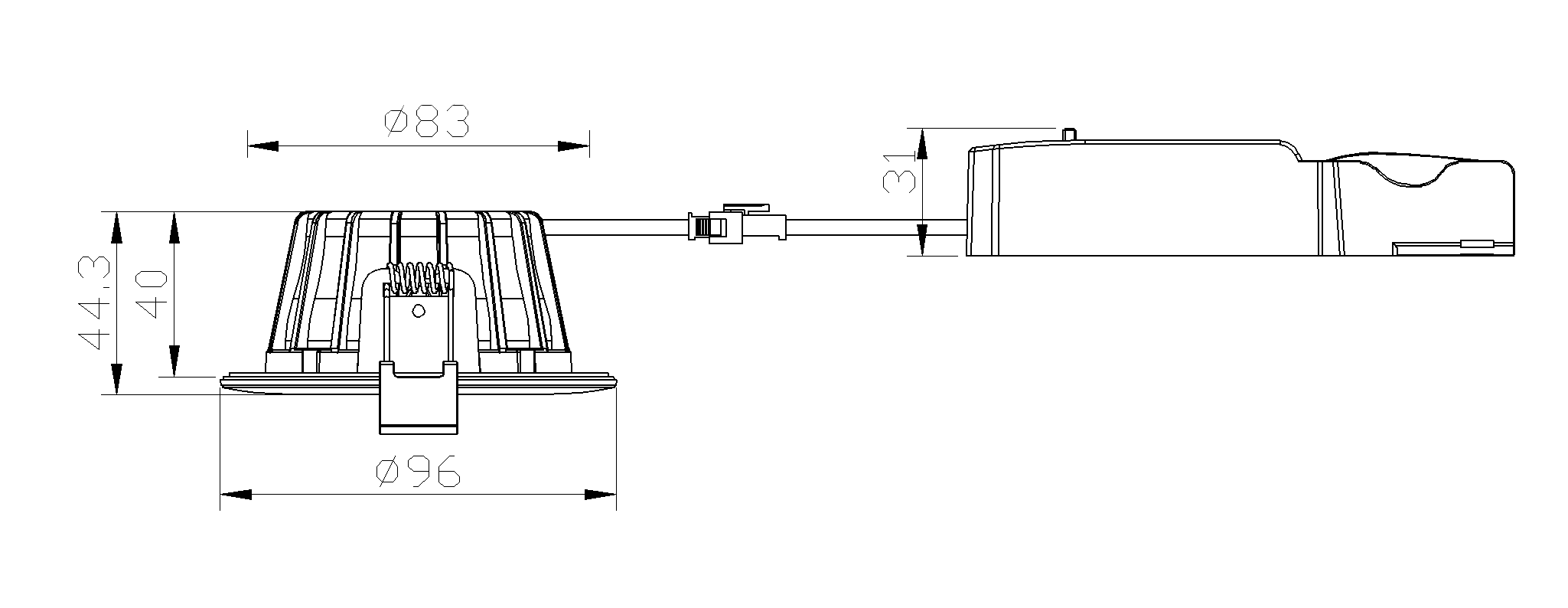

●  Product Line Drawing (Size:mm)



ADAYO adjustable spotlights



● Accessories Optional

  • Separated isolated driver
  • Male and female plug
  • Metal extra frame



ADAYO adjustable spotlights

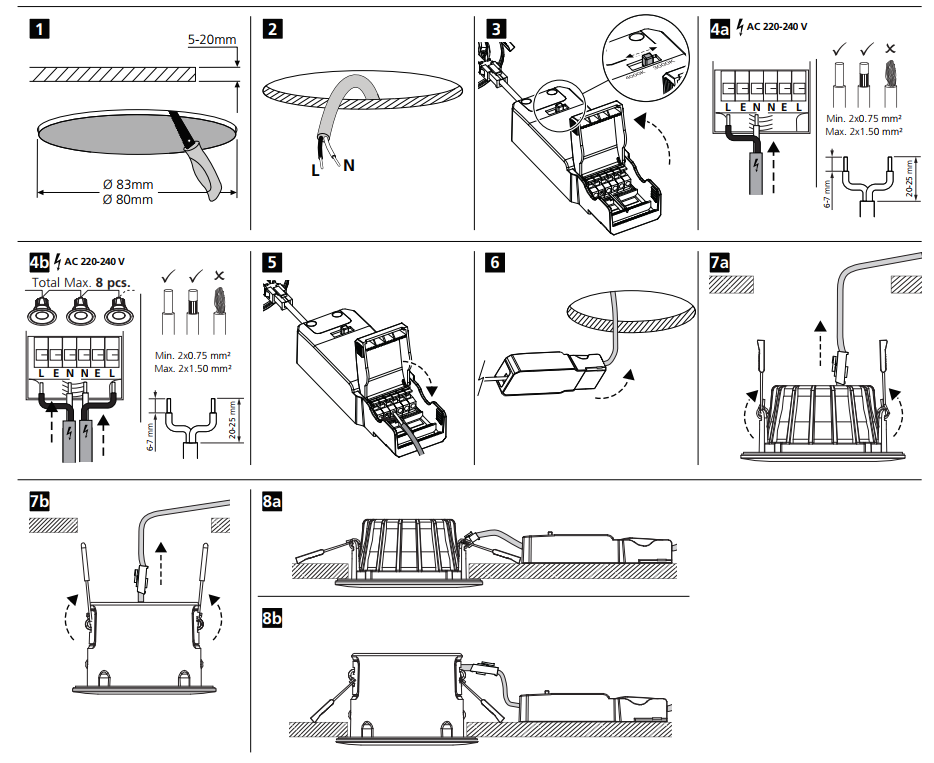

●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO adjustable spotlights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
