ADAYO lighting IP rated spotlights comply with CE, new ERP certifications and this indoor ceiling spotlights are suitable for residential lighting

ROSEY 6.5W lens indoor ceiling spotlights CCT3 and traic dimmable

ADAYO lighting IP rated spotlights have die-casting face ring with different color optional, indoor ceiling spotlights with beam angle 38° softens the light to reduce eye fatigue

Product Specification:
  • Rated Wattage : 7W
  • Luminous : 500lm
  • Colour Temperature : CCT3
  • Colour Rendering : >80
  • Lifespan : 30000hrs
  • Size : Φ85*30mm, cut Φ75mm
  • PF : >0.85
  • New ERP. Accept OEM & ODM :
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download

●  Product  Description

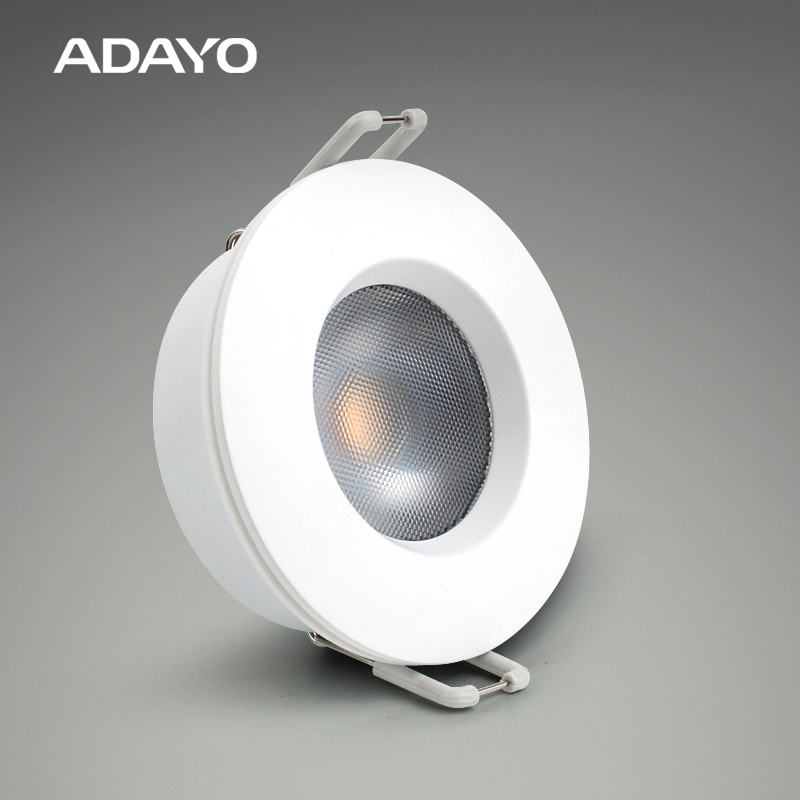

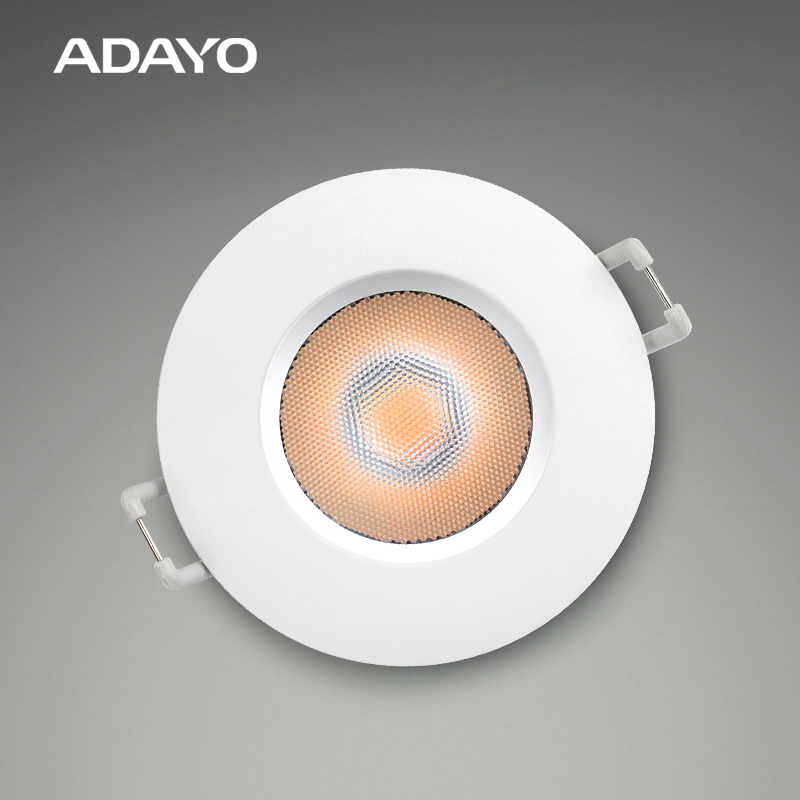

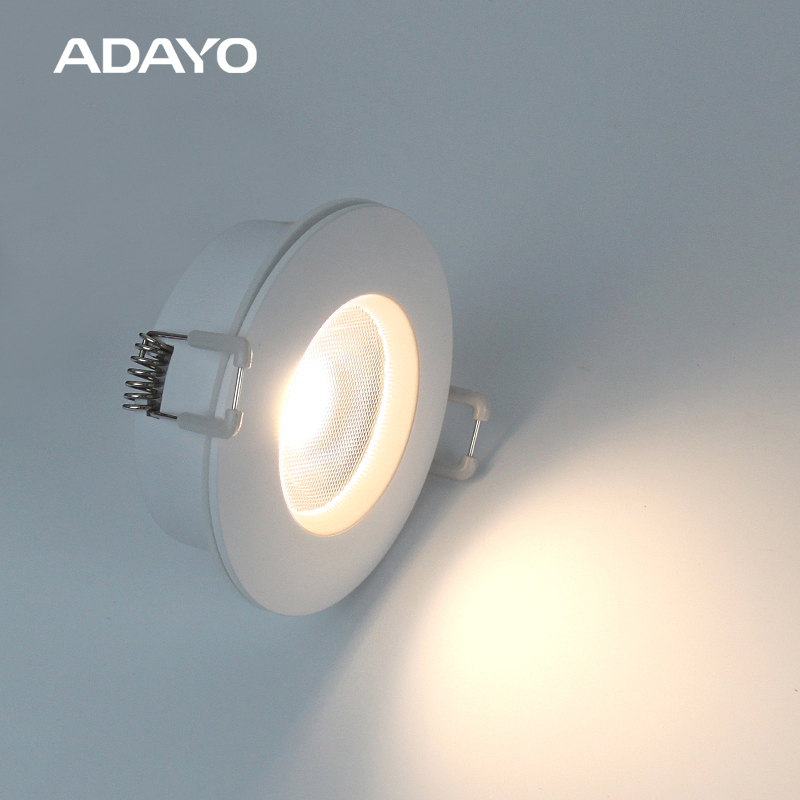

ROSEY 6.5W CCT3 indoor ceiling spotlights are traic dimmable that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, IP65, with die-casting face ring and good heat dissipation performance, different colors to choose from, suitable for residential lighting.



ADAYO indoor ceiling spotlights

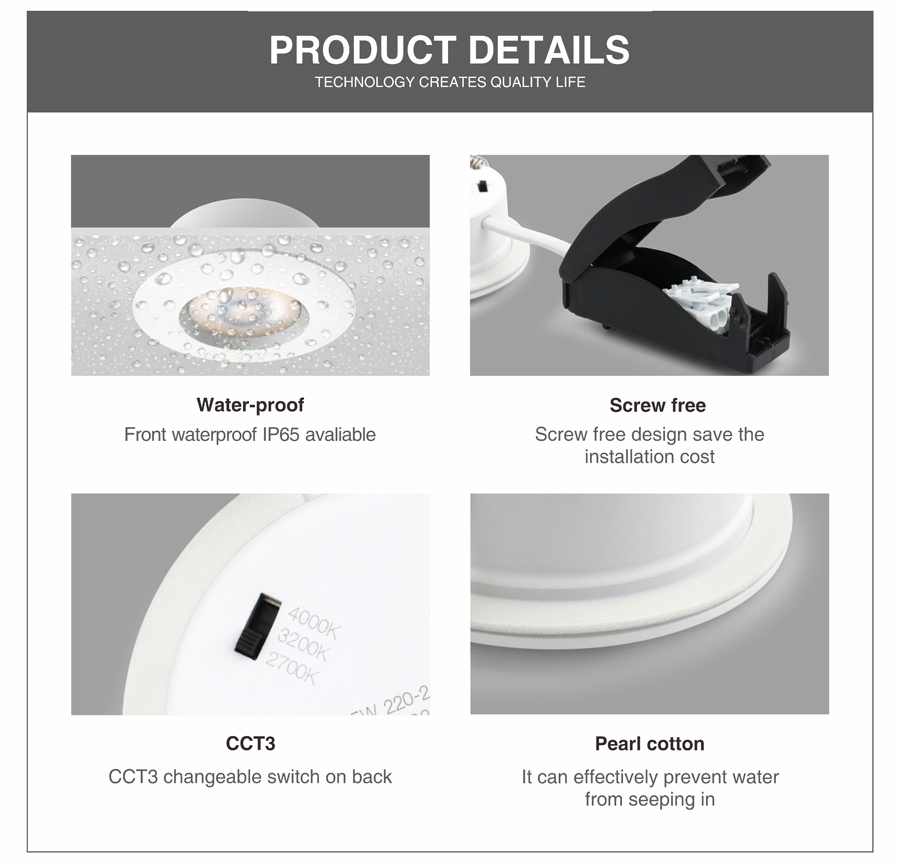

●  Features

ADAYO lighting 6W CCT3 indoor ceiling spotlights with die-casting face ring features are as below:

  • Aluminum heat sink
  • Clear light beam angle 38° with no dark spots
  • CE, NEW ERP, EMC, ROHS approved

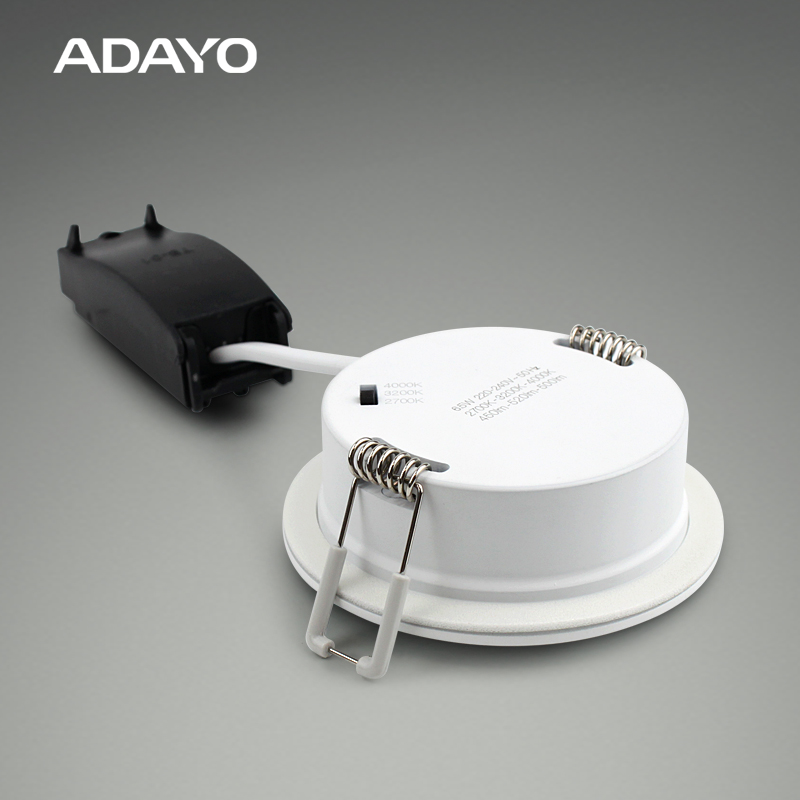

  • CCT3 changeable switch on back
  • Die-casting face ring
  • Smooth triac dimming and front waterproof IP65
  • PA+Aluminum
  • Life span 30000hours



ADAYO indoor ceiling spotlights



●  Applications

ROSEY 6.5W CCT3 IP rated spotlights indoor ceiling spotlights, with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Residential



ADAYO indoor ceiling spotlights



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006744 SL08-A25-007WA-8C1 570
630
630
80 F2700
P3000
F4000
6.5 0.65 38 ø85 30 ø72-ø75
926602006745

 SL08-A25-007WN-8C1

530
585
585
90 F2700
P3000
F4000
6 0.65 38 ø85 30 ø72-ø75



ADAYO indoor ceiling spotlights



●  Options

  • Lens and Reflector
  • Dimmable and non-dimmable
  • Junction box or not
  • Color of bezels optional



ADAYO indoor ceiling spotlights

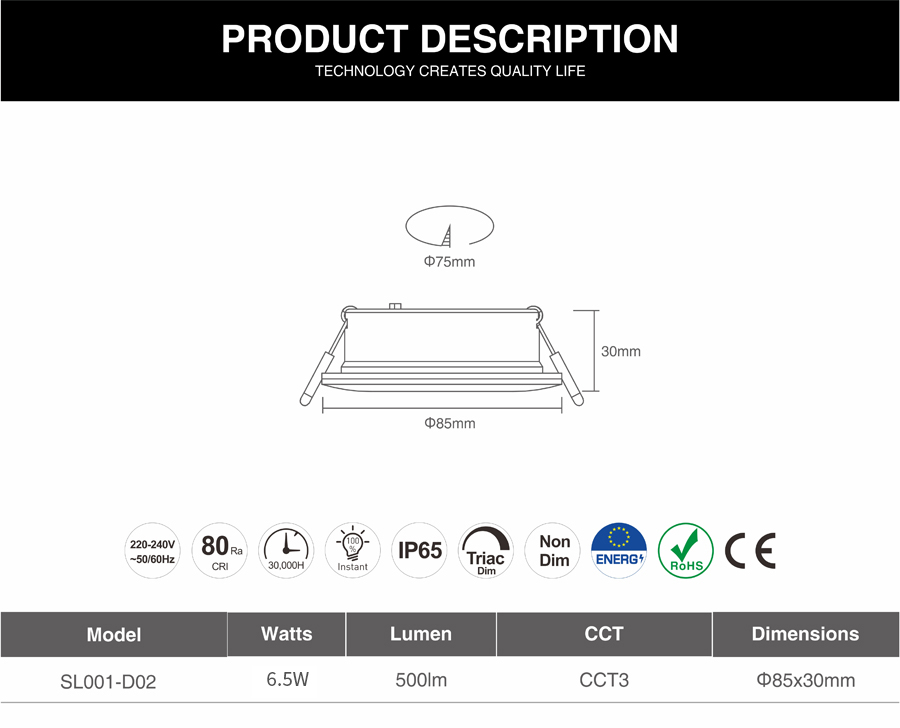

●  Product Line Drawing (Size:mm)



ADAYO indoor ceiling spotlights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO indoor ceiling spotlights
