ADAYO lighting supports custom IP65 led spotlight and this spot lighting indoor with 360° rotation is designed with the high quality standards

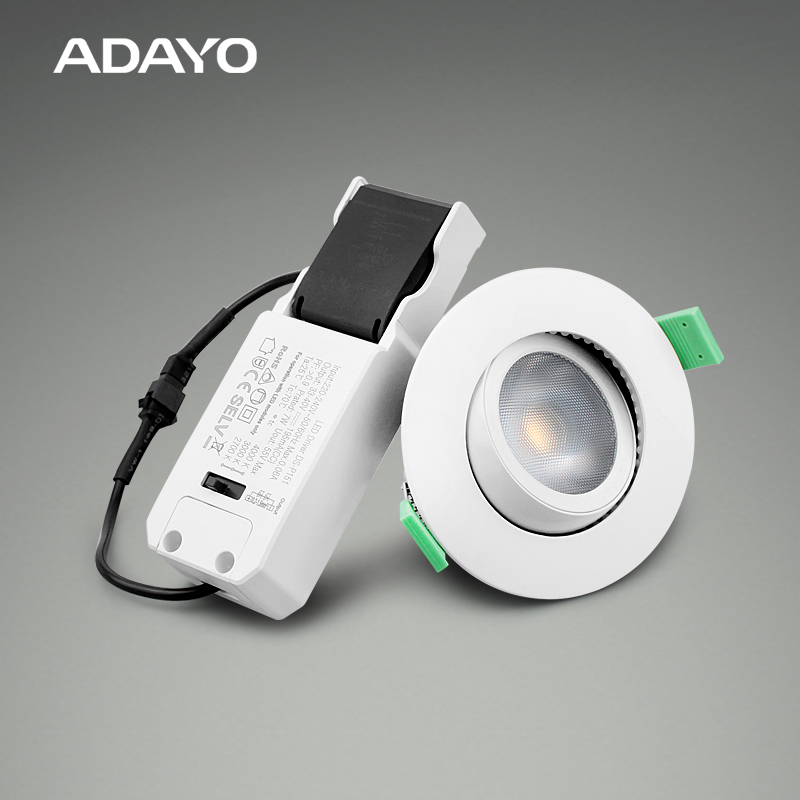

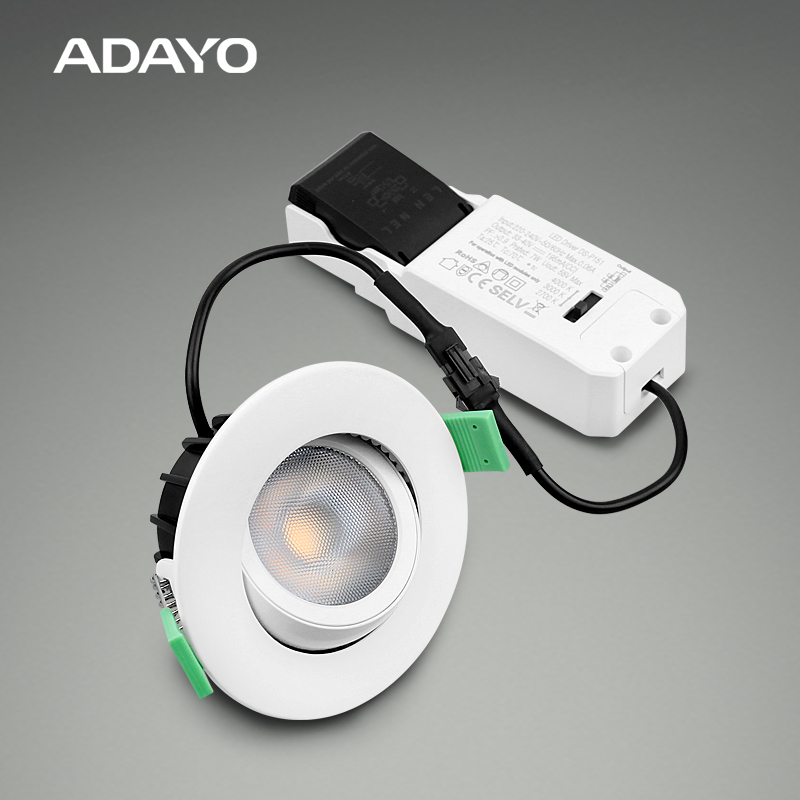

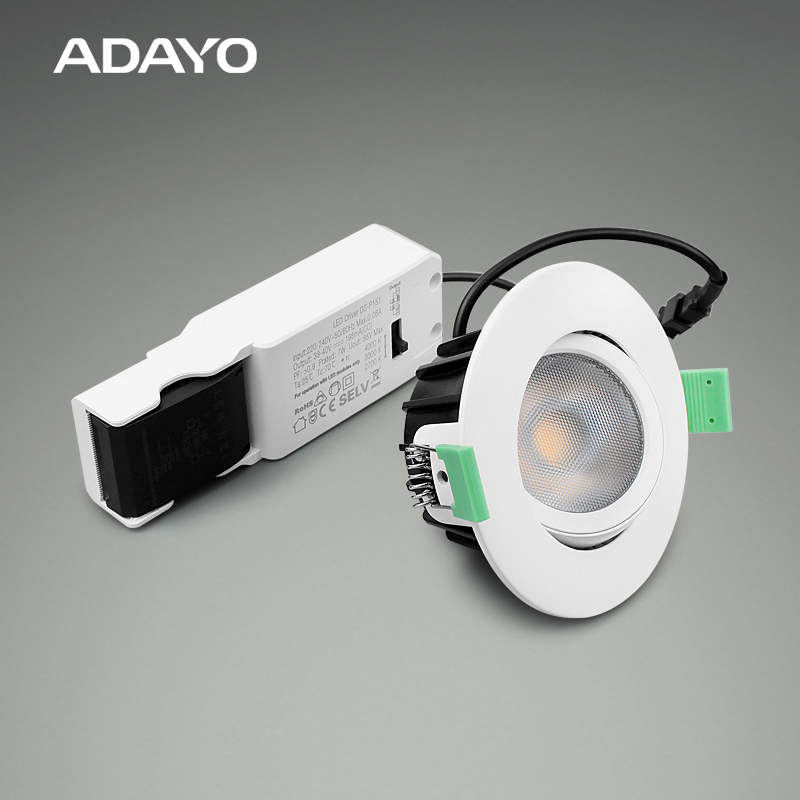

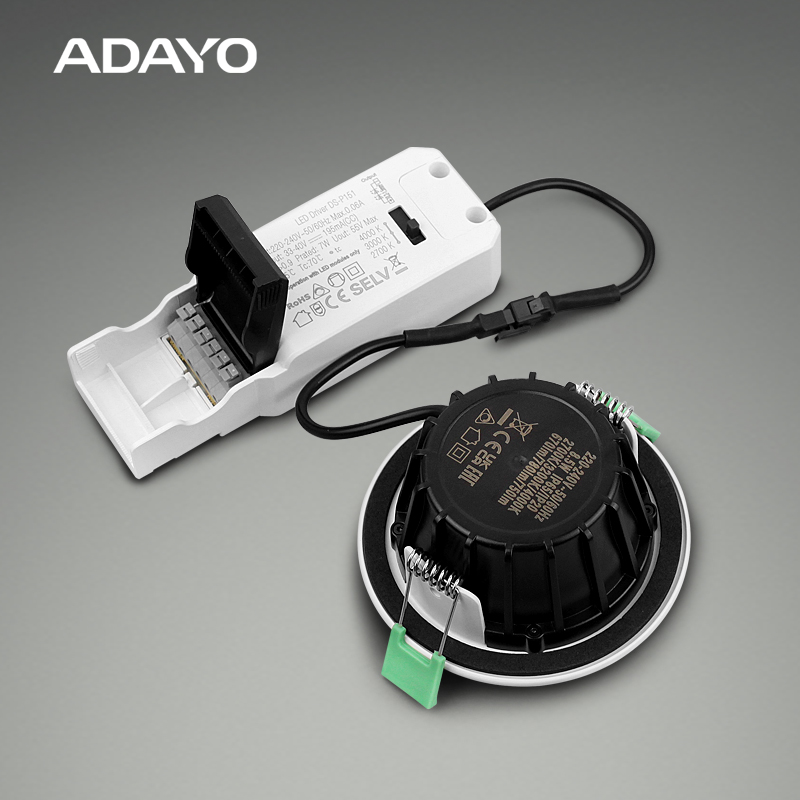

ROLAND 6W spot lighting indoor CCT3 IP65 with lens

ADAYO lighting 8.5W IP65 led spotlight with die-cast aluminum material is good heat dissipation performance, spot lighting indoor designed with high quality fit different request

Product Specification:
  • Code : 926602006256
  • Wattage : 6W
  • Luminous : 570lm
  • Colour Temperature : CCT3 2700K-3200K-4000K
  • Colour Rendering : >80
  • Size : Φ96*44.3mm cut Φ78mm
  • PF : >0.9
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download





●  Product  Description

ROLAND 360° spot lighting indoor 6W CCT3 dimmable spotlight that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, IP65 LED spotlight, die-cast aluminum material with good heat dissipation performance, different colors to choose from, suitable for commercial lighting.



ADAYO IP65 led spotlight



●  Features

ADAYO lighting 6W CCT3 360° rotation IP65 LED spotlight features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • 360° angle adjusted from all directions
  • Aluminum housing for excellent heat dissipation
  • Heat protection system, with excellent internal driver
  • Three colors optional, black, white, silver
  • Smooth triac dimming
  • Life span 50000hours



ADAYO IP65 led spotlight



●  Applications

ROLAND 360° adjustable spot lighting indoor 6W CCT3 IP65 spotlight with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.
  • Hotel.



ADAYO IP65 led spotlight



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF

Beam angle
(°)

Size
(Dia * H mm)
Cut size (mm)
926602006256  YA25K-AW006-C130W 500
570
550
80 F2700
3200
F4000
6 0.9 38 ø81 41.3 ø65
926602006257 YA25K-AW006-C130B 480
550
530
80 F2700
3200
F4000
6 0.9 38 ø81 41.3 ø65
926602006258  YA25K-AW006-C130S 480
550
530
80 F2700
3200
F4000
6 0.9 38 ø81 41.3

ø65



ADAYO IP65 led spotlight



●  Options

  • Dimmable and no-dimmable
  • Single colour temperature, CCT3
  • Switch dim to warm
  • Finished color: white, silver, black
  • Lens and reflector
  • Fire rated version optional.



●  Product Line Drawing (Size:mm)



ADAYO IP65 led spotlight



● Accessories Optional

  • Separated isolated driver
  • Male and female plug
  • Metal extra frame



ADAYO IP65 led spotlight



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO IP65 led spotlight



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
