ADAYO lighting spot light fixtures with oft light are designed with the highest quality standards, dimmable spot lights have die-casting face ring

ROSEY 6.5W reflector spot light fixtures CCT3 and traic dimmable

ADAYO lighting CCT3 spot light fixtures CCT3 2700K-3000K-4000K changeable switch on back and , dimmable spot lights with front waterproof IP65 are good quality and delivery fast

Product Specification:
  • Code : 926602006746
  • Rated Wattage : 6.5W
  • Luminous : 630lm
  • Colour Temperature : CCT3 2700K-3000K-4000K
  • Colour Rendering : >80
  • Size : Φ85* 30mm cut Φ72-75mm
  • PF : >0.65
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs

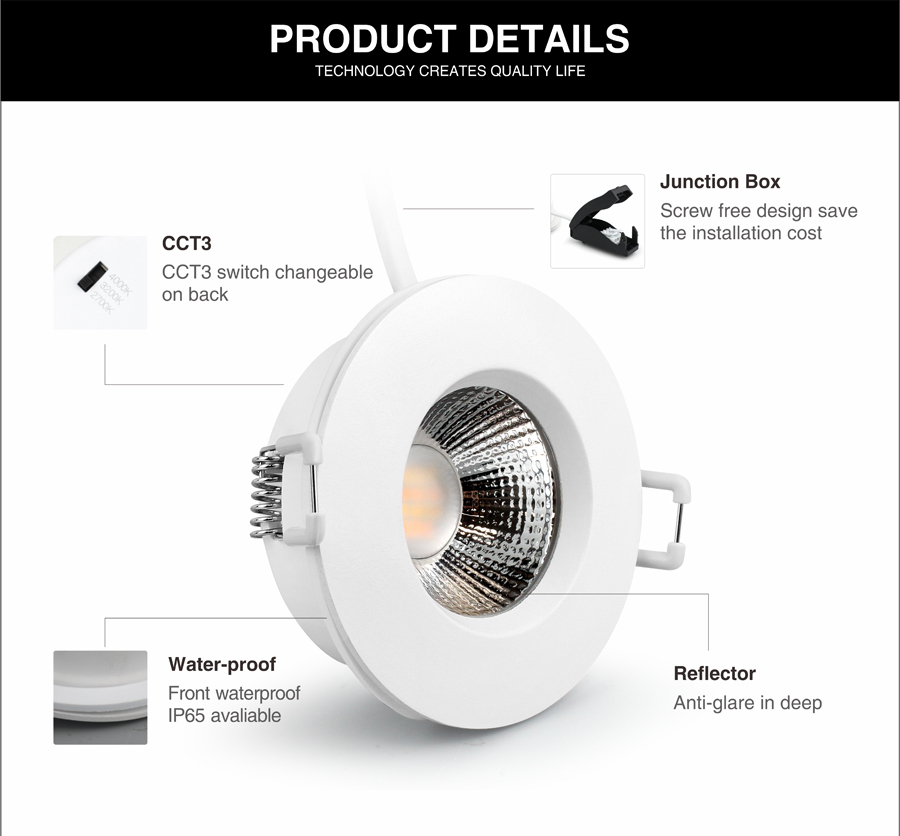

Product Details
Documents download

●  Product  Description

ROSEY 6.5W CCT3 spot light fixtures are traic dimmable spot lights that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, IP65, with die-casting face ring and good heat dissipation performance, different colors to choose from, suitable for residential lighting.



ADAYO spot light fixtures



●  Features

ADAYO lighting 6.5W CCT3 die-casting dimmable led spot lights features are as below:

  • Aluminum heat sink
  • Clear light beam angle 38° with no dark spots
  • CE, NEW ERP, EMC, ROHS approved
  • CCT3, Linear Solutions
  • Die-casting face ring
  • Smooth triac dimming and front waterproof IP65
  • PA+Aluminum
  • Life span 30000hours



ADAYO spot light fixtures



●  Applications

ROSEY 6.5W CCT3 spot light fixtures dimmable spot lights, with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Residential



ADAYO spot light fixtures



Specification:



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006746 SL08-B25-007WA-8C1 570
630
630
80 F2700
P3000
F4000
6.5 0.65 38 ø85 30 ø72-ø75
926602006747

SL08-B25-007WN-8C1

530
585
585
90 F2700
P3000
F4000
6 0.65 38 ø85 30 ø72-ø75



ADAYO spot light fixtures

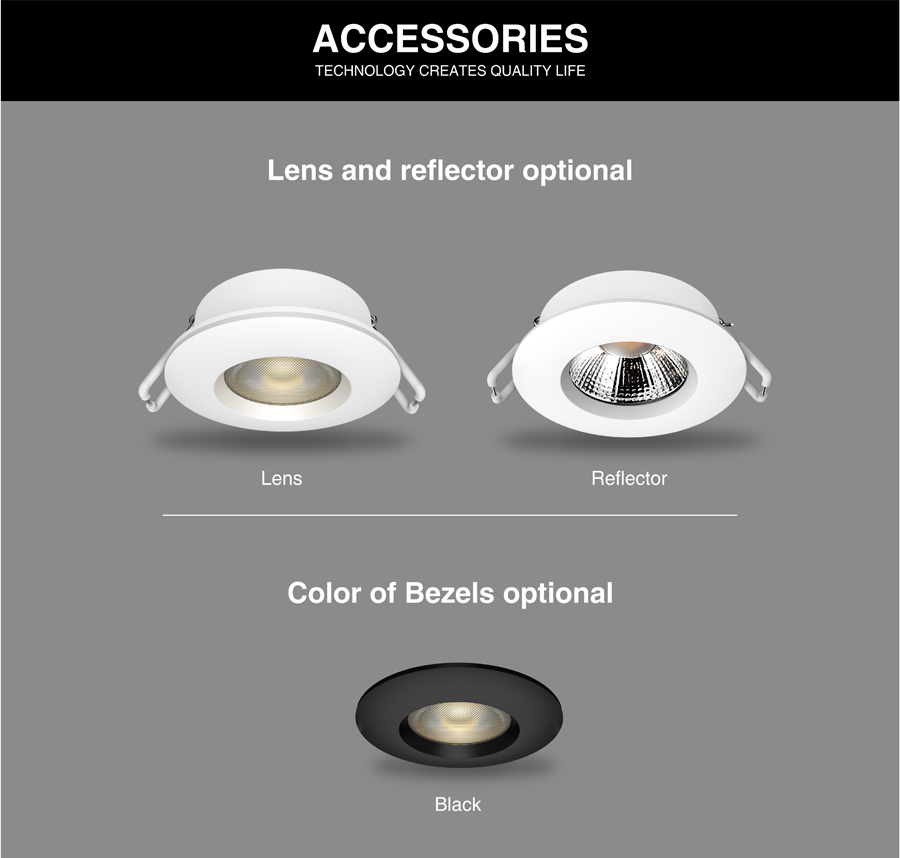

●  Options

  • Lens and Reflector
  • Dimmable and non-dimmable
  • Junction box or not
  • Color of bezels optional



ADAYO spot light fixtures

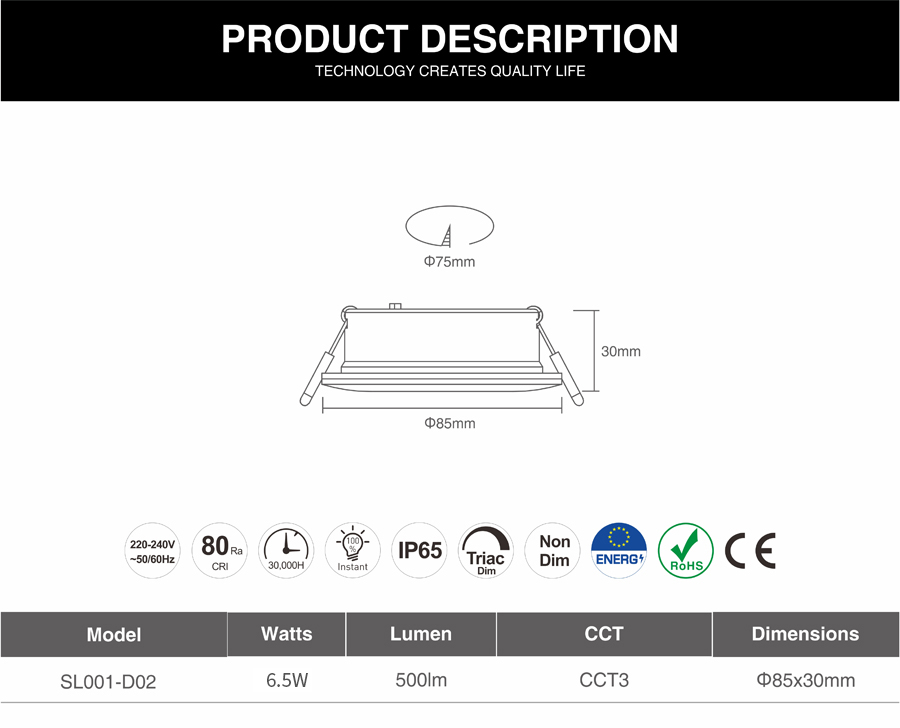

●  Product Line Drawing (Size:mm)



ADAYO spot light fixtures



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.





●  Brief introduction of ADAYO Lighting:

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
