ADAYO lighting dimmable ceiling spotlights have fast connecting terminal with 2pin loop in and loop out, white recessed spotlights comply with CE

MIRANDA 9W adjustable white recessed spotlights with IP44 3000K

ADAYO lighting dimmable ceiling spotlights with deep recessed and anti-glare reduce eye fatigue, this white recessed spotlights front waterproof IP44 canbe used in wet place

Product Specification:
  • Code : 926602005785
  • Rated Wattage : 9W
  • Luminous : 670lm
  • Colour Temperature : 3000K
  • Colour Rendering : >80
  • Size : Φ86*62mm cut Φ65-75mm
  • PF : >0.8
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

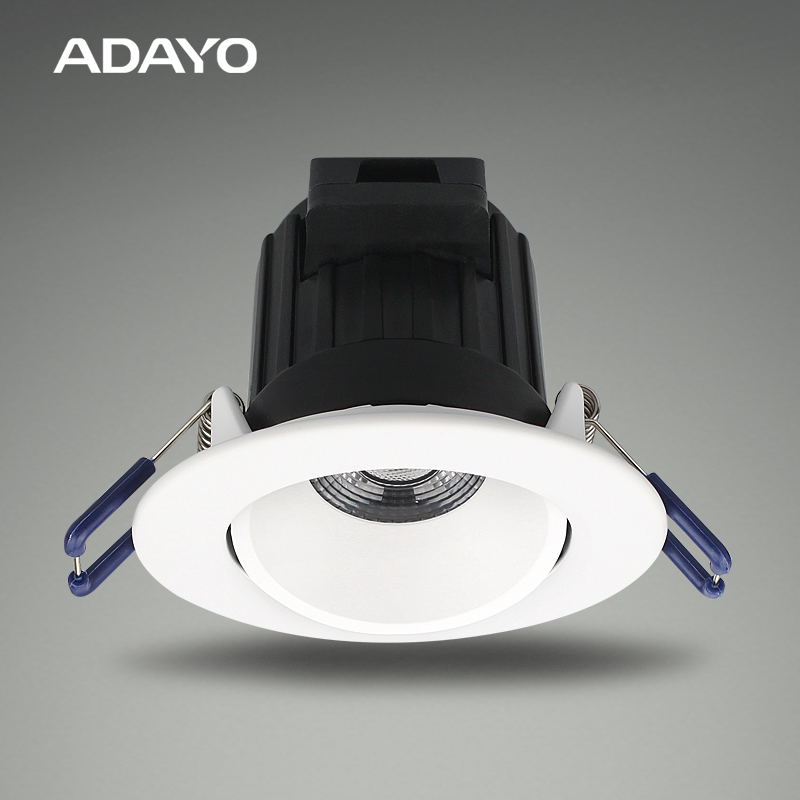

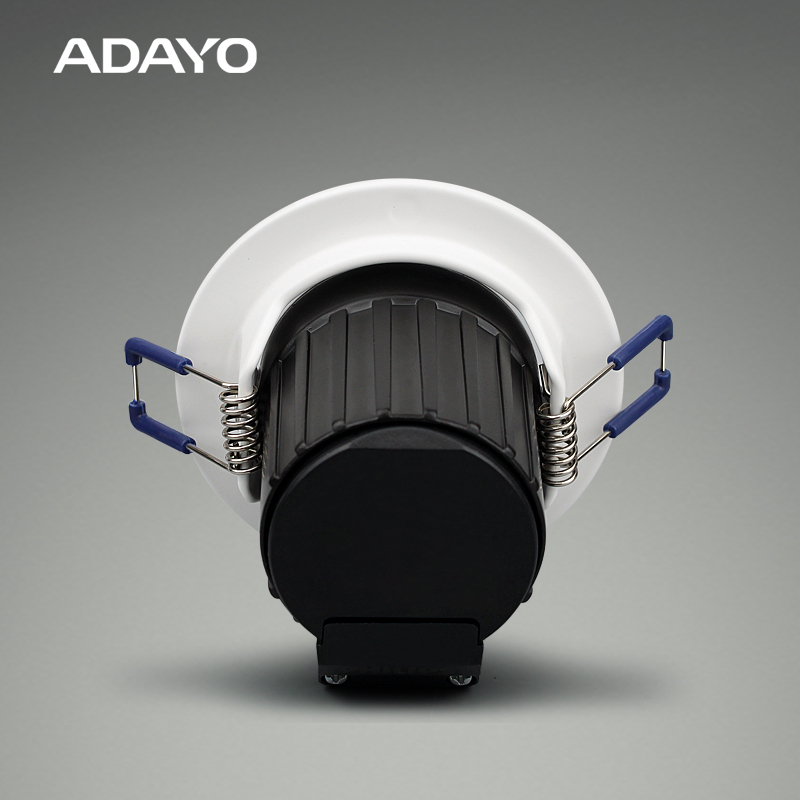

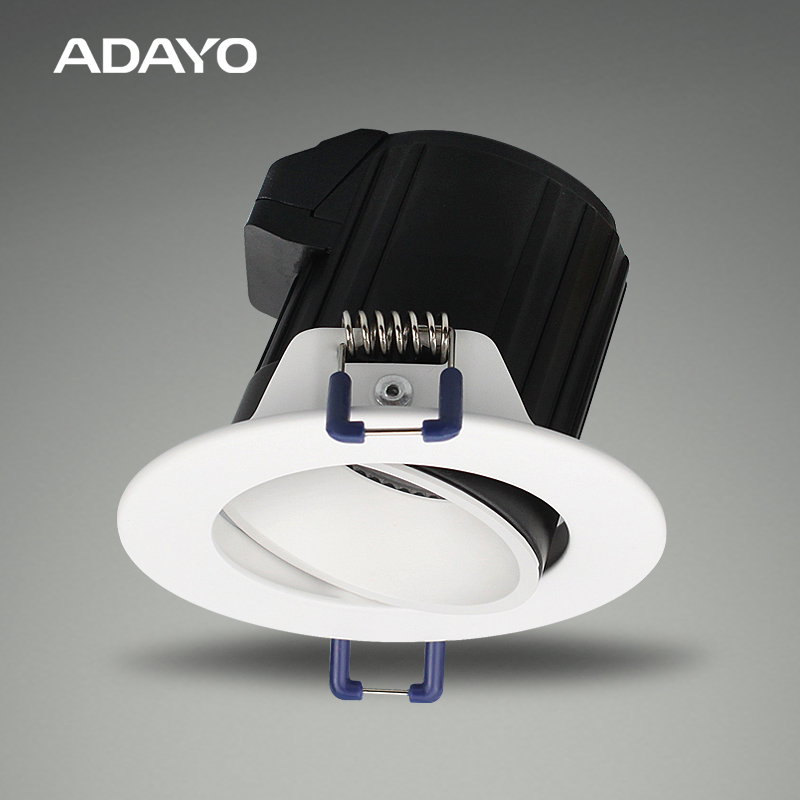

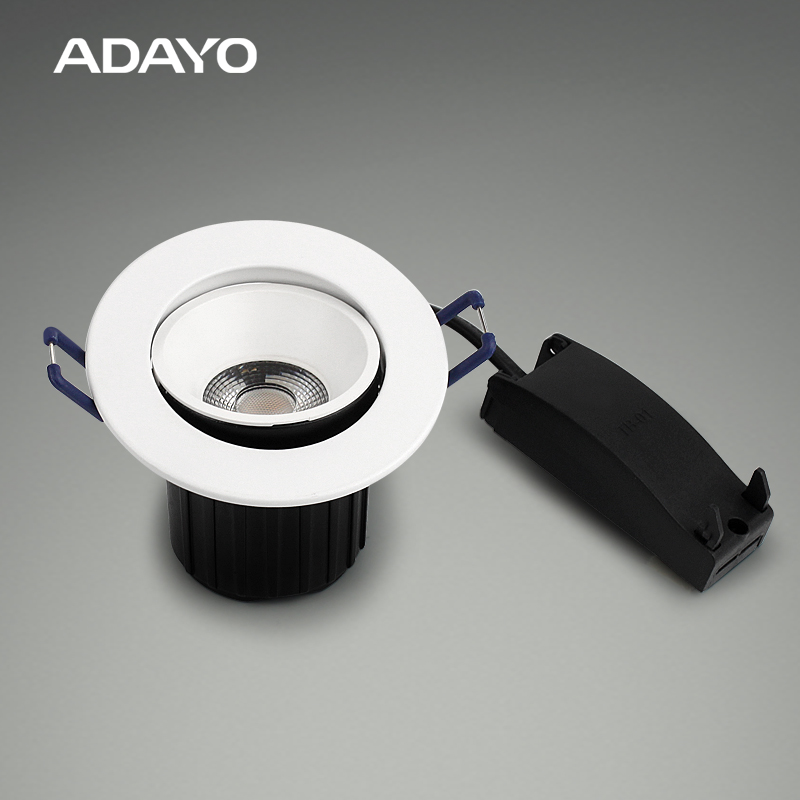

MIRANDA 9W 3000K die-casting white recessed spotlights are the dimmable ceiling spotlights that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, IP44, adjustable die-casting housing and good heat dissipation performance, different colors of reflector to choose from, suitable for commercial lighting.





ADAYO dimmable ceiling spotlights



ADAYO dimmable ceiling spotlights



●  Features

ADAYO lighting 9W 3000K adjustable dimmable ceiling spotlights features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • CE, NEW ERP, EMC, ROHS approved
  • Deep recessed and anti-glare
  • Die-casting housing for excellent heat dissipation
  • Smooth triac dimming and front waterproof IP44
  • Can be covered directly by the insulation with extra frame
  • Life span 25000hours



ADAYO dimmable ceiling spotlights



●  Applications

MIRANDA white recessed spotlights 9W 3000K dimmable ceiling spotlights IP44, with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.
  • Hotel.



ADAYO dimmable ceiling spotlights



Specification:



SPECIFICATION
Item NO. SKU Lumen(lm) CRI CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602005785  DL25U-W009A0-130 670 80 F3000 9 0.8 38 ø86 62 ø68-75
926602005786

 DL25U-W009A0-140

720 80 F4000 9 0.8 38 ø86 62 ø68-75
926602006572

DL25U-W009A0-627

(with junction box)

740 80 F2700 9 0.9 38 ø86 62 ø65-74





ADAYO dimmable ceiling spotlights



●  Options

  • Fixed(IP65) and adjustable(IP44)
  • White, brushed nickel and black
  • Junction box or not
  • 2700K/3000K/4000K/6500K
  • Different color of decorative rings
  • Metal extra frame or not



ADAYO dimmable ceiling spotlights



●  Product Line Drawing (Size:mm)



ADAYO dimmable ceiling spotlights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO dimmable ceiling spotlights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
