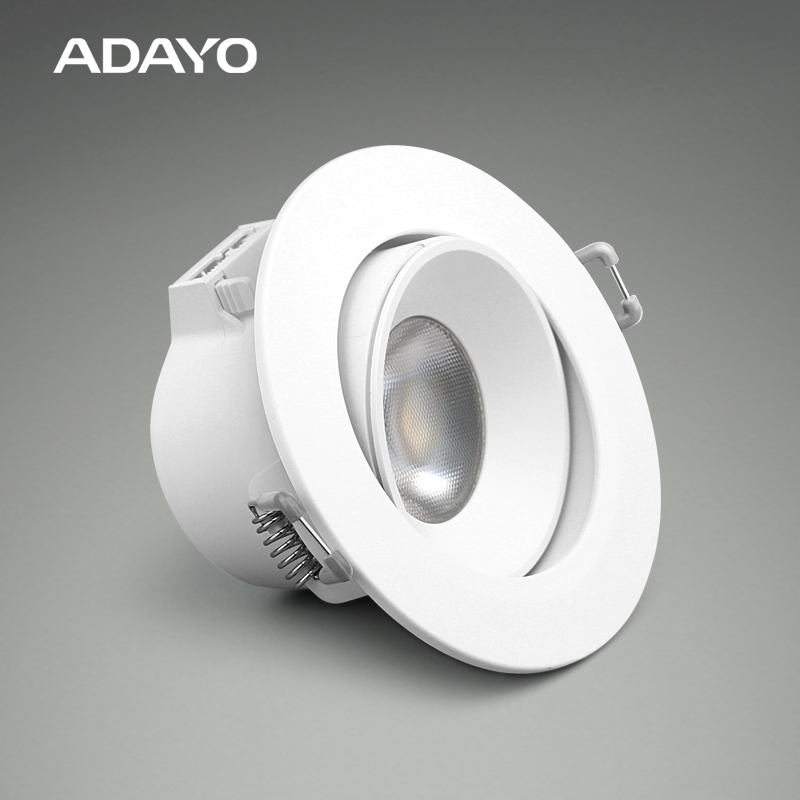

ADAYO lighting spot light for room comply with CE new ERP certification, spotlight ceiling light screw free design save the installation cost
CLIO 9W spotlight ceiling light CCT2 and waterproof IP44
ADAYO lighting 9W CCT2 spot light for room with soft light can reduced glare and eye fatigue, this spotlight ceiling light with waterproof IP44 can be used into wet applications
CLIO 9W spotlight ceiling light CCT2 downlight is dimmable spotlights that support dimmers of common brands on the market. With classic minimalist desing, tool-free installation, dimmable, IP44, bezel changeable and good heat dissipation performance, this ceiling led spot lights are a good choice for customers.
● Features
ADAYO lighting CCT2 9W spot light for room features as below:
Aluminum heat sink
Tooling free installation design
Dimmable and Non dimmable optional
CE, NEW ERP, EMC, ROHS approved
Two designs: IP65 fix, IP44 adjustable
Aluminum housing for excellent heat dissipation
Heat protection system, with excellent internal driver
Can be installed directly in to the insulation with extra frame
Four colors bezel changable, brush nickle, silver, chrome and black
Smooth triac dimming
Life span 30000hours
● Applications
CLIO B spotlight ceiling light is dimmable and IP44, with 100degree angle widely bright feeling, as a bathroom rated downlights with four colors bezel changeable meet your different ceiling styles
Living room. bedroom. bathroom. kitchen.
Office. meeting room.
Shop. supermarket.
Hotel
Specification：
SPECIFICATION
Item NO.
SKU
Lumen(lm)
CRI
CCT
Watt (W)
PF
Beam angle (°）
Size
（Dia * H mm)
Cut size (mm)
926602005981
YA35J-A0075-C33
700
750
80
F3000
F4000
9
0.9
40
ø105
58.4
ø85-90
926602006276
(dimmable)
YA35J-AW009-3030
400
80
P3000
9.5
0.85
40
ø105
58.4
ø85
926602006277
(dimmable)
YA35J-AW009-4030
440
80
F4000
9.5
0.85
40
ø105
58.4
ø85
926602006278
(dimmable)
YA35J-AW009-6530
440
80
P6500
9.5
0.85
40
ø105
58.4
ø85
926602006279
(non-dimmable)
YA35J-NW008-3030
500
80
P3000
8.5
0.9
40
ø105
58.4
ø85
926602006280
(non-dimmable)
YA35J-NW008-4030
520
80
F4000
8.5
0.9
40
ø105
58.4
ø85
926602006281
(non-dimmable)
YA35J-NW008-6530
570
80
P6500
8.5
0.9
40
ø105
58.4
ø85
926602006375
(100-240V/50Hz)
YA35J-NW008-4041
900
80
F4000
8.5
0.9
40
ø105
58.4
ø85
● Options
Dimmable and no-dimmable
Signle Colour temperature, CCT2, CCT3
Switch dim to warm
Decorate bezel: bruch nickel, chrome, silver, black
Covering brackets suppot insulation
● Product Line Drawing (Size:mm)
● Accessories Optional
Bezel shape: round, square.
Bezel colors: brush nickel, chrome, silver, black
Juction box
External driver
Metal extra frame
● Installation
Make sure power is off before installation.
Cut a suitable hole in the ceiling , the hole size will show on the specification form.

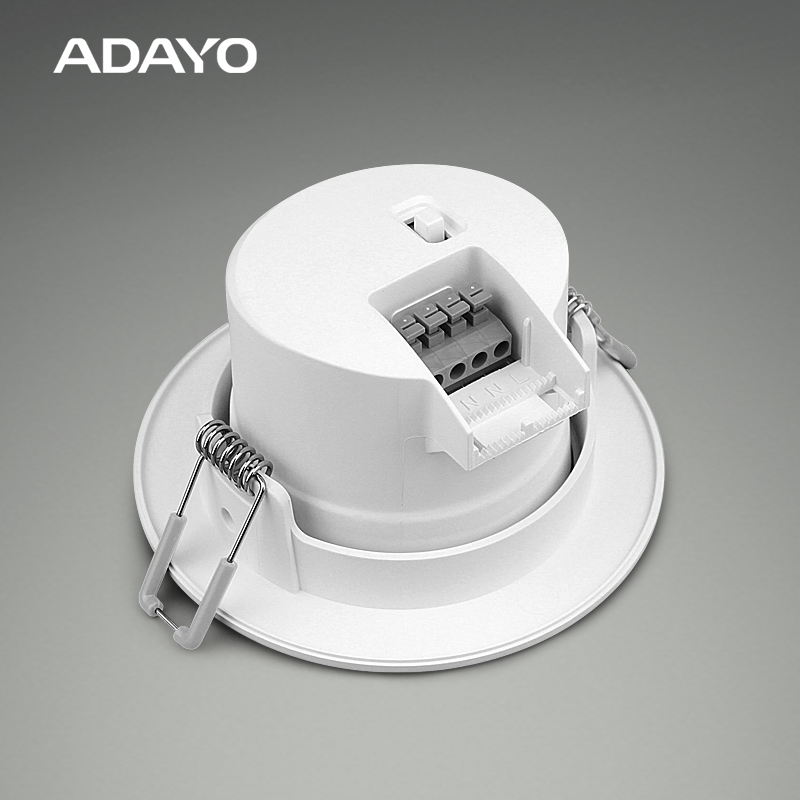

Connect wires to the wire box .(image A)

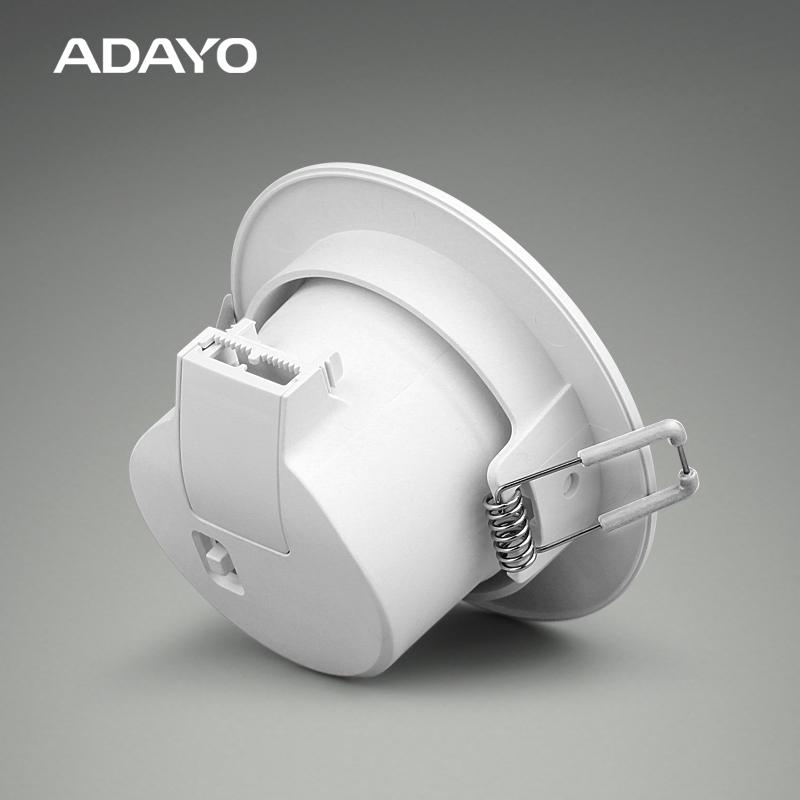

Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.
● Brief introduction of ADAYO Lighting
A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
Industrial park: 56000sqm
Business line: LED package, LED high power driver, LED Lighting
R&D laboratory: 1200sqm with international standard
R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
Work shop: 5000 SQM with more than 300 works and 50 production lines
Monthly Capacity(Pieces) : package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K, LED light: 5000K
New product lunch time: 6-10 weeks.
Payment: L/C, T/T, O/A
