ADAYO lighting led spotlights for home comply with CE, EMC and new ERP, this ceiling spotlights led also have the excellent dimming performance

AVALOR E02 ceiling spotlights led 6.7W 600lm with different bezels optional

ADAYO lighting led spotlights for home has different colors and shape bezels optional, this ceiling spotlights led can be installed directly into the insulation with the extra frame

Product Specification:
  • Code : 926602006777
  • Rated Wattage : 6.7W
  • Luminous : 600lm

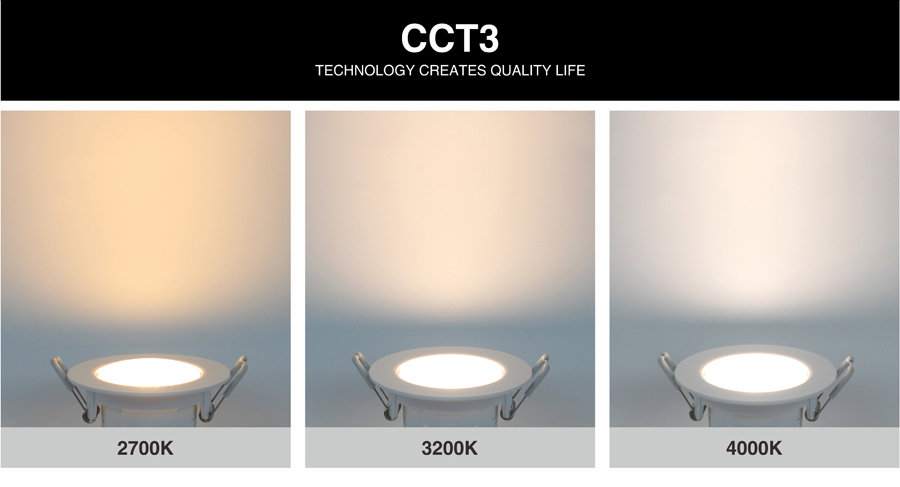

  • Colour Temperature : CCT3 2700K-3000K-4000K
  • Colour Rendering : 80
  • Size : Φ87*46mm cutΦ68mm
  • PF : 0.6
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs

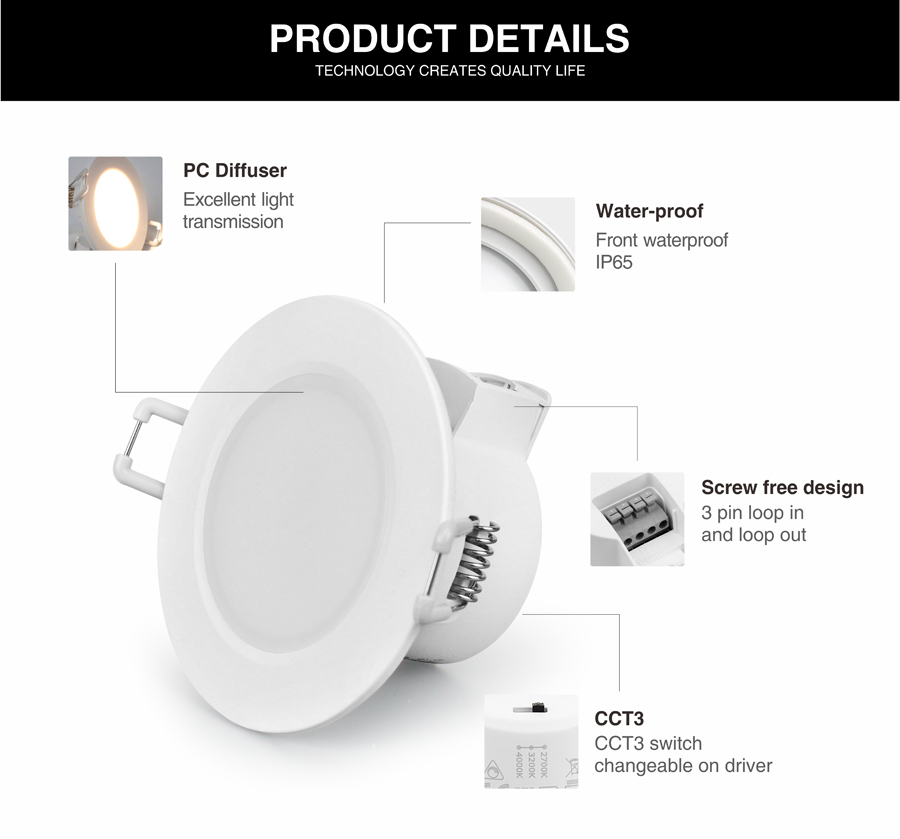

Product Details
Documents download

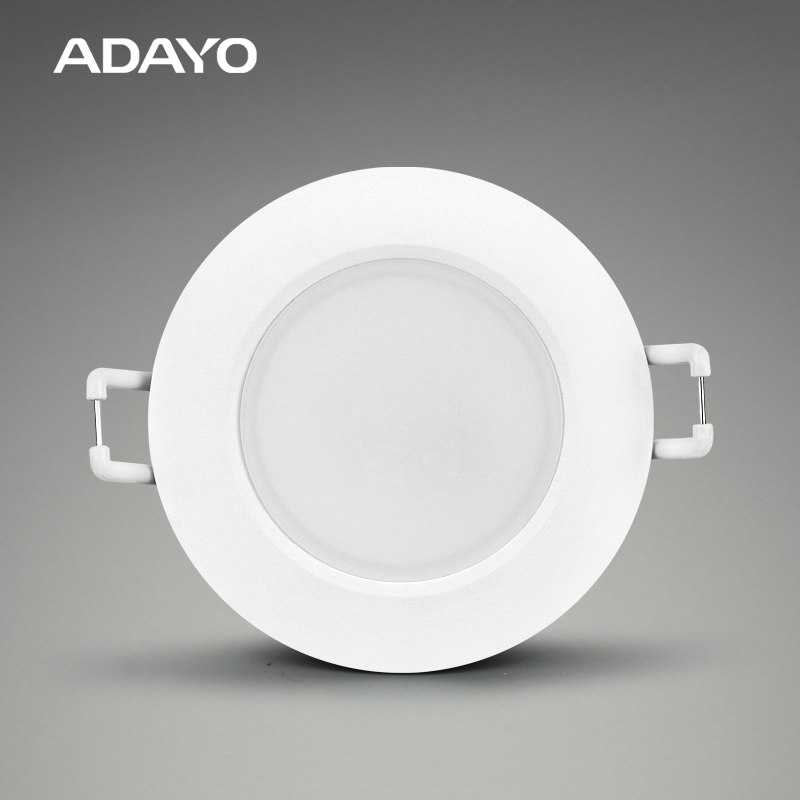

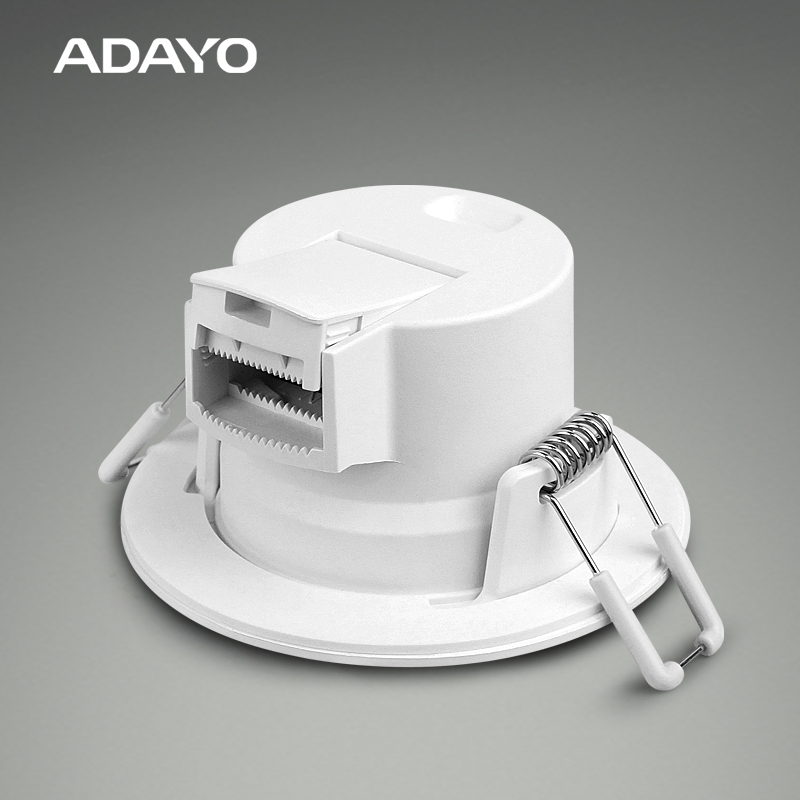

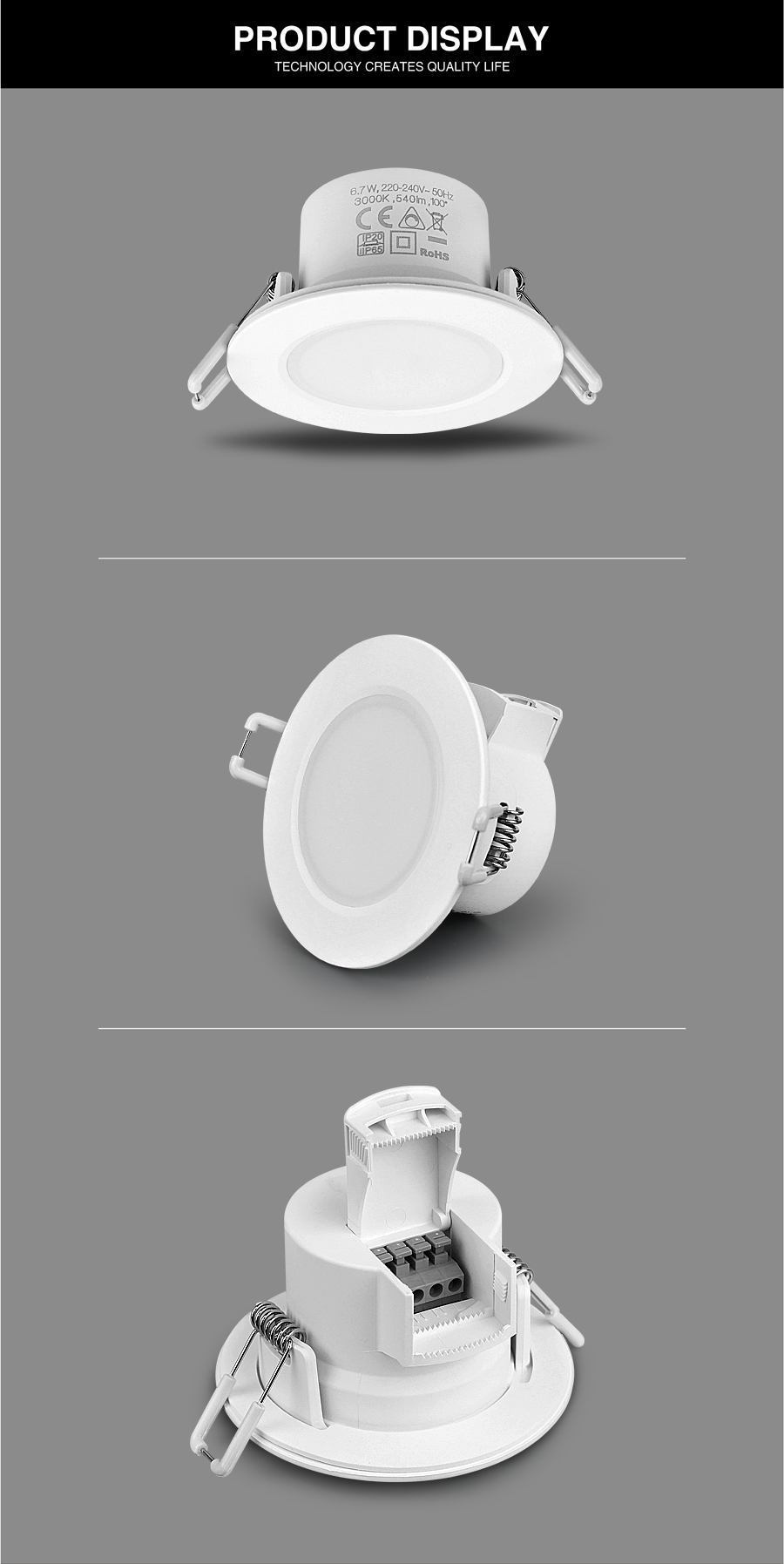

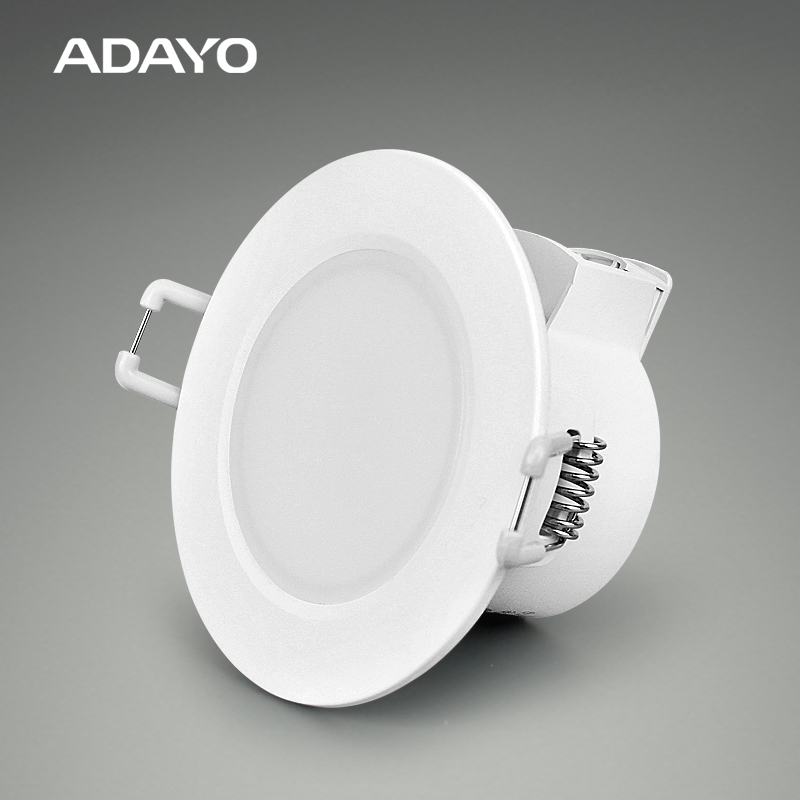

ADAYO led spotlights for home



●  Product  Description

AVALOR E02 IP65 ceiling spotlights led are dimmable spotlights with excellent dimming performance and supports dimmers of common brands on the market. This led spotlights for home has a classic minimalist desing, tool-free installation, CCT3, bezel changeable, Ecomomical and relally ideal for DIY lighting market.



ADAYO led spotlights for home



●  Features

ADAYO lighting CCT3 ceiling spotlights led 6.7W dimmable LED spotlights for home features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • Three designs: IP65 fix with PC diffuser, IP44 adjustable with lens , IP65 fix with lens
  • Heat protection system, with excellent internal driver
  • Four colors bezel changable, brush nickle, silver, chrome and black
  • Smooth triac dimming
  • CCT3 switch changeable on back
  • Can be installed directly into the insulation with the extra frame
  • Life span 25000hours



ADAYO led spotlights for home



●  Applications

AVALOR E02 G4 DIY ceiling spotlights led is IP65, with 100 degree angle widely bright feeling, as a bathroom rated downlights with four colors bezel changeable meet your different ceiling styles.

  • Living room. bedroom. bathroom. kitchen.
  • Office. meeting room.
  • Shop. supermarket.
  • Hotel



ADAYO led spotlights for home



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006657  SL05-B25-006WN-30 570 80 F3000 6.5 0.65 100 ø87 46 ø68
926602006765   SL05-B25-006WN-40 600 80 F4000 6.5 0.55 100 ø87 46 ø68
926602006766  SL05-B25-006WN-65 600 80 F6500 6.5 0.55 100 ø87 46 ø68
926602006774

SL05-B25-007WA-30

570 80 F3000 6.7 0.6 100 ø87 47 ø68
926602006775  SL05-B25-007WA-40 600 80 F4000 6.7 0.6 100 ø87 47 ø68
926602006776  SL05-B25-007WA-65 600 80 F6500 6.7 0.6 100 ø87 47 ø68
926602006777  SL05-B25-007WA-C1 560
600
600
80 F2700
P3000
F4000
6.7 0.6 100 ø87 47 ø68
926602006767  SL05-B25-007WA-C2 570
600
600
80 F3000
B4000
F6500
6.7 0.6 100 ø87 47 ø68







ADAYO led spotlights for home



●  Options

  • Dimmable and no-dimmable
  • Signle Colour temperature, CCT3
  • Decorate bezel shape: round and square.
  • Decorate bezel color: bruch nickel, chrome, silver, black, white(square)
  • Covering brackets suppot insulation



ADAYO led spotlights for home

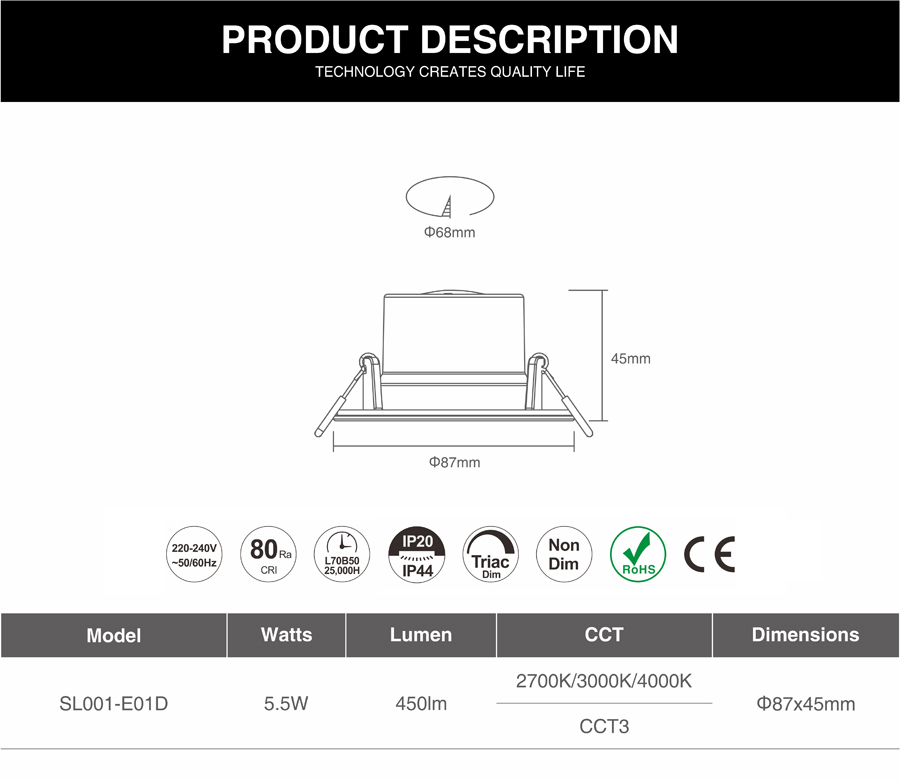

●  Product Line Drawing (Size:mm)



ADAYO led spotlights for home

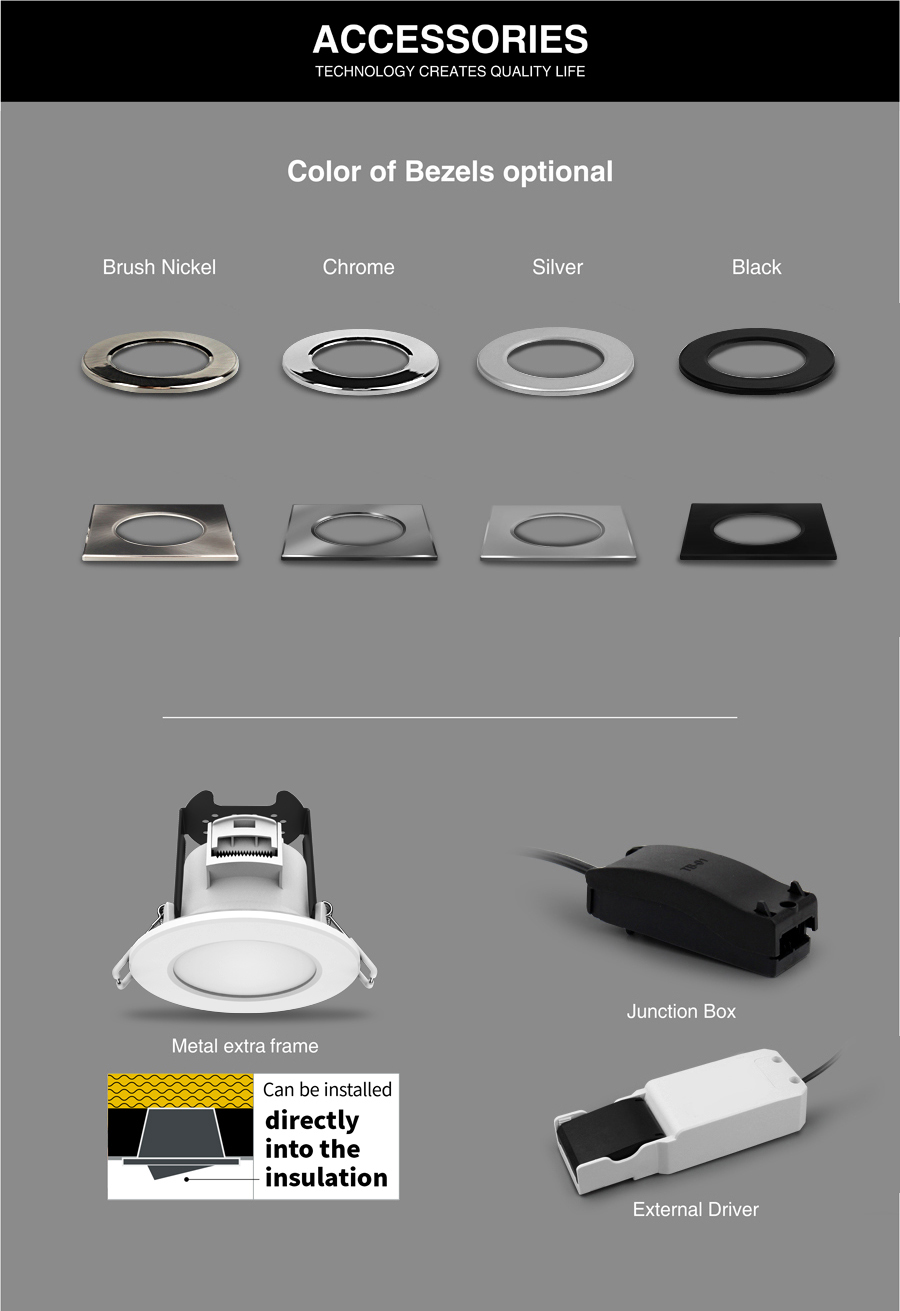

● Accessories Optional

  • Bezel shape: round. square.
  • Bezel colors: brush nickel, chrome, silver, black
  • Juction box
  • External driver
  • Metal extra frame



ADAYO led spotlights for home



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.

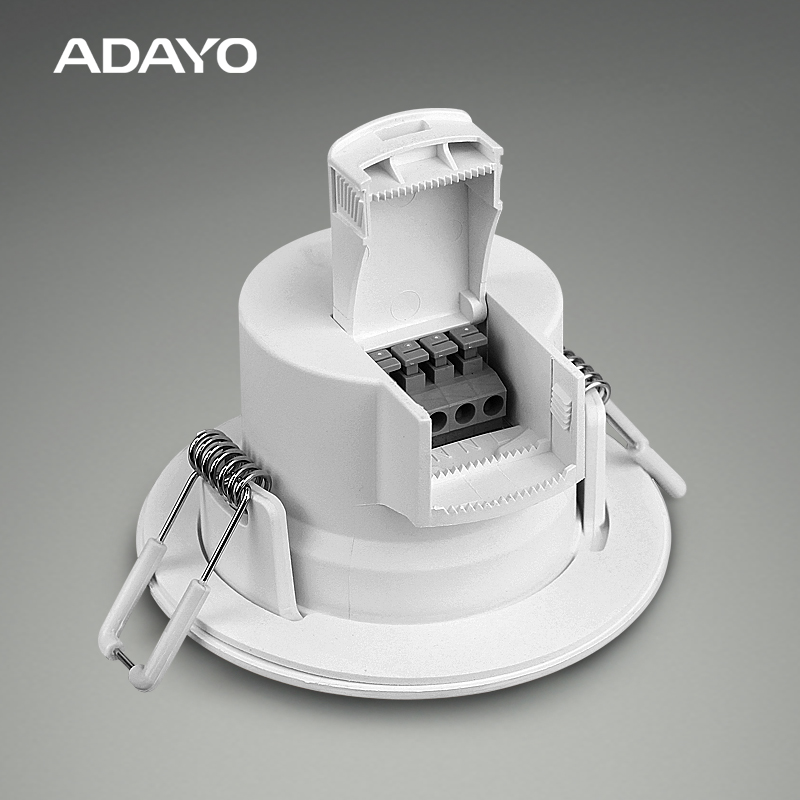

  • Connect wires to the wire box .
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.





●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
