ADAYO lighting LED cabinet downlights with high color rendering index preserve true colors and are the slim LED down lights with a height of only 11mm

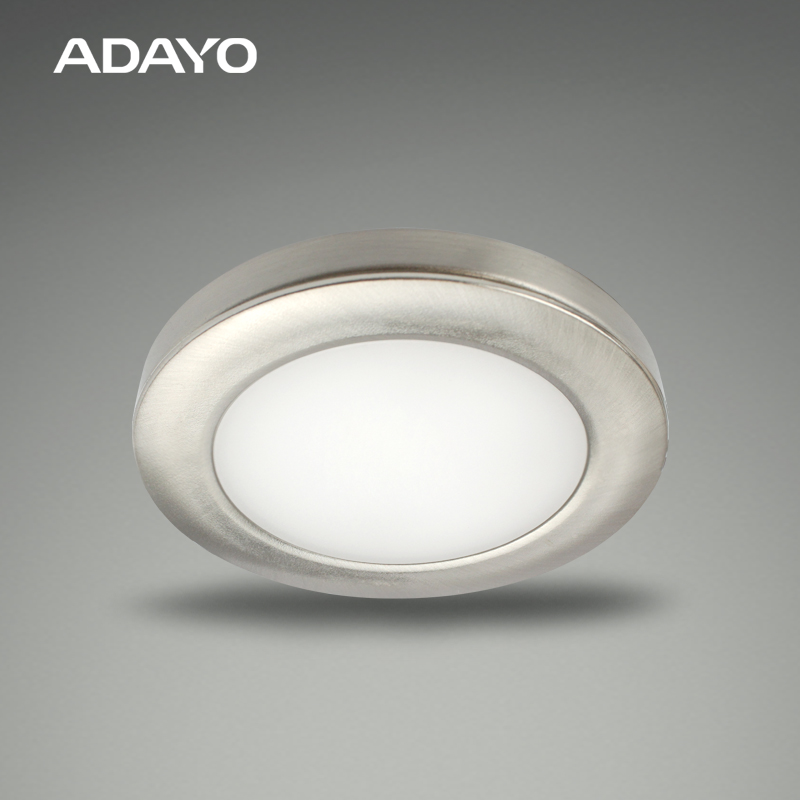

Brushed nickel LED cabinet downlights BAGEL with 8.5W 2700K and recessed

The LED cabinet downlights are 3pcs with a junction box and one driver, or in six pieces. This slim LED down lights are brushed nickel color and plastic material, comply with new ERP

Product Specification:
  • Code : 926602006160
  • Rated Wattage : 8.5W
  • Luminous : 160*3lm
  • Colour Temperature : 2700K
  • Dimming or not : Non-Dimming
  • beam angle : 100°
  • Lifespan : 15000hrs
  • Size : Φ68*11mm cut Φ63mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download

Over view:

ADAYO Lighting is a LED down light manufacturer that supports custom down lights and other light fixtures.

This LED cabinet downlights with Isolated power, no flic, 220-240v, RA>90,with new ERP standar can choose 3pcs or 6pcs for one group;

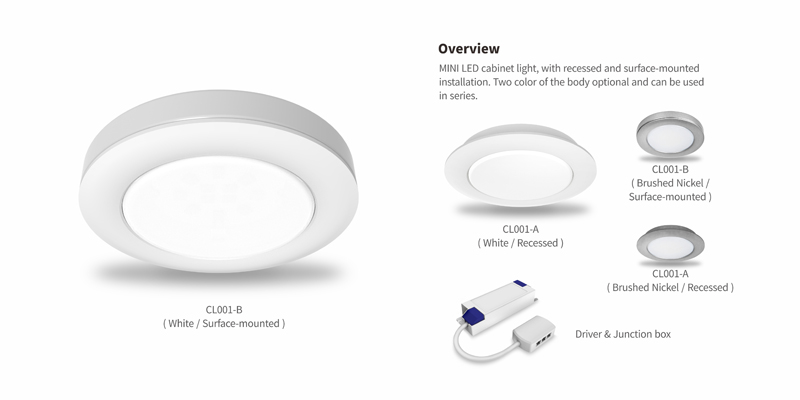

This cabinet light there are two version: surface mounted and recessed installation, and with two fice ring for it, white and brushed nickel;





ADAYO led cabinet downlights





Features:

ADAYO lighting LED cabinet downlights with non-dimming and new ERP have the following features:

1. This slim led down lights made of metal and PC beam angle are 100°;

2. SMD with no dimming, but also triack dimming can be customized;

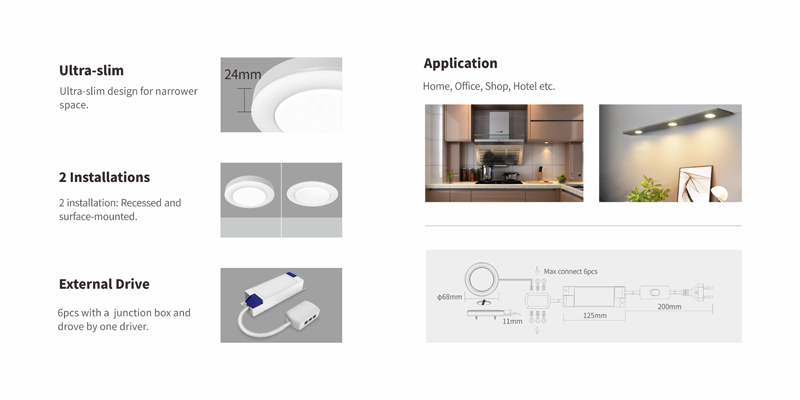

3. Arranged in series, 3 or 6 pcs can be setted  as a group with a junction box and one driver ;

4. 2m cable with connection terminal easy connect with the junction box;

5. With CE and Rhos certificate, meet new ERP of Europe market.



ADAYO led cabinet downlights





Product detail:

ADAYO lighting LED cabinet downlights with non-dimming and new ERP have the following detail specification:

1. Driver: Isolated power suply, non-dimming, no flick, with junction box, connect 3pcs cabinet lights ,

                Input:220-240v ~50/60Hz Max.0.06A, PF:>0.5, Prated: 8.5W;

2. Body: Metal and PC, good heat dissipation, and life span 15000Hrs, warranty 2 year;

3. Light source: SMD, good for downlight and ceiling light;

4. Cable: 2m ;

5. Conect: Female plug, easy install and change the driver or light;

6. Installation: surface-mounted and recessed installation optional;

7. There are two diffirent color of face ring: white and brushed nickel;





Specification:

ADAYO lighting LED cabinet downlights 8.5W 3pcs for one group with junction box specification as below:

LED cabinet downlights Specification



 Item Name:  LED cabinet downlights                   Code:                                   926602006160
 Watt (W):  8.5  Lumen(lm):  160lm*3pcs
 Input Voltage(V):                     220-240v ~50/60Hz Max.0.06A                CRI (Ra>):  >80
 Certification:  CE, Rohs, new ERP  IP Rating:  IP20
 Life span:  15000Hrs  Beam angle:   100°
 Warranty:  2 Years  CCT :  2700K
 Installation:  Recessed    Finished:  Brushed nickel
 Lamp Body Materia:   Metal & plastic  Light source:   SMD2835





ADAYO led cabinet downlights





Application:

This round led cabinet lights save more than 90% of power consumption without losing any brightness.

LED becomes the most popular light source all over the world. This Under-cabinet lighting made of high quality metal materials.

Perfect for cabinet, cupborad, bookcase, Jewelry cabinet, display cabinets, etc.





Brief introduction of ADAYO Lighting:

ADAYO lighting led downlight custom, ceiling light manufacturer since 1993 , listed in 2017, The main modes of cooperation are OEM, ODM and SKD.

There are three main business line of ADAYO lighting: LED lighting, LED package and LED big power supply;

With R&D laboratory covered 1200m² with international standard;

R&D team more than 60 people, one third of them with more than 20 years of experience in the lighting industry;

Work Shop 5000 SQM  with more than 300 works and 50 production lines;
