ADAYO lighting CCT3 recessed spotlights has good dimming performance, fire rated IP65 adjustable downlight pass 30/60/90 min anti-fire test

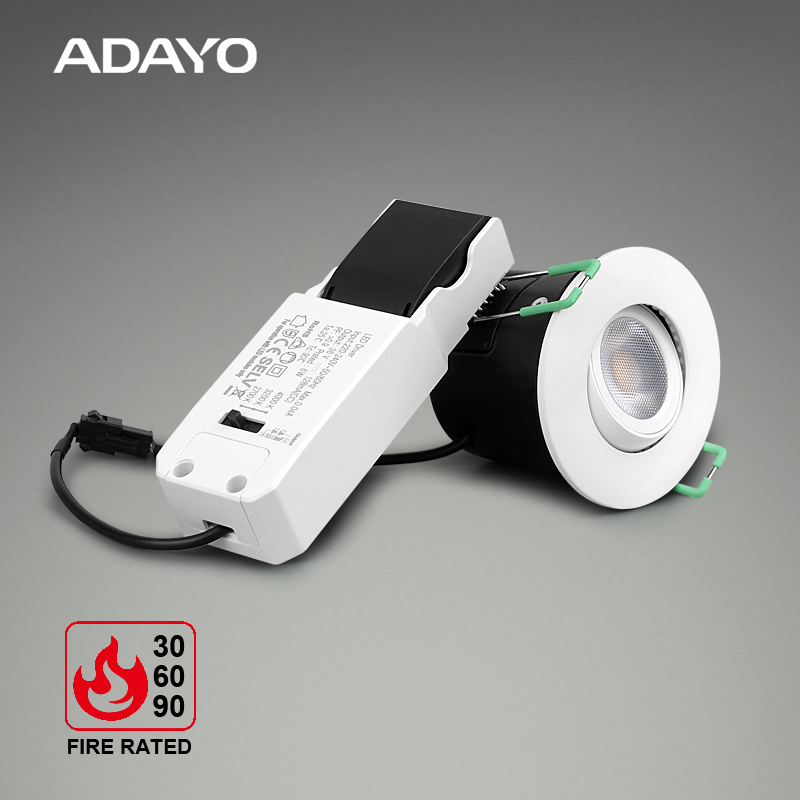

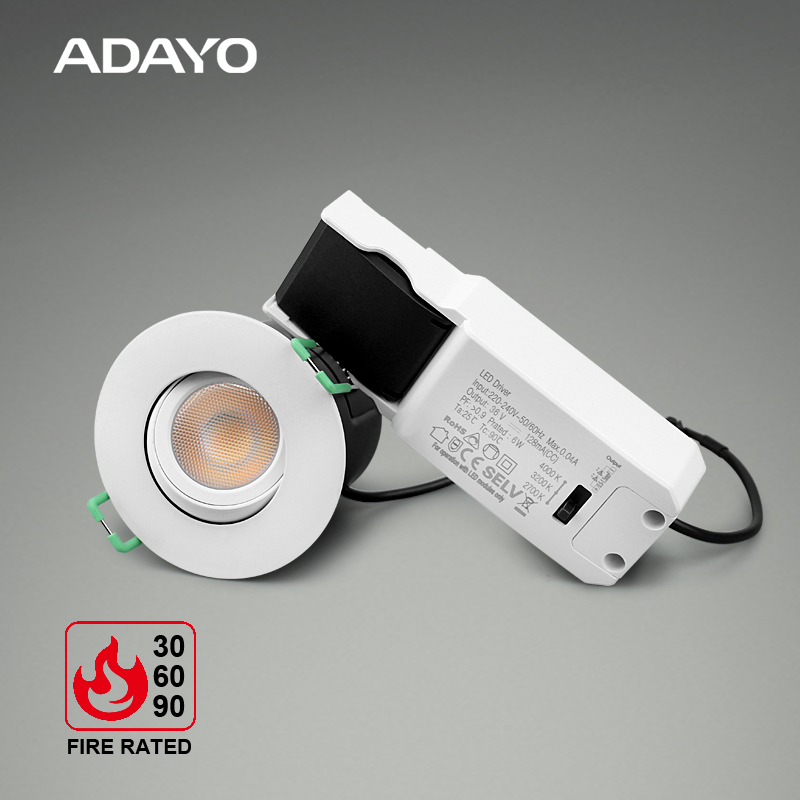

ROLAND Ⅲ 8.5W adjustable recessed spotlights with CCT3 and dimming

ADAYO lighting recessed spotlights with beam angle 38° are designed with high quality and this fire rated IP65 360° adjustable downlight comply with CE, EMC, RoHS certifications

Product Specification:
  • Code : 926602006127
  • Rated Wattage : 8.5W
  • Luminous : 780lm
  • Colour Temperature : CCT3 F2700-F4000
  • Dimming or not : Dimming
  • beam angle : 38°
  • Lifespan : 50000hrs
  • Size : Φ96*62mm cut Φ80mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

ROLAND Ⅲ 8.5W recessed spotlights CCT3 fire rated IP65 adjustable recessed light can be adjusted angle from all directions with BS476-20/21 and 30'/60'/90' flame retardant test adopt flame retardant material, safe and secure. Separate isolated power supply connect lamp with connect terminal and classic minimalist design suitable for different application.



ADAYO recessed spotlights

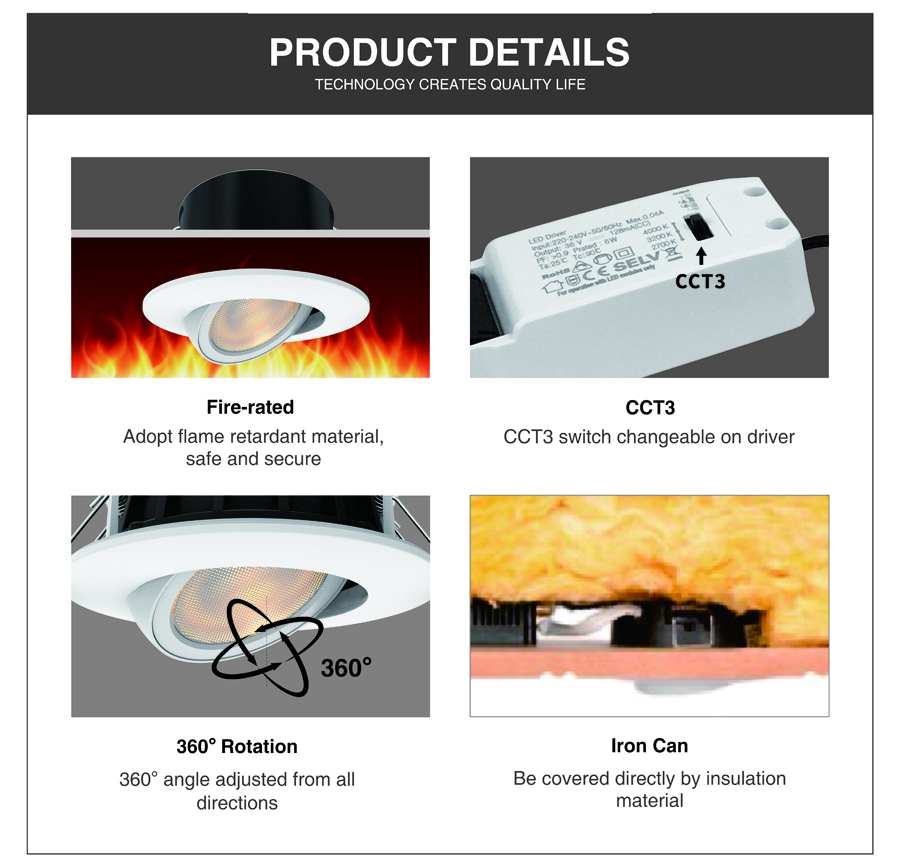

●  Features

ADAYO lighting CCT3 fire rated recessed spotlights 8.5W IP65 with 360° rotation features as below:

  • Aluminum heat sink, smooth triac dimming
  • Tooling free installation design with 3 pin loop in and loop out
  • CE, NEW ERP, EMC, ROHS approved
  • Can be used as fire rated down light with a iron can cover and can be covered by insulation directly
  • Iron housing melting point is 1538℃
  • 360° horizontal adjustment, 30° tilt adjustment
  • Three finish colors optional, white, silver and black
  • Separate isolated power supply connect lamp with connect terminal
  • CCT3 switch changeable on driver
  • Life span 50000hours, waterproof IP65



ADAYO recessed spotlights



●  Applications

ROLAND Ⅲ 8.5W adjustable recessed spotlights is a dimmable spotlight IP65, with 38 degree angle widely bright feeling, with three colors optional meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, supermarket.
  • Hotel.



ADAYO recessed spotlights



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)

926602006127

(white)

YF30K-AW008-C13W-6P 670
780
750
80 F2700
/
F4000
8.5 0.9 38 ø96 62 ø80

926602006128

(black)

 YF30K-AW008-C13B-6P 650
750
720
80 F2700
/
F4000
8.5 0.9 38 ø96 62 ø80

926602006129

(sliver)

YF30K-AW008-C13S-6P 650
750
720
80 F2700
/
F4000
8.5 0.9 38 ø96 62 ø80
926602006181

YF30K-AW008-C13W-6W

670
780
750

80 F2700
/
F4000
8.5 0.9 38 ø96 62 ø80
926602006182 YF30K-AW008-C13B-6W 650
750
720
80 F2700
/
F4000
8.5 0.9 38 ø96 62 ø80
926602006183   YF30K-AW008-C13S-6W 650
750
720
80 F2700
/
F4000
8.5 0.9 38 ø96 62 ø80


ADAYO recessed spotlights



●  Options

  • Signle Colour temperature, CCT3
  • Lens and reflector optional
  • Three finish colors optional, white, silver and black



ADAYO recessed spotlights

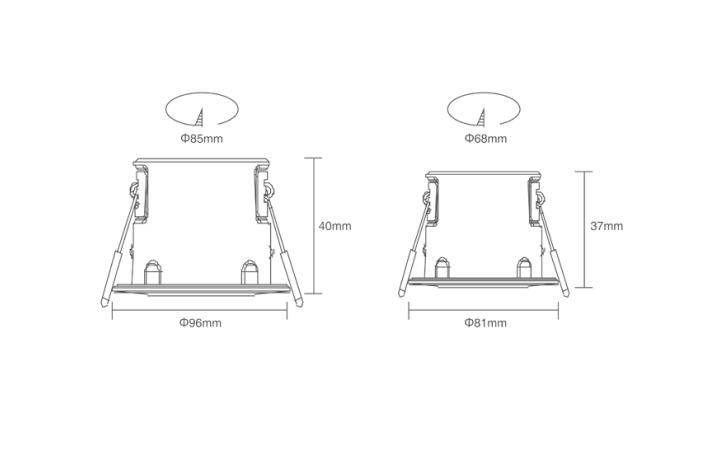

●  Product Line Drawing (Size:mm)

ADAYO recessed spotlights

●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Press the side spring and push the fixture fitting into the ceiling hole, And make sure the fitting is stable and firmly. After proper installation is confirmed, switch on the main power.



ADAYO recessed spotlights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
