ADAYO lighting supports OEM/ODM IP65 recessed downlight, fire rated downlights comply with CE, new ERP and other international certification

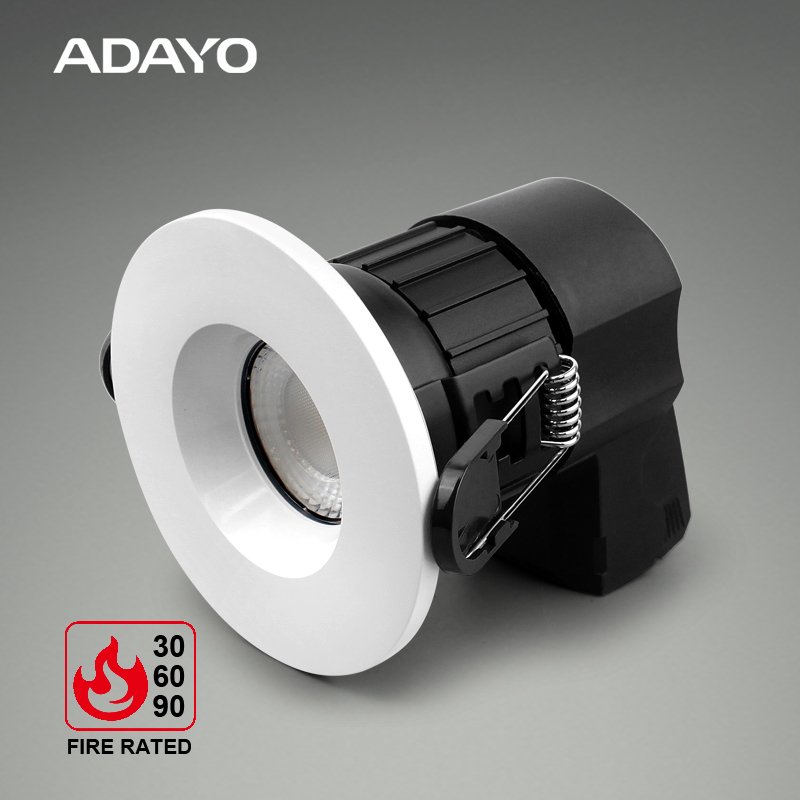

IP65 recessed downlight CLOVER Ⅱ 7W CCT3 with high light effect

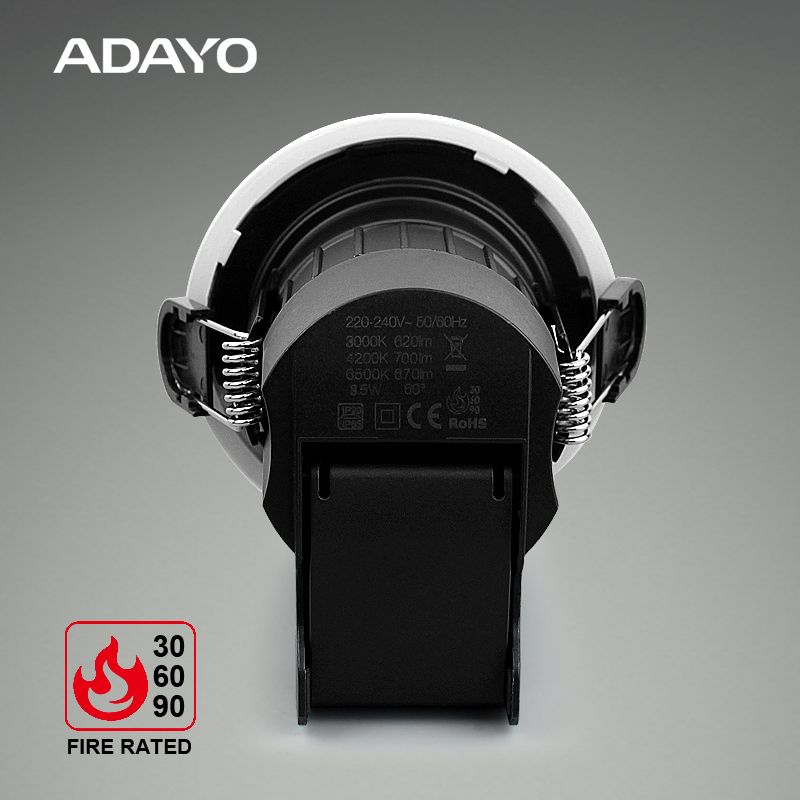

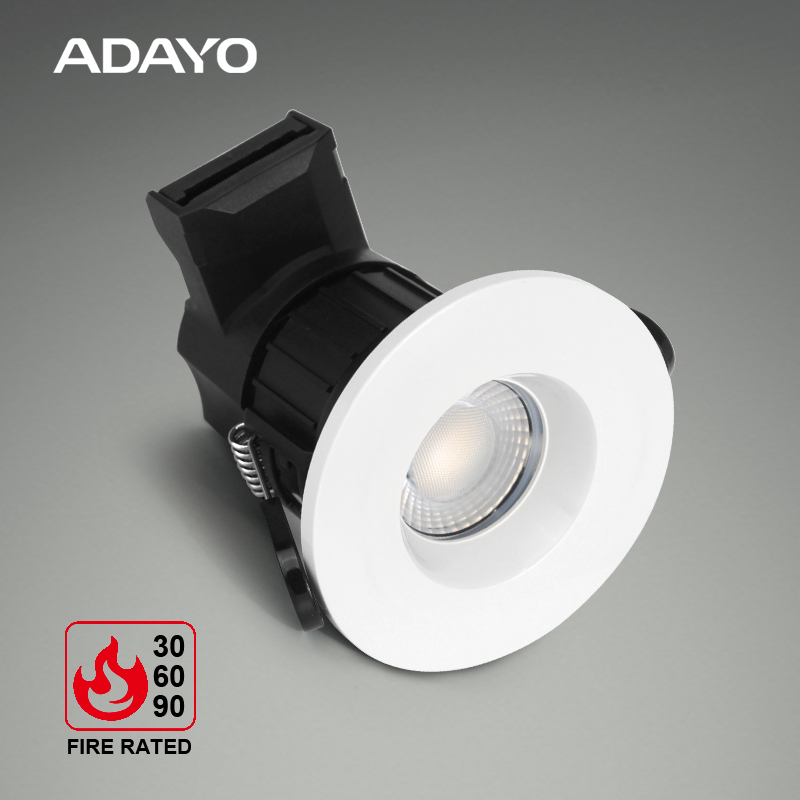

ADAYO lighting IP65 recessed downlight is tool-free design with 3pin loop in and loop out, this fire rated downlights has detachable trim face ring of 4 colors and different materials

Product Specification:
  • Code : 926602006113
  • Rated Wattage : 7W
  • Luminous : 630lm
  • Colour Temperature : CCT3 2700K-3200K-4000K
  • Dimming or not : Dimming
  • beam angle : 60°
  • Lifespan : 25000hrs
  • Size : Φ88*91mm cut Φ70mm
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download


●  Product  Description

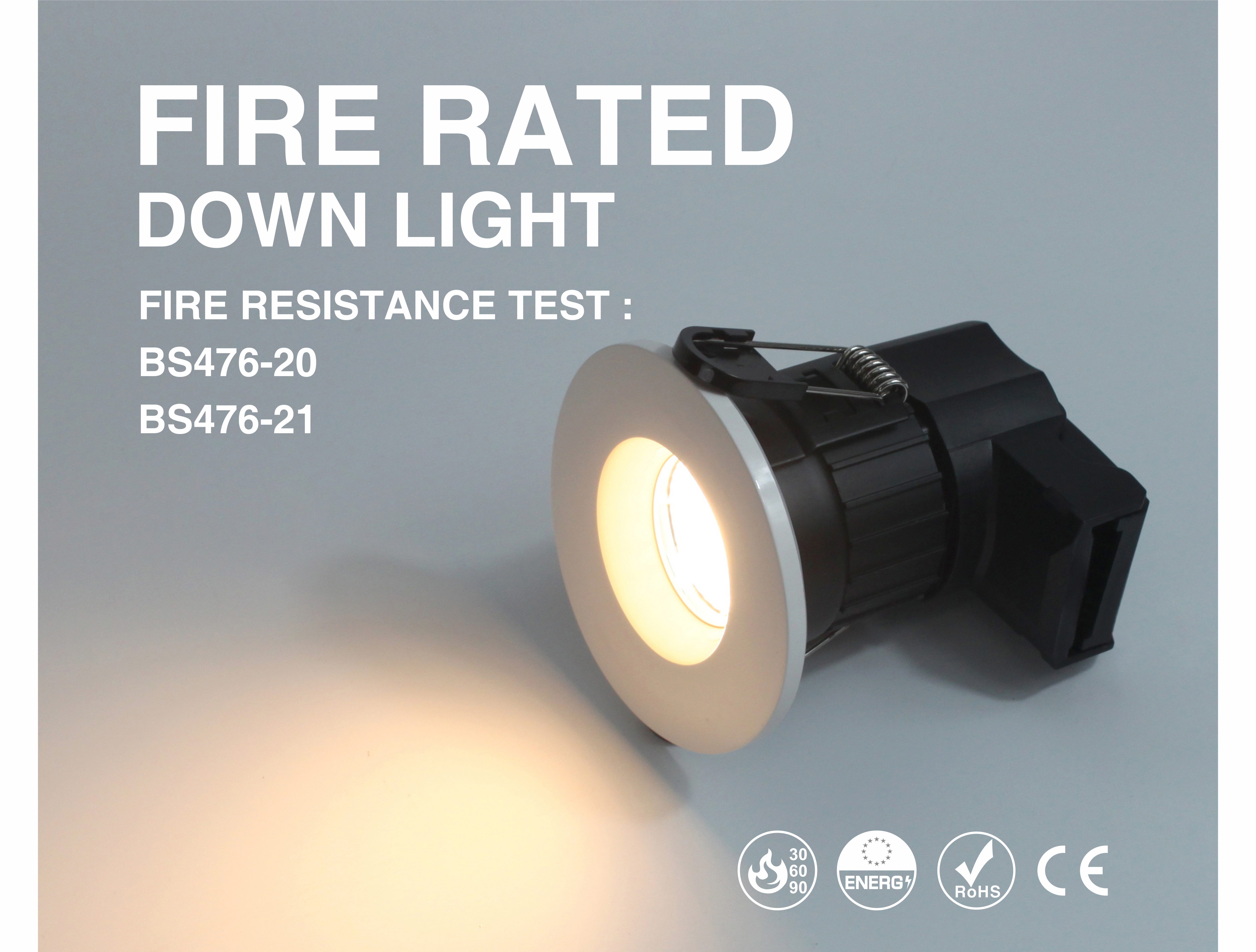

CLOVER Ⅱ downlight 7W CCT3 fire rated downlights are  dimmable downlights with BS476-20/21 and 30'/60'/90' flame retardant test adopt flame retardant material, safe and secure. With classic minimalist design suitable for different application.


ADAYO IP65 recessed downlight


●  Features

ADAYO lighting CCT3 recessed downlight fixture 7W IP65 recessed downlight features as below:

  • Aluminum heat sink

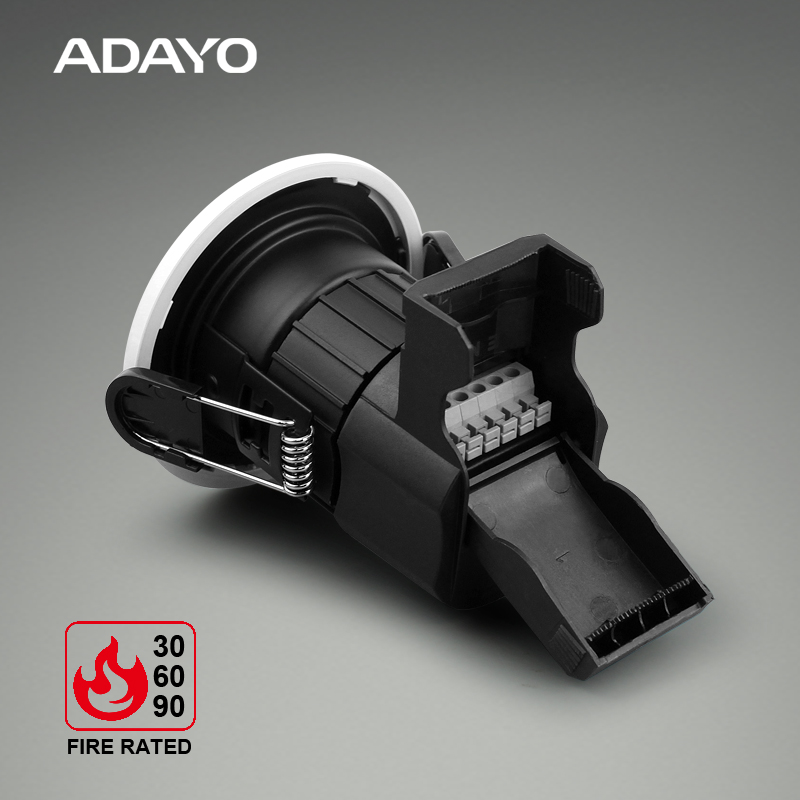

  • Tooling free installation design with 3 pin loop in and loop out
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • Iron housing melting point is 1538℃
  • Covered by insulation directly
  • Four colors bezel changable, brush nickle, silver, chrome and black
  • Smooth triac dimming
  • Front switch to change the CCT
  • Life span 25000hours,waterproof IP65


ADAYO IP65 recessed downlight

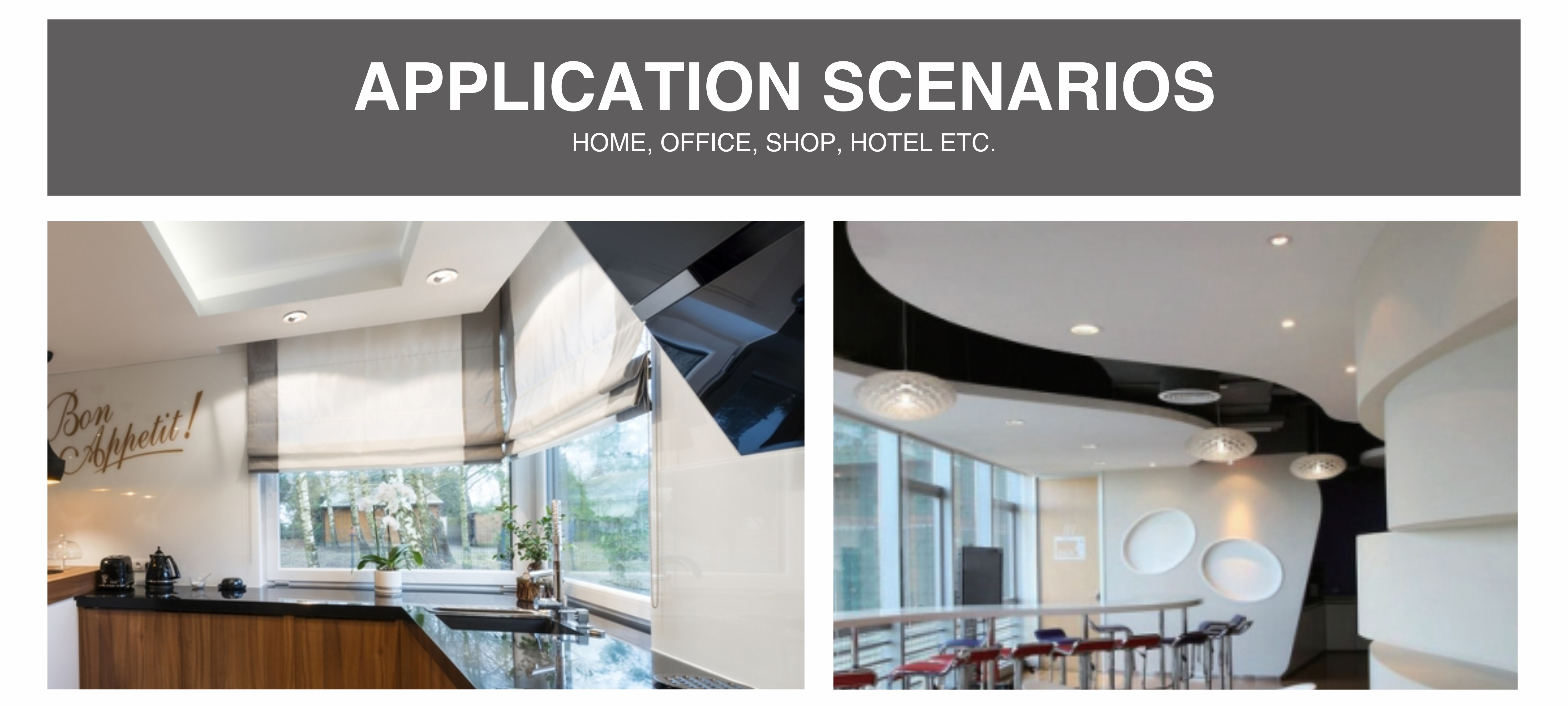

●  Applications

CLOVER Ⅱ fire rated downlights IP65 recessed downlight is a dimmable ceiling downlight IP65, with 60 degree angle widely bright feeling, with four colors bezel changeable meet your different ceiling styles

  • Living room. bedroom. bathroom. kitchen.
  • Office. meeting room.
  • Shop. supermarket.
  • Hotel


ADAYO IP65 recessed downlight

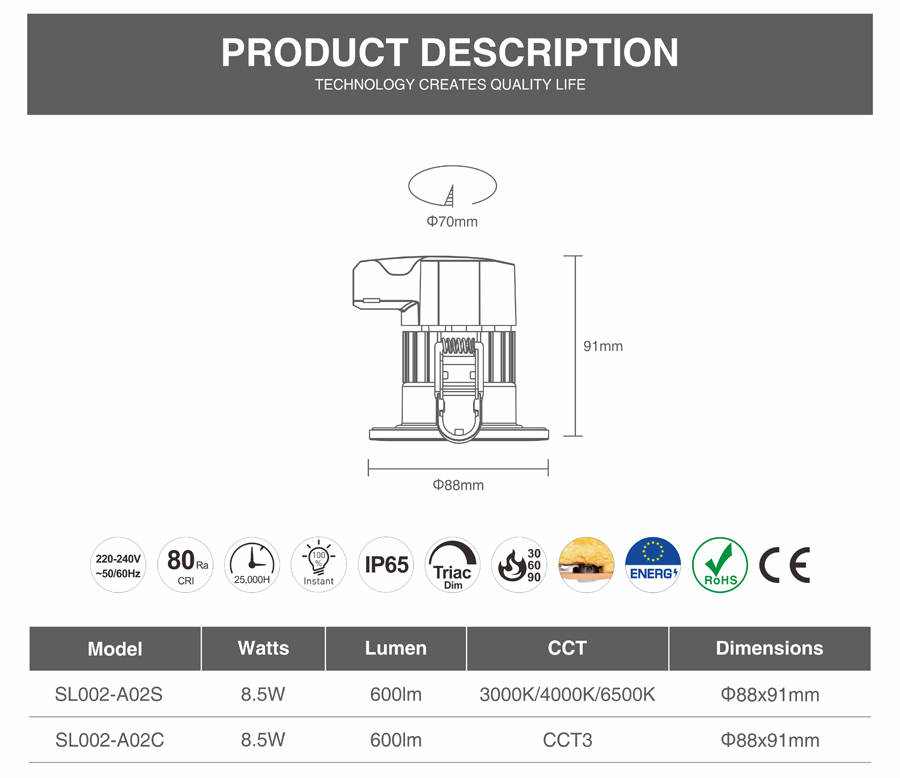

●  Specification


Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006113  CYF25A-0063B6C1-1 585
80 F2700
7 0.8 60 ø88 91 ø70

ADAYO IP65 recessed downlight


●  Options

  • Dimmable and no-dimmable
  • Signle Colour temperature, CCT3
  • Separat isolated driver, integreret
  • Decorate bezel: bruch nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12

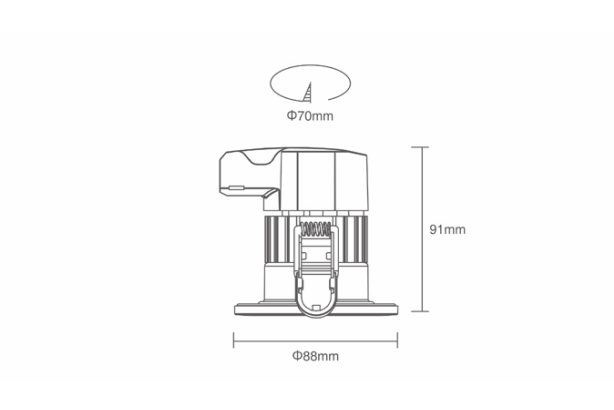

●  Product Line Drawing (Size:mm)

ADAYO IP65 recessed downlight

● Accessories Optional

  • Bezel shape: round
  • Bezel colors: brush nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12

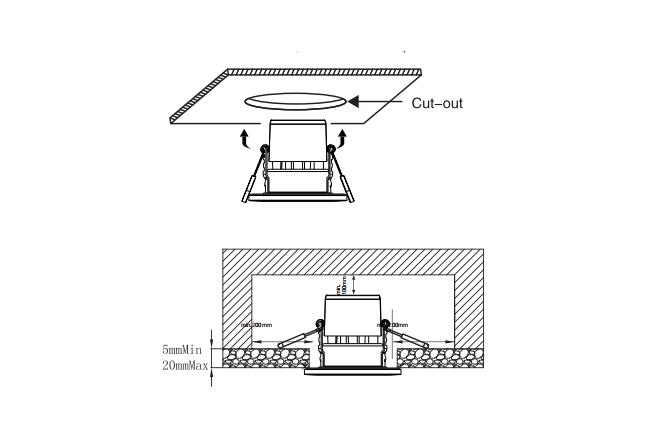

●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Press the side spring and push the fixture fitting into the ceiling hole, And make sure the fitting is stable and firmly. After proper installation is confirmed, switch on the main power.


ADAYO IP65 recessed downlight


●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
