ADAYO lighting led spot lights for ceiling provide in fixed and adjustable, this IP65 spotlights with deep recessed can reduce glare and soften the light

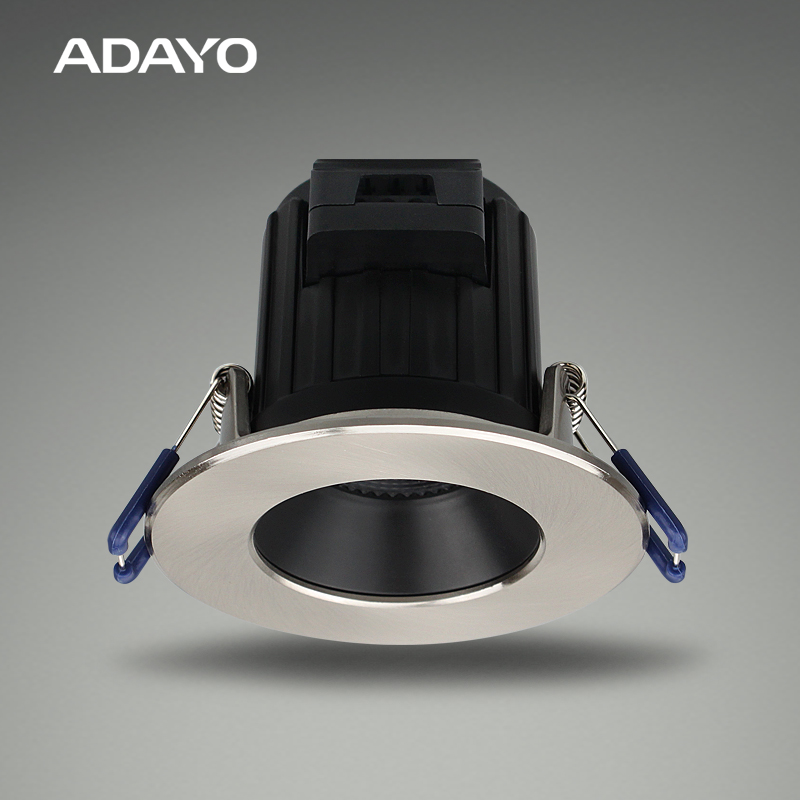

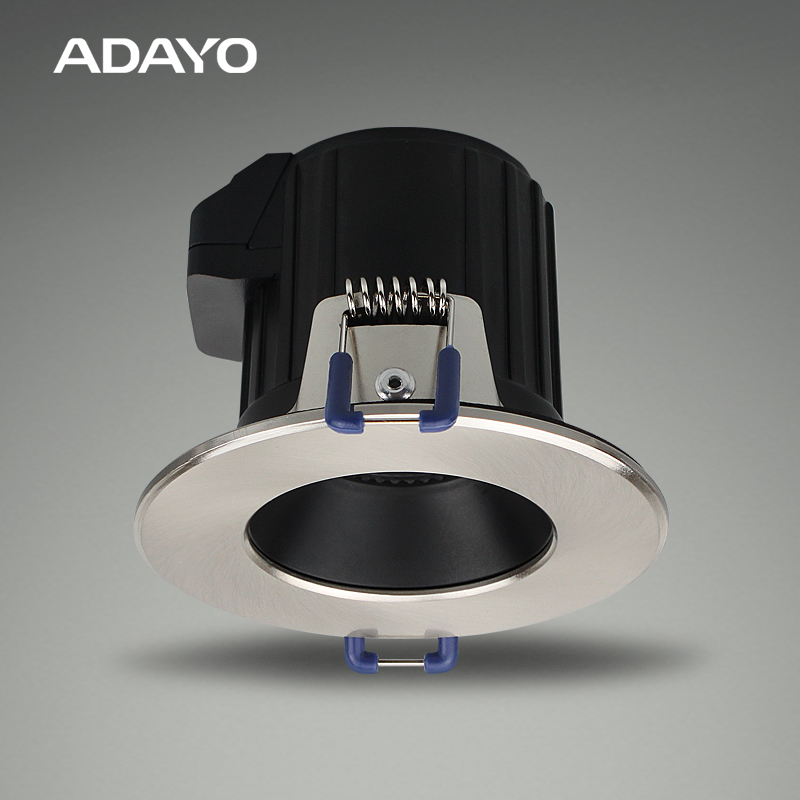

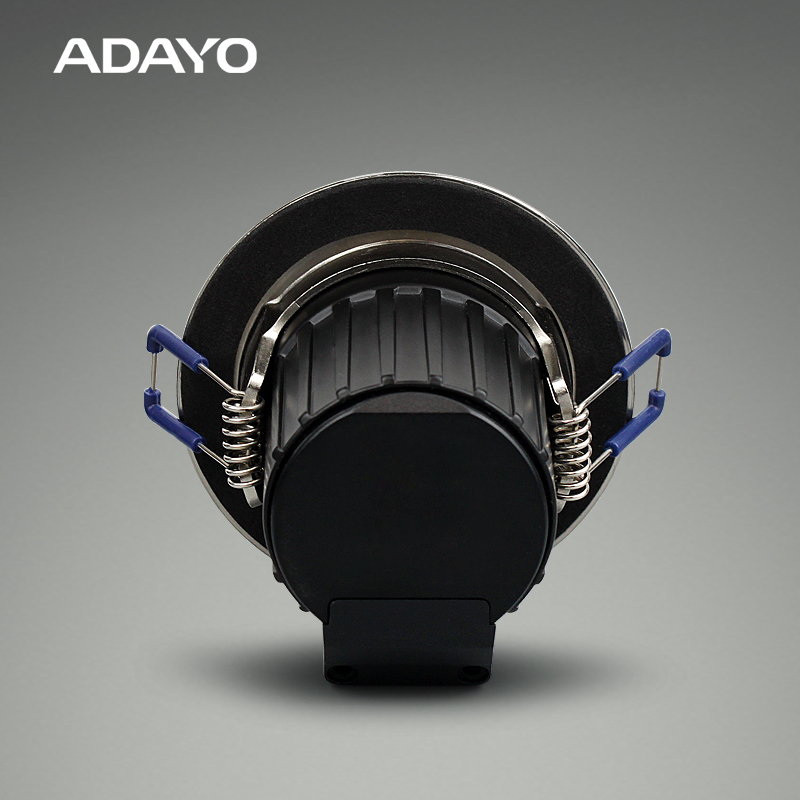

MIRANDA brushed nickel led spot lights for ceiling 9W 2700K with IP65

ADAYO lighting 9W led spot lights for ceiling with integrated design have good dimming performance and the IP65 spotlights have 2pin loop in and loop out fast connecting terminal

Product Specification:
  • Code : 926602006031
  • Rated Wattage : 9W
  • Luminous : 480lm
  • Colour Temperature : 2700K
  • Colour Rendering : >90
  • Size : Φ86*64mm cut Φ68-75mm
  • PF : >0.8
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

MIRANDA brushed nickel die-casting 9W 2700K  led spot lights for ceiling is dimmable led spot lights that supports dimmers of common brands on the market. With a classic minimalist design, tool-free installation, IP65 spotlights with die-casting housing and good heat dissipation performance, different colors to choose from, suitable for commercial lighting.





ADAYO dimmable led spot lights



ADAYO dimmable led spot lights



●  Features

ADAYO lighting 9W 2700K die-casting led spot lights for ceiling features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • CE, NEW ERP, EMC, ROHS approved
  • Deep recessed and anti-glare
  • Die-casting housing for excellent heat dissipation
  • Smooth triac dimming and front waterproof IP65
  • Can be covered directly by the insulation with extra frame
  • Life span 25000hours



ADAYO dimmable led spot lights



●  Applications

MIRANDA  led spot lights for ceiling 9W 2700K dimmable IPI65 spotlights, with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.
  • Hotel.



ADAYO dimmable led spot lights



Specification:



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006031  DL25U-W009AA-327 480 90 P2700 9 0.8 38 ø86 64 ø68-75



ADAYO dimmable led spot lights



●  Options

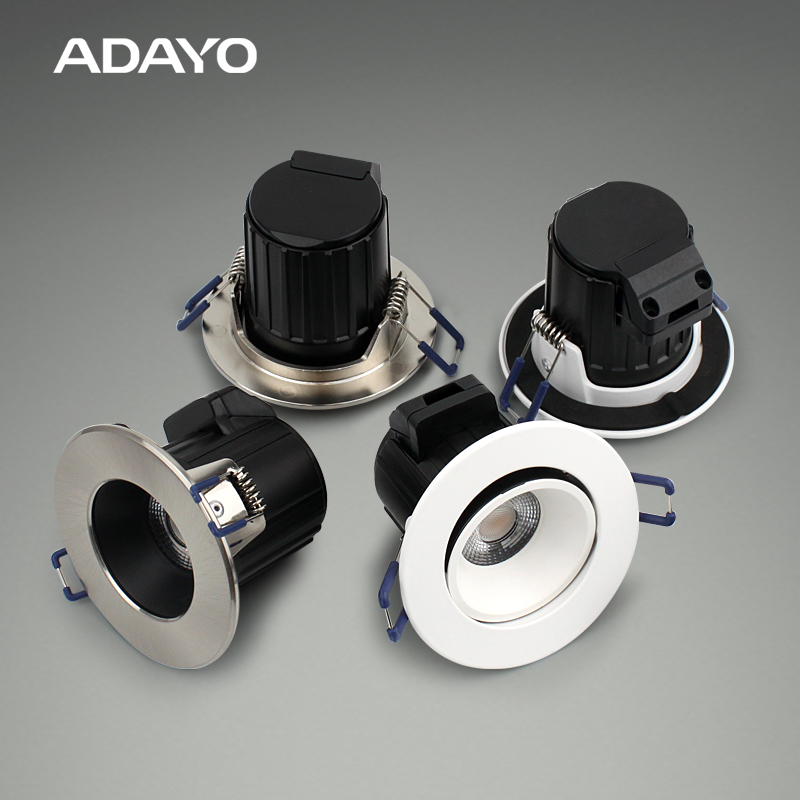

  • Fixed(IP65) and adjustable(IP44)
  • White, brushed nickel and black
  • Junction box or not
  • 2700K/3000K/4000K/6500K
  • Different color of decorative rings
  • Metal extra frame or not



ADAYO dimmable led spot lights



●  Product Line Drawing (Size:mm)



ADAYO dimmable led spot lights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling, the hole size will show on the specification form.
  • Connect wires to the wire box.
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO dimmable led spot lights



●  Brief introduction of ADAYO Lighting:

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
