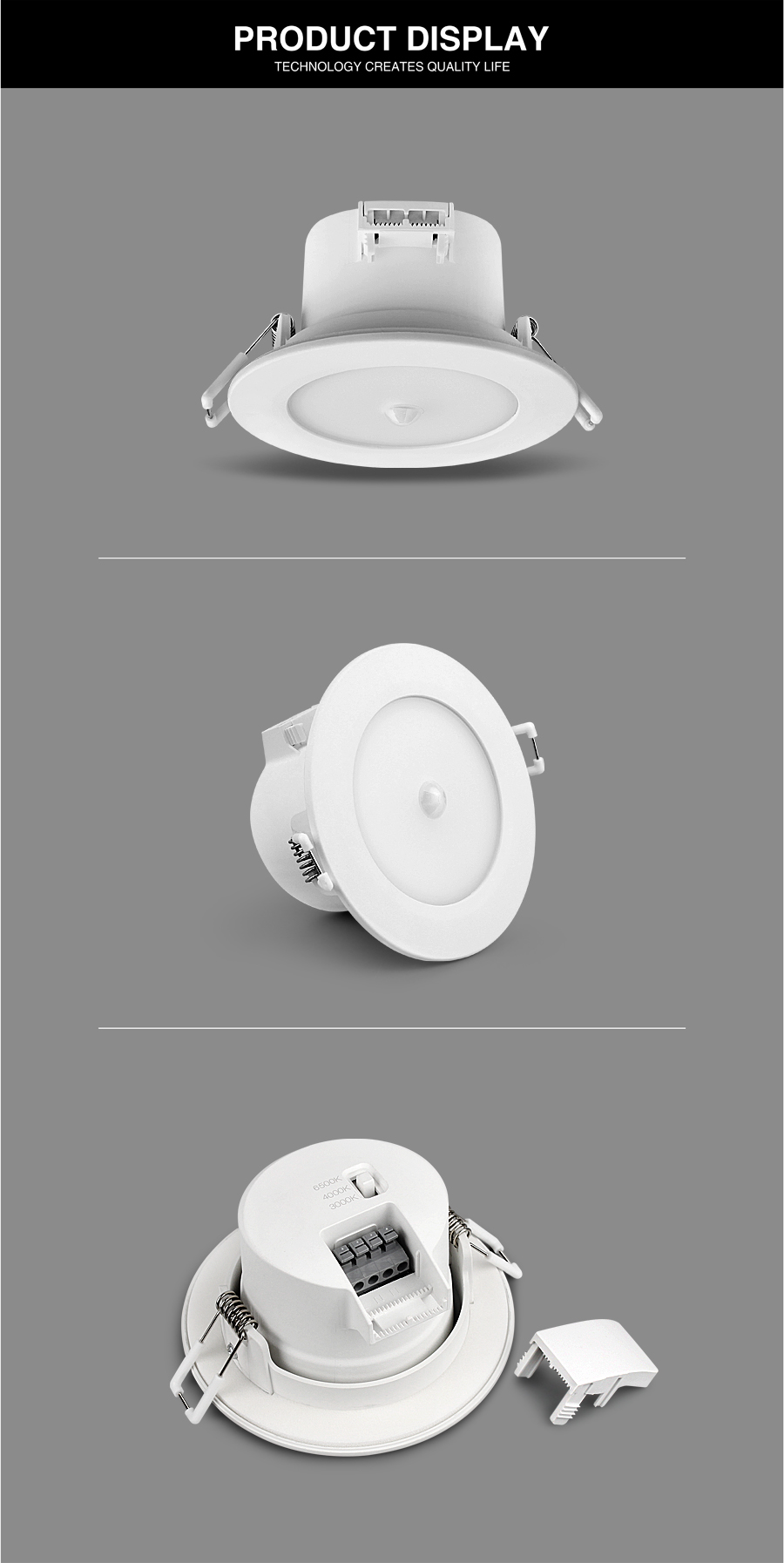

● Product Description

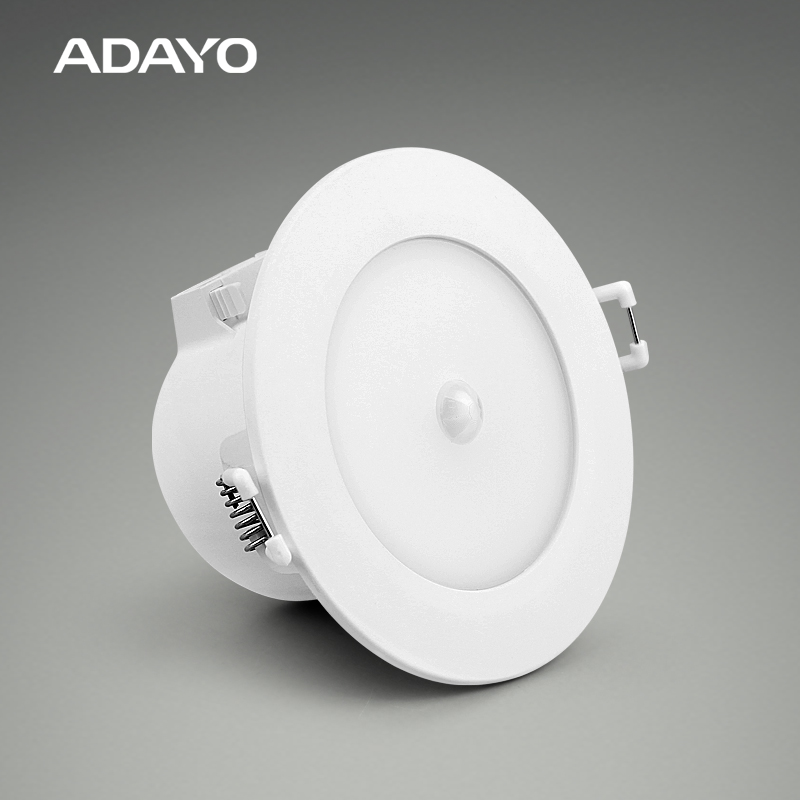

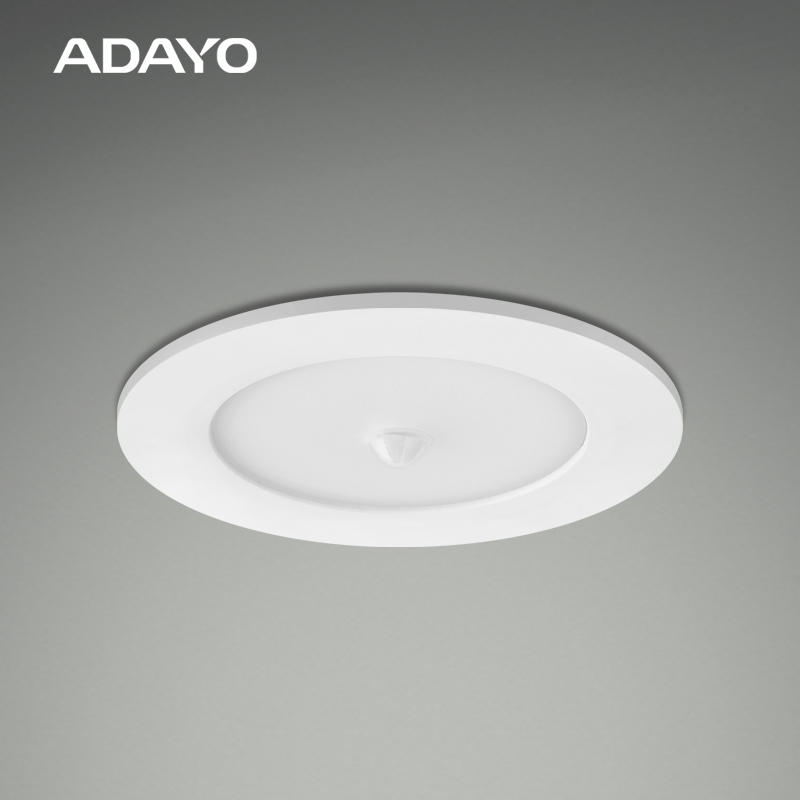

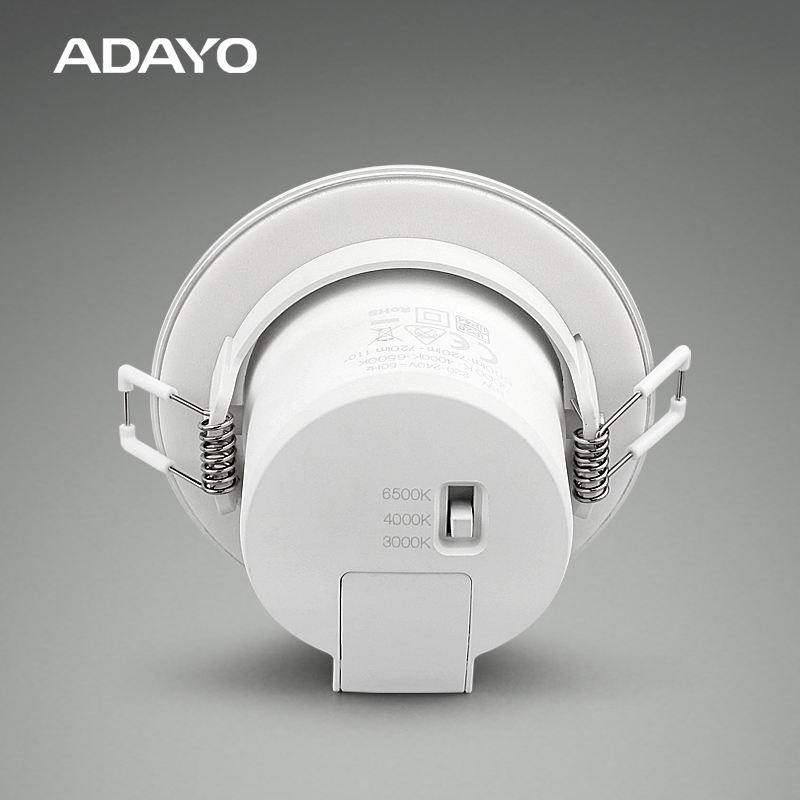

CLIO 8W sensor downlight with CC3 changeable switch is on back. With classic minimalist desing, tool-free installation, bezel changeable and good heat dissipation performance, this ceiling led spot lights are a good choice for different application.

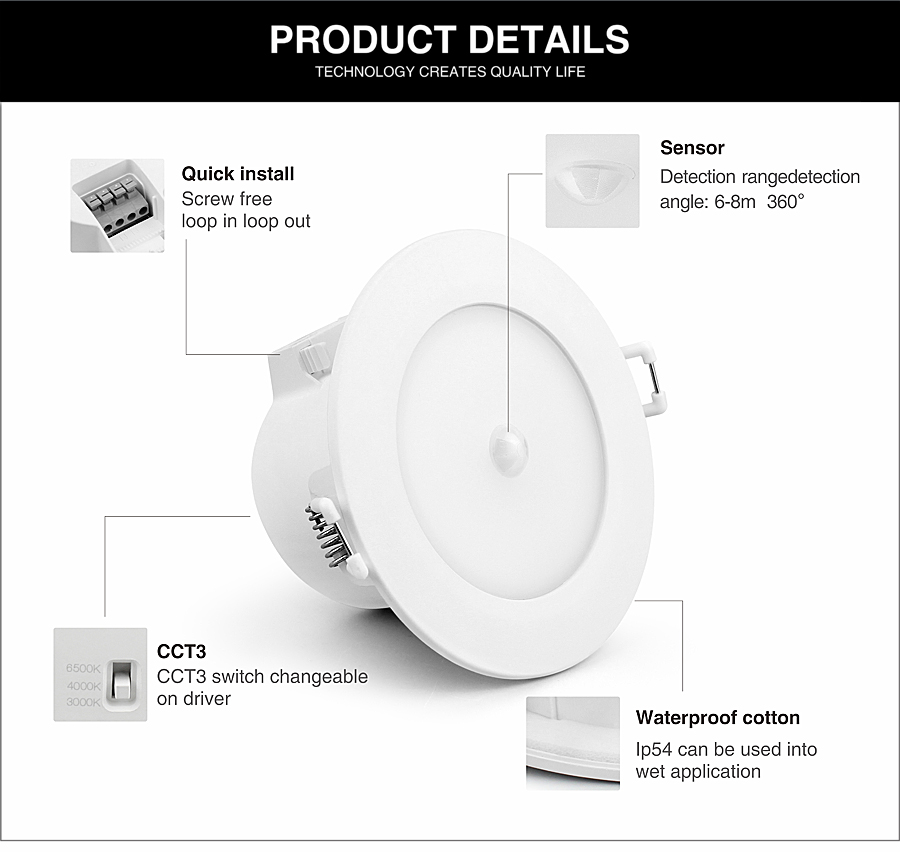

● Features
- Aluminum heat sink
- Tooling free installation design
- Sensor design, detection range angle: 6-8m, 360°
- CE, NEW ERP, EMC, ROHS approved
- Aluminum housing for excellent heat dissipation
- Heat protection system, with excellent internal driver
- Can be installed directly in to the insulation with extra frame
- Four colors bezel changable, brush nickle, silver, chrome and black
- Life span 30000hours

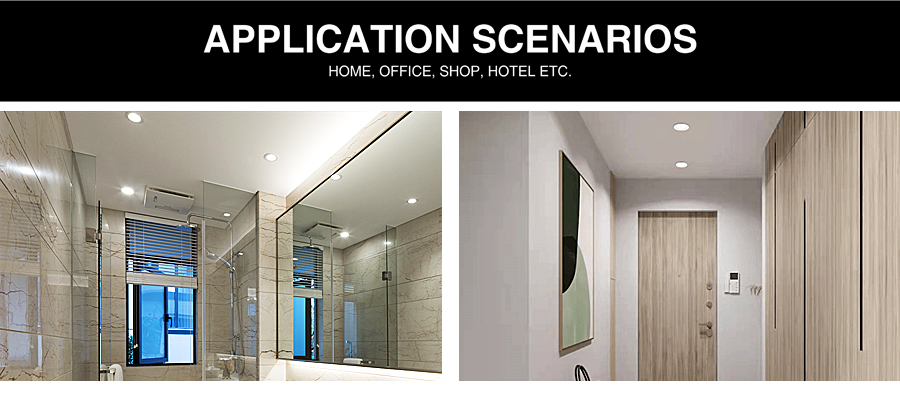

● Applications
CLIO sensor downlight with detection range angle for 6-8m and 360° can meet your different ceiling styles
- Living room. bedroom. bathroom. kitchen.
- Office. meeting room.
- Shop. supermarket.
- Hotel

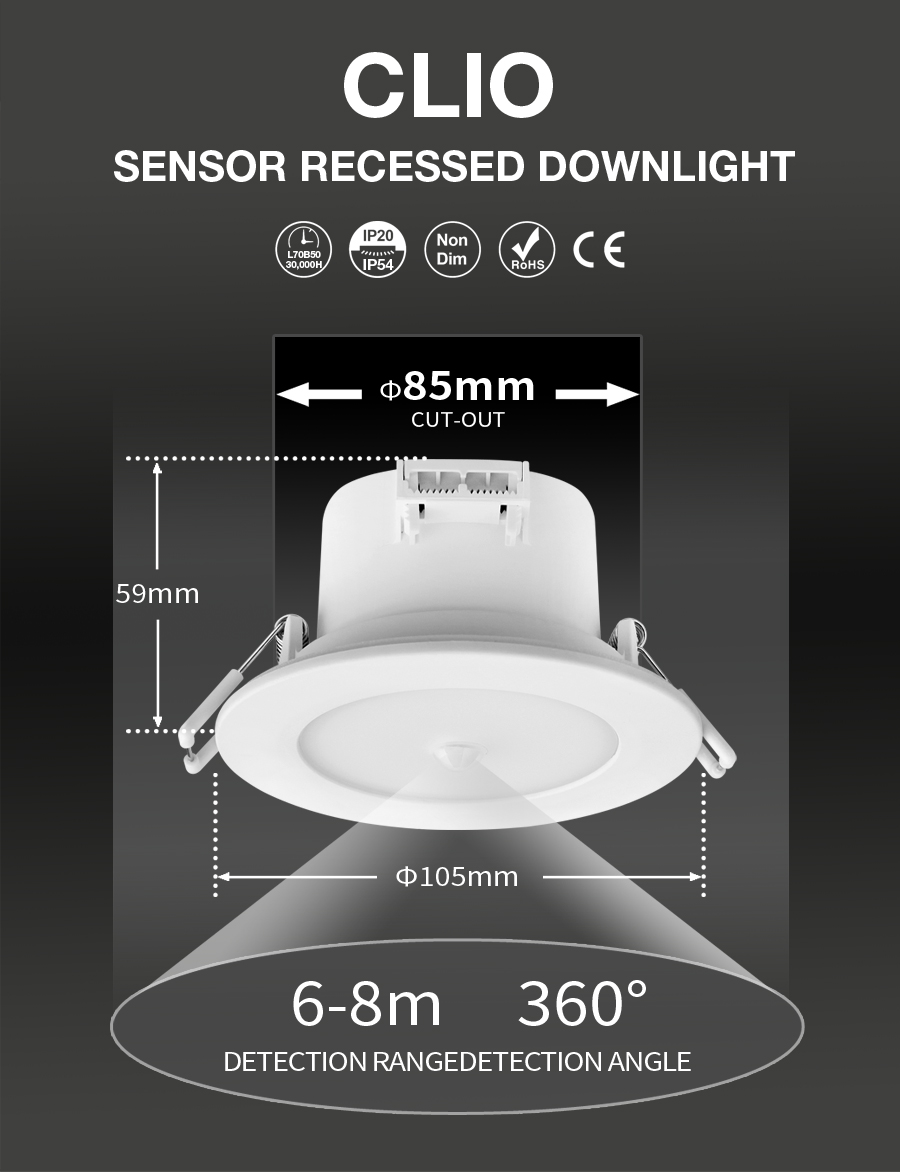

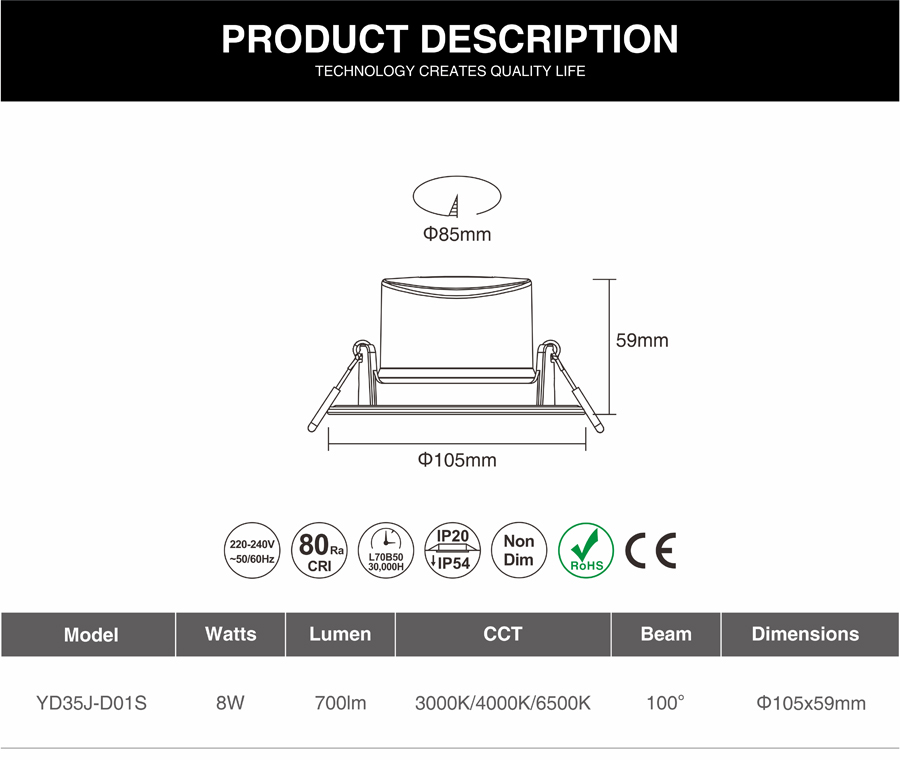

● Specification
| SPECIFICATION |
| Item NO. |
SKU |
Lumen(lm) |
CRI |
CCT |
Watt (W) |
PF |
Beam angle (°） |
Size
（Dia * H mm) |
Cut size (mm) |
| 926602006831 |
YD35J-PW008-8C2 |
650
700
700 |
80 |
F3000
H4000
F6500 |
8 |
0.5 |
100 |
ø105 |
57 |
ø85 |

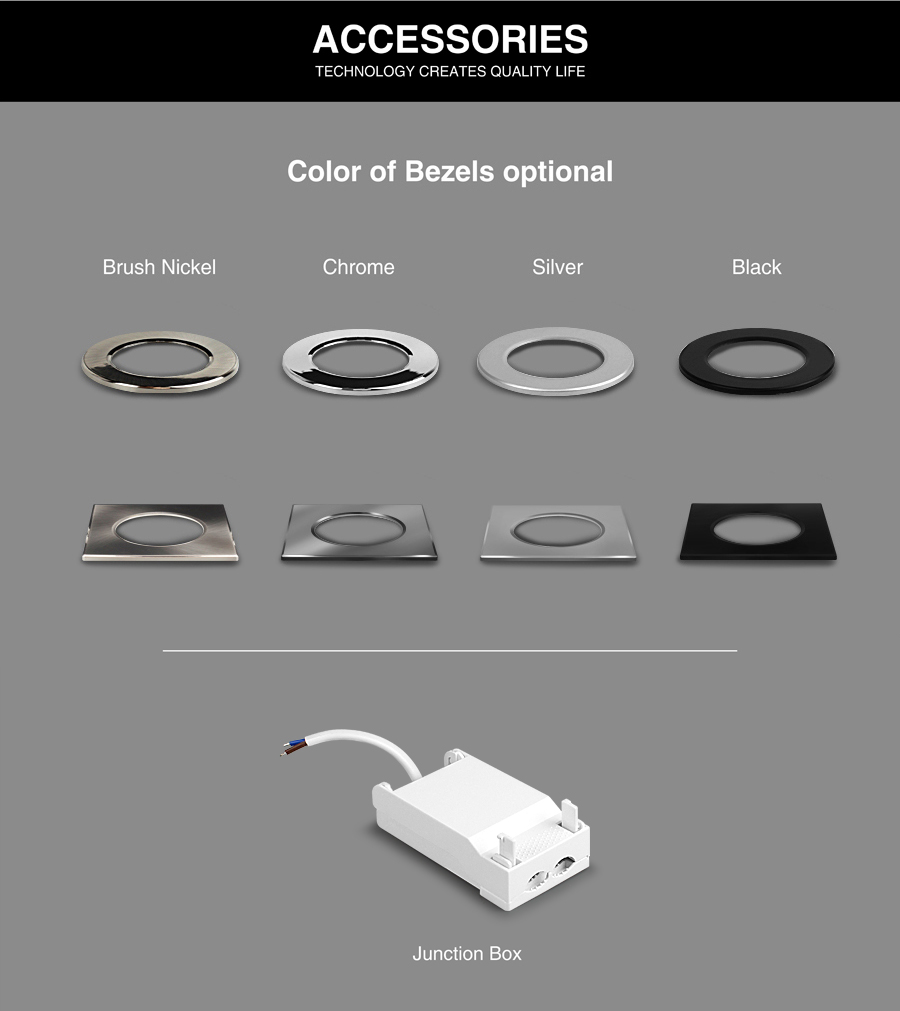

● Accessories Optional
- Bezel shape: round, square.
- Bezel colors: brush nickel, chrome, silver, black
- Juction box

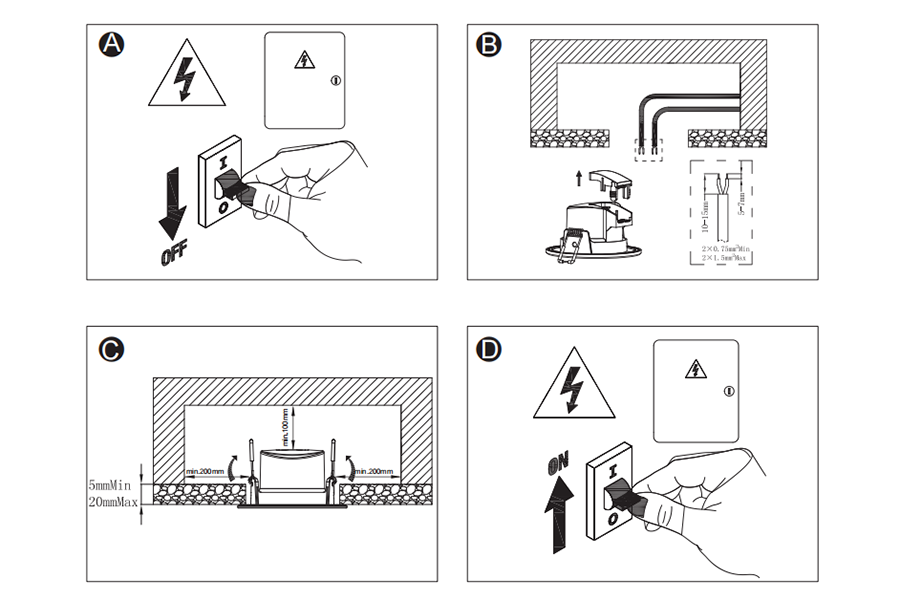

● Installation
- Make sure power is off before installation.
- Cut a suitable hole in the ceiling , the hole size will show on the specification form.
- Connect wires to the wire box .(image A)
- Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.
● Brief introduction of ADAYO Lighting
- A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
- Industrial park: 56000sqm
- Business line: LED package, LED high power driver, LED Lighting
- R&D laboratory: 1200sqm with international standard
- R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
- Work shop: 5000 SQM with more than 300 works and 50 production lines
- Monthly Capacity(Pieces) : package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K, LED light: 5000K
- New product lunch time: 6-10 weeks.
- Payment: L/C, T/T, O/A
