ADAYO Lighting supply small led ceiling lights, OEM bathroom spotlights ip65 with new ERP and EMC. qualified with ISO9001 and ISO14001

Sofia A IP65 downlight 7w indoorlight dimmer homelights

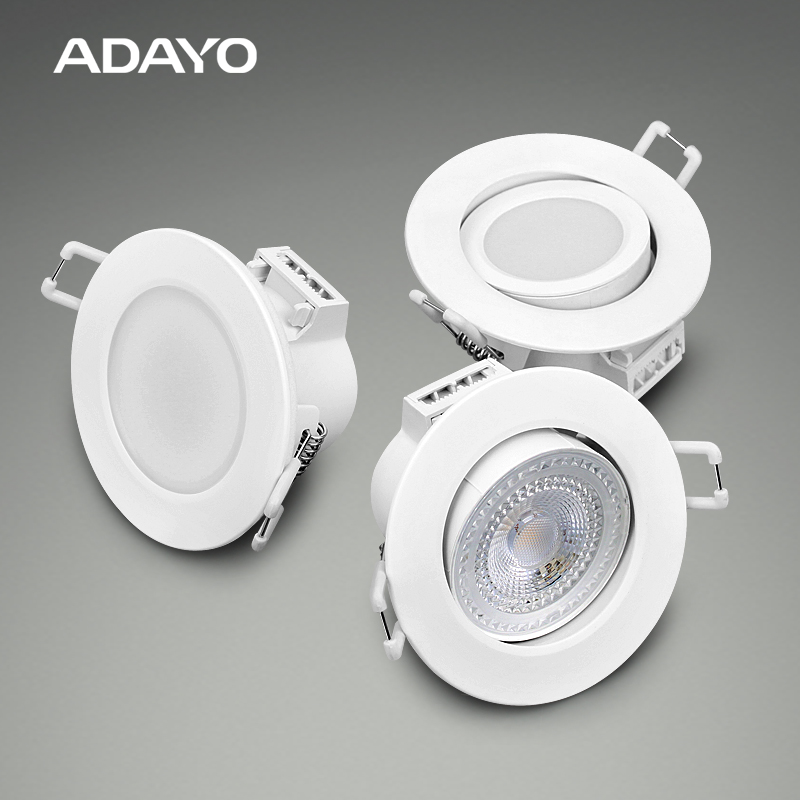

Sofia A G3 DIY downlight is a dimmable kitchen ceiling light fitting: IP65; 100° widely bright feeling; bathroom rated; four colors available for bezels

Product Specification:
  • Code : 926602005828
  • Wattage : 7W
  • Luminous : 500lm
  • Colour Temperature : 2700K
  • Colour Rendering : >80
  • Size : Φ87*47mm, cut Φ68mm
  • PF : >0.8
  • Dimmable : yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

Sofia A IP65 downlight 2700K 7w downlight is dimmer downlights with classic minimalist desing, tool-free installation, CCT3, dimmable, IP65,bezel changeable, Ecomomical and relally ideal for DIY lighting market.



SofiaAip65downlights



●  Features

ADAYO lighting 2700k led downlight 7w dimmable spot lights features as below:

  • Aluminum heat sink
  • Tooling free installation design
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • Three designs: IP65 fix, IP44 adjustable, IP20 adjustable with Lens beam angle 38 degree
  • Aluminum housing for excellent heat dissipation
  • Heat protection system, with excellent internal driver
  • Four colors bezel changable, brush nickle, silver, chrome and black
  • Smooth triac dimming
  • Life span 25000hours





SofiaAip65downlights

●  Applications

Sofia A G3 DIY downlight is a dimmable kitchen ceiling light fittings IP65, with 100degree angle widely bright feeling, as a bathroom rated downlights with four colors bezel changeable meet your different ceiling styles

  • Living room. bedroom. bathroom. kitchen.
  • Office. meeting room.
  • Shop. supermarket.
  • Hotel

SofiaAip65downlights



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602005886  DY25H-W040A0-127 380 80 P2700 5.5 0.7 100 ø87 47 ø70
926602005887   DY25H-W040A0-130 400 80 F3000 5.5 0.7 100 ø87 47 ø70
926602005888  DY25H-W040A0-140 440 80 P4000 5.5 0.7 100 ø87 47 ø70
926602005891

DY25H-W040A0-165

440 80 F6500 5.5 0.7 100 ø87 47 ø70
926602005828  DY25H-W050A2-027 500 80 P2700 7.3 0.8 100 ø87 47 ø70
926602005733   DY25H-W050A0-030 520 80 P3000 7 0.7 100 ø87 47 ø70
926602005734   DY25H-W050A0-040 570 80 P4000 7 0.7 100 ø87 47 ø70
926602005735  DY25H-W050A0-065 570 80 P6500 7 0.7 100 ø87 47 ø70
926602006289   YD25H-AW060-C2AW 550
630
600
80 P3000
4200
P6500
7 0.85 100 ø87 47 ø70
926602006717  YD25H-AW060-C6-3 620
700
680
80 F3000
B4000
P5700
7 0.85 100 ø87 47 ø70




SofiaAip65downlights



●  Options

  • Dimmable and no-dimmable
  • Signle Colour temperature, CCT3
  • Switch dim to warm
  • Decorate bezel: bruch nickel, chrome, silver, black
  • Covering brackets suppot insulation
  • White and black finished

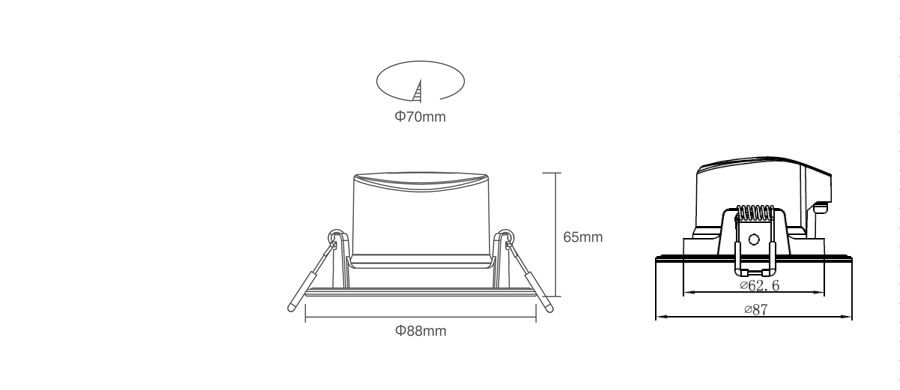

●  Product Line Drawing (Size:mm)

● Accessories Optional

  • Bezel shape: round. square.
  • Bezel colors: brush nickel, chrome, silver, black
  • Juction box
  • External driver
  • Metal extra frame



SofiaAip65downlights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.

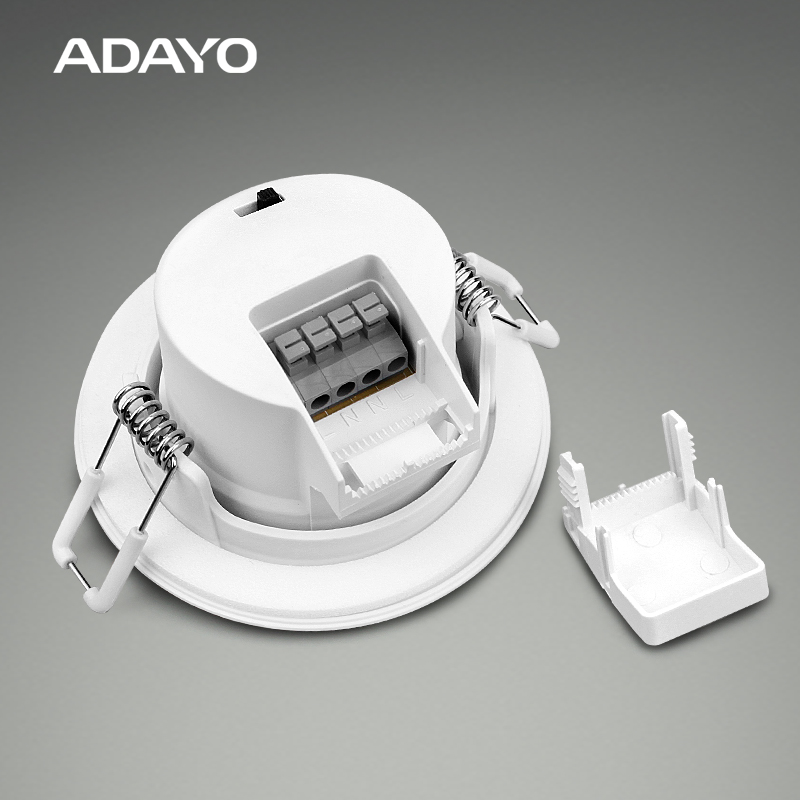

  • Connect wires to the wire box .(image A)
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



SofiaAip65downlights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A






PDF File DIY G3 downlight IP44+IP65 LVD Certificate 4360716

PDF File DIY G3 downlight+G1.5 EMC certificate 4350485.01-

PDF File DIY G3 downlight+G1.5 4360716.51-IEC TR62778TRF.p

PDF File DIY G3 downlight+G1.5 Light source report 4350486

PDF File ADAYO G3DIY ROHS.PDF
